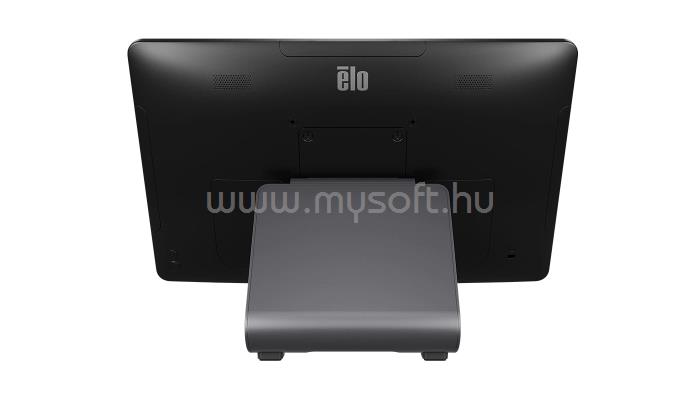

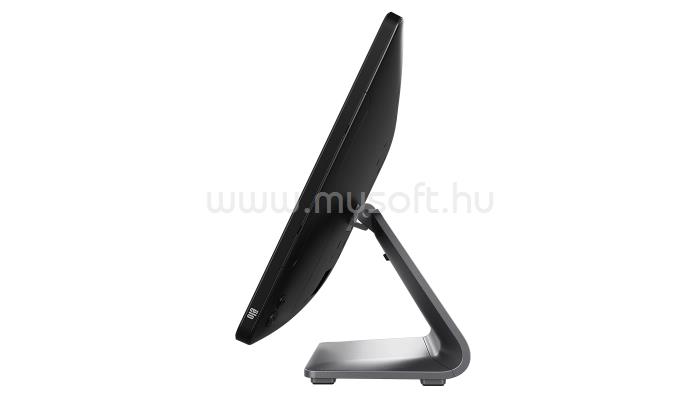

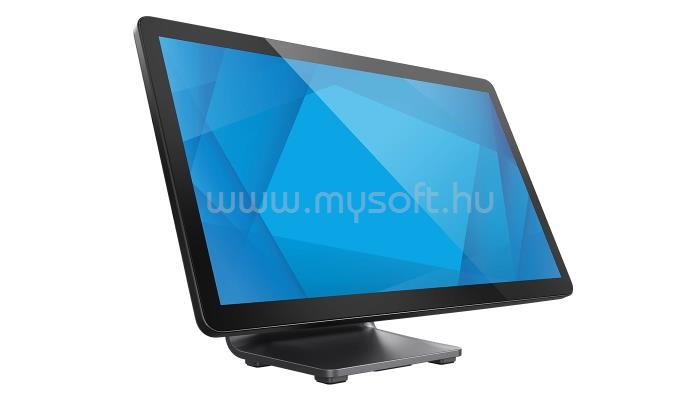

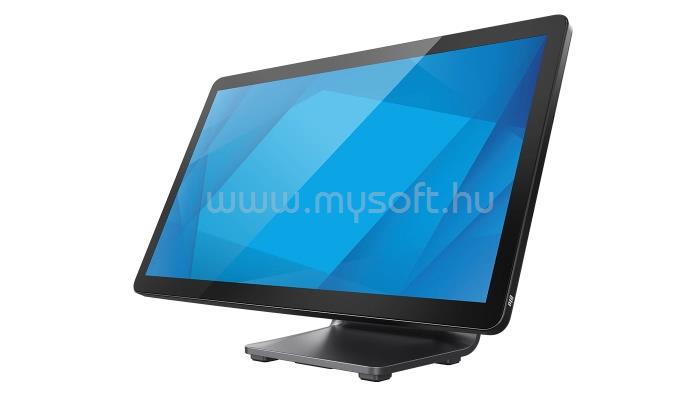

ELO TOUCH ELO 1504L ÉRINTŐKÉPERNYŐS MONITOR ÁLLVÁNNYAL

Kijelző

• Képátló: 15.6"
  Felbontás: 1920x1080
  Panel: TFT-LCD
  Képarány: 16:9

Csatlakozók

• • 0x VGA
  • 0x DVI
  • 1x DisplayPort
  • 1x HDMI
  • TV-tuner

• Specification

• Touch Technology & Capacity
• PCAP (Projected Capacitive) - 10 Touch
• Diagonal Size
• 15.6'' diagonal, Active matrix TFT LCD (LED)
• Aspect Ratio
• 16:9
• Active Area
• 13.55" x 7.62" / 344.16 mm x 193.59 mm
• Resolution
• 1920 x 1080
• Other Supported Resolutions
• 640x480 60Hz
• 800x600 60Hz
• 1024x768 60Hz
• 1280x800 60Hz
• 1280x720 60Hz
• 1280x1024 60Hz
• 1366x768 60Hz, 60Hz RB
• 1440x900 60Hz, 60Hz RB
• 1680x1050 60Hz, 60Hz RB
• 1920x1080 60Hz
• Viewing Angle
• Horizontal: +/-89° or 178° total / Vertical: +/-89° or 178° total
• Number of Colors
• 16.7 million
• Brightness (typical)
• LCD panel: 450 nits
• PCAP: 405 nits
• Response Time-total (typical)
• 25 msec
• Contrast Ratio
• 1000:1
• Touch Interface
• USB
• Surface Treatment
• Anti-glare
• On Screen Display
• Accessible through touch OSD, and press Menu button to pop up touch OSD diagram.
• Controls: Menu, Power
• Settings: Brightness, Contrast, Aspect Ratio, Auto Scan, Sharpness, Color Temperature, Low Blue Light, Volume, Mute, OSD Timeout, OSD Language, Touch on Sleep mode ON/OFF, Power LED ON/OFF, Recall Defaults, Peripheral Port
• Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
• Lockouts: OSD, Power
• I/O Ports
• 1x USB Type-C
• 1x USB Type-A
• 1x Displayport
• 1x HDMI
• 1x DC jack
• 4x Micro-USB Elo Edge Connect ports
• Speakers
• 2 x 2W (+/-10%) internal speakers
• Video_1
• USB Type-C
• Displayport
• HDMI
• Input Video Horizontal Sync frequency range: 30 - 82KHz
• Input Video Vertical Sync (frame rate) frequency range: 60Hz
• Power
• Power Delivery compatible via USB Type-C connector or DC Jack (2.0mm pin outer diameter, 6.4mm barrel inner diameter)
• Power Consumption (Typical)
• ON (Default - 70% Brightness): 12.1W
• SLEEP: 1.0 W
• OFF: 0.25 W
• Monitor Dimensions (without Stand)
• 14.6" x 8.95" x 1.06" / 371 mm x 227.5 mm x 26.9 mm
• Shipping Box Dimensions
• With Stand: 17.76" x 13.46" x 8.66" / 451 mm x 342 mm x 220 mm
• Without Stand: 17.64" x 6.34" x 11.81" / 448 mm x 161 mm x 300 mm
• Weight (Unpackaged)
• With Stand: 6.39 lbs / 2.9 kg
• Without Stand: 3.74 lbs / 1.7 kg
• Weight (Packaged)
• With Stand: 12.33 lbs / 5.6 kg
• Without Stand: 8.37 lbs / 3.8 kg
• Operating Temperature
• 0°C to 40°C / 32°F to 104°F
• Storage Temperature
• -20°C to 60°C / -4°F to 140°F
• Humidity
• Operating: 20% to 80%; Storage: 10% to 95% (38.7? max wet bulb temperature)
• MTBF
• 50,000 hours demonstrated
• Mounting Options
• VESA 4-hole 75mm and 100mm mounting interface on rear of unit
• See dimensional drawings for details.
• Other Features
• Energy Star 8.0
• TUV Rhineland (Low Blue Light)
• Power collection function via DDCCI
• PD (power delivery) out via USB-C (18W Max) for Elo Pay 7"
• Ingress Protection
• IP54
• Impact Protection
• IK08
• What's in the Box
• Touchmonitor
• Quick Install Guide
• EU EEI Label
• 2x UK EEI Label
• 1.8m HDMI cable
• 1.8 m USB cable (USB Type-A to Type-C)
• Power brick
• 1.8m NA Power cable
• 1.8m EU Power cable

Garancia fogyasztók részére

• 2 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 1 év gyártó által biztosított szervizgarancia
