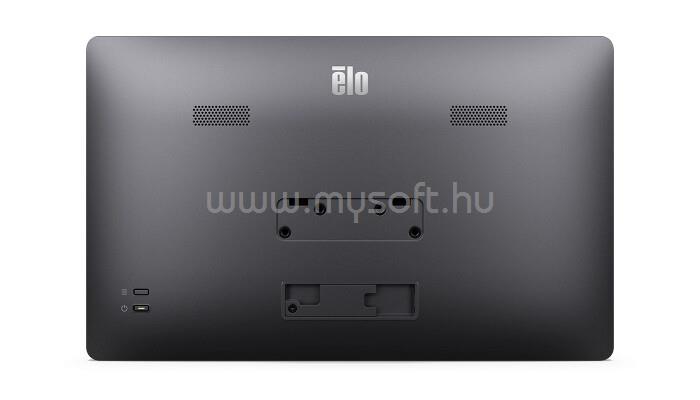

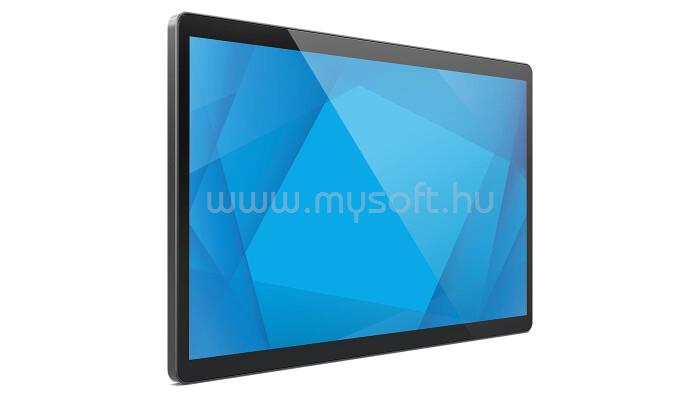

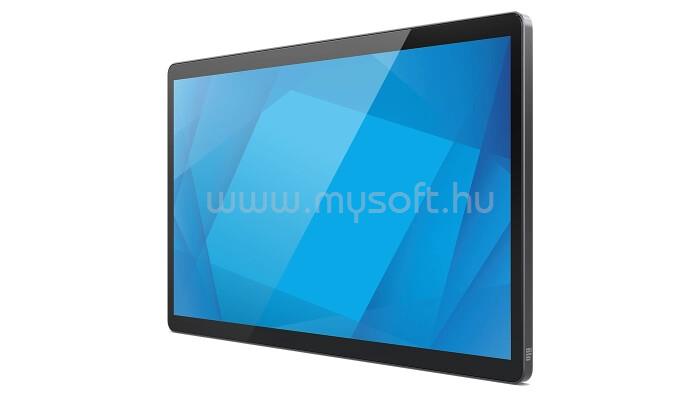

ELO TOUCH 1304LS ÉRINTŐKÉPERNYŐS MONITOR (USB-C)

Kijelző

• Képátló: 13.3"
  Felbontás: 1920x1080
  Panel: TFT-LCD
  Képarány: 16:9

Csatlakozók

• • 0x VGA
  • 0x DVI
  • 0x DisplayPort
  • 0x HDMI
  • TV-tuner

• Specification

• Touch Technology & Capacity
• PCAP (Projected Capacitive) - 10 Touch
• Diagonal Size
• 13.3'' diagonal, Active matrix TFT LCD
• Aspect Ratio
• 16:9
• Active Area
• 11.57" x 6.51" / 293.76 mm x 165.24 mm
• Resolution
• 1920 x 1080
• Other Supported Resolutions
• 640x480 60Hz
• 800x500 60Hz
• 800x600 60Hz
• 1024x768 60Hz
• 1280x800 60Hz
• 1280x720 60Hz
• 1280x1024 60Hz
• 1366x768 60Hz, 60Hz RB
• 1440x900 60Hz, 60Hz RB
• 1680x1050 60Hz, 60Hz RB
• 1920x1080 60Hz
• Viewing Angle
• Horizontal: +/-89° or 178° total / Vertical: +/-89° or 178° total
• Number of Colors
• 16.2 million
• Brightness (typical)
• Panel: 300 nits; TouchPro PCAP: 270 nits
• Response Time-total (typical)
• 27 msec
• Contrast Ratio
• 600:1
• Touch Interfaces
• USB
• Surface Treatment
• Anti-glare
• On Screen Display
• Accessible through touch OSD, and press Menu button to pop up touch OSD diagram.
• Controls: Menu, Power
• Settings: Brightness, Contrast, Color Temperature, Low Blue Light, Volume, Mute, OSD Timeout, OSD Language, Sharpness, Touch on Sleep mode ON/OFF, Power LED ON/OFF, Recall Defaults
• Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese,
• Lockouts: OSD, Power
• I/O Ports
• USB Type-C connector
• Speakers
• 2 x 2W (+/-10%) internal speakers
• Video
• USB Type-C connector
• Input Video Horizontal Sync frequency range: 30 - 82KHz
• Input Video Vertical Sync (frame rate) frequency range: 60Hz
• Power
• Power Delivery compatible via USB Type-C connector
• Power Consumption (Typical)
• ON (Default - 100% Brightness): 6.6W
• SLEEP: 0.8 W
• OFF: 0.15 W
• Monitor Dimensions (without Stand)
• Without VESA Adapter: 12.27" x 7.56" x 0.59" / 311.52 mm x 191.86 mm x 14.88 mm
• With VESA Adapter: 12.27" x 7.56" x 0.79" / 311.52 mm x 191.86 mm x 19.88 mm
• Shipping Box Dimensions
• 14.88" x 9.92" x 3.62" / 378 mm x 252 mm x 92 mm
• Weight (Unpackaged)
• 1.92 lbs / 0.87 kg
• Weight (Packaged)
• 3.42 lbs / 1.55 kg
• Operating Temperature
• 0°C to 40°C / 32°F to 104°F
• Storage Temperature
• -20°C to 60°C / -4°F to 140°F
• Humidity
• Operating: 20% to 80%; Storage: 10% to 95% (38.7 ? max wet bulb temperature)
• MTBF
• 50,000 hours demonstrated
• Mounting Options
• VESA via 4-hole 75mm mounting adapter on rear of unit.
• Other Features
• Energy Star 8.0
• TUV Rhineland (Low Blue Light)
• Power collection function via DDCCI
• Impact Protection
• IK07

• What's in the Box

• Touchmonitor
• Quick Install Guide
• USB Type-C cable
• 75mm VESA adapter (assembled)

Garancia fogyasztók részére

• 2 év kötelező jótállás + 1 év gyártó által biztosított szervizgarancia

Garancia nem fogyasztók részére

• 3 év gyártó által biztosított szervizgarancia
