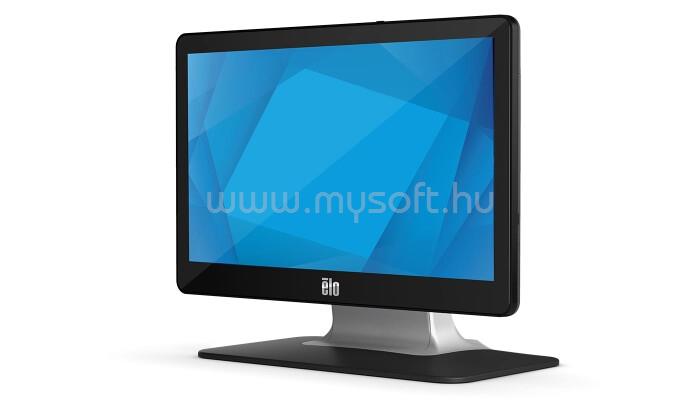

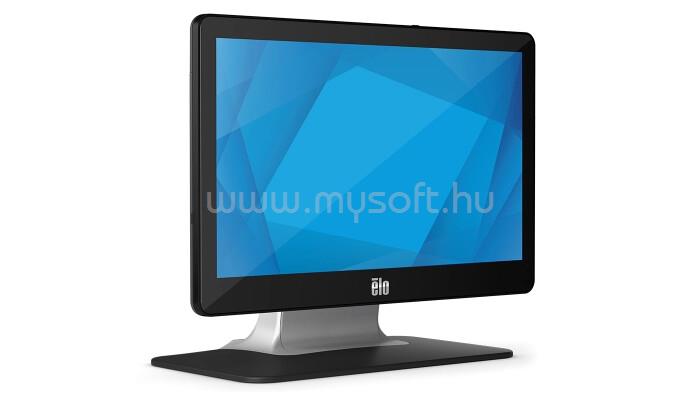

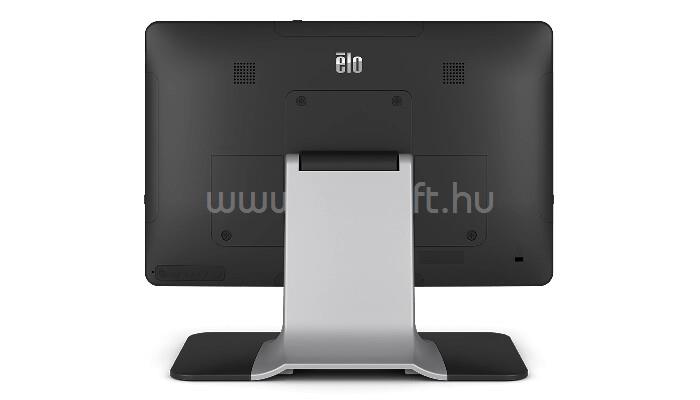

ELO TOUCH 1302L ÉRINTŐKÉPERNYŐS MONITOR ÁLLVÁNNYAL (FEKETE)

Kijelző

• Képátló: 13.3"
  Felbontás: 1920x1080
  Panel: TFT-LCD
  Képarány: 16:9

Csatlakozók

• • 1x VGA
  • 0x DVI
  • 0x DisplayPort
  • 1x HDMI
  • TV-tuner

• Specifications

• Touch Technology & Capacity
• PCAP (Projected Capacitive) - 10 Touch
• Diagonal Size
• 13.3'' diagonal, Active matrix TFT LCD
• Aspect Ratio
• 16:9
• Active Area
• 11.57" x 6.51" / 293.76 mm x 165.24 mm
• Resolution
• 1920 x 1080
• Other Supported Resolutions
• 640 x 480 60Hz
• 640 x 400 70Hz
• 720 x 400 70Hz
• 720 x 576 50Hz
• 800 x 600 60Hz
• 1024 x 768 60Hz
• 1280 x 720 50, 60Hz
• 1280 x 800 60Hz, 60Hz RB
• 1280 x 960 60Hz
• 1280 x 1024 60Hz
• 1360 x 768 60Hz
• 1366 x 768 60Hz, 60Hz RB
• 1440 x 900 60Hz, 60Hz RB
• 1680 x 1050 60Hz, 60Hz RB
• 1920 x 1080 50, 60Hz
• Viewing Angle
• Horizontal: +/-85° or 170° total / Vertical: +/-85° or 170° total
• Number of Colors
• 16.7 million
• Brightness (typical)
• Panel: 300 nits; TouchPro PCAP: 270 nits
• Response Time-total (typical)
• 25 msec
• Contrast Ratio
• 800:1
• Touch Interfaces
• USB
• Surface Treatment
• Anti-glare
• On Screen Display
• Accessible through switches along the bottom:
• Controls: Menu, Up, Down, Select, Power
• Settings: Brightness, Contrast, Clock, Phase, H-Position, V-Position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Recall Defaults, Video Priority, Information, Touch on Sleep Mode, Energy Saver, Panel Saver, Mute, Volume, Audio Source
• Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese,
• Lockouts: OSD, Power
• I/O Ports
• 1 x Full-function USB-C (Requires PD [Power Delivery], USB 3.0 and Display Port)
• 1 x Audio jack (Line-in)
• 1 x VGA
• 1 x HDMI
• 1 x 12V D/C input
• 4x Micro-USB ports (Top, Bottom, Left, Right) for Elo Edge Connect peripherals
• Speakers
• 2 x 1W
• Video
• HDMI V1.3 Type A receptacle for HDMI input
• Analog VGA
• USB Type-C
• Input Video Frequency
• Horizontal: 30 - 75K KHz
• Vertical: 60Hz
• Power
• Option 1 - USB Type-C Input voltage range: 5V?5% 3A / 9V?5% 3A / 15V?5% 1.8A / 20V?5% 1.35A
• Option 2 - External DC Adapter 12V/36W in box
• Monitor input power connector: Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) Barrel depth)
• Monitor input voltage range: 12VDC +/- 5%
• Adapter output power connector: DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) Barrel length)
• Adapter input voltage range: 100-240 VAC
• Input frequency: 50-60 Hz
• Power Consumption (Typical)
• Monitor + adapter
• ON: 8.2W
• SLEEP: 1.2W
• OFF: 0.18W
• Monitor Dimensions (without Stand)
• 8.32" x 12.84" x 0.99" / 211.30 mm x 326.06 mm x 25.05 mm
• Monitor Dimensions (with Stand)
• 10.22" x 12.84" x 5.91" / 259.57 mm x 326.06 mm x 150 mm
• Shipping Box Dimensions
• With Stand: 13.11" x 16.34" x 8.66" / 333 mm x 415 mm x 220 mm
• Weight (Unpackaged)
• With Stand: 5.11 lbs / 2.32 kg
• Weight (Packaged)
• With Stand: 10.19 lbs / 4.62 kg
• Operating Temperature
• 0°C to 40°C / 32°F to 104°F
• Storage Temperature
• -20°C to 60°C / -4°F to 140°F
• Humidity
• Operating: 20% to 80%; Storage: 10% to 95% (38.7 ? max wet bulb temperature)
• MTBF
• 50,000 hours demonstrated
• Mounting Options
• VESA 75mm x 75mm (4-hole)
• Ingress Protection
• IPX1 for front side
• Impact Protection
• IK07

• What's in the Box

• Touchmonitor
• HDMI cable
• Touch USB Cable (USB Type-A to Type-C)
• Quick Install Guide
• EEI Label
• Power brick
• NA Power cable
• EU Power cable
• 3x Tie wraps
• 2x screws for cable cover(s)

Garancia fogyasztók részére

• 2 év kötelező jótállás + 1 év gyártó által biztosított szervizgarancia

Garancia nem fogyasztók részére

• 3 év gyártó által biztosított szervizgarancia
