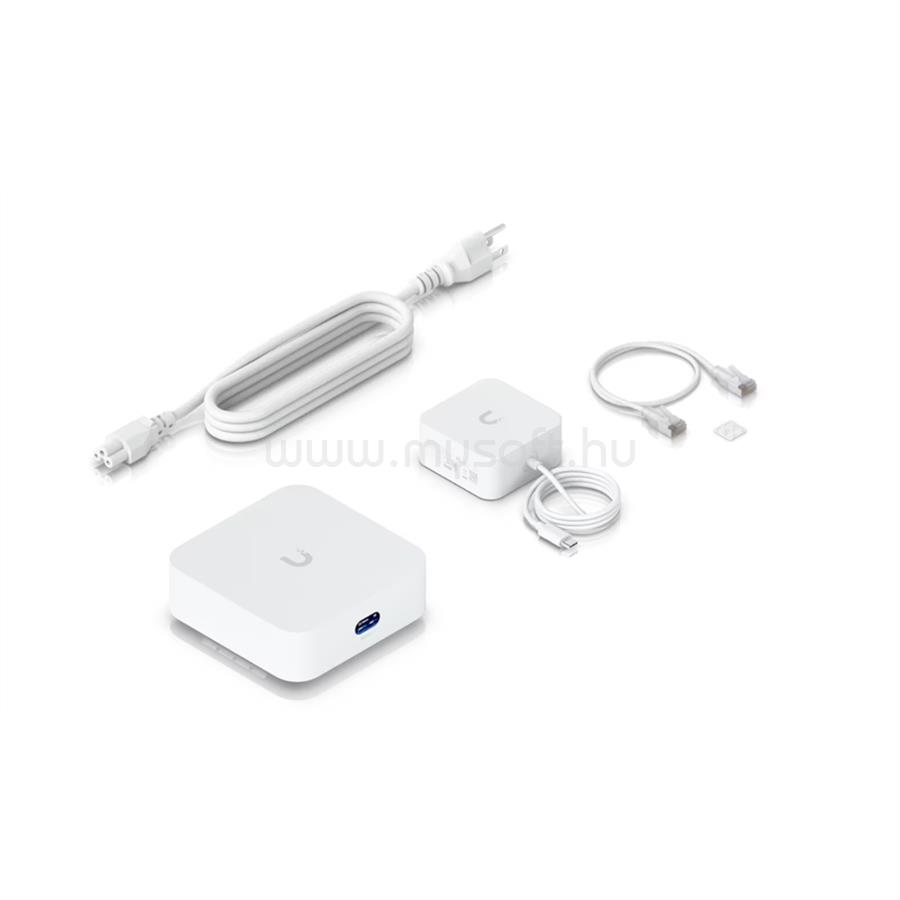

UBIQUITI UX7 VEZETÉKES ROUTER GATEWAY ÉS ACCESSPOINT TRIBAND, 1X2,5GBIT (LAN) + 1X10GBIT (WAN), WIFI7 ASZTALI

• Overview

• Dimensions
• 117 x 117 x 42.5 mm (4.61 x 4.61 x 1.67'')
• UniFi Application Suite
• Network
• Yes
• Managed UniFi Devices
• 30
• Simultaneous Users Connected
• 300
• Default WAN Ports
• (1) 10 GbE RJ45
• LAN Ports
• (1) 2.5 GbE RJ45
• IDS/IPS Throughput
• 2.3 Gbps
• Form Factor
• Compact desktop
• Coverage Area
• 160 m2 (1,750 ft2)

• Security

• Stateful Firewall
• Yes
• Application-Aware Layer 7 Firewall
• Yes
• DPI & Traffic Identification
• Yes
• Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
• Yes
• Content Filtering
• Yes
• Intrusion Prevention (IPS/IDS)
• Yes
• Ad Blocking
• Yes
• IDS/IPS Signatures
• 20,000+ with CyberSecure
• VLAN/Subnet-based Traffic Segmentation
• Yes

• VPN & SD-WAN

• License-Free SD-WAN
• Yes
• Site-to-Site VPN
• Site Magic
• Yes
• IPsec
• Yes
• OpenVPN
• Yes
• VPN Server
• Identity Endpoint One-Click VPN
• Yes
• Teleport Zero-Configuration VPN
• Yes
• WireGuard
• Yes
• OpenVPN
• Yes
• L2TP
• Yes
• VPN Client
• OpenVPN
• Yes
• WireGuard
• Yes

• Networking

• Dynamic Routing
• OSPF
• Yes
• Advanced QoS
• Yes
• Multicast DNS (mDNS)
• Yes
• Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
• Yes
• Integrated RADIUS Server
• Yes
• RADIUS over TLS (RadSec)
• Yes
• Additional Internet Failover with UniFi LTE Backup
• Yes
• Internet Quality and Outage Reporting
• Yes
• Policy-based WAN and VPN Routing
• Yes
• Customizable DHCP Server
• Yes
• IPv6 ISP Support
• Yes
• IGMP Proxy
• Yes

• Integrated WiFi

• WiFi Standard
• 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
• Throughput
• 6 GHz
• 5.7 Gbps
• 5 GHz
• 4.3 Gbps
• 2.4 GHz
• 688 Mbps
• MIMO
• 6 GHz
• 2 x 2 (DL/UL MU-MIMO)
• 5 GHz
• 2 x 2 (DL/UL MU-MIMO)
• 2.4 GHz
• 2 x 2 (DL/UL MU-MIMO)
• Antenna Gain
• 6 GHz
• 6 dBi
• 5 GHz
• 7 dBi
• 2.4 GHz
• 4 dBi
• Wireless Security
• WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
• Max. BSSIDs
• 4 per Radio (Gateway Mode)
• 4 per Radio (AP Mode)
• Supported Data Rates
• 802.11a
• 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b
• 1, 2, 5.5, 11 Mbps
• 802.11g
• 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11n
• 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
• 802.11ac (WiFi 5)
• 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
• 802.11ax (WiFi 6/6E)
• 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
• 802.11be (WiFi 7)
• 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)

• Hardware

• Max. Power Consumption
• 22W
• Power Method
• USB type C (5V DC/5A)
• Power Supply
• USB type C (5V DC/5A) (Adapter included)
• Max. TX Power
• 6 GHz
• 24 dBm
• 5 GHz
• 26 dBm
• 2.4 GHz
• 23 dBm
• Supported Voltage Range
• 100-240V AC
• Processor
• Quad-core ARM© Cortex©-A53 at 1.5 GHz
• System Memory
• 3 GB
• Weight
• 422 g (14.9 oz)
• Enclosure Material
• Polycarbonate
• LCM Display
• 0.96" status display
• Management
• Ethernet
• Bluetooth
• LEDs
• Ethernet
• Yes
• ESD/EMP Protection
• Air: +/- 8kV, contact: +/- 4kV
• Ambient Operating Temperature
• -10 to 40° C (14 to 104° F)
• Ambient Operating Humidity
• 5 to 95% noncondensing
• Certifications
• CE, FCC, IC
• Button
• (1) Factory-reset

• Software

• VLAN
• 802.1Q
• Guest Traffic Isolation
• Yes
• Application Requirements
• UniFi Network
• Version 9.0.108 and later
