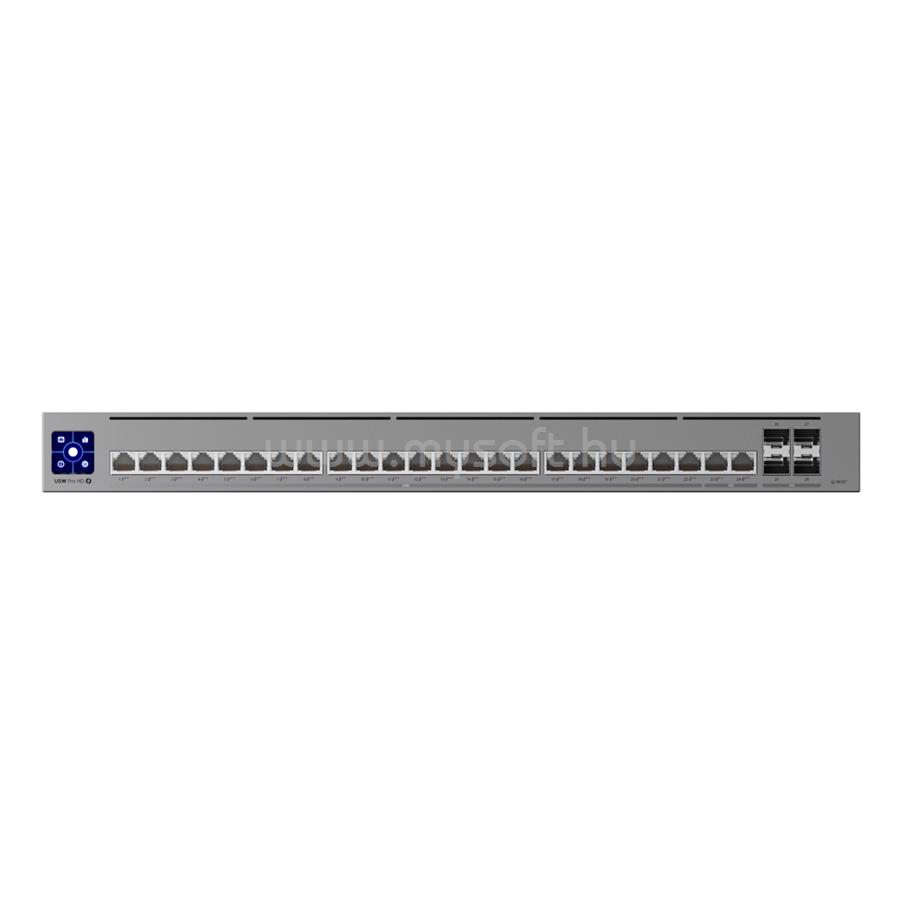

UBIQUITI PRO HD 24 POE SWITCH (22) 2.5 GBE, (2) 10 GBE POE++ PORTS, (4) 10G SFP+ PORTS

• Overview

• Dimensions
• 442 x 400 x 44 mm (17.4 x 15.7 x 1.7")
• Port Layout
• 2.5 GbE RJ45
• 22 (All PoE++) (2.5G/1G/100M/10M)
• 10 GbE RJ45
• 2 (All PoE++) (10G/5G/2.5G/1G/100M)
• 10G SFP+
• 4 (10G/1G)
• Max. PoE Output
• Up to PoE++
• Total PoE Availability
• 600W
• Redundancy
• DC Power Backup
• Layer 3
• Yes
• Form Factor
• Rack mount (1U)
• Etherlighting
• Yes

• Performance

• Switching Capacity
• 230 Gbps
• Total Non-Blocking Throughput
• 115 Gbps
• Forwarding Rate
• 171 Mpps
• Supported VLANs
• 1,000
• MAC Address Table Size
• 32,000
• L3 Table Size
• ARP Entries
• 12,000
• IPv4 Routes
• 12,000
• Packet Buffer Size
• 2 MB
• Access Lists
• IPv4
• 128
• MAC
• 128

• Layer 3 Features

• DHCP Server (Local Networks)
• DHCP Relay
• Inter-VLAN Routing (Local Networks)
• Static Routing (Local Networks)

• Layer 2 Features

• LACP Port Aggregation
• STP & RSTP
• QoS (DSCP)
• Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
• Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
• IGMP Snooping
• 802.1X Control
• MAC-Based ACLs & Device Isolation
• DHCP Snooping & Guarding
• Egress Rate Limit
• Flow Control
• Storm Control
• Multicast & Broadcast Rate Limiting
• MAC Address Blocking
• IP-Based ACLs & Network Isolation
• MAC-Based Port Restriction
• Port Isolation
• Port Mirroring
• Jumbo Frames
• LLDP-MED
• Voice VLAN
• Loop Protection

• Hardware

• PoE Ports
• PoE++
• 24
• Max. PoE Wattage per Port by PSE
• PoE
• 15.4W
• PoE+
• 30W
• PoE++
• 64W
• Max. Power Consumption
• 60W (Excluding PoE Output)
• 660W (Including PoE Output)
• Power Method
• (1) Universal input, 100-240V AC, 50/60 Hz
• (1) USP RPS DC input
• Power Input Method
• AC input
• Power Supply
• AC/DC, internal, 660W
• Supported Voltage Range
• 100-240V AC
• Management
• Ethernet
• AR
• Weight
• Without mounting brackets: 6.2 kg (13.7 lb)
• With mounting brackets: 6.3 kg (13.9 lb)
• Enclosure Material
• SGCC steel
• Mount Material
• SGCC steel
• Supported Rack Depth
• 600 - 1,200 mm
• (23.6- 47.2" )
• LCM Display
• 1.3" touchscreen
• Ambient Operating Temperature
• -5 to 40° C (23 to 104° F)
• Ambient Operating Humidity
• 10 to 90% noncondensing
• Etherlighting
• Ethernet
• Yes
• SFP+
• Yes
• NDAA Compliant
• Yes
• Certifications
• CE, FCC, IC

• Software

• Application Requirements
• UniFi Network
• Version 9.0.114 and later
