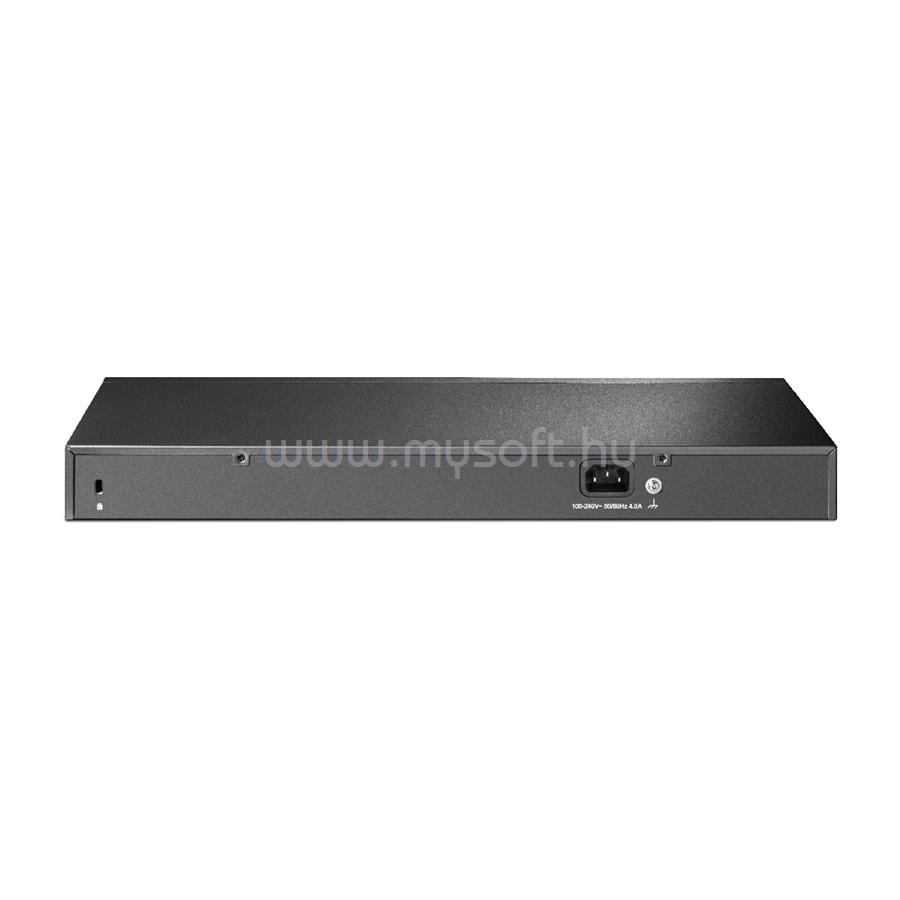

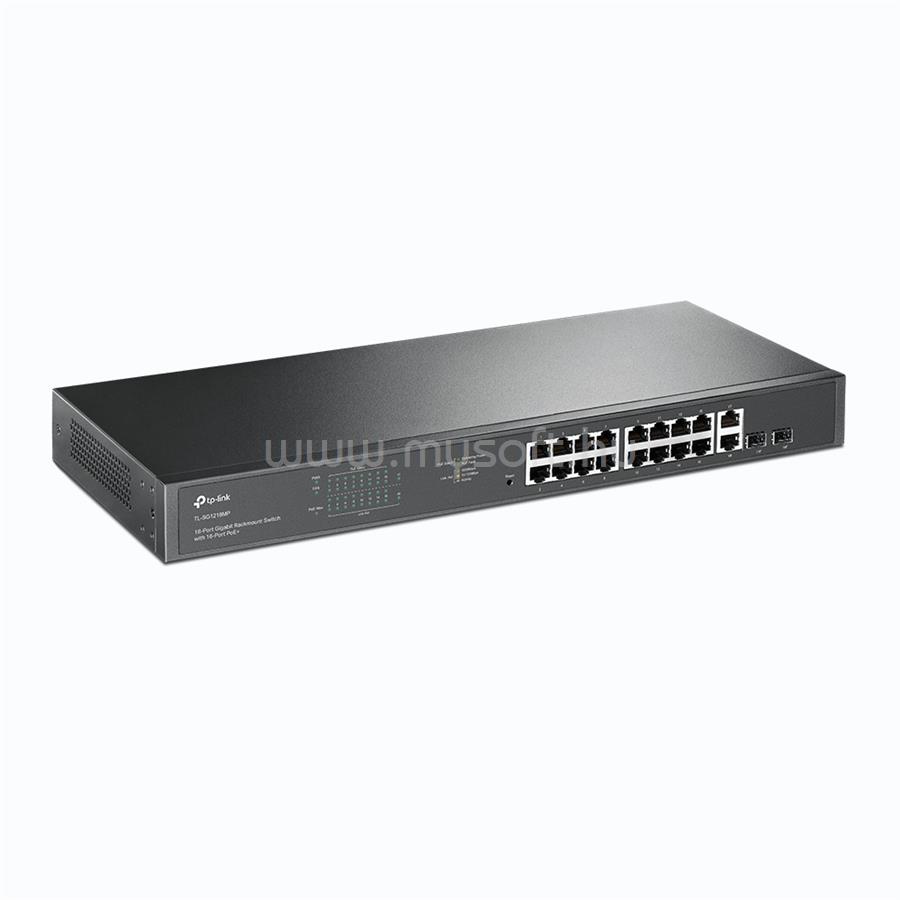

TP-LINK TL-SG1218MP SWITCH 18X1000MBPS (16XPOE+) + 2XGIGABIT SFP

• HARDWARE FEATURES

• Standards and Protocols
• IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
• Interface
• 16× PoE+ gigabit RJ45 ports
• 2× gigabit non-PoE RJ45 ports
• 2× combo gigabit SFP slots
• Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100? STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100? STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100? STP (maximum 100m)
• 1000BASE-X MMF, SMF
• Fan Quantity
• 2
• Physical Security Lock
• Yes
• Power Supply
• 100-240 VAC, 50/60 Hz
• PoE+ Ports(RJ45)
• Standard: 802.3at/802.3af compliant
• PoE Ports: Ports 1-16
• PoE Power Budget: 250 W
• Dimensions ( W x D x H )
• 17.3 × 7.1 × 1.73 in (440 × 180 × 44 mm)
• Mounting
• Rack Mountable
• Max Power Consumption
• 21.4 W (220/50 Hz. no PD connected)
• 286.64 W (220/50 Hz. with 250 W PD connected)
• Max Heat Dissipation
• 72.97 BTU/h (no PD connected)
• 977.44 BTU/h (with 250 W PD connected)

• PERFORMANCE

• Switching Capacity
• 36 Gbps
• Packet Forwarding Rate
• 26.78 Mbps
• MAC Address Table
• 8K
• Packet Buffer Memory
• 4.1 Mbit
• Advanced Functions
• Compatible With IEEE 802.3af/at Compliant PDs
• 802.1p/DHCP QoS
• Mac Address Auto-Learning And Auto-Aging
• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
• Jumbo Frame
• 10 KB

• OTHERS

• Package Contents
• TL-SG1218MP
• Installation Guide
• Power Cord
• Rackmount Kit
• Rubber Feet
• Environment
• Operating Temperature: 0-50 °C (32-122 °F)
• Storage Temperature: -40-70 °C (-40-158 °F)
• Operating Humidity: 10-90% RH non-condensing
• Storage Humidity: 5-90% RH non-condensing
