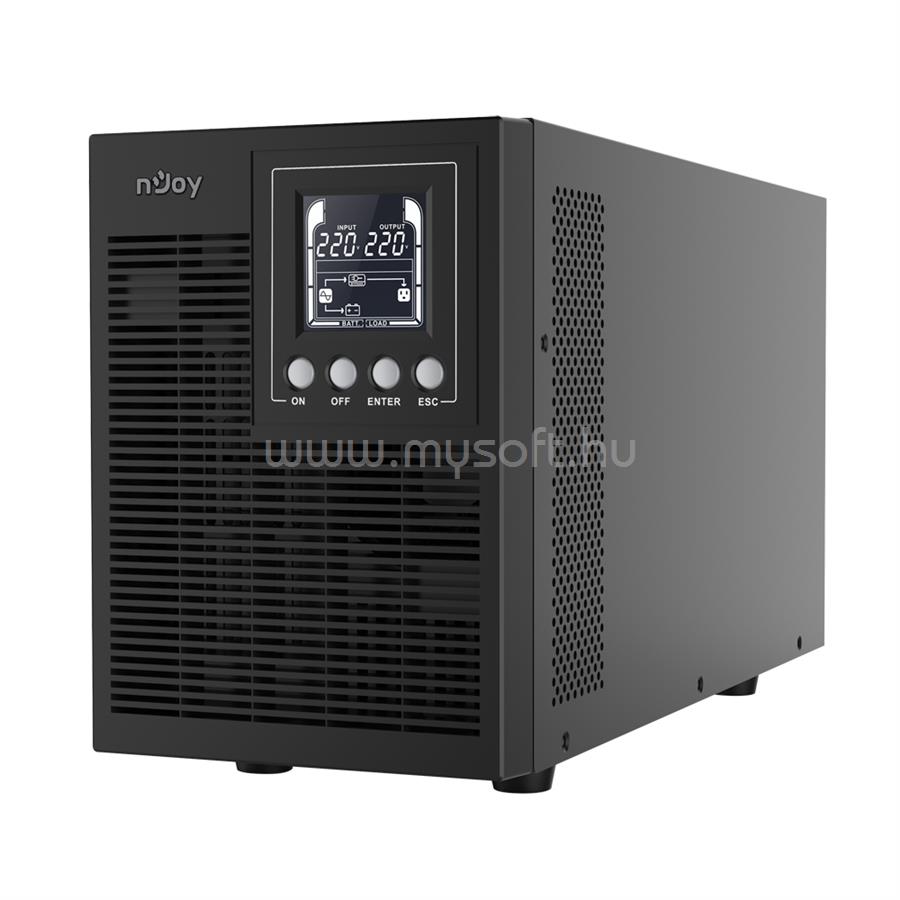

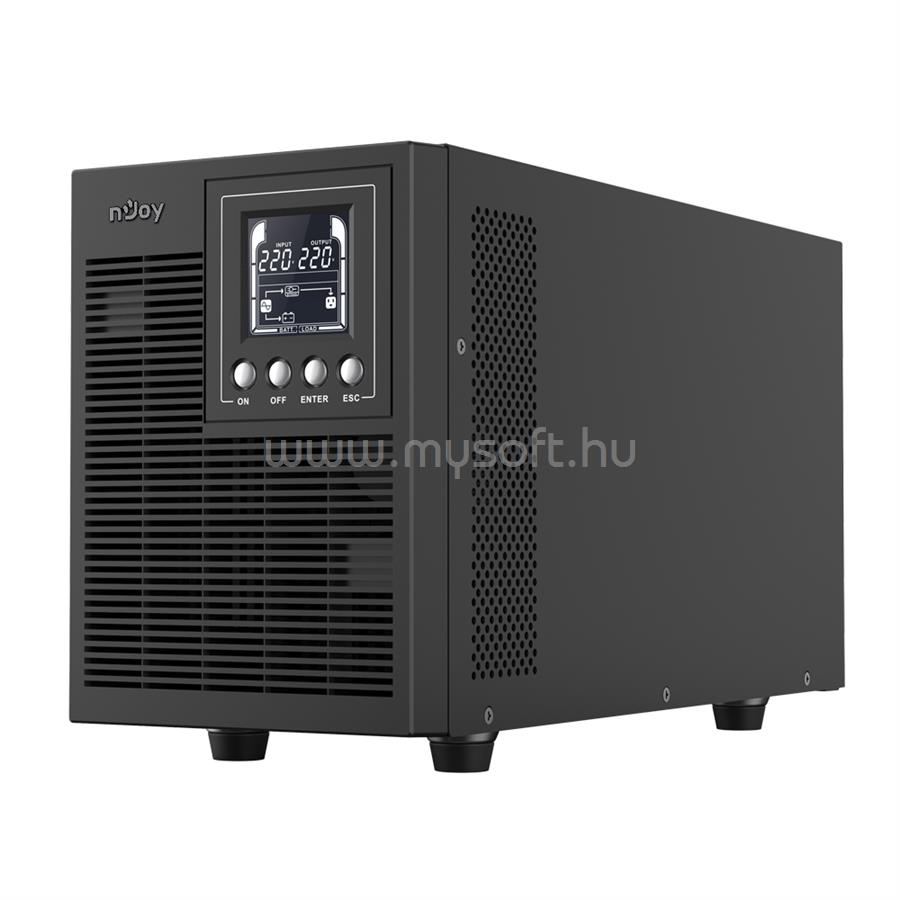

NJOY ECHO PRO 2000, 2000VA, 1600W, ONLINE, LCD DISPLAY SZÜNETMENTES TÁPEGYSÉG

• Specifications

• Capacity
• 2000 VA / 1600 W
• Type
• On-line

• Input

• Nominal Voltage
• 220-240 VAC
• Accepted Voltage Range
• 80 - 300 VAC
• Nominal frequency
• 50Hz / 60 Hz - user selectable
• Frequency Range
• 40 ~ 70 Hz
• Input surge protection
• 375 Joules

• Output

• Nominal Voltage
• 208/220/230/240 VAC - user selectable
• AC Voltage Regulation (Batt. Mode)
• +/-1%
• Frequency Range (Batt. Mode)
• 50 Hz / 60Hz +/- 0.5 Hz
• Current Crest Ratio
• 3:1
• Power Factor
• > 0.99 @ nominal voltage (100% load)
• Harmonic Distortion
• < 3 % THD (Linear Load)
• < 5 % THD (Non-linear Load)
• Waveform (Batt. Mode)
• Pure Sinewave
• Transfer time
• Typical 0 ms
• Eco mode 4 ms

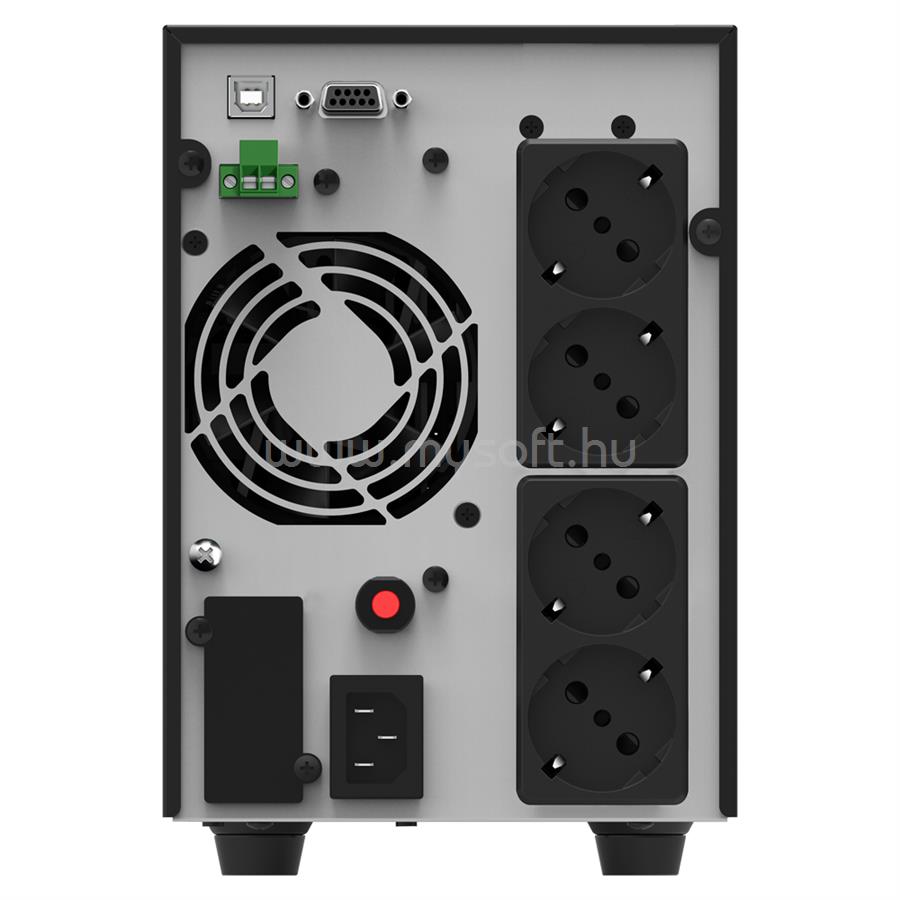

• Outlets type
• 4 x Schuko Battery Backup & Surge Protection

• Overload protection

• Line mode
• 105%-110%, warning only (No shutdown) 110%-120%, transfer to bypass after 60s >120%, Transfer to bypass immediately
• Battery mode
• 105%-110%, warning only (No shutdown) 110%-120%, shutdown after 10s >120%, shutdown immediately
• Bypass mode
• 110%-130%, warning only>130%, shutdown immediately

• Efficiency

• To AC Mode
• 88%
• To Battery Mode
• 85%
• ECO Mode
• 96%
• LCD Display
• Load Capacity, Load & Battery level, AC mode, Battery mode, Fault indicators
• Alarm
• Load Capacity, Load & Battery level, AC mode, Battery mode, Fault indicators

• Environement

• Humidity
• 0-90 % (non-condensing)
• Temperature
• 0-40° C
• Noise level
• Less than 40dB

• Battery

• Battery Type & Number
• 4 x GP07122F
• PN: BTVACGUOBTD2FCN01B
• Typical Recharge Time
• 4 hours up to 90% capacity
• Running time on battery (minutes)
• 25% Load - 17 min
• 50% Load - 7 min
• 75% Load - 3 min
• 100% Load - 1 min

• Management

• Connection ports
• HID USB, RS232, EPO, SNMP

• Physical

• Product dimensions
• 390 x 151 x 225 mm
• Product weight
• 16.6 kg
• Retail Pack Dimensions
• 510 x 241 x 313 mm
• Retail Pack Weight
• 17.53 kg

Garancia fogyasztók részére

• 2 év kötelező jótállás + 1 év gyártó által biztosított szervizgarancia

Garancia nem fogyasztók részére

• 3 év gyártó által biztosított szervizgarancia
