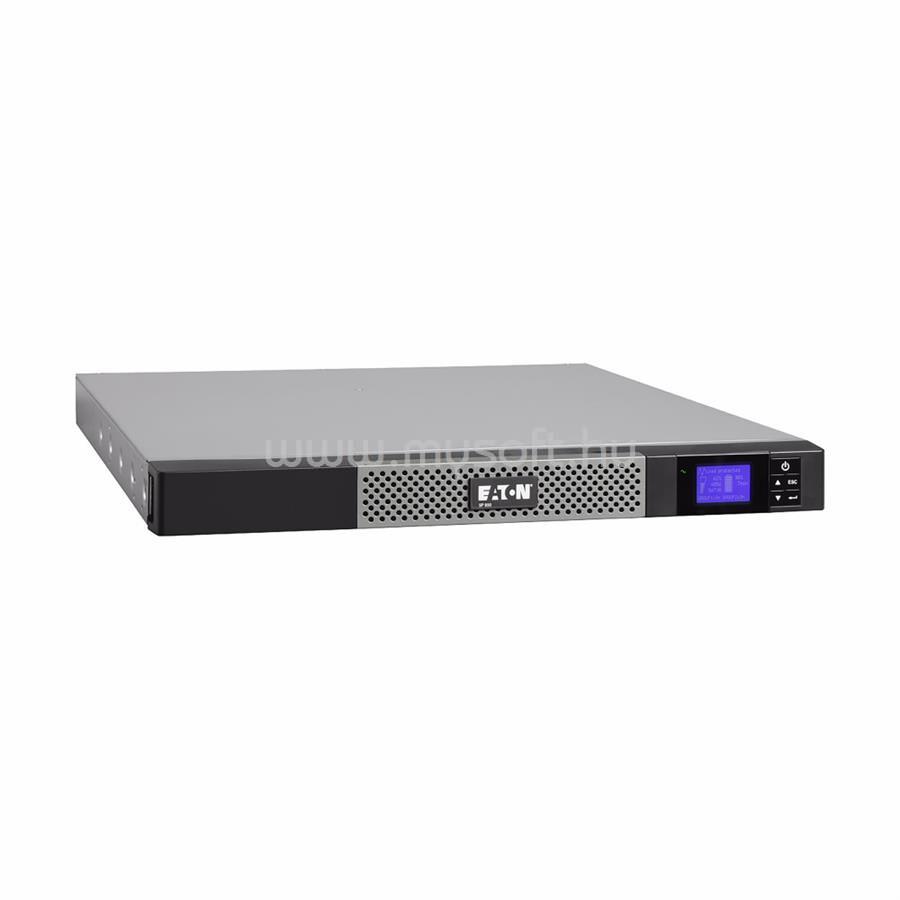

EATON UPS 850VA C13/C14 5P RACK VONALI-INTERAKTÍV SZÜNETMENTES TÁPEGYSÉG [BEMUTATÓ DARAB]

• GENERAL SPECIFICATIONS

• PRODUCT LENGTH/DEPTH
• 438 mm
• PRODUCT HEIGHT
• 43.2 mm
• PRODUCT WIDTH
• 509 mm
• PRODUCT WEIGHT
• 13.8 kg

• PRODUCT SPECIFICATIONS

• SECONDARY FREQUENCY - MAX
• 60 Hz
• OUTPUT WAVEFORM
• Sine wave
• WATTAGE
• 600 W
• OUTPUT POWER FACTOR
• 0.7
• FORM FACTOR
• Rack
• ENCLOSURE
• Black/silver
• INCLUDES NETWORK CARD
• No
• INPUT CONNECTION
• C14
• INPUT VOLTAGE - MIN
• 150 V
• OUTPUT VOLTAGE - MAX
• 240 V
• SECONDARY FREQUENCY - MIN
• 50 Hz
• SOFTWARE COMPATIBILITY
• Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
• BATTERY REPLACEMENT
• User replaceable
• BATTERY TYPE
• Lead-acid maintenance-free (replaceable)
• EFFICIENCY
• 97
• SPECIAL FEATURES
• Automatic Voltage Regulation (AVR)
• High-density protection for networks: 1U only
• Energy efficient, reduce energy and cooling costs
• Delivers clean sinewave output
• 1 slot for optional com card (Network management card, Relay card or Network and Industrial card)
• Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
• Fully integrates with Eaton Intelligent Power Manager software
• 1 USB port + 1 serial port
• Advanced Battery Management (ABM) technology to increase battery lifetime
• Next-generation graphical LCD display

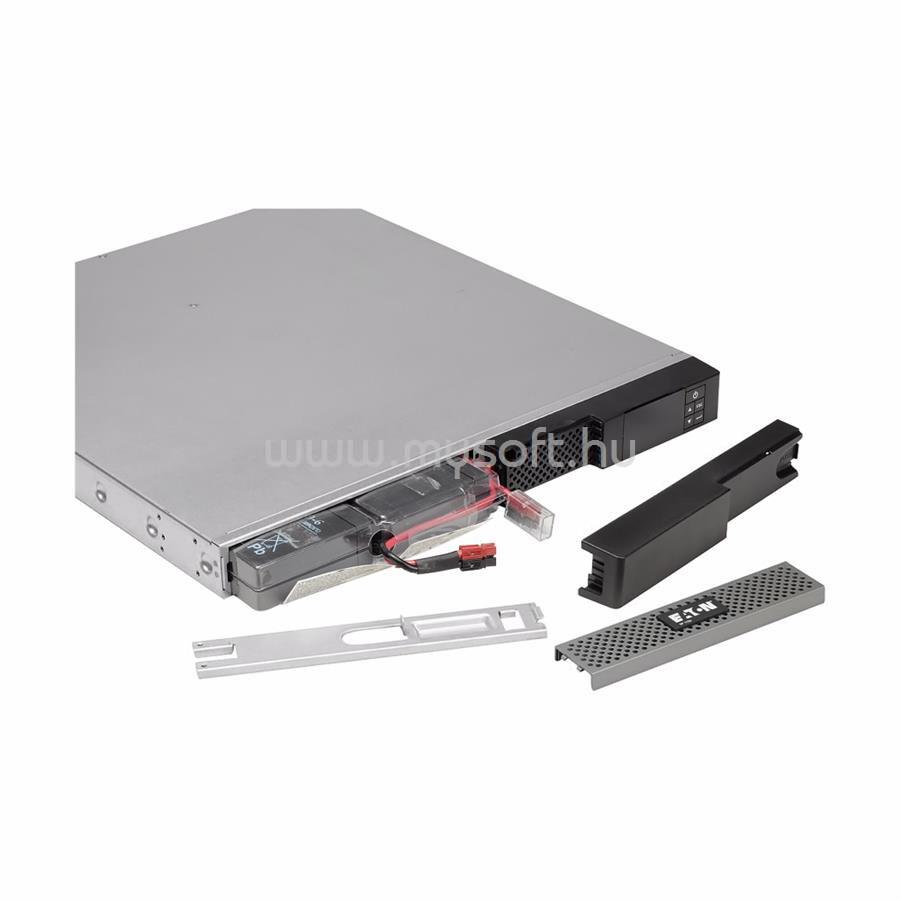

• Hot swappable batteries
• Remote reboot and runtime optimization thanks to 2 manageable outlet groups
• CONSTRUCTION TYPE
• 482.6 mm (19 inch) device
• OUTPUT VOLTAGE - MIN
• 200 V
• COLOR
• Black/silver
• EXTENDED BATTERY CAPABILITY
• No
• OUTPUT VOLTAGE RANGE
• 230 V (+6%/-10%)
• TOPOLOGY
• Line-interactive
• BTU RATING
• Online: 123
• BACK-UP TIME
• 12 min
• INPUT NOMINAL VOLTAGE
• 230V default (200/208/220/230/240V)
• INPUT FREQUENCY RANGE
• 47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low sensitivity mode
• INPUT VOLTAGE - MAX
• 294 V
• VOLTAGE TYPE
• AC
• PHASE (OUTPUT)
• 1
• BATTERY MANAGEMENT
• ABM or constant voltage charging method (user selectable), automatic battery test, deep discharge protection
• AUTO SHUTDOWN FUNCTION
• Yes
• NUMBER OF OUTPUTS C13
• 4
• VA RATING
• 850 VA
• POTENTIAL FREE SWITCH CONTACT
• Yes

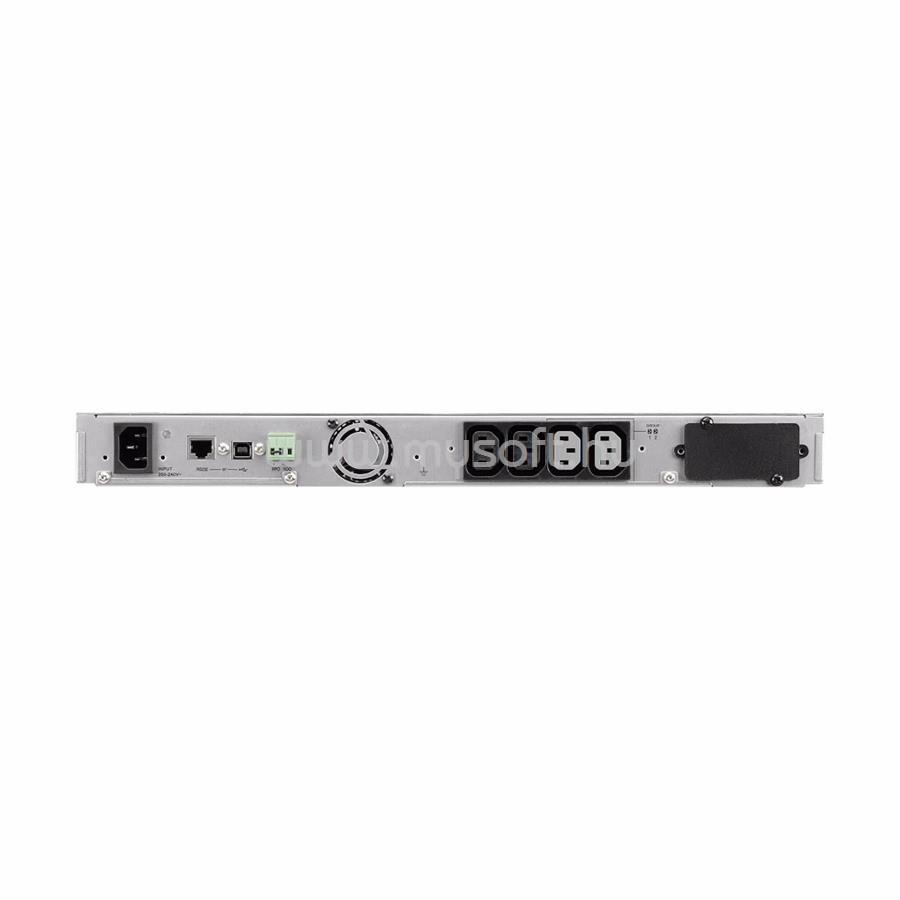

• RECEPTACLE
• (4) C13
• PHASE (INPUT)
• 1

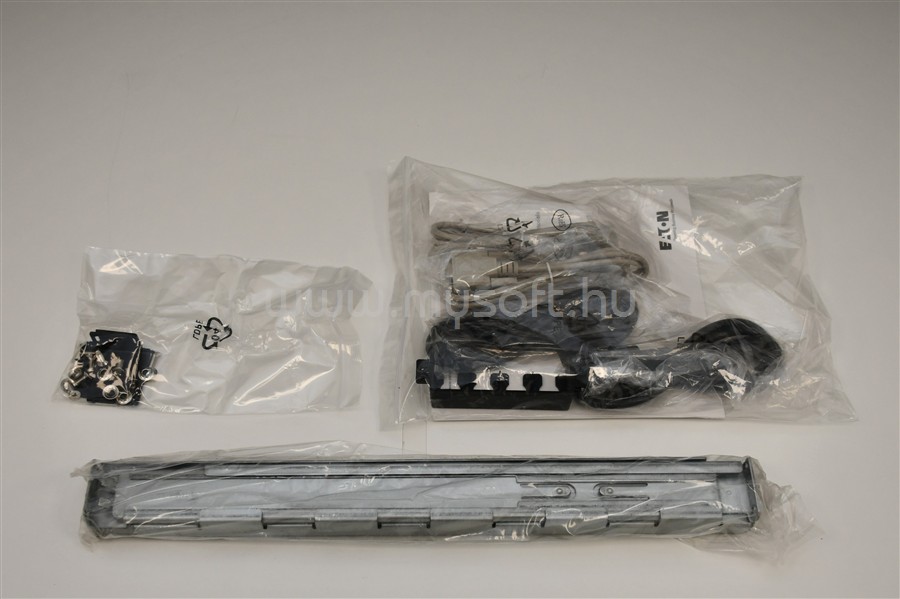

• PACKAGE CONTENTS
• Rack-mounting kit
• Cable locking system
• USB cable
• Serial cable
• (2) IEC-IEC cables
• Quickstart guide
• Safety instructions
• NOISE LEVEL
• <40 dB at 1 meter
• FEED TYPE
• 1

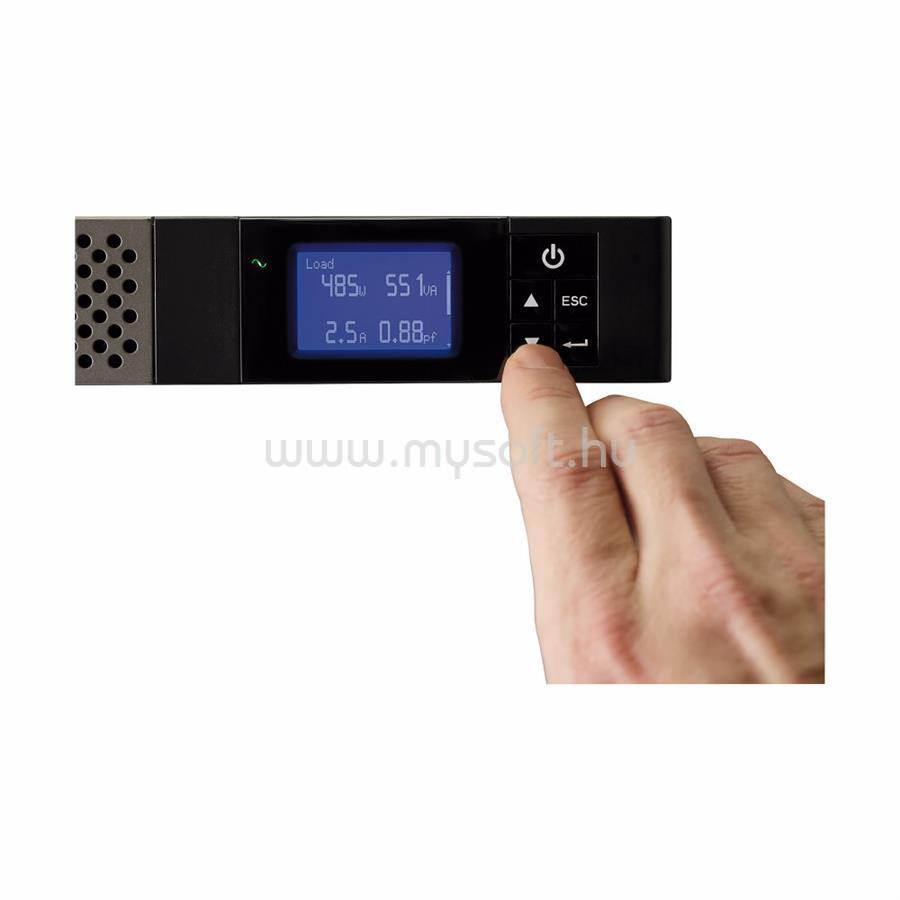

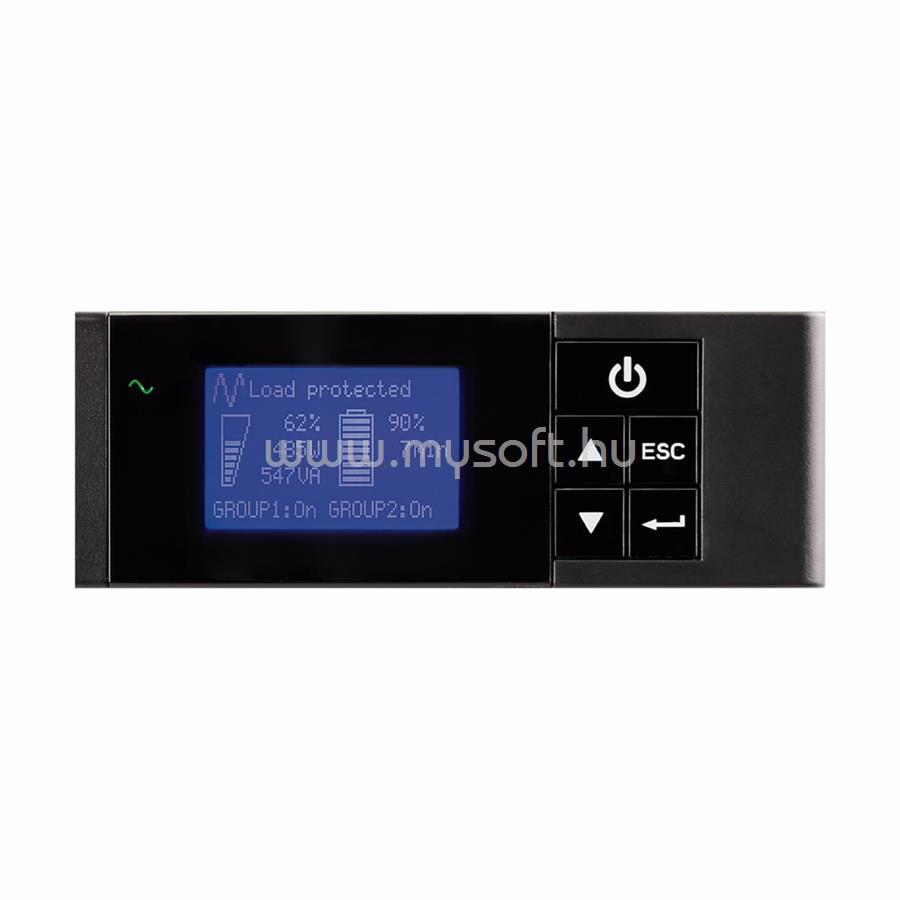

• USER INTERFACE
• Multilingual graphical LCD display
• BATTERY QUANTITY
• 2
• RACK SIZE
• 1U
• VOLTAGE
• 230V
• TEMPERATURE RANGE
• 0-90% non-condensing
• ETHERNET INTERFACE
• No

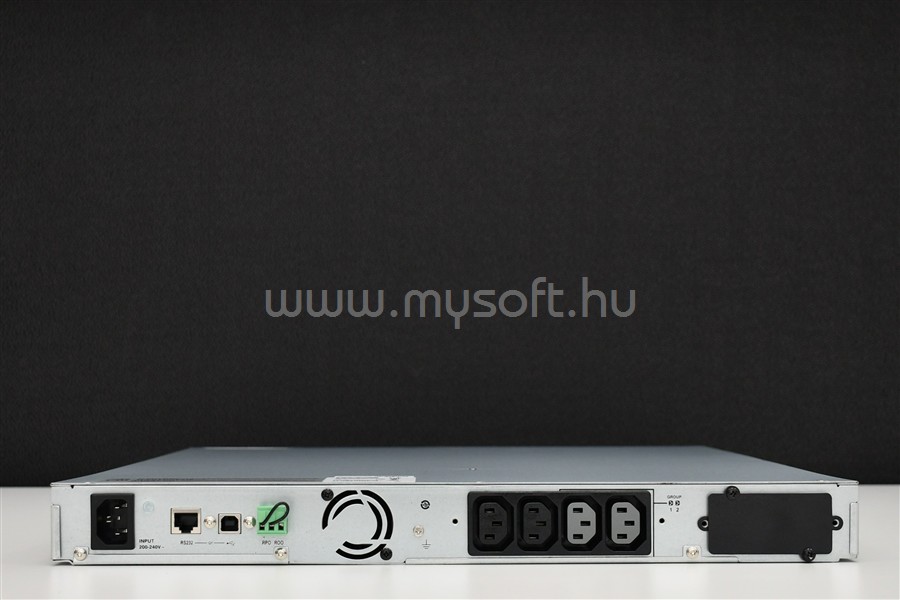

• COMMUNICATION
• USB port (HID compliant)
• Serial port (RS232)
• Mini-terminal block for remote On/Off and Remote Power Off
• Dry contacts (2 outputs, optocoupler, RJ)
• RELATIVE HUMIDITY
• 0-90% non-condensing
• RACK MOUNTING KIT
• Yes
• OUTPUT FREQUENCY
• 50/60 Hz
• RUNTIME AT FULL LOAD
• 4 min
• TYPE OF INTERFACE
• Other
• PRIMARY FREQUENCY - MIN
• 47 Hz
• BATTERY RATING
• 12 V / 7 Ah
• TYPE
• UPS
• OUTPUT NOMINAL VOLTAGE
• 230V default (200/208/220/230/240V)
• EXPANSION SLOTS
• One slot for optional communication card
• INPUT VOLTAGE RANGE
• 160-294 V (adjustable to 150 V-294 V)
• NOMINAL FREQUENCY
• 50-60 Hz
• PRIMARY FREQUENCY - MAX
• 70 Hz
• ALTITUDE
• 2000 m
