UBIQUITI UNIFI UMR-INDUSTRIAL 2XGBE LAN 1XNANOSIM IOT 4G/LTE CAT4 BELTÉRI/KÜLTÉRI VEZETÉK NÉLKÜLI IPARI ROUTER

• Mechanical

• Dimensions
• Without antennas and outdoor cover: 114.5 x 93.6 x 32 mm (4.5 x 3.7 x 1.3")
• With antennas: 213 x 93.6 x 32 mm (83 x 3.7 x 1.3")
• With antennas and outdoor cover: 217 x 94 x 32 mm (8.5 x 3.7 x 1.3")
• Weight
• Device: 360 g (12.7 oz)
• Device with outdoor cover: 395 g (13.9 oz)
• DIN rail/wall mounts: 25 g (0.9 oz)
• Enclosure material
• Polycarbonate, aluminum
• Mount material
• Wall/pole mount: polycarbonate
• DIN rail mount: polycarbonate

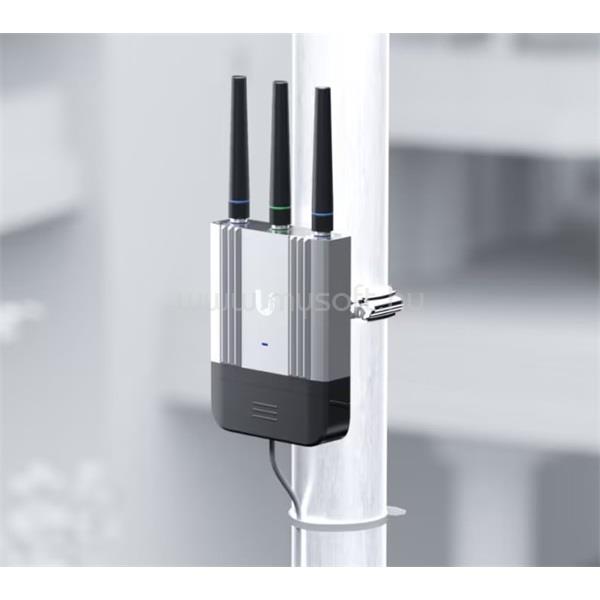

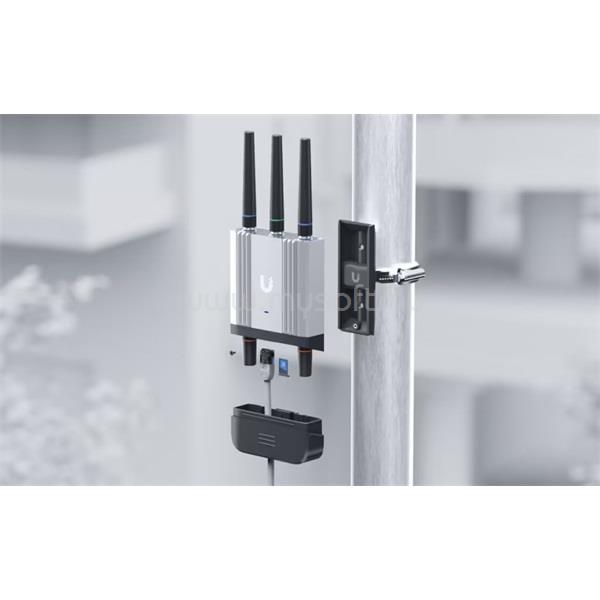

• Pole mount diameter
• 1-2" on pipe outer diameter
• Wind loading
• 38.8 N at 200 km/h (8.7 lbf at 125 mph)
• Weatherproofing
• Device with outdoor cover: IP66

• Hardware

• Management interface
• Ethernet
• WiFi
• Networking interface
• (2) GbE RJ45 ports
• LTE Category 4 radio
• WiFi 4
• PoE interface
• (1) PoE input
• (1) PoE output* (Max. 10W)
• *Requires a PoE+ switch.
• Power supply
• UniFi PoE switch (48-54V DC)
• USB Type-C (5V DC)
• 4-pin* ATX DC power socket (9-30V DC)
• *Pin 1 for Power + and Pin 2 for Ground -. Please refer to the Installation Guide for detailed power socket pinout.
• Max. power consumption
• 12.5W
• SIM
• nano-SIM (4FF)
• LTE bands
• B1, B3, B7, B8, B20, B28
• 3G bands
• B1, B8
• LTE throughput speed*
• Download 150 Mbps / Upload 50 Mbps
• *Speed depends on network coverage and performance at the device location.
• WiFi standards
• 802.11 b/g/n, WiFi 2.4G, 20/40 MHz
• Max. WiFi TX power
• 22 dBm
• WiFi MIMO
• 2 x 2
• GPS
• Yes
• Antenna SMA ports
• (1) Mobile 1: SMA female connector, supports 1Tx and 1Rx
• (1) Mobile 2: SMA female connector, supports 1Rx only
• (1) GPS: SMA female connector
• (2) WiFi: RP-SMA female connectors
• Note: Ensure all SMA / RP-SMA connectors are secured with antennas or the provided caps to maintain weatherproofing.
• External antennas
• (2) Mobile/LTE antennas with SMA male connectors
• (1) GPS antenna with SMA male connector
• (2) WiFi antennas with RP-SMA male connectors
• LED
• Status: blue/white
• Button
• Factory reset

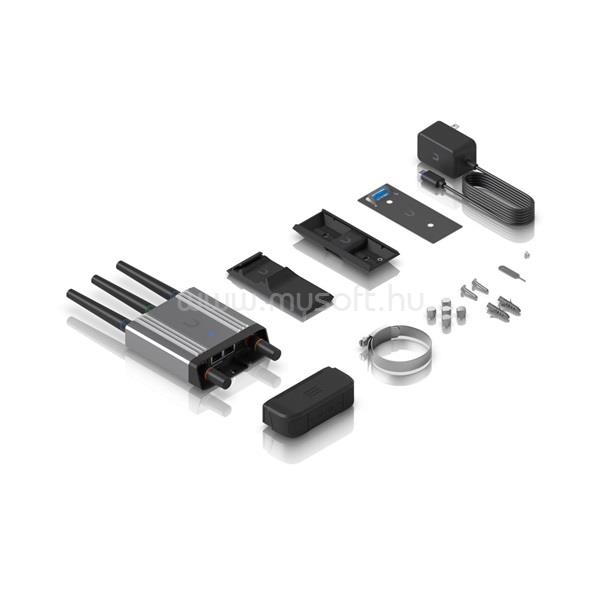

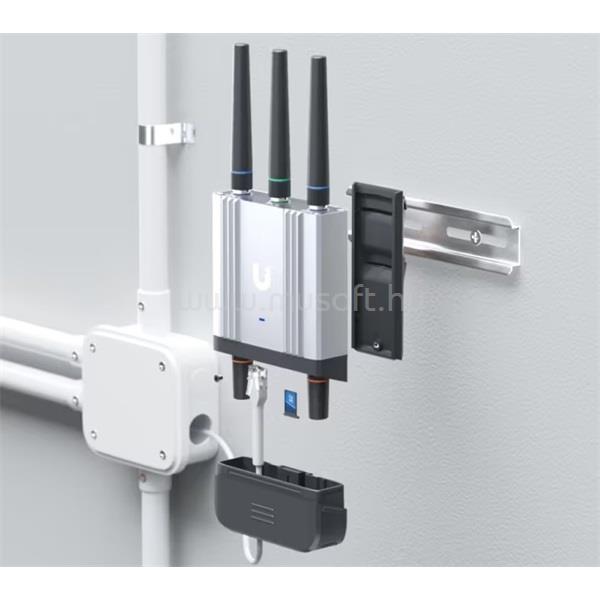

• Mounting
• DIN rail/wall/pole mount (Included)
• Ambient operating temperature
• -40 to 70° C (-40 to 158° F)
• Ambient operating humidity
• 5 to 95% noncondensing
• Certifications
• CE, GCF, Wi-Fi Alliance©

• Supported WiFi Data Rates

• 802.11b
• 1, 2, 5.5, 11 Mbps
• 802.11g
• 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11n (WiFi 4)
• 6.5 Mbps to 300 Mbps (MCS0 - MCS7, HT 20/40)

Garancia fogyasztók részére

• 2 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 1 év gyártó által biztosított szervizgarancia
