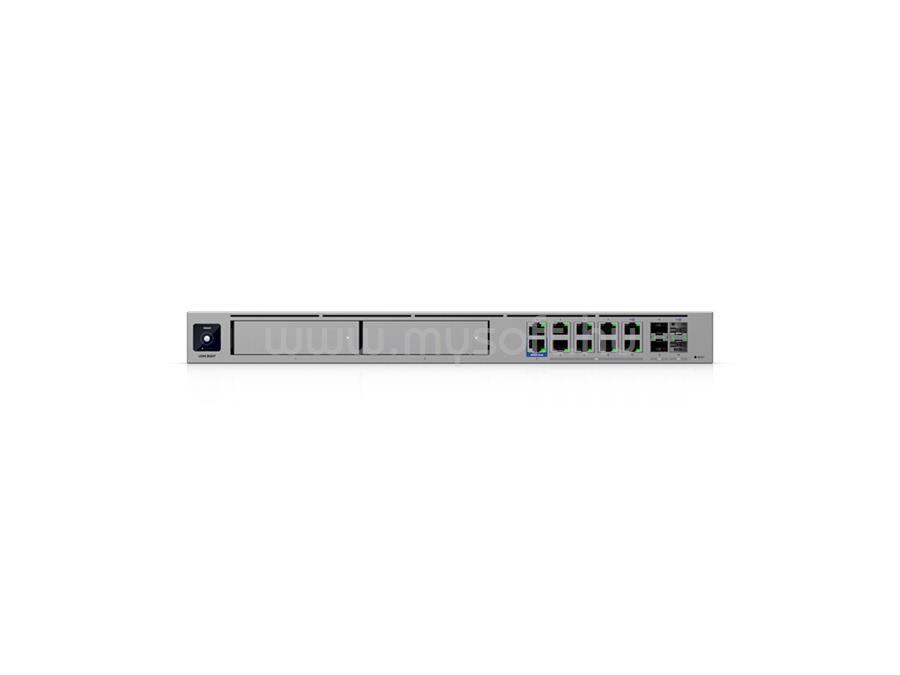

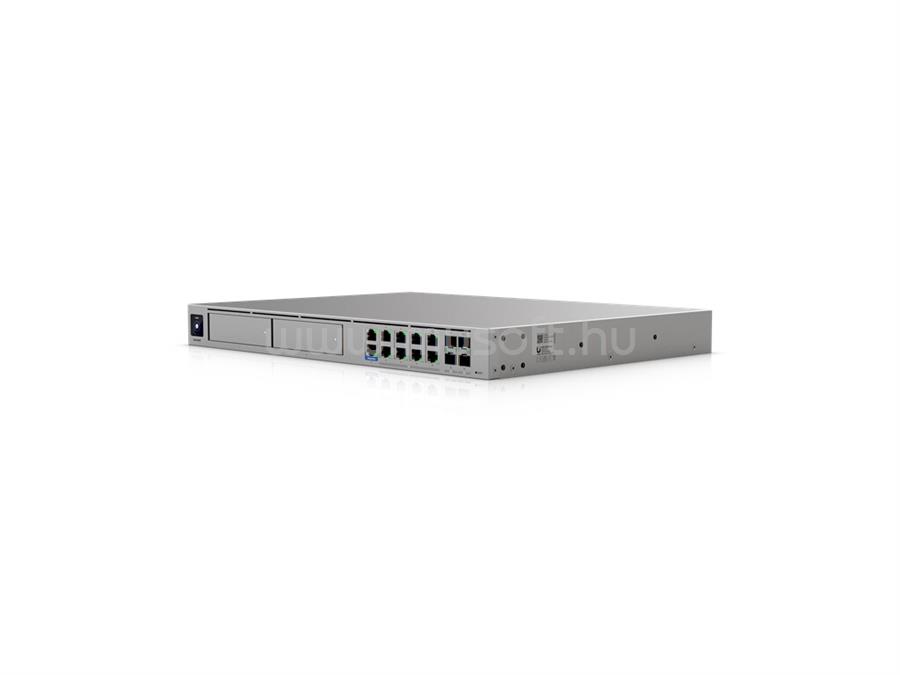

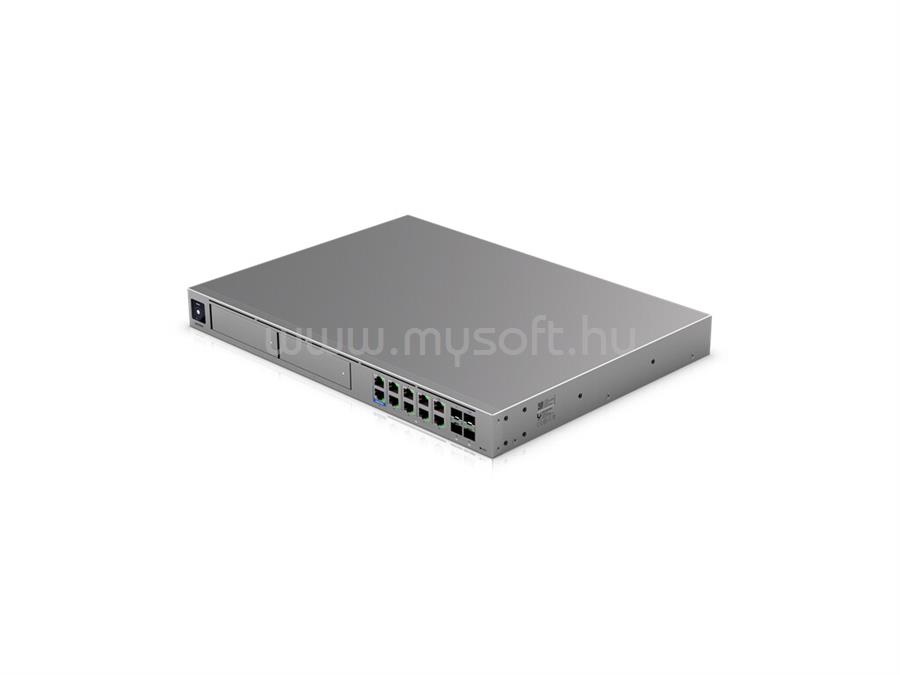

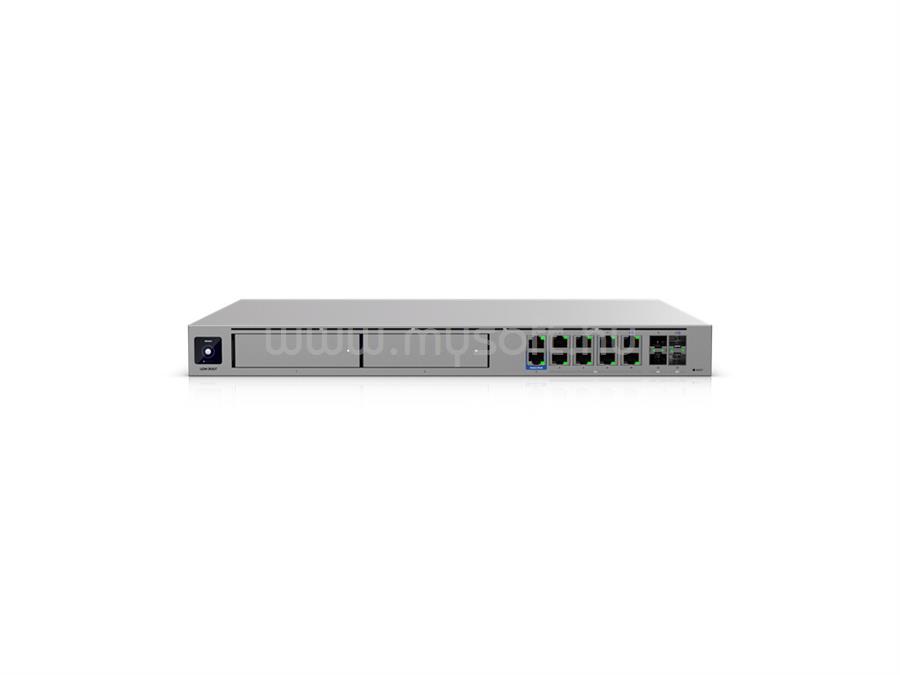

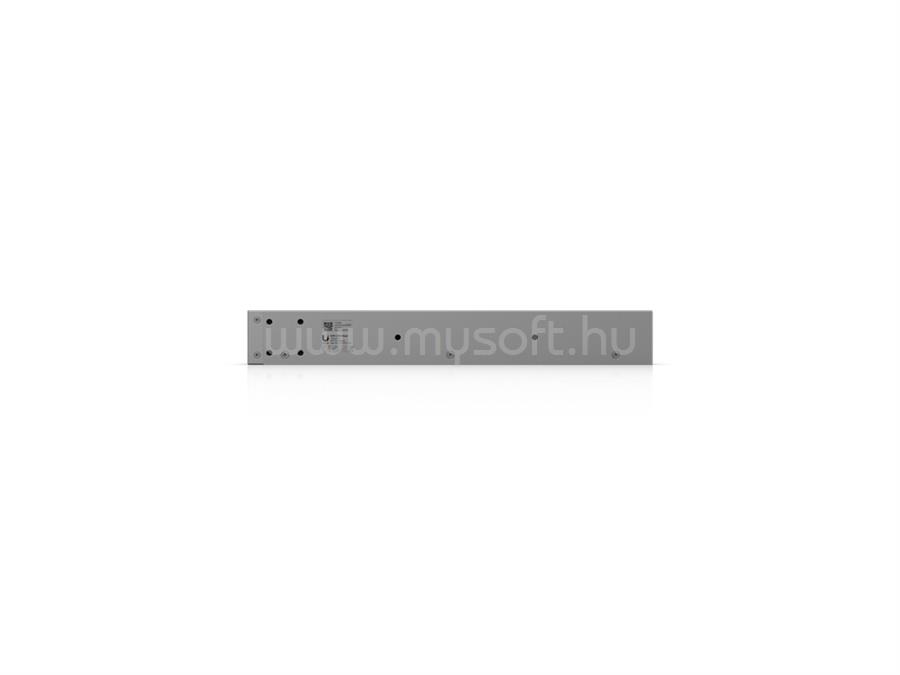

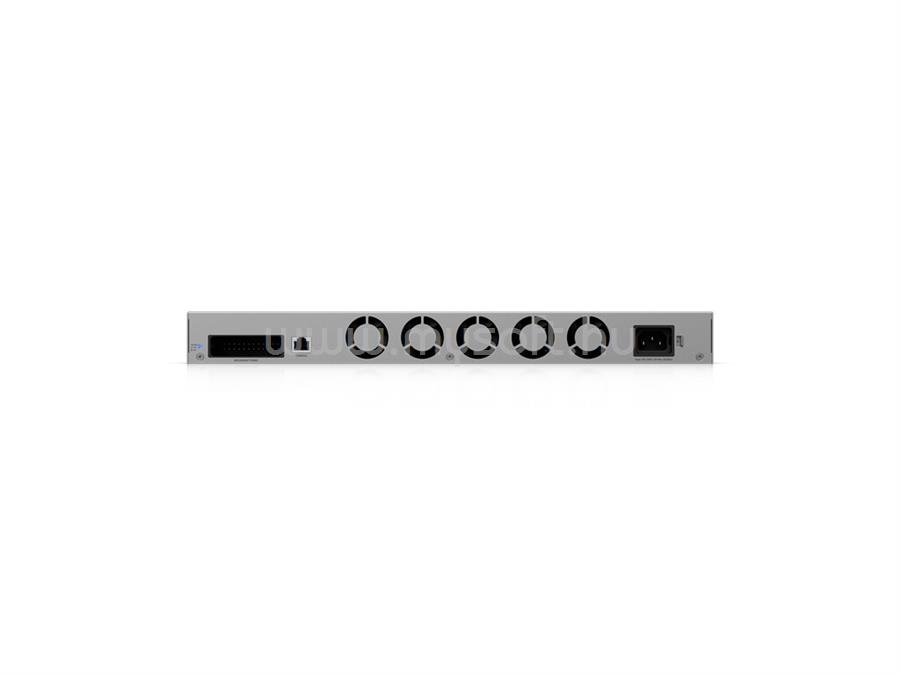

UBIQUITI UNIFI DREAM MACHINE BEAST

• Overview

• Dimensions
• 442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8")
• UniFi Application Suite
• Network, Protect, Access, Talk, Connect
• Managed UniFi Devices
• 750+
• Managed Cameras
• (100) HD, (60) 2K, (40) 4K
• Managed Access Hubs
• 200
• Simultaneous Users Connected
• 7,500+
• Max. WAN Port Count
• 8
• Default WAN Ports
• (1) 25G SFP28, (1) 10 GbE RJ45
• Port Layout
• 1 GbE RJ45: 2 (1G/100M/10M)
  10 GbE RJ45: 8 (10G/5G/2.5G/1G/100M)
  10G SFP+: 2 (10G/1G)
  25G SFP28: 2 (25G/10G/1G)
  Console: 1
• IDS/IPS Throughput
• 25 Gbps
• Form Factor

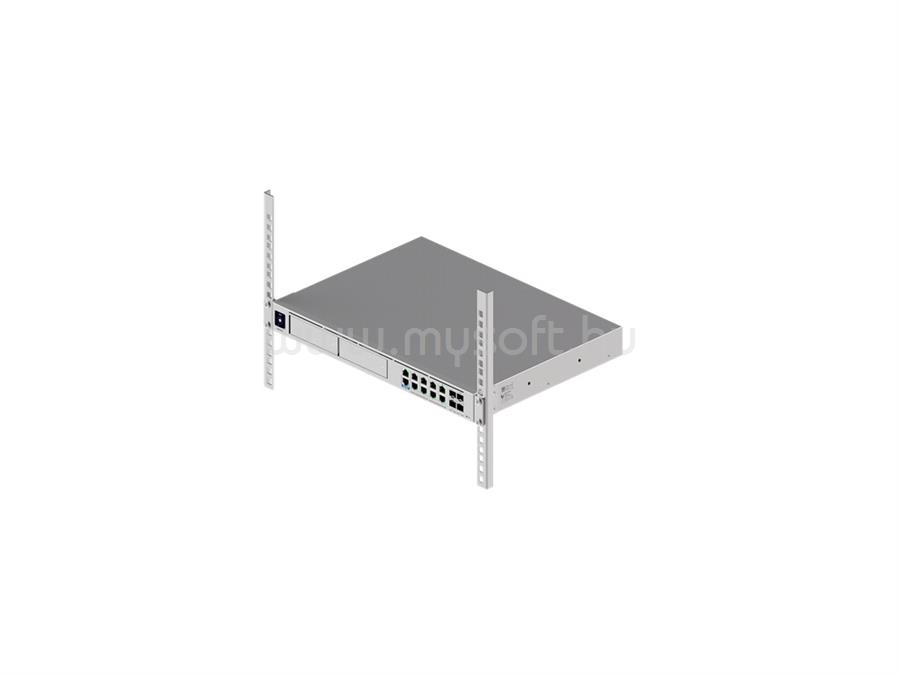

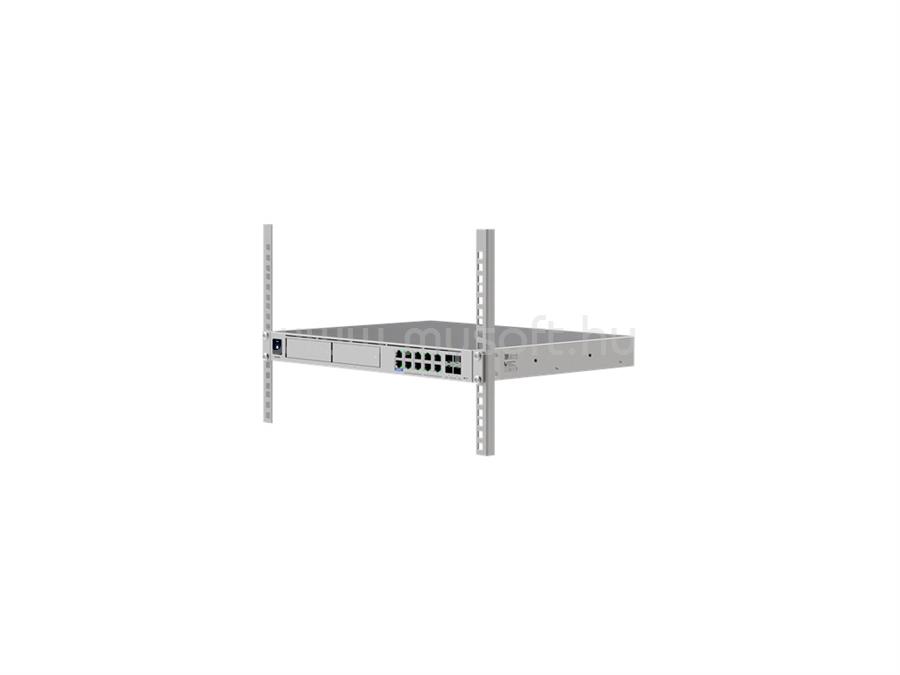

• Rack mount (1U)
• Redundancy
• Shadow Mode (VRRP) Gateway Failover, DC Power Backup

• Security

• Stateful Firewall
• Yes
• Application-Aware Layer 7 Firewall
• Yes
• DPI & Traffic Identification
• Yes
• Zone-Based Firewall Advanced Filtering
• Yes (Regions, Domains, Apps)
• Content Filtering
• Yes
• Intrusion Prevention (IPS/IDS)
• Yes
• Ad Blocking
• Yes
• IDS/IPS Signatures
• 55,000+ with CyberSecure

• VPN & SD-WAN

• License-Free SD-WAN
• Yes
• Site-to-Site VPN
• Site Magic, IPsec, OpenVPN
• VPN Server
• Identity Endpoint One-Click VPN, Teleport Zero-Configuration VPN, WireGuard, OpenVPN, L2TP
• VPN Client
• OpenVPN, WireGuard

• Networking

• Multi-WAN Load Balancing
• Yes
• Shadow Mode (VRRP) High Availability
• Yes
• LACP Port Aggregation
• Yes
• Dynamic Routing
• OSPF, BGP
• Advanced Features
• Advanced QoS, Multicast DNS (mDNS), Integrated RADIUS Server, RADIUS over TLS (RadSec)
• Advanced NAT
• SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT
• Additional Internet Failover
• UniFi LTE Backup support
• Internet Quality and Outage Reporting
• Yes
• MAC Address Table Size
• 32,000
• Policy-based WAN and VPN Routing
• Yes
• Customizable DHCP Server
• Yes
• IPv6 ISP Support
• Yes
• IGMP Proxy
• Yes
• All Traffic Flows
• Yes

• Hardware

• NVR Storage
• (2) 3.5" NVR HDD bays
• Built-in SSD Storage
• 128 GB for Faster Experience
• Max. Power Consumption
• 100W
• Power Method
• (1) Universal AC input, 100-240V AC, 3A Max., 50/60 Hz
  (1) USP-RPS DC input, 11.5V DC, 13.05A
• Power Supply
• AC/DC, internal, 150W
• Supported Voltage Range
• 100-240V AC
• Heat Dissipation
• 342 BTU/hr
• Processor
• Octa-core ARM v9 at 2.1 GHz
• System Memory
• 16 GB
• On-board Storage
• Integrated 128 GB SSD
• Weight
• 5.5 kg (12.13 lb)
• Enclosure Material
• Aluminium CNC, SGCC steel
• Mount Material
• SGCC steel
• LCM Display
• 1.3" touchscreen
• Management
• Ethernet, Bluetooth
• LEDs
• Ethernet, SFP+, SFP28, RPS, HDD
• Button
• (1) Factory reset
• ESD/EMP Protection
• Air: ? 8kV, contact: ? 4kV
• Ambient Operating Temperature
• 0 to 40° C (32 to 104° F)
• Ambient Operating Humidity
• 5 to 95% noncondensing
• NDAA Compliant
• Yes
• Certifications
• CE, FCC, IC

• Software

• Application Requirements
• Mobile App: UniFi iOS (Version 10.34.0 and later), UniFi Android (Version 10.37.1 and later)
