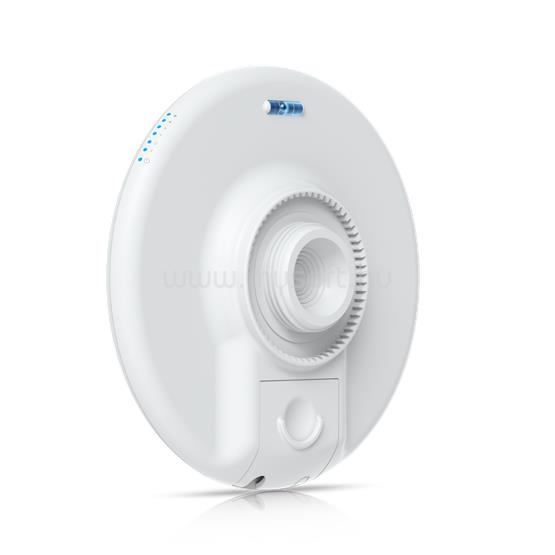

UBIQUITI UNIFI DEVICE BRIDGE PRO - WIRELESS BRIDGE POE BE- ÉS KIMENETTEL, 5GHZ

• Overview

• Dimensions
• 189.5 x 64.3 mm
• (O7.4 x 2.5")
• WiFi Standard
• WiFi 5
• Spatial Streams
• 2
• Coverage Area
• 5 km (3.1 mi)
• Mounting Locations
• Wall, pole
• Weatherproofing
• IPX6
• Power Method
• PoE
• PoE+ (Required for PoE output)

• Performance

• MIMO
• 5 GHz
• 2 x 2
• Max. Data Rate
• 5 GHz
• 867 Mbps (BW80)
• Antenna Gain
• 5 GHz
• 19 dBi
• Max. TX Power
• 5 GHz
• 25 dBm
• Max. Conducted TX Power
• 25 dBm (Combined)
• Supported Data Rates
• 802.11a
• 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11n
• 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
• 802.11ac (WiFi 5)
• 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
• Wireless Security
• WPA2 AES (Always On)

• Hardware

• Max. Power Consumption
• 9W
• Supported Voltage Range
• 42.5-57V DC

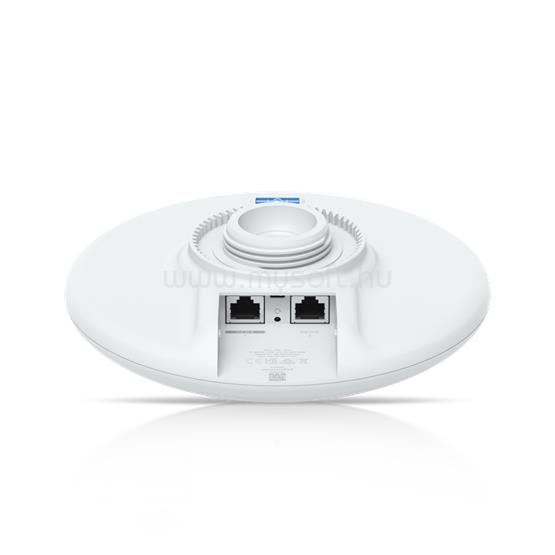

• Networking Interface
• (2) GbE RJ45 ports
• Antennas
• Internal
• Management
• (1) PoE in (PoE output not used)
• (1) Passive PoE output
• Wind Loading
• 69 N at 200 km/h (15.5 lbf at 125 mph)
• Weight
• Device: 431 g (0.95 lb)
• With mount: 515 g (1.1 lb)

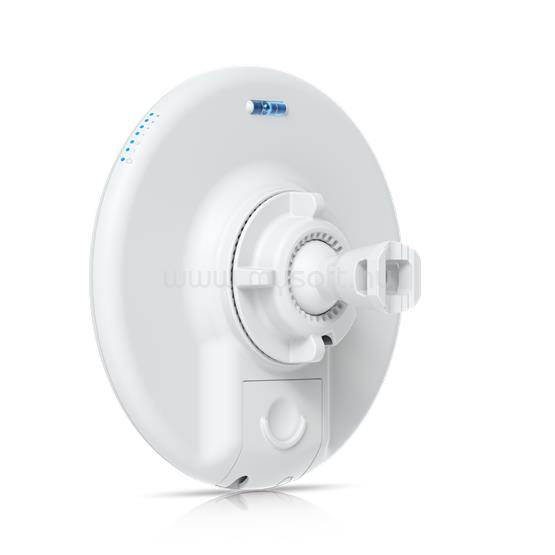

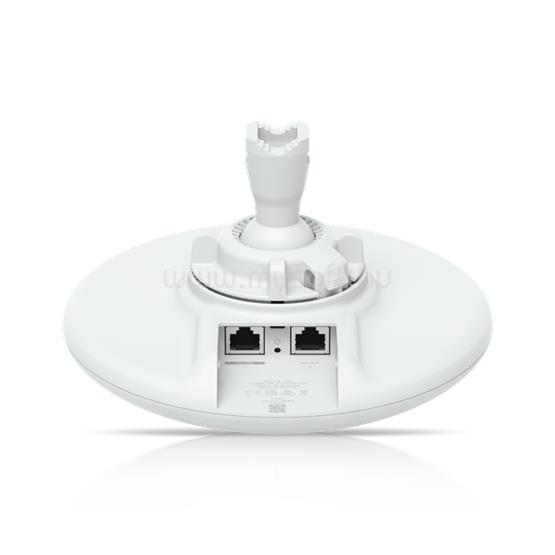

• Mount Material
• UV-stabilized polycarbonate, stainless steel
• Enclosure Material
• UV-resistant polycarbonate

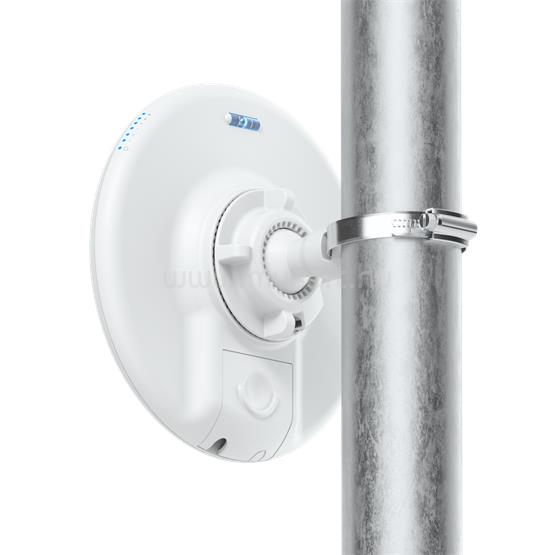

• Pole Mount Diameter
• 0.8-2.1" (20-53.1 mm)
• Button
• (1) Factory-reset

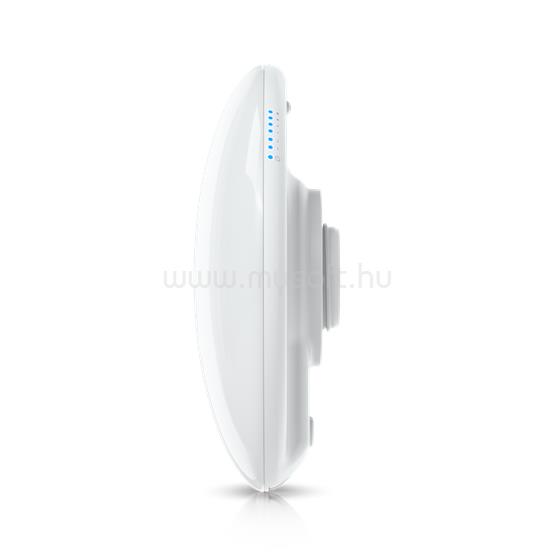

• LEDs
• System
• Power, Ethernet, (4) signal strength
• Channel Bandwidth
• 20/40/80 (MHz)
• Certifications
• CE, FCC, IC
• Operating Frequency
• US/CA:
• U-NII-1 5150 - 5250 MHz
• U-NII-2A 5250 - 5350 MHz
• U-NII-2C 5470 - 5725 MHz
• U-NII-3 5725 - 5850 MHz
• Worldwide:
• 5150 - 5875 MHz
• Ambient Operating Temperature
• -40 to 60° C (-40 to 140° F)
• Ambient Operating Humidity
• 5 to 95% noncondensing
