UBIQUITI UNIFI BUILDING BRIDGE XG - ELŐRE KONFIGURÁLT 60GHZ ANTENNA PÁR, 5GHZ BACKUP RÁDIÓVAL

• Mechanical

• Dimensions
• 191.8 x 59 mm (O7.6 x 2.3")
• Weight
• Without mount: 1.7 kg (3.8 lb)
• With mount: 2.9 kg (6.3 lb)
• Enclosure material
• Aluminum alloy, UV-resistant polycarbonate
• Mount material
• Stainless steel
• Pole mount diameter
• 1-2.5" on pipe outer diameter
• Weatherproofing
• IPX6

• Hardware

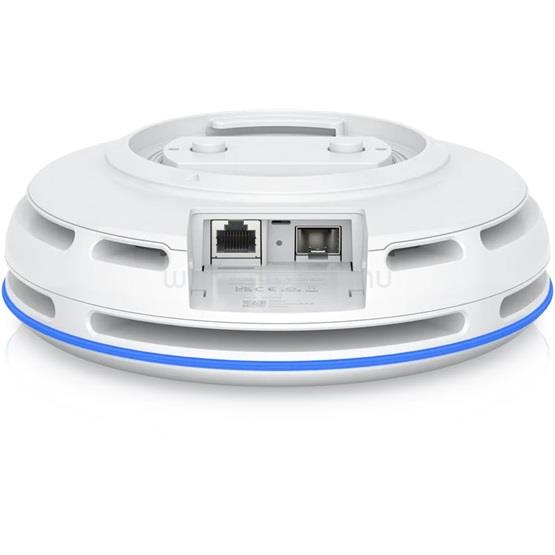

• Networking interface
• (1) GbE RJ45 port
• (1) 1/10G SFP+ port
• Management interface
• Ethernet
• Bluetooth
• Power method
• PoE++
• Passive PoE:
• 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
• 2-pairs (4, 5+; 7, 8-)
• Power supply
• UniFi PoE switch
• 48V, 0.65A Gigabit PoE adapter (included)
• Supported voltage range
• 48V DC +/- 10%
• Max. power consumption
• 31.2W
• Max. TX power
• 2.4 GHz
• -
• 5 GHz
• 23 dBm
• 6 GHz
• -
• 16 dBm (60 GHz)
• MIMO
• 2.4 GHz
• -
• 5 GHz
• 2 x 2
• 6 GHz
• -
• Max. data rate
• 2.4 GHz
• -
• 5 GHz
• 866.6 Mbps (BW80)
• 6 GHz
• -
• 6 Gbps (60 GHz)
• Antenna gain
• 2.4 GHz
• -
• 5 GHz
• 14 dBi
• 6 GHz
• -
• 21 dBi (60 GHz)
• Maximum range
• 500 m (1,640 ft)
• LEDs
• R/G/B
• Button
• Factory-reset
• Mounting

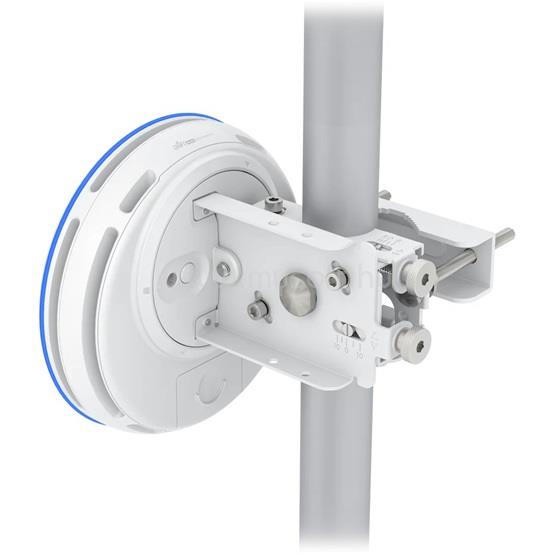

• 60G precision alignment pole mount (Included)
• Ambient operating temperature
• -40 to 55° C (-40 to 131° F)
• Ambient operating humidity
• 5 to 95% noncondensing
• Certifications
• FCC, IC, CE, terragraph

• Software

• WiFi standards
• 802.11a/b/g/n/ac
• Wireless security
• WPA2 AES (Always On)
• Operating modes
• PtP
• VLAN
• Management VLAN only

• RF

• Operating frequency*
• 57 to 66 GHz
• *Dependent on regional regulations.
• Channel bandwidth
• 2,160/4,320 MHz (Channel Bonding Enabled)
• Operating channels*
• 58,320/59,400/60,480/61,560/62,640/63,720/64,800 MHz
• *Dependent on regional regulations.

• Backup RF

• Operating frequency*
• US/CA
• U-NII-1: 5,150 - 5,250 MHz
• U-NII-2A: 5,250 - 5,350 MHz
• U-NII-2C: 5,470 - 5,725 MHz
• U-NII-3: 5,725 - 5,850 MHz
• Worldwide
• 5,150 - 5,725 MHz
• *Dependent on regional regulations.
• Channel bandwidth
• 20/40/80 MHz

• Supported Data Rates (Mbps)

• 802.11a
• 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b
• 1, 2, 5.5, 11 Mbps
• 802.11g
• 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11n
• 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40))
• 802.11ac
• 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
