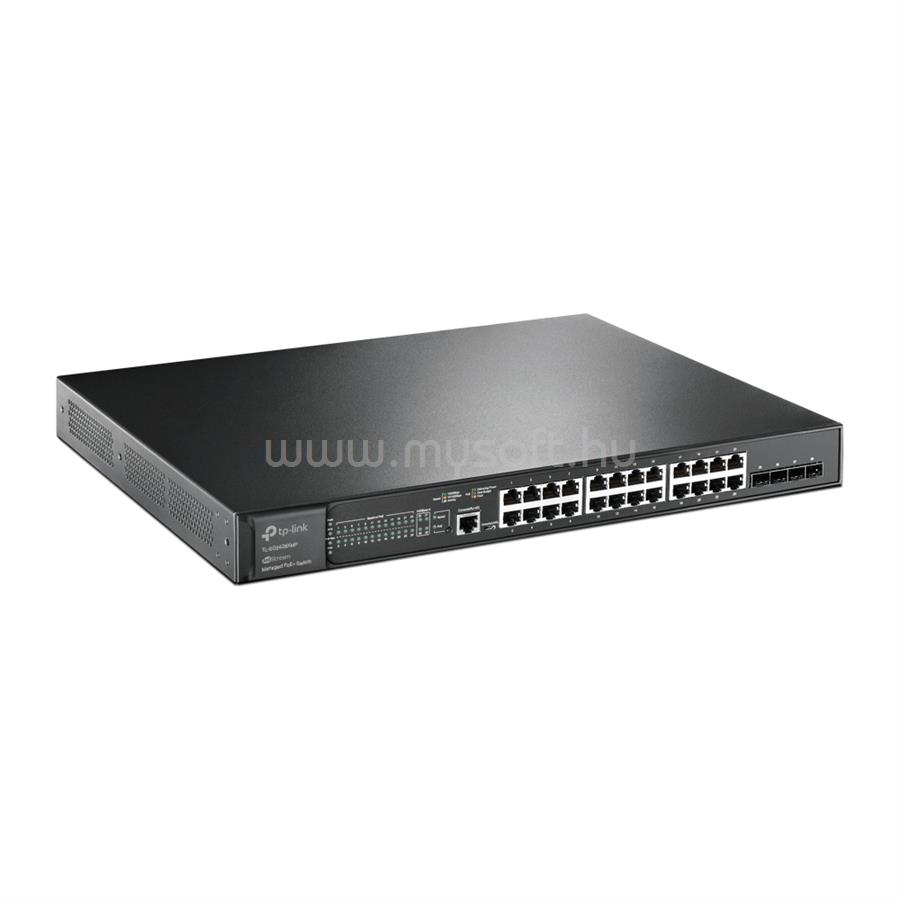

TP-LINK TL-SG3428XMP SWITCH 24X1000MBPS (24XPOE+) + 4X10G SFP+ + 2 KONZOL PORT, MENEDZSELHETŐ

• HARDWARE FEATURES

• Interface
• 24× 10/100/1000 Mbps RJ45 Ports
• 4× 10G SFP+ Slots
• 1× RJ45 Console Port
• 1× Micro-USB Console Port
• Fan Quantity
• 2
• Power Supply
• 100-240 V AC~50/60 Hz
• PoE+ Ports(RJ45)
• Standard: 802.3at/af compliant
• PoE+ Ports: 24 Ports, up to 30 W per port
• Power Budget: 384 W
• Dimensions ( W x D x H )
• 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
• Mounting
• Rack Mountable
• Max Power Consumption
• 34.4 W (110V/60Hz) ( no PD device connected)
• 465.8 W (110V/60Hz) ( with 384 W PD device connected)
• Max Heat Dissipation
• 117.38 BTU/h (110 V/60 Hz) (no PD device connected)
• 1589.31 BTU/h (110 V/60 Hz) (with 384 W PD device connected)

• PERFORMANCE

• Switching Capacity
• 128 Gbps
• Packet Forwarding Rate
• 95.23 Mpps
• MAC Address Table
• 16 K
• Packet Buffer Memory
• 12 Mbit
• Jumbo Frame
• 9 KB

• SOFTWARE FEATURES

• Quality of Service
• 8 priority queues
• 802.1p CoS/DSCP priority
• Queue scheduling
• SP (Strict Priority)
• WRR (Weighted Round Robin)
• SP+WRR
• Bandwidth Control
• Port/Flow based Rating Limiting
• Smoother Performance
• Action for Flows
• Mirror (to supported interface)
• Redirect (to supported interface)
• Rate Limit
• QoS Remark
• L2 and L2+ Features
• Link Aggregation
• static link aggregation
• 802.3ad LACP
• Up to 8 aggregation groups, containing 8 ports per group
• Spanning Tree Protocol
• 802.1d STP
• 802.1w RSTP
• 802.1s MSTP
• STP Security: TC Protect, BPDU Filter, Root Protect
• Loopback Detection
• Port based
• VLAN based
• Flow Control
• 802.3x Flow Control
• HOL Blocking Prevention
• Mirroring
• Port Mirroring
• CPU Mirroring
• One-to-One
• Many-to-One
• Tx/Rx/Both
• L2 Multicast
• IGMP Snooping
• IGMP v1/v2/v3 Snooping
• Fast Leave
• IGMP Snooping Querier
• IGMP Authentication
• IGMP Authentication
• MLD Snooping
• MLD v1/v2 Snooping
• Fast Leave
• MLD Snooping Querier
• Static Group Config
• Limited IP Multicast
• MVR
• Multicast Filtering: 256 profiles and 16 entries per profile
• VLAN
• VLAN Group
• Max 4K VLAN Groups
• 802.1Q Tagged VLAN
• MAC VLAN: 7 Entries
• Protocol VLAN: Protocol Template 16, Protocol VLAN 16
• Private VLAN
• GVRP
• VLAN VPN (QinQ)
• Port-Based QinQ
• Selective QinQ
• Voice VLAN
• Access Control List
• Time-based ACL
• MAC ACL
• Source MAC
• Destination MAC
• VLAN ID
• User Priority
• Ether Type
• IP ACL
• Source IP
• Destination IP
• Fragment
• IP Protocol
• TCP Flag
• TCP/UDP Port
• DSCP/IP TOS
• User Priority
• Combined ACL
• Packet Content ACL
• IPv6 ACL
• Policy
• Mirroring
• Redirect
• Rate Limit
• QoS Remark
• ACL apply to Port/VLAN
• Security
• IP-MAC-Port Binding
• 512 Entries
• DHCP Snooping
• ARP Inspection
• IPv4 Source Guard: 100 Entries
• IPv6-MAC-Port Binding
• 512 Entries
• DHCPv6 Snooping
• ND Detection
• IPv6 Source Guard: 100 Entries
• DoS Defend
• Static/Dynamic Port Security
• Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
• kbps/ratio control mode
• 802.1X
• Port base authentication
• Mac base authentication
• VLAN Assignment
• MAB
• Guest VLAN
• Support Radius authentication andaccountability
• AAA (including TACACS+)
• Port Isolation
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2
• IP/Port/MAC based access control
• IPv6
• IPv6 Dual IPv4/IPv6
• Multicast Listener Discovery (MLD) Snooping
• IPv6 ACL
• IPv6 Interface
• Static IPv6 Routing
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDPv6
• IPv6 applications
• DHCPv6 Client
• Ping6
• Tracert6
• Telnet (v6)
• IPv6 SNMP
• IPv6 SSH
• IPv6 SSL
• Http/Https
• IPv6 TFTP
• L3 Features
• 16 IPv4/IPv6 Interfaces
• Static Routing
• 48 static routes
• Static ARP
• 128 Static Entries
• Proxy ARP
• Gratuitous ARP
• DHCP Server
• DHCP Relay
• DHCP Interface Relay
• DHCP VLAN Relay
• DHCP L2 Relay
• Management
• Web-based GUI
• Command Line Interface (CLI) through the console port, telnet
• SNMP v1/v2c/v3
• Trap/Inform
• RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED
• DHCP AutoInstall
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• Password Recovery
• SNTP
• System Log
• Advanced Features
• Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller
• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• ZTP (Zero-Touch Provisioning)
• MIBs
• MIB II (RFC1213)
• Interface MIB (RFC2233)
• Ethernet Interface MIB (RFC1643)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• RMON MIB (RFC2819)
• RMON2 MIB (RFC2021)
• Radius Accounting Client MIB (RFC2620)
• Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• Support TP-Link private MIB

• MANAGEMENT

• Omada App
• Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
• Centralized Management
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Cloud Access
• Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
• Zero-Touch Provisioning
• Yes. Requiring the use of Omada Cloud-Based Controller.
• Management Features
• Web-based GUI
• Command Line Interface (CLI) through the console port, telnet
• SNMP v1/v2c/v3
• Trap/Inform
• RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED
• DHCP AutoInstall
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• Password Recovery
• SNTP
• System Log

• OTHERS

• Package Contents
• TL-SG3428XMP Switch
• Power Cord
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet
• System Requirements
• Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.
• Environment
• Operating Temperature: 0-45 °C (32-113 °F);
• Storage Temperature: -40-70 °C (-40-158 °F)
• Operating Humidity: 10-90% RH non-condensing
• Storage Humidity: 5-90% RH non-condensing

Garancia fogyasztók részére

• 2 év kötelező jótállás + 3 év gyártó által biztosított szervizgarancia

Garancia nem fogyasztók részére

• 5 év gyártó által biztosított szervizgarancia
