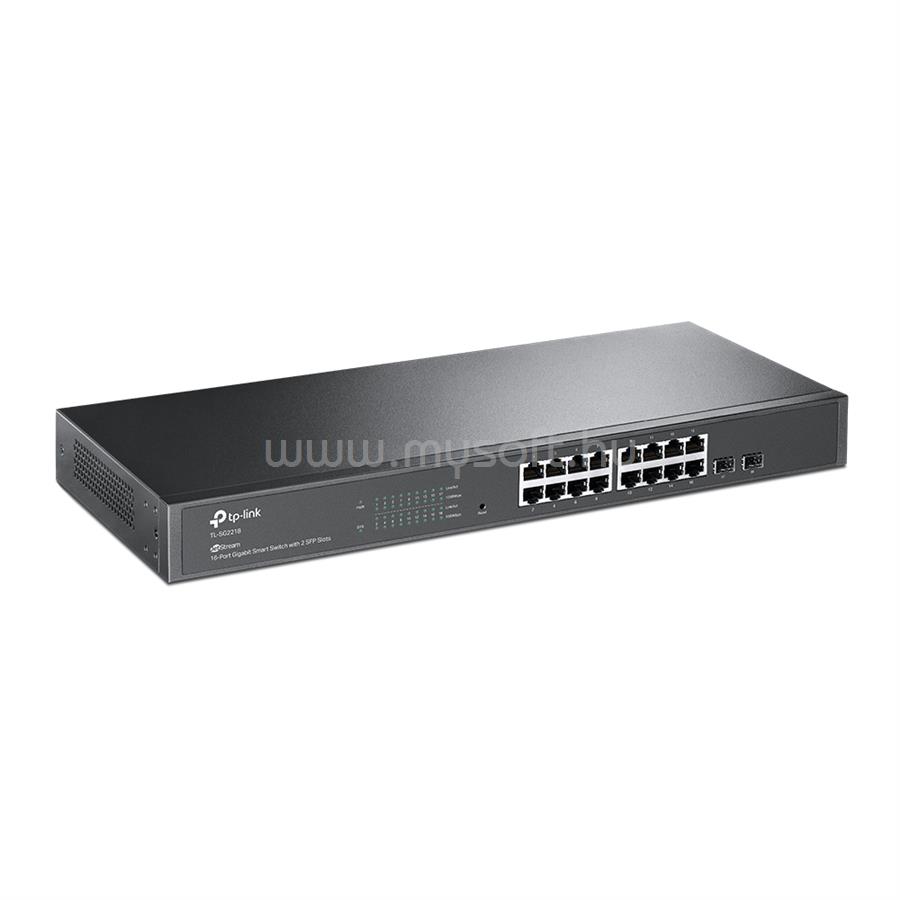

TP-LINK TL-SG2218 SWITCH 16X1000MBPS + 2XGIGABIT SFP, MENEDZSELHETŐ

• HARDWARE FEATURES

• Interface
• 16× 10/100/1000 Mbps RJ45 Ports
• 2× Gigabit SFP Slots
• Fan Quantity
• Fanless
• Power Supply
• 100-240 V AC~50/60 Hz
• Dimensions ( W x D x H )
• 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
• Mounting
• Rack Mountable
• Max Power Consumption
• 12.3 W (220 V/50 Hz)
• Max Heat Dissipation
• 41.97 BTU/hr

• PERFORMANCE

• Switching Capacity
• 36 Gbps
• Packet Forwarding Rate
• 26.8 Mpps
• MAC Address Table
• 8K
• Jumbo Frame
• 9 KB

• SOFTWARE FEATURES

• Quality of Service
• 8 priority queues
• 802.1p CoS/DSCP priority
• Queue scheduling
• SP (Strict Priority)
• WRR (Weighted Round Robin)
• SP+WRR
• Bandwidth Control
• Port/Flow based Rating Limiting
• Smoother Performance
• Action for Flows
• Mirror (to supported interface)
• Redirect (to supported interface)
• Rate Limit
• QoS Remark
• L2 and L2+ Features
• Link Aggregation
• Static link aggregation
• 802.3ad LACP
• Up to 8 aggregation groups and up to 8 ports per group
• Spanning Tree Protocol
• 802.1d STP
• 802.1w RSTP
• 802.1s MSTP
• STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect
• Loopback Detection
• Port-based
• VLAN based
• Flow Control
• 802.3x Flow Control
• HOL Blocking Prevention
• Mirroring
• Port Mirroring
• CPU Mirroring
• One-to-One
• Many-to-One
• Tx/Rx/Both
• L2 Multicast
• Supports 511 (IPv4, IPv6) IGMP groups
• IGMP Snooping
• IGMP v1/v2/v3 Snooping
• Fast Leave
• IGMP Snooping Querier
• IGMP Authentication
• IGMP Authentication
• MVR
• MLD Snooping
• MLD v1/v2 Snooping
• Fast Leave
• MLD Snooping Querier
• Static Group Config
• Limited IP Multicast
• Multicast Filtering: 256 profiles and 16 entries per profile
• VLAN
• VLAN Group
• Max 4K VLAN Groups
• 802.1q Tagged VLAN
• MAC VLAN: 12 Entries
• Protocol VLAN: Protocol Template 16, Protocol VLAN 16
• GVRP
• VLAN VPN (QinQ)
• Port-Based QinQ
• Selective QinQ
• Voice VLAN
• Access Control List
• Time-based ACL
• MAC ACL
• Source MAC
• Destination MAC
• VLAN ID
• User Priority
• Ether Type
• IP ACL
• Source IP
• Destination IP
• Fragment
• IP Protocol
• TCP Flag
• TCP/UDP Port
• DSCP/IP TOS
• User Priority
• Combined ACL
• Packet Content ACL
• IPv6 ACL
• Policy
• Mirroring
• Redirect
• Rate Limit
• QoS Remark
• ACL apply to Port/VLAN
• Security
• IP-MAC-Port Binding
• DHCP Snooping
• ARP Inspection
• IPv4 Source Guard
• IPv6-MAC-Port Binding
• DHCPv6 Snooping
• ND Detection
• IPv6 Source Guard
• DoS Defend
• Static/Dynamic Port Security
• Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
• kbps/ratio/pps control mode
• IP/Port/MAC based access control
• 802.1X
• Port based authentication
• Mac based authentication
• VLAN Assignment
• MAB
• Guest VLAN
• Support Radius authentication and accountability
• AAA (including TACACS+)
• Port Isolation
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2
• IPv6
• IPv6 Dual IPv4/IPv6
• Multicast Listener Discovery (MLD) Snooping
• IPv6 ACL
• IPv6 Interface
• Static IPv6 Routing
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDPv6
• IPv6 applications
• DHCPv6 Client
• Ping6
• Tracert6
• Telnet (v6)
• IPv6 SNMP
• IPv6 SSH
• IPv6 SSL
• Http/Https
• IPv6 TFTP
• L3 Features
• 16 IPv4/IPv6 Interfaces
• Static Routing
• 48 static routes
• Static ARP
• 316 ARP Entries
• Proxy ARP
• Gratuitous ARP
• DHCP Server
• DHCP Relay
• DHCP L2 Relay
• Management
• Web-based GUI
• Command Line Interface (CLI) through console port, telnet
• SNMPv1/v2c/v3
• Trap/Inform
• RMON (1, 2, 3, 9 groups)
• SDM Template
• DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED
• DHCP AutoInstall
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• Password Recovery
• SNTP
• System Log
• Advanced Features
• Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller
• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• ZTP (Zero-Touch Provisioning)
• MIBs
• MIB II (RFC1213)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• Radius Accounting Client MIB (RFC2620)
• Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• Support TP-Link private MIBs
• RMON MIB(RFC1757, rmon 1,2,3,9)

• MANAGEMENT

• Omada App
• Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
• Centralized Management
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Cloud Access
• Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
• Zero-Touch Provisioning
• Yes. Requiring the use of Omada Cloud-Based Controller.
• Management Features
• Web-based GUI
• Command Line Interface (CLI) through telnet
• SNMPv1/v2c/v3
• SNMP Trap/Inform
• RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• SNTP
• System Log

• OTHERS

• Package Contents
• TL-SG2218 Switch
• Power Cord
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet
• System Requirements
• Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.
• Environment
• Operating Temperature: 0-40 °C (32-104 °F);
• Storage Temperature: -40-70 °C (-40-158 °F)
• Operating Humidity: 10-90% RH non-condensing
• Storage Humidity: 5-90% RH non-condensing

Garancia fogyasztók részére

• 1 év kötelező jótállás + 4 év gyártó által biztosított szervizgarancia

Garancia nem fogyasztók részére

• 5 év gyártó által biztosított szervizgarancia
