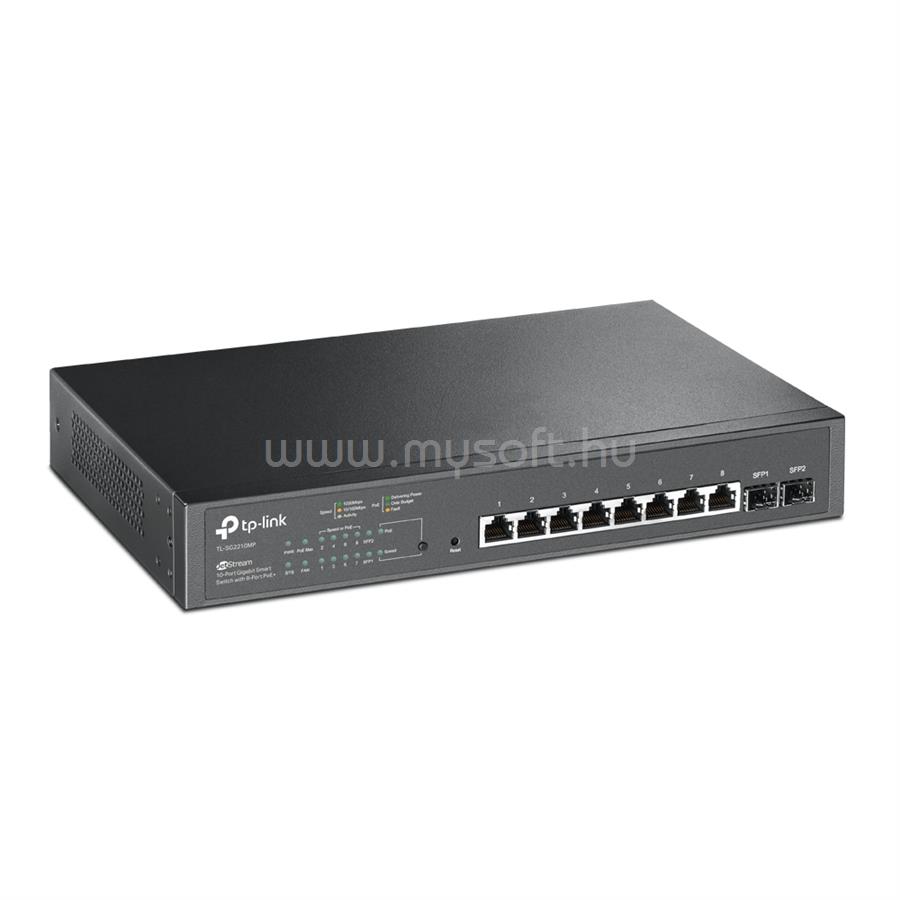

TP-LINK TL-SG2210MP 10-PORT GIGABIT SMART SWITCH WITH 8-PORT POE+

• HARDVER JELLEMZŐK

• Szabványok és protokollok
• IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
• Csatlakozások
• 8× 10/100/1000 Mbps RJ45 Ports, all supporting PoE+ (Auto-Negotiation/Auto MDI/MDIX)
• 2× 100/1000 Mbps SFP Slots
• Hálózati összeköttetés
• 10BASE-T: UTP/STP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX/1000Base-T: UTP/STP category 5, 5e or above cable (maximum 100m)
• 100BASE-FX: MMF, SMF
• 1000BASE-X: MMF, SMF
• Ventilátorok száma
• 1
• Fizikai biztonsági zár
• Igen
• PoE+ portok (RJ45)
• Standard: 802.3at/af compliant
• PoE+ Ports: 8 Ports
• Power Supply: 150 W
• Méretek (Sz x Mé x Ma)
• 11.6 x 7.1 x 1.7 in (294 x 180 x 44 mm)
• Felszerelés
• Rack Mountable
• Max. áramfelvétel
• 12.2 W (110 V / 60 Hz with no PD connected)
• 173.9 W (110 V / 60 Hz with 150 W PD connected)
• Max Heat Dissipation
• 41.63 BTU/h (with no PD connected)
• 539.35 BTU/h (with 150 W PD connected)

• MŰKÖDÉSI JELLEMZŐK

• Switching teljesítmény
• 20 Gbps
• Csomagtovábbítási sebesség
• 14.9 Mpps
• Fizikai (MAC) cím tábla
• 8K
• Csomag puffer memória
• 4.1 Mbit
• Jumbo Frame
• 9 KB

• SZOFTVER JELLEMZŐK

• QoS (szolgáltatás minősége)
• 802.1p CoS/ DSCP priority
• 8 priority queues
• Priority Schedule Mode
• SP (Strict Priority)
• WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
• Port/Flow based Rating Limit
• Smoother Performance
• Actions for flows
• Mirror(to supported interface)
• Redirect(to supported interface)
• Rate Limit
• QoS Remark
• Storm Control
• Multiple Control Modes(kbps/ratio/pps)
• Broadcast/Multicast/Unknown-Unicast Control
• L2 és L2+ jellemzők
• DHCP Relay
• DHCP VLAN Relay
• DHCP L2 Relay
• Link Aggregation
• Static link aggregation
• 802.3ad LACP
• Up to 8 aggregation groups and up to 8 ports per group
• Spanning Tree Protocol
• 802.1D STP
• 802.1w RSTP
• 802.1s MSTP
• STP Security: TC Protect, BPDU Filter/Protect,
• Root Protect
• Loopback Detection
• Flow Control
• 802.3x Flow Control
• Mirroring
• Port Mirroring
• CPU Mirroring
• One-to-One
• Many-to-One
• Flow-Based
• Ingress/Egress/Both
• Device Link Detect Protocol (DLDP)
• 802.1ab LLDP/ LLDP-MED
• L2 jellemzők
• Link Aggregation
• static link aggregation
• Up to 8 aggregation groups and up to 8 ports per group
• 802.3ad LACP
• Spanning Tree Protocol
• 802.1D STP
• 802.1w RSTP
• 802.1s MSTP
• STP Security: Loop back detection, TC Protect, BPDU Filter/Protect, Root Protect
• Loopback Detection
• Flow Control
• 802.3x Flow Control
• Mirroring
• Port Mirroring
• One-to-One
• Many-to-One
• Flow-Based
• Ingress/Egress/Both
• CPU Mirroring
• Device Link Detect Protocol(DLDP)
• L2 Multicast
• 512 IPv4,IPv6 shared multicast groups
• IGMP Snooping
• IGMP v1/v2/v3 Snooping
• Fast Leave
• IGMP Snooping Querier
• IGMP Authentication
• Static Group Config
• MLD Snooping
• MLD v1/v2 Snooping
• Fast Leave
• MLD Snooping Querier
• Static Group Config
• Multicast VLAN Registration
• Multicast Filtering
• IPv6 Support
• IPv6 Dual IPv4/IPv6
• Multicast Listener Discovery(MLD) Snooping
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDPv6
• IPv6 applications
• DHCPv6 Client
• Ping6
• Tracert6
• Telnet(v6)
• IPv6 SNMP
• IPv6 SSH
• IPv6 SSL
• Http/Https
• IPv6 TFTP
• VLAN
• VLAN Group
• Max. 4K VLAN Groups
• 802.1Q tag VLAN
• MAC VLAN
• Protocol VLAN
• GVRP
• Voice VLAN
• Hozzáférés-jogosultsági lista (ACL)
• Support up to 230 entries
• Time-Range
• Time Slice
• Week Time-Range
• Absolute Time-Range
• Holiday
• Time-based ACL
• MAC ACL
• Source MAC
• Destination MAC
• VLAN ID
• User Priority
• Ether Type
• IP ACL
• Source IP
• Destination IP
• IP Protocol
• TCP Flag
• TCP/UDP Source Port
• TCP/UDP Destination Port
• DSCP/IP TOS
• IPv6 ACL
• Combined ACL
• Rule Operation
• Permit/Deny
• Policy Action
• Mirror
• Rate Limit
• Redirect
• QoS Remark
• ACL Rules Binding
• Port Binding
• VLAN Binding
• Biztonság
• AAA
• 802.1X
• Port based authentication
• MAC(Host) based authentication
• Authentication Method includes PAP/EAP-MD5/EAP-TLS/EAP-TTLS/EAP-PEAP
• MAB
• Guest VLAN
• Support Radius authentication and accountability
• IP/IPv6-MAC Binding
• 512 Binding Entries
• DHCP Snooping
• DHCPv6 Snooping
• ARP Inspection
• ND Detection
• IP Source Gurad
• 253 Entries
• Source IP+Source MAC
• IPv6 Source Gurad
• 183 Entries
• Source IPv6 Address+Source MAC
• DoS Defend
• Static/Dynamic/Permanent Port Security
• Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
• kbps/ratio/pps control mode
• Port Isolation
• Secure web management through HTTPS with SSLv3/TLS1.2
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2
• IP/Port/MAC based access control
• IPv6
• IPv6 Static Routing and ACL
• IPv6 Dual IPv4/IPv6
• IPv6 Interface
• Multicast Listener Discovery (MLD) Snooping
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDPv6
• IPv6 applications
• DHCPv6 Client
• Ping6
• Tracert6
• Telnet(v6)
• IPv6 SNMP
• IPv6 SSH
• IPv6 SSL
• Http/Https
• IPv6 TFTP
• További jellemzők
• Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller
• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• ZTP (Zero-Touch Provisioning)**
• MIBs
• MIB II (RFC1213)
• Interface MIB (RFC2233)
• Ethernet Interface MIB (RFC1643)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• RMON MIB (RFC2819)
• RMON2 MIB (RFC2021)
• Radius Accounting Client MIB (RFC2620)
• Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• Support TP-Link private MIBs

• VEZÉRLÉS

• Omada App
• Igen
• Centralized Management
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Cloud Access
• Igen (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
• Management Features
• Web-based GUI and CLI management
• SNMPv1/v2c/v3
• SNMP Trap/Inform
• RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• System Log
• 802.1ab LLDP/ LLDP-MED

• EGYÉB JELLEMZŐK

• Csomagolás tartalma
• TL-SG2210MP
• Power Cord
• Installation Guide
• Rackmount Kit
• Rubber Feet
• Rendszerkövetelmény
• Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10, MAC OS, NetWare, UNIX or Linux.
• Környezet
• Operating Temperature: 0-40 °C (32-104 °F);
• Storage Temperature: -40-70 °C (-40-158 °F)
• Operating Humidity: 10-90% RH non-condensing
• Storage Humidity: 5-90% RH non-condensing

Garancia fogyasztók részére

• 1 év kötelező jótállás + 4 év gyártó által biztosított szervizgarancia

Garancia nem fogyasztók részére

• 5 év gyártó által biztosított szervizgarancia
