VIEWSONIC TD2223 HORDOZHATÓ MONITOR

Kijelző

• Képátló: 22"
  Felbontás: 1920x1080
  Panel: TN
  Képarány: 16:9

Csatlakozók

• • 1x VGA
  • 1x DVI
  • 0x DisplayPort
  • 1x HDMI
  • TV-tuner

• Display

• Display Size (in.)
• 22
• Viewable Area (in.)
• 21.5
• Panel Type
• TN Technology
• Resolution
• 1920 x 1080
• Resolution Type
• FHD (Full HD)
• Static Contrast Ratio
• 1,000:1 (typ)
• Dynamic Contrast Ratio
• 20M:1
• Light Source
• LED
• Brightness
• 250 cd/m2 (typ)
• Colors
• 16.7M
• Color Space Support
• 8 bit (6 bit + Hi-FRC)
• Aspect Ratio
• 16:9
• Response Time (Typical GTG)
• 5ms
• Response Time (GTG w/OD)
• 5ms
• Response Time (Typical Tr+Tf)
• 5ms
• Viewing Angles
• 170° horizontal, 160° vertical
• Backlight Life (Hours)
• 30000 Hrs (Min)
• Curvature
• Flat
• Refresh Rate (Hz)
• 75
• Blue Light Filter
• Yes
• Flicker-Free
• Yes
• Color Gamut
• NTSC: 72% size (Typ)
• sRGB: 103% size (Typ)
• Pixel Size
• 0.248 mm (H) x 0.248 mm (V)
• Touch Screen
• IR, 10-point multi-touch
• Surface Treatment
• Glossy, Hard Coating (7H)
• Cover Glass Thickness
• 2mm

• Compatibility

• PC Resolution (max)
• 1920x1080
• Mac Resolution (max)
• 1920x1080
• PC Operating System
• Windows 7/8.1/10/11 certified; macOS tested
• Mac Resolution (min)
• 1920x1080

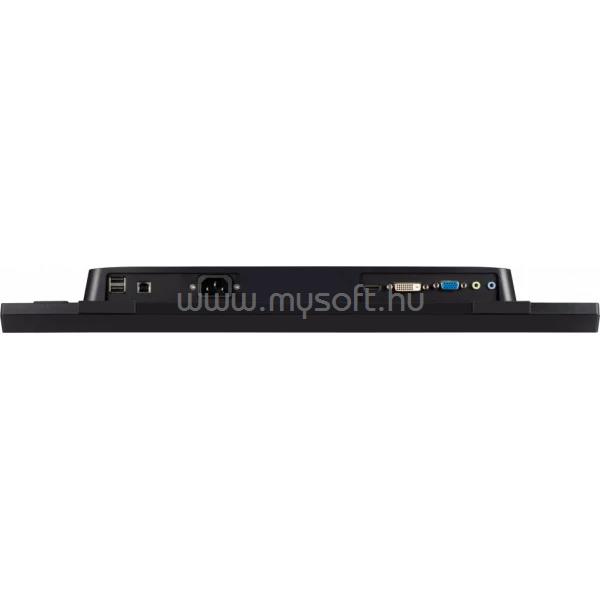

• Connector

• VGA
• 1
• USB 2.0 Type A
• 2
• USB 2.0 Type B
• 1
• 3.5mm Audio In
• 1
• 3.5mm Audio Out
• 1
• HDMI 1.4
• 1
• DVI-D
• 1
• Power in
• 3-pin Socket (IEC C14 / CEE22)

• Audio

• Internal Speakers:
• 2Watts x2

• Power

• Eco Mode (Conserve)
• 8.5W
• Eco Mode (optimized)
• 10.5W
• Consumption (typical)
• 12.5W
• Consumption (max)
• 14W
• Voltage
• AC 100-240V
• Stand-by
• 0.5W
• Power Supply
• Internal Power Supply

• Additional Hardware

• Kensington Lock Slot
• 1
• Cable Organization
• Yes

• Controls

• Physical Controls
• 1, 2, Up, Down, Power
• On Screen Display
• Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall

• Operating Conditions

• Temperature
• 32°F to 104°F (0°C to 40°C)
• Humidity (non-condensing)
• 20% to 90%

• Wall Mount

• VESA Compatible
• 100 x 100 mm

• Input Signal

• Frequency Horizontal
• 24 ~ 82KHz
• Frequency Vertical
• 50 ~ 75Hz

• Video Input

• Digital Sync
• TMDS - DVI-D, TMDS - HDMI (v1.4)
• Analog Sync
• Separate/Composite/SOG - RGB Analog

• Ergonomics

• Tilt (Forward/Back)
• 20° / 40°

• Weight (imperial)

• Net (lbs)
• 9.9
• Net Without Stand (lbs)
• 8.6
• Gross (lbs)
• 13.2

• Weight (metric)

• Net (kg)
• 4.5
• Net Without Stand (kg)
• 3.9
• Gross (kg)
• 6

• Dimensions (imperial) (wxhxd)

• Packaging (in.)
• 22.8 x 15.9 x 6.5
• Physical (in.)
• 20.5 x 13.1 x 4
• Physical Without Stand (in.)
• 20.5 x 12.5 x 2.4

• Dimensions (metric) (wxhxd)

• Packaging (mm)
• 580 x 405 x 164
• Physical (mm)
• 521 x 334 x 101
• Physical Without Stand (mm)
• 521 x 318 x 61

• General

• PACKAGE CONTENTS
• TD2223 x1
• 3-pin Plug (IEC C13 / CEE22) x1
• HDMI Cable (v1.4; Male-Male) x1
• USB A/B Cable (v2.0; Male-Male) x1
• Audio Cable (Male-Male) x1
• Quick Start Guide x1

Garancia fogyasztók részére

• 2 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 2 év gyártó által biztosított szervizgarancia
