TP-LINK SX3032F SWITCH 32X10GBPS SFP+ + 2XKONZOL PORT, MENEDZSELHETŐ RACKES

• HARDWARE FEATURES

• Interface

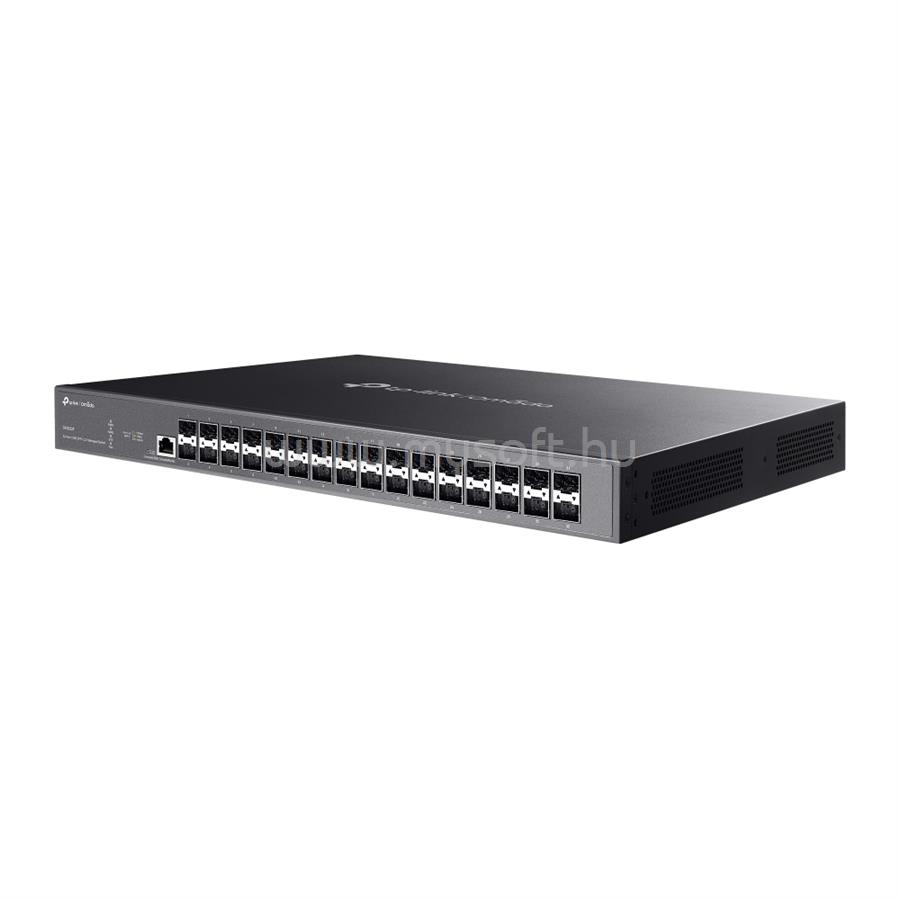

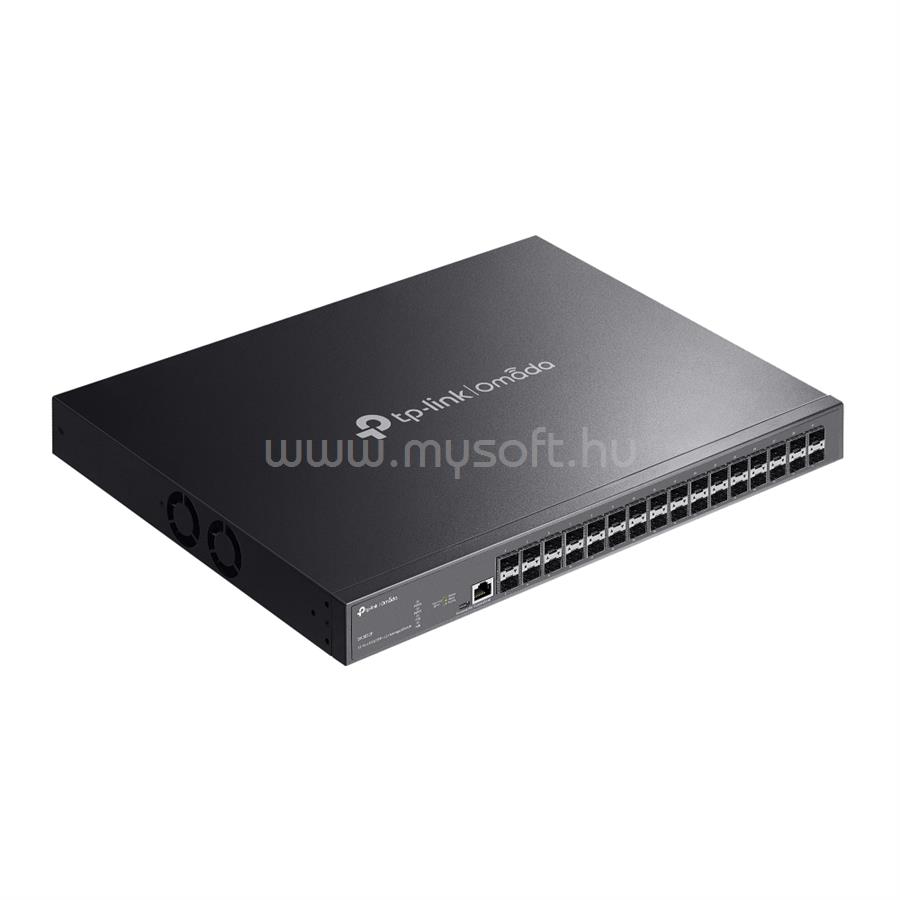

• 32× 1/10Gbps SFP+ Slots
• 1× RJ45 Console Port
• 1× Micro-USB Console Port
• Fan Quantity
• 2 internal fixed fans
• Physical Security Lock
• Yes
• Power Supply

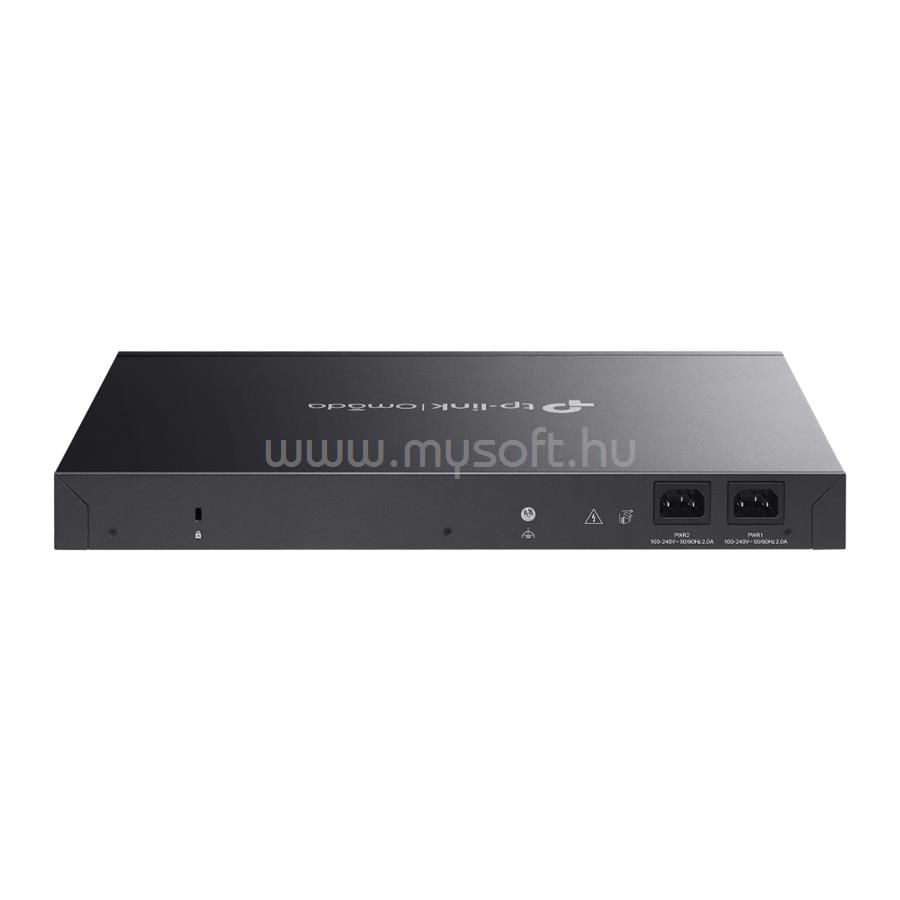

• 1+1 Redundant Power Supply (internal fixed)
• 100-240 V AC~50/60 Hz
• Dimensions ( W x D x H )
• 17.3×13.0×1.7 in (440×330×44 mm)
• Mounting
• Rack Mountable
• Max. Power Consumption
• 49.4 W (220 V / 50 Hz)

• PERFORMANCE

• Switching Capacity
• 640 Gbps
• Packet Forwarding Rate
• 240 Mpps
• MAC Address Table
• 32 K
• Packet Buffer Memory
• 24 Mbit
• Jumbo Frame
• 9 KB

• SOFTWARE FEATURES

• Quality of Service
• 8 priority queues
• 802.1p CoS/DSCP priority
• Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR
• Bandwidth Control: Port/Flow-based Rating Limiting
• Smoother Performance
• Action for Flows: QoS remark (802.1P Remark, DSCP Remark)
• L2 and L2+ Features
• 128 IP Interfaces: Support IPv4/IPv6 Interface
• Static Routing: 48 IPv4/IPv6 Static Routes
• Static ARP: 128 static entries
• 510 ARP Entries
• Proxy ARP
• Gratuitous ARP
• DHCP Server
• DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay
• DHCP L2 Relay
• Link Aggregation
• Spanning Tree Protocol
• Loopback Detection
• 802.3x Flow Control
• Mirroring
• L2 Multicast
• Supports 4000 (IPv4, IPv6) IGMP groups
• IGMP Snooping
• IGMP Authentication
• Multicast VLAN Registration (MVR)
• MLD Snooping
• Multicast Filtering: 256 profiles and 16 entries per profile
• Advanced Features
• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Unified Configuration
• Reboot Schedule
• ISP Features:
• L2PT (Layer 2 Protocol Tunneling)
• Device Link Detect Protocol (DLDP)
• PPPoE ID Insertion
• ERPS
• 802.3ah Ethernet Link OAM
• DDM
• sFlow
• VLAN
• VLAN Group (802.1q VLAN): Max 4K VLAN Groups
• 802.1Q Tagged VLAN
• MAC VLAN: 30 Entries
• Protocol VLAN
• GVRP
• VLAN VPN (QinQ): VLAN Mapping, VLAN Replace
• Voice VLAN
• Access Control List
• Time-based ACL
• MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type
• IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS
• Combined ACL
• Packet Content ACL
• IPv6 ACL
• Policy: Mirroring, Redirect, Rate Limit, QoS Remark
• ACL applies to Port/VLAN
• Security
• IP-MAC-Port Binding
• 512 Entries
• DHCP Snooping
• ARP Inspection
• IPv4 Source Guard
• IPv6-MAC-Port Binding
• 512 Entries
• DHCPv6 Snooping
• ND Detection
• ND Snooping
• IPv6 Source Guard
• DoS Defend
• Static/Dynamic Port Security: Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode
• 802.1X
• Port base authentication
• MAC-based authentication
• VLAN Assignment
• MAB
• Guest VLAN
• Radius authentication and accountability support
• AAA (including TACACS+)
• Port Isolation
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2
• IP/Port/MAC-based access control
• IPv6
• IPv6 Dual IPv4/IPv6
• Multicast Listener Discovery (MLD) Snooping
• IPv6 ACL
• IPv6 Interface
• Static IPv6 Routing
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDPv6
• IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP
• MIBs
• MIB II (RFC1213)
• Interface MIB (RFC2233)
• Ethernet Interface MIB (RFC1643)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• RMON MIB (RFC2819)
• RMON2 MIB (RFC2021)
• Radius Accounting Client MIB (RFC2620)
• Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• Support TP-Link private MIB

• Management Features

• Omada App
• Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Centralized Management
• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
• Cloud Access
• Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Zero-Touch Provisioning
• Yes. Requires the use of Omada Cloud-Based Controller.
• Management Features
• Web-based GUI
• Command Line Interface (CLI) through the console port, telnet
• SNMP v1/v2c/v3: Trap/Inform, RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED
• DHCP Auto Install
• Dual Image, Dual Configuration
• CPU Monitoring
• Password Recovery
• SNTP
• System Log

• OTHERS

• Certification
• CE, FCC, RoHS
• Package Content
• SX3032F Switch
• 2× Power Cords
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet
• System Requirements
• Microsoft© Windows© 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC© OS, NetWare©, UNIX© or Linux.
• Environment
• Operating Temperature: -5-45 °C (23-113 °F);
• Storage Temperature: -40-70 ? (-40-158 ?)
• Operating Humidity: 10-90% RH non-condensing
• Storage Humidity: 5-90% RH non-condensing

Garancia fogyasztók részére

• 3 év kötelező jótállás + 2 év gyártó által biztosított szervizgarancia

Garancia nem fogyasztók részére

• 5 év gyártó által biztosított szervizgarancia
