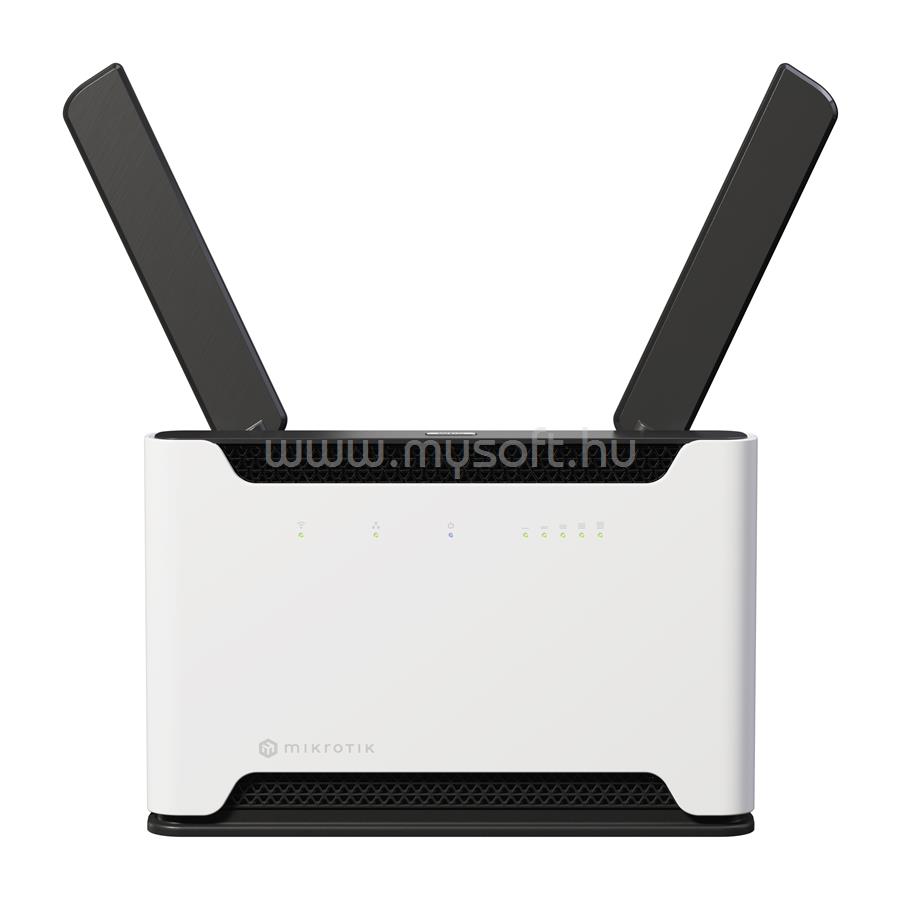

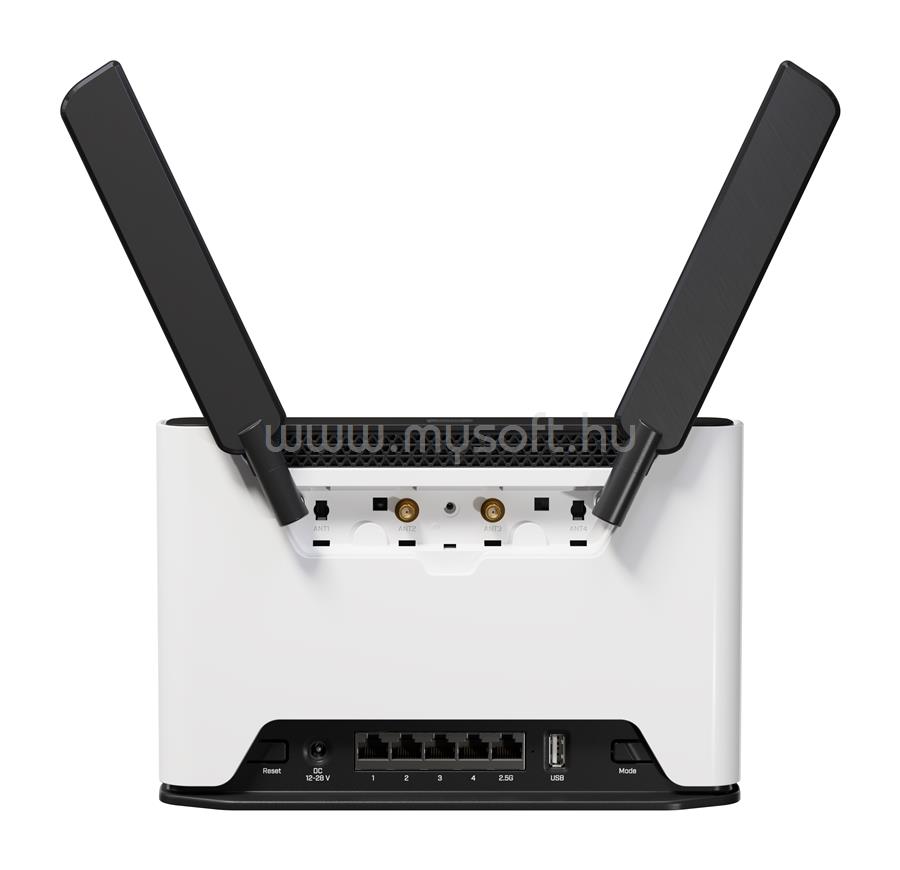

MIKROTIK S53UG+5HAXD2HAXD-TC&EG18-EA WIRELESS 4G LTE ROUTER DUALBAND, 4X1000MBPS+ 1X2,5GBPS, CHATEAU LTE18, 1XMICROSIM,ASZTALI

• Specifications

• Architecture
• ARM 64bit
• CPU
• IPQ-6010
• CPU core count
• 4
• CPU nominal frequency
• auto (864 -1800) MHz
• Switch chip model
• IPQ-6010
• Dimensions
• 240 x 156 x 44 mm
• RouterOS license
• 4
• Operating System
• RouterOS v7
• Size of RAM
• 1 GB
• Storage size
• 128 MB
• Storage type
• NAND
• MTBF
• Approximately 200'000 hours at 25C
• Tested ambient temperature
• -40°C to 65°C
• IPsec hardware acceleration
• Yes

• Powering

• Number of DC inputs
• 1 (DC jack)
• DC jack input Voltage
• 12-28 V
• Max power consumption
• 19 W
• Max power consumption without attachments
• 16 W
• Cooling type
• Passive

• Mobile

• 3G Category
• R8 (42.2Mbps Downlink, 11.2Mbps Uplink)
• 3G bands
• 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
• LTE Category
• 18 (1.2Gbps Downlink, 150Mbps Uplink)
• MIMO DL
• 4x4
• MIMO UL
• 1x1
• LTE FDD bands
• 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz)
• LTE TDD bands
• 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz)
• TAC
• 86981604

• Wireless specifications

• Wireless 2.4 GHz Max data rate
• 574 Mbit/s
• Wireless 2.4 GHz number of chains
• 2
• Wireless 2.4 GHz standards
• 802.11b/g/n/ax
• Antenna gain dBi for 2.4 GHz
• 3
• Wireless 2.4 GHz chip model
• QCN-5022
• Wireless 2.4 GHz generation
• Wi-Fi 6
• Wireless 5 GHz Max data rate
• 1200 Mbit/s
• Wireless 5 GHz number of chains
• 2
• Wireless 5 GHz standards
• 802.11a/n/ac/ax
• Antenna gain dBi for 5 GHz
• 6
• Wireless 5 GHz chip model
• QCN-5052
• Wireless 5 GHz generation
• Wi-Fi 6

• Ethernet

• 10/100/1000 Ethernet ports
• 4
• Number of 2.5G Ethernet ports
• 1

• Peripherals

• Number of SIM slots
• 1 Modem (Micro SIM)
• Number of USB ports
• 1
• USB Power Reset
• Yes
• USB slot type
• USB type A
• Max USB current (A)
• 1

• Other

• PCB temperature monitor
• Yes
• Voltage Monitor
• Yes
• Mode button
• Yes
