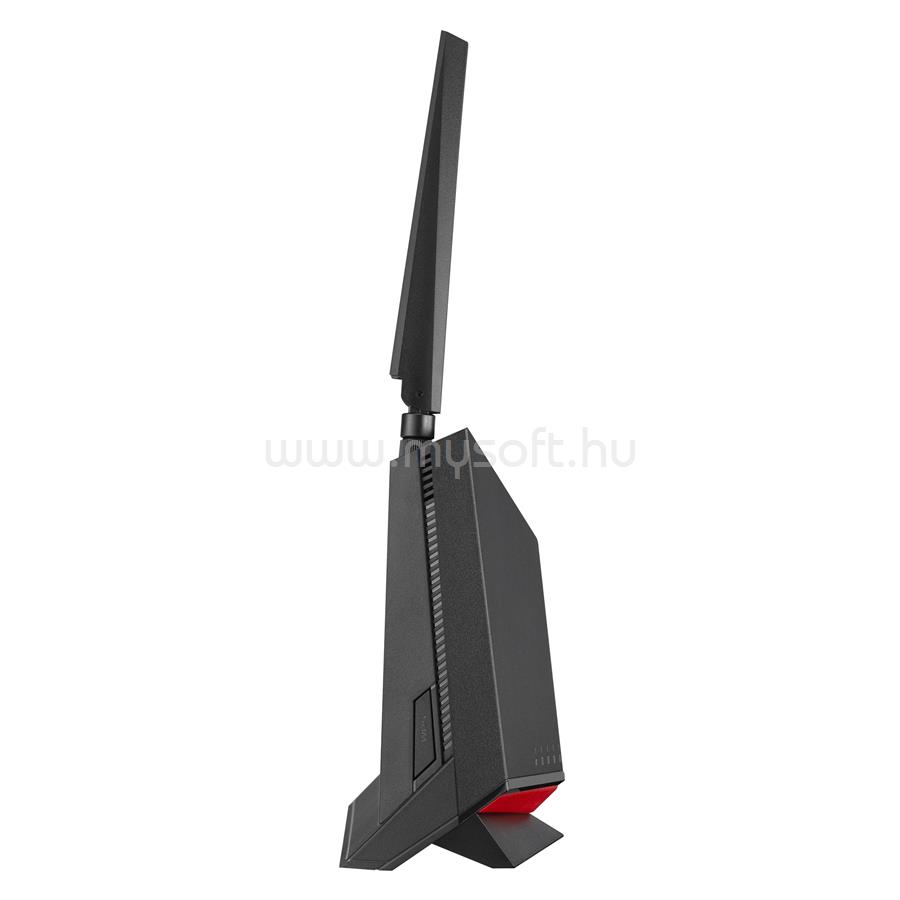

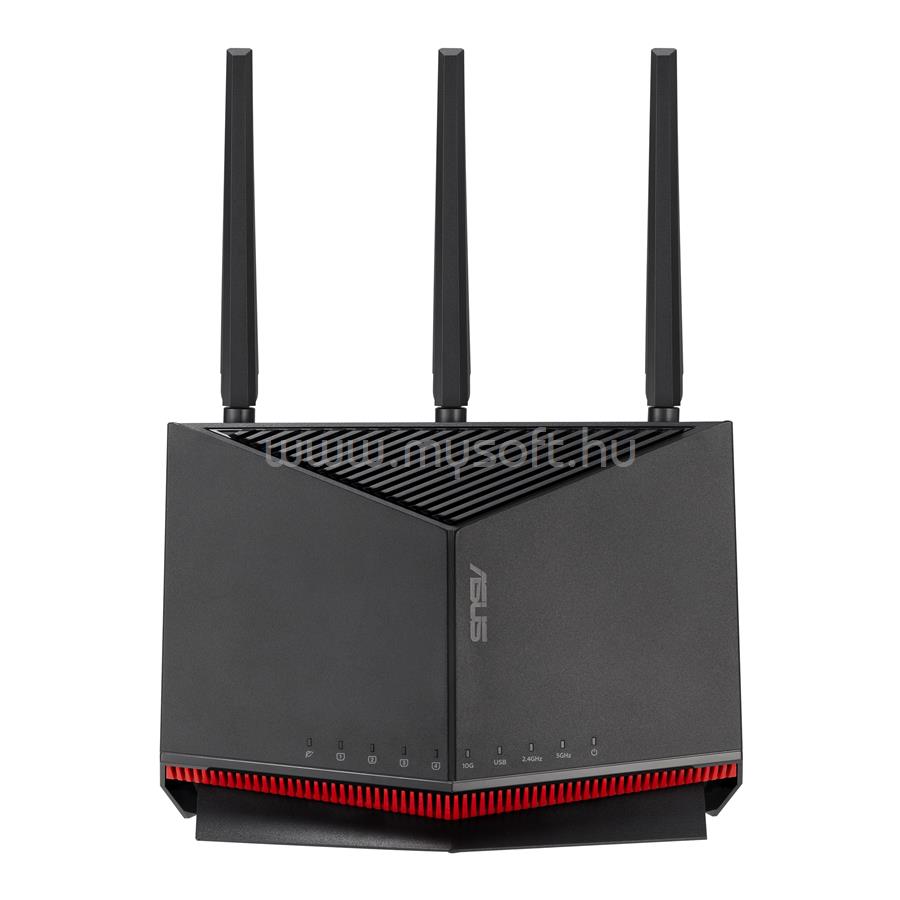

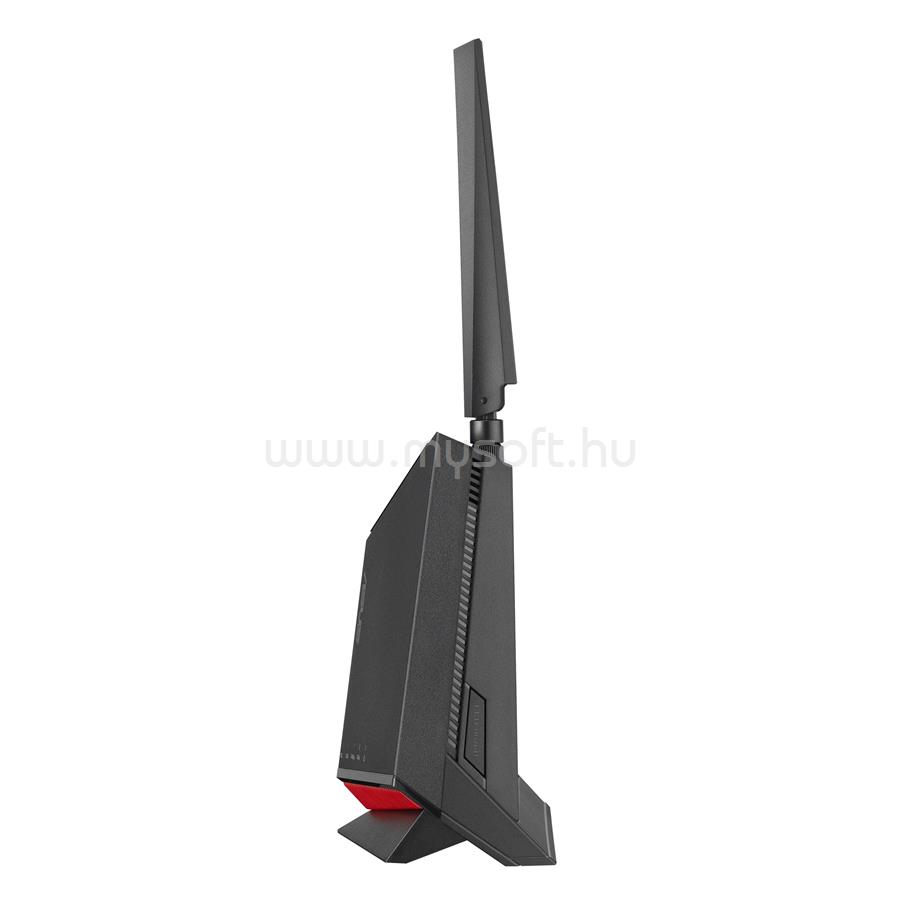

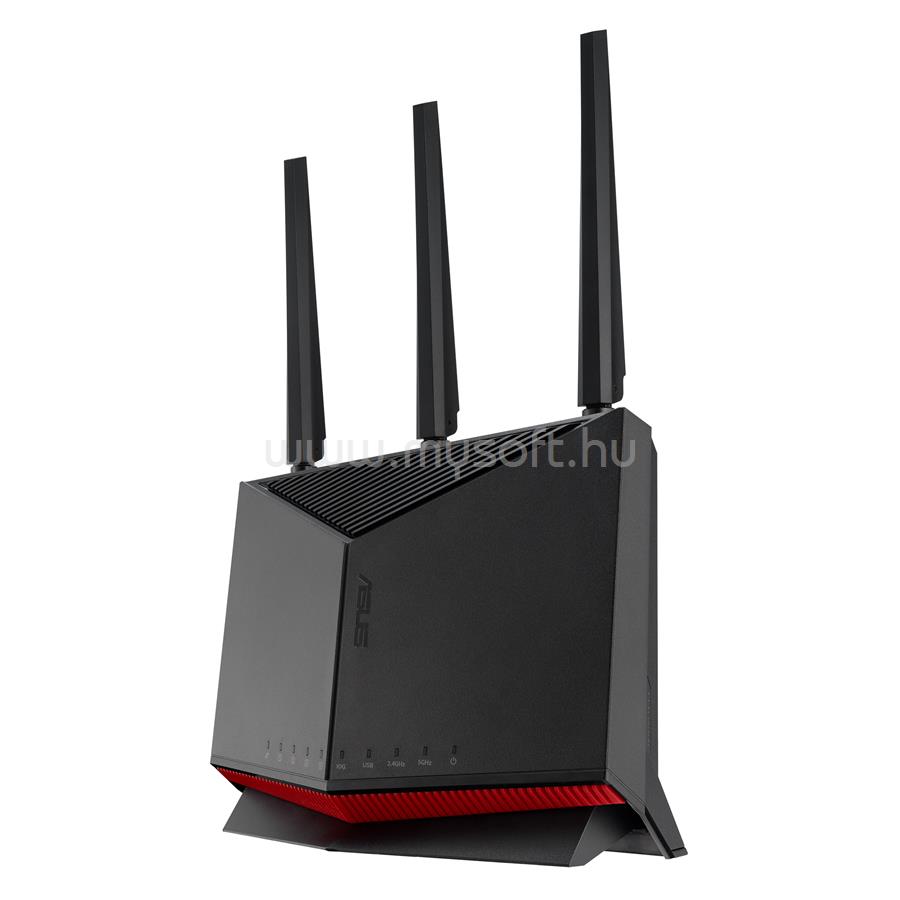

ASUS RT-BE86U ROUTER 5764 MBPS DUAL-BAND WIFI7 AIMESH

• Network Standard

• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• WiFi 4 (802.11n)
• WiFi 5 (802.11ac)
• WiFi 6 (802.11ax)
• WiFi 7 (802.11be)
• IPv4
• IPv6

• Product Segment

• BE6800 ultimate BE performance
• 1032+5764 Mbps

• WiFi Data Rate

• WiFi 7 (802.11be) (2.4GHz)
• up to 1032 Mbps
• WiFi 7 (802.11be) (5GHz)
• up to 5764 Mbps

• Antenna

• External antenna x 3; Internal antenna x 1

• Transmit / Receive

• 2.4GHz 3x3
• 5GHz 4x4

• Processor

• 2.6GHz quad-core processor

• Memory

• 256 MB Flash and 1 GB RAM

• Boosts Speed

• OFDMA (Orthogonal Frequency Division Multiple Access)
• Beamforming: standard-based and universal
• 4096-QAM high data rate
• 20/40/80/160 MHz bandwidth

• Operating Frequency

• 2.4 GHz
• 5 GHz

• Operating Mode

• Wireless Router Mode
• AiMesh Node Mode
• Access Point Mode
• Media Bridge Mode
• Repeater Mode

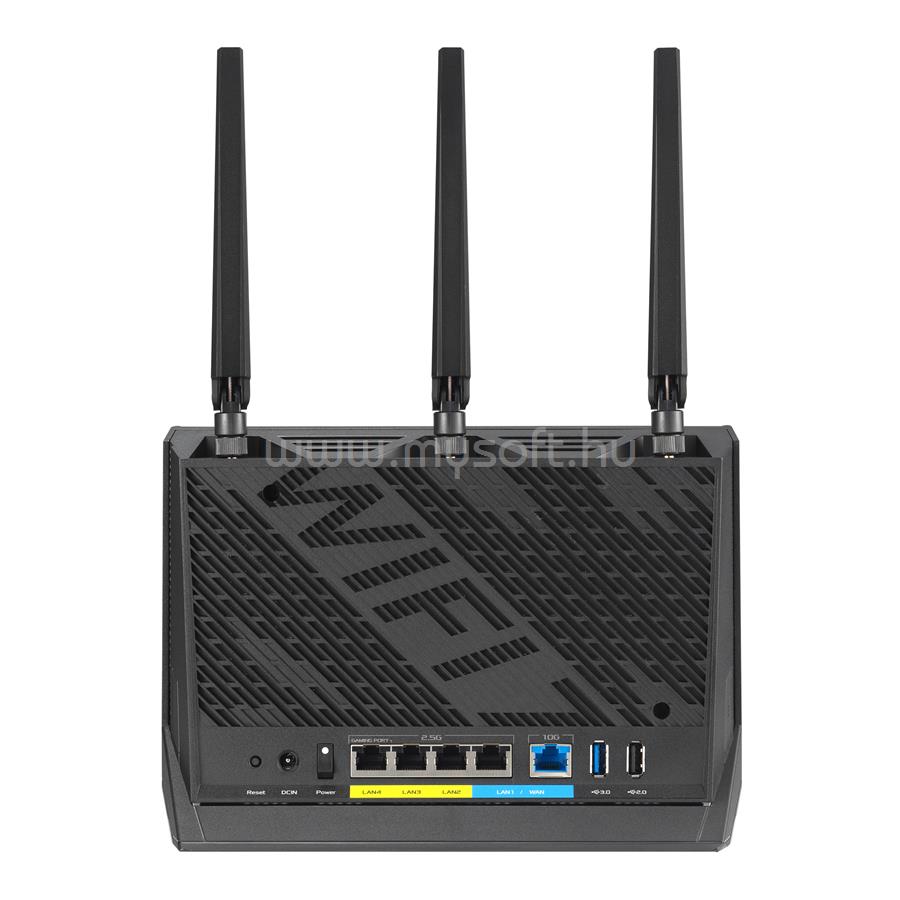

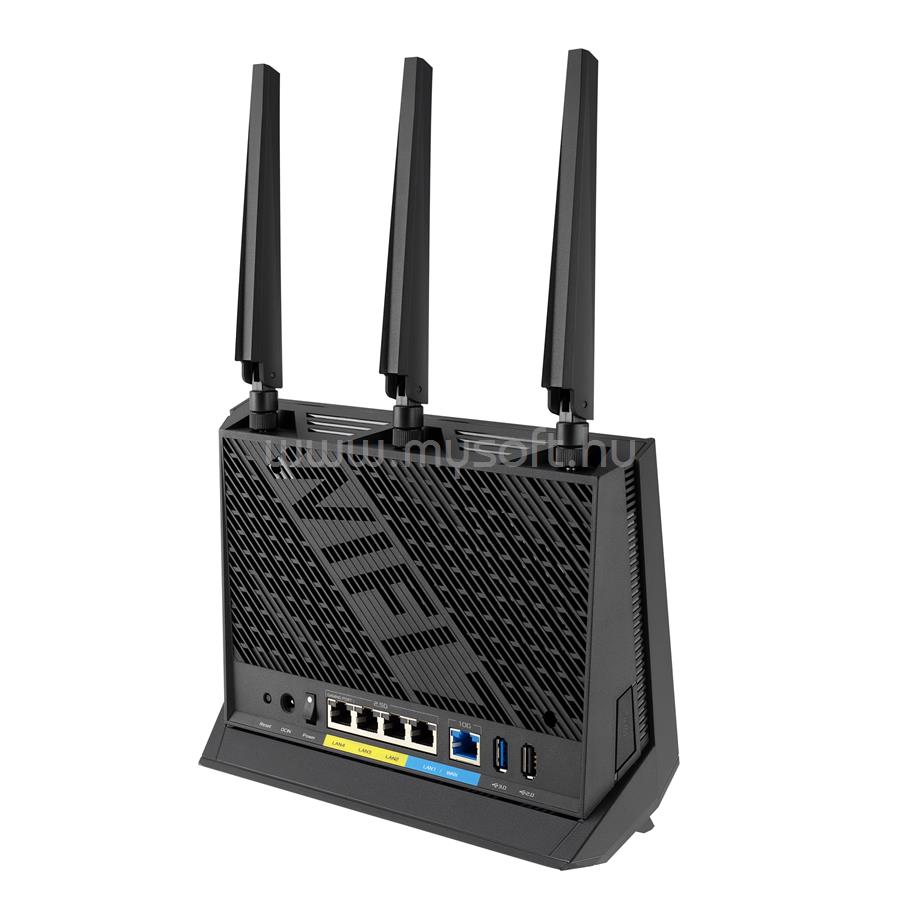

• I/O Ports

• 1 x 10G for WAN/LAN, 1 x 2.5G for WAN/LAN, 3 x 2.5G for LAN, USB 3.2 Gen1 x1, USB 2.0 Gen1 x1

• Buttons

• WPS Button, Reset Button, Power Switch, LED on/off Button

• LED Indicator

• WAN x1
• 10G Port x1
• LAN x4
• USB x1
• 2.4GHz x1
• 5GHz x1
• Power x1

• Power Supply

• AC Input
• 110V~240V(50~60Hz)
• DC Output
• 12 V with max. 5 A current ; 19.5 V with max. 2.31 A current

• Package Content

• RT-BE86U WiFi router
• RJ-45 cable
• Power adapter
• Quick Start Guide
• Warranty card

• Product Weight (g)

• 854 g

• Product Dimensions

• 235*90*316 mm

• AiMesh

• AiMesh
• Primary AiMesh Router
• AiMesh Node

• Game

• Mobile Game Mode
• Gear Accelerator
• OpenNAT (Game Profile)
• Gaming Port

• Parental Control

• "Allow you to block access to unwanted websites and apps."
• Web & Apps Filters
• Time Scheduling
• Safe Browsing
• Customized Internet Schedule
• Maximum Parental Control Profile
• 64
• Maximum Parental Control Content Cilter Rule
• 64

• Guest Network

• "You can create additional networks for different purposes, these networks are separate from the main network domain, to provide enhanced security, and create comprehensive network environment with customized settings."
• Support Guest Network Pro
• Guest Network Connection Time Limit
• Guest Network Pro Encryption : Open system, WPA/WPA2-Personal/WPA3-Personal
• Maximum Guest Network Rule : 2.4 GHz + 5 GHz
• 5

• Security

• AiProtection
• VPN
• WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, WPA3 Enterprise, Open System & OWE
• WPS
• Let's Encrypt
• DNS-over-TLS
• SSH
• Security Scan
• Firewall
• Maximum Firewall Keyword Filter
• 64
• Maximum Firewall Network Service Filter
• 32
• Maximum Firewall URL Filter
• 64

• AiProtection

• AiProtection Pro
• Router Security Assessment
• Malicious Site Blocking
• Two-Way IPS
• Infected Device Prevention and Blocking

• VPN

• Instant Guard
• VPN Client L2TP
• VPN Client Open VPN
• VPN Client PPTP
• VPN Client WireGuard
• VPN Server IPSec
• VPN Server Open VPN
• VPN Server PPTP
• VPN Server WireGuard
• VPN Fusion
• Support Surfshark

• Traffic Control

• Adaptive QoS
• Bandwidth Monitor
• Bandwidth Limiter
• Maximum Bandwidth Limiter Rule : 32
• Traditional QoS
• Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
• Traffic Analyzer
• Traffic Analysis Period : Daily, Weekly, Monthly
• Website History

• WAN

• Internet Connection Type
• PPPoE
• PPTP
• L2TP
• Automatic IP
• Static IP
• IPSec
• Dual WAN
• WAN Aggregation
• 3G / 4G LTE dongle
• Port forwarding
• Maximum Port Forwarding Rule : 64
• Port triggering
• Maximum Port Triggering Rule : 32
• DMZ
• DDNS
• NAT Passthrough
• PPTP Pass-Through
• L2TP Pass-Through
• IPSec Pass-Through
• RTSP Pass-Through
• H.323 Pass-Through
• SIP Pass-Through
• PPPoE Relay

• LAN

• DHCP Server
• IGMP Snooping
• IPTV
• LAN Link Aggregation
• Manually Assign IP Address
• Wake on LAN (WOL)
• Maximum Manually Assign IP Address Rule
• 128

• Wireless

• MU-MIMO
• UTF-8 SSID
• WiFi MAC Address Filter
• Wireless Scheduler
• Airtime Fairness
• RADIUS Client
• Universal Beamforming
• Explicit Beamforming
• Maximum MAC Filters
• 64

• USB application

• Safely Remove Disk
• AiCloud
• Download Master
• AiDisk
• Media Server
• Time Machine
• Samba Server
• FTP Server
• Shared Folder Privileges
• File System
• HFS+
• NTFS
• vFAT
• ext2
• ext3
• ext4

• User Interface

• WEB
• ASUSWRT
• APP
• ASUS Router APP

• Administration

• Configuration Backup and Restore
• Diagnosis tools
• Feedback System
• System Log
• New Device Connect Notification
• Login Captcha
• Connection Diagnosis
• Auto Firmware Update
