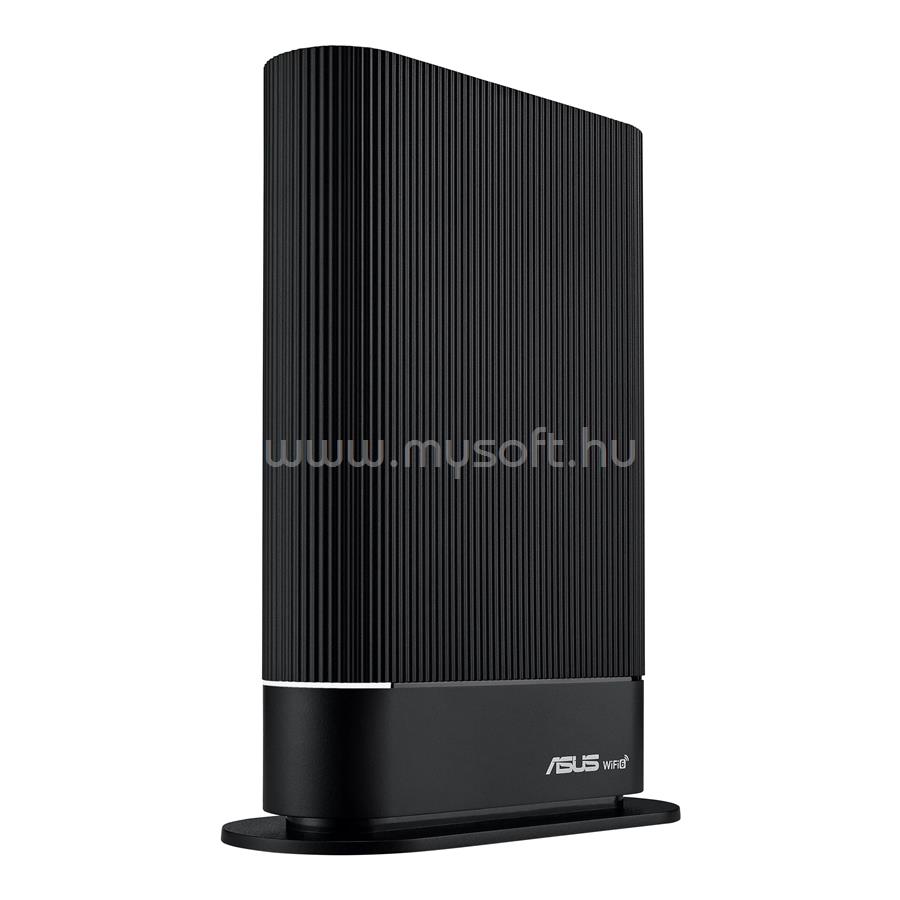

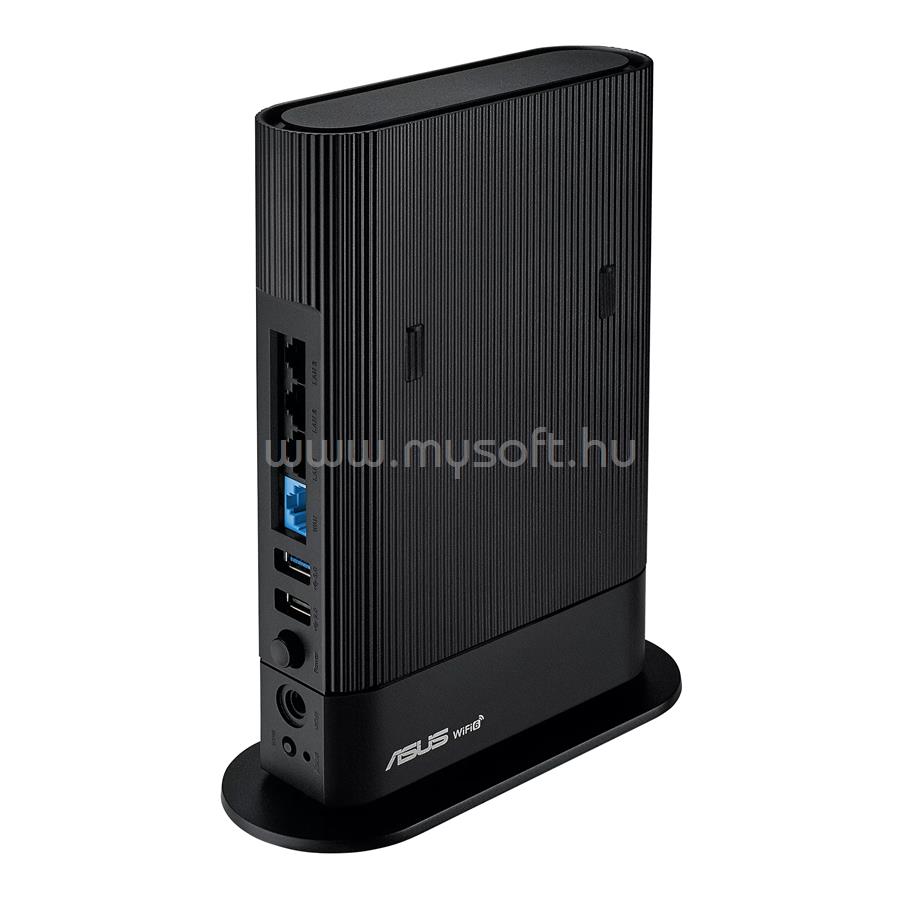

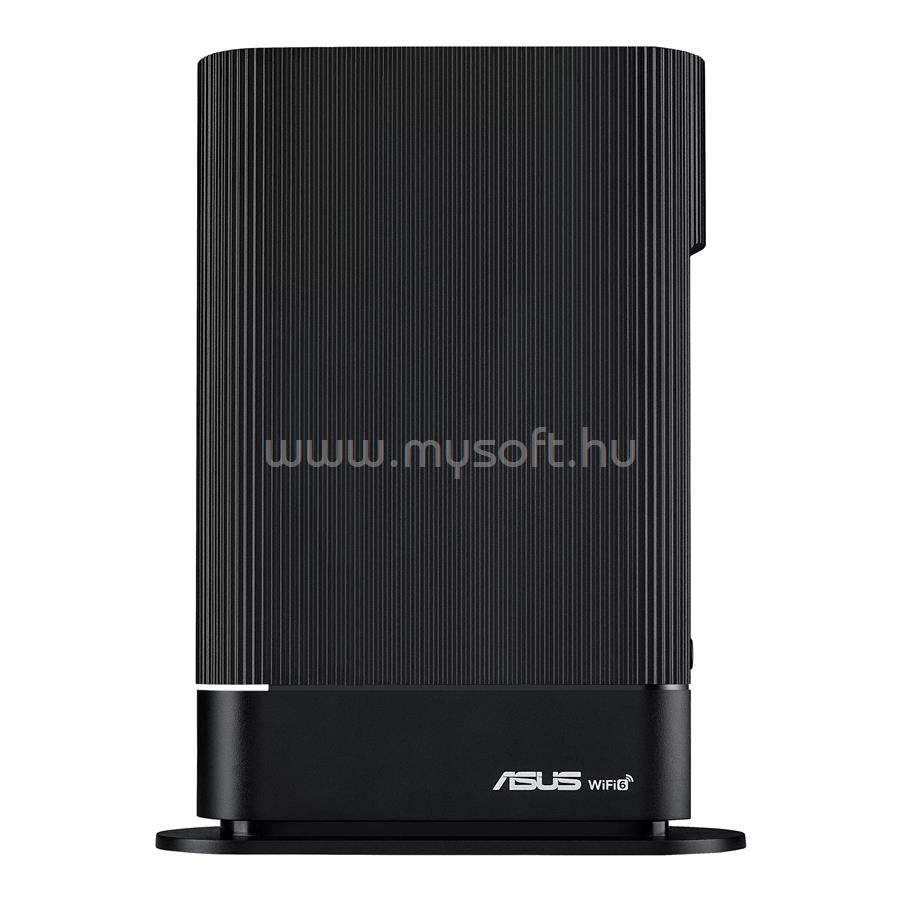

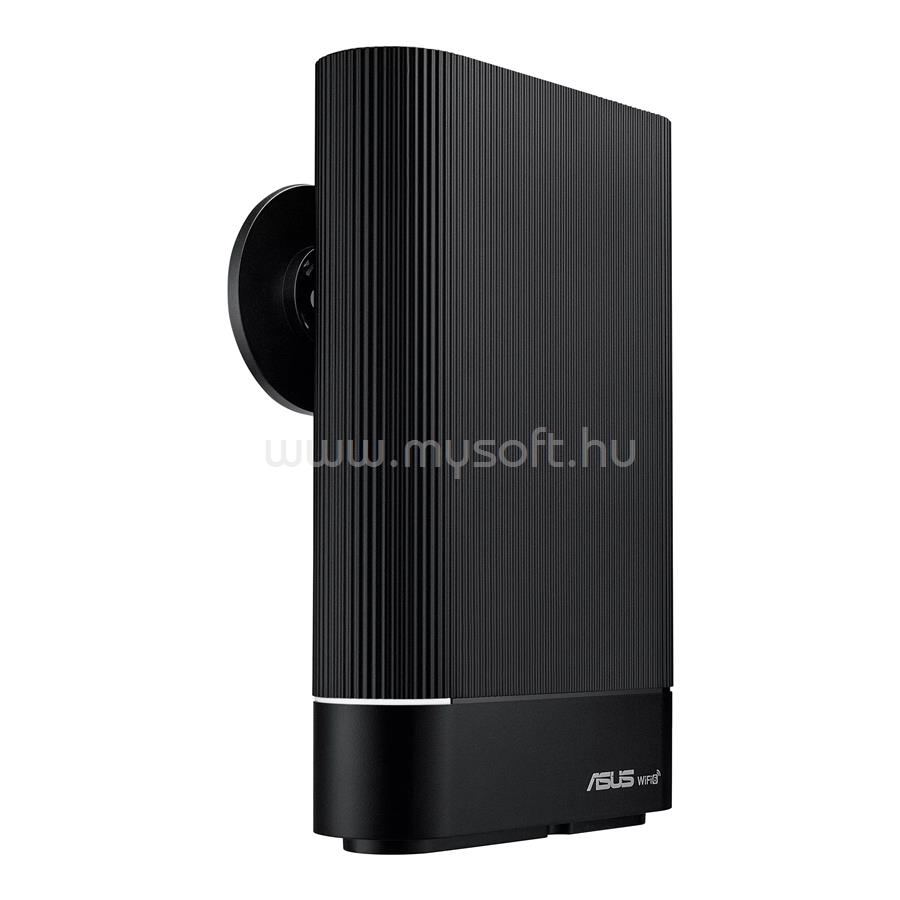

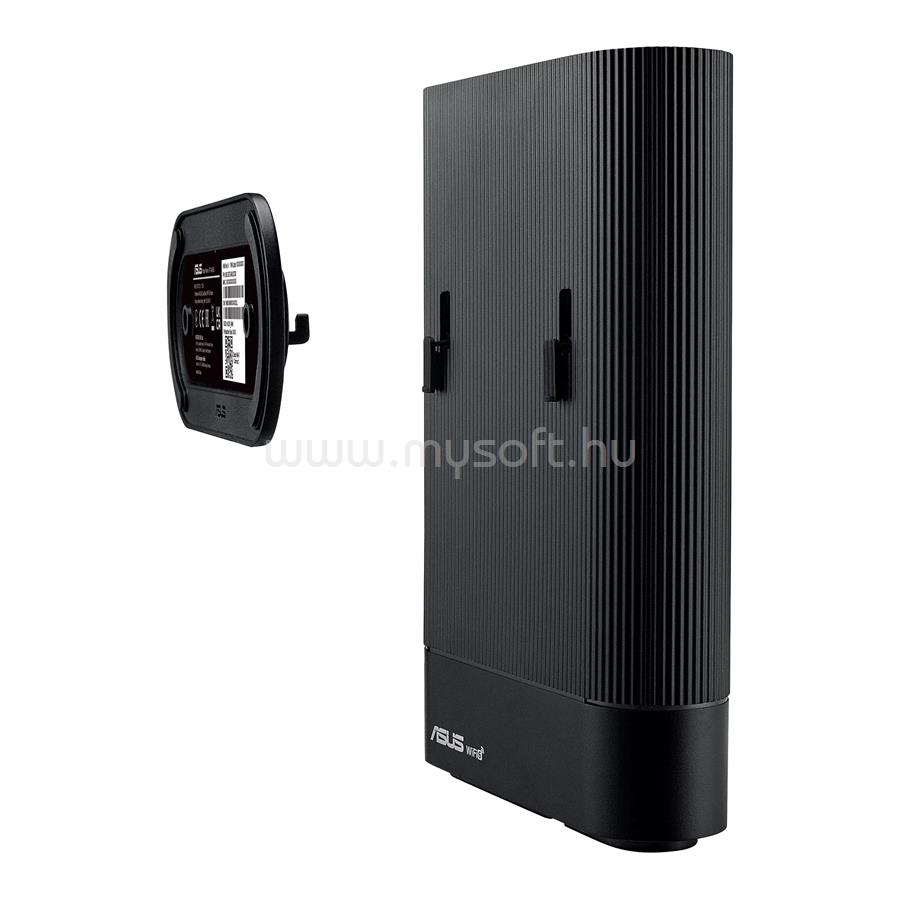

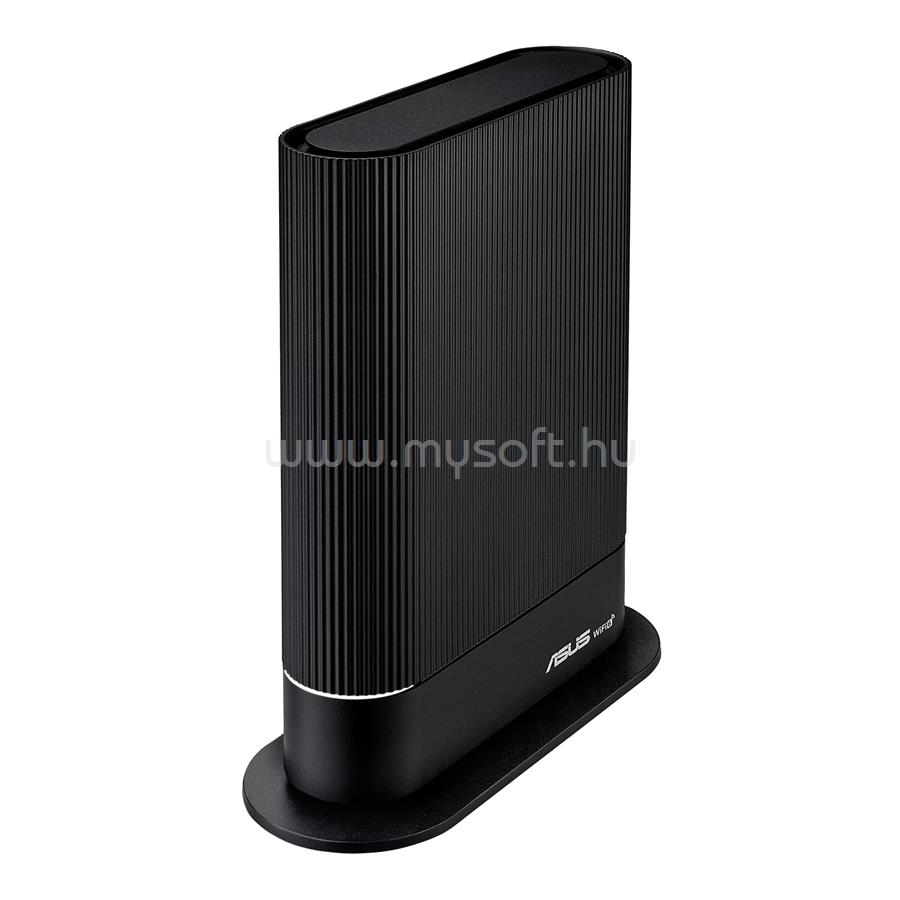

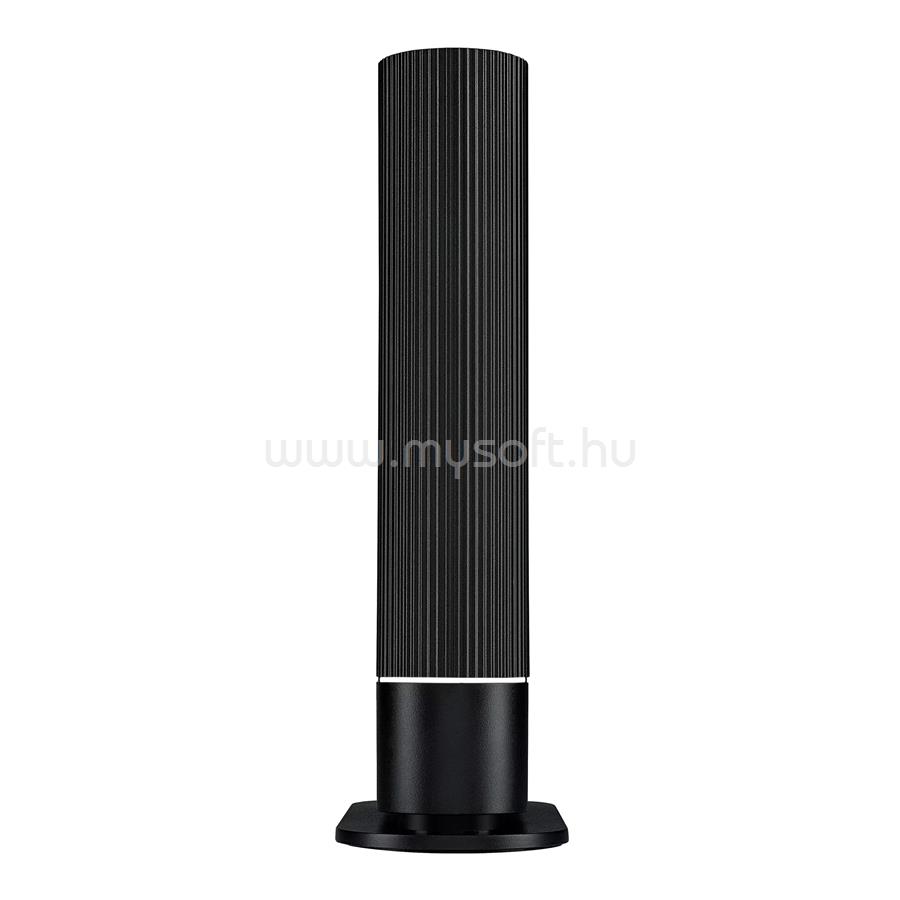

ASUS RT-AX59U WIRELESS ROUTER DUAL BAND AX4200 1XWAN(1000MBPS) + 3XLAN(1000MBPS) + 2XUSB

• Network Standard

• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• WiFi 4 (802.11n)
• WiFi 5 (802.11ac)
• WiFi 6 (802.11ax)
• IPv4
• IPv6

• Product Segment

• AX4200 ultimate AX performance: 574+3603 Mbps

• WiFi Data Rate

• 802.11a
• up to 54 Mbps
• 802.11b
• up to 11 Mbps
• 802.11g
• up to 54 Mbps
• WiFi 4 (802.11n)
• up to 450 Mbps
• WiFi 4 (802.11n) (256QAM)
• up to 600 Mbps
• WiFi 5 (802.11ac)
• up to 2600 Mbps
• WiFi 6 (802.11ax) (2.4GHz)
• up to 574 Mbps
• WiFi 6 (802.11ax) (5GHz)
• up to 3603 Mbps

• Antenna

• Internal antenna x 5

• Transmit / Receive

• MIMO technology
• 2.4GHz 2x2
• 5GHz 3x3

• Processor

• 2.0GHz quad-core 64bit processor

• Memory

• 128 MB Flash
• 512 MB RAM

• Boosts Speed

• OFDMA (Orthogonal Frequency Division Multiple Access)
• Beamforming: standard-based and universal
• 1024-QAM high data rate
• 20/40/80/160 MHz bandwidth

• Operating Frequency

• 2.4G Hz / 5 GHz

• Operating Mode

• Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge

• I/O Ports

• RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3
• USB 3.2 Gen 1 x 1, USB 2.0 x 1

• Buttons

• WPS Button, Reset Button, Power Switch

• LED Indicator

• Power & Status Combo LED x 1

• Power Supply

• AC Input : 110V~240V(50~60Hz)
• DC Output : 12 V with max. 2.5 A current

• Package Content

• RT-AX59U Router
• RJ-45 cable
• Power adapter
• Warranty card
• Quick start guide

• Product Weight (g)

• 476 g

• Product Dimensions

• 131 x 37.5 x 200 mm (WxDxH)

• Remark

• Content and color may vary in different regions and packages.

• AiMesh

• AiMesh
• Primary AiMesh Router
• AiMesh Node

• Parental Control

• "Allow you to block access to unwanted websites and apps."
• Safe Browsing
• Customized Internet Schedule
• Maximum Parental Control Profile : 64
• Maximum Parental Control Content Cilter Rule : 64

• Guest Network

• "The Guest Network provides Internet connection for guests but restricts access to your local network."
• Maximum Guest Network Rule : 2.4 GHz x 3, 5 GHz x 3
• Guest Network Connection Time Limit
• Guest Network Encryption : Open system, WPA/WPA2/WPA3-Personal, WPS

• Security

• AiProtection
• WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support
• WPS
• Let's Encrypt
• DNS-over-TLS
• SSH
• Security Scan
• Firewall
• Maximum Firewall Keyword Filter
• 64
• Maximum Firewall Network Service Filter
• 32
• Maximum Firewall URL Filter
• 64

• AiProtection

• Router Security Assessment
• Malicious Site Blocking
• Two-Way IPS
• Infected Device Prevention and Blocking

• VPN

• Instant Guard
• VPN Client L2TP
• VPN Client Open VPN
• VPN Client PPTP
• VPN Client WireGuard
• VPN Server IPSec
• VPN Server Open VPN
• VPN Server PPTP
• VPN Server WireGuard
• VPN Fusion

• Traffic Control

• Adaptive QoS
• Bandwidth Monitor
• Bandwidth Limiter
• Traditional QoS
• Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
• Traffic Analyzer
• Traffic Analysis Period : Daily, Weekly, Monthly
• Website History
• Maximum Bandwidth Limiter Rule
• 32
• Maximum Traditional QoS Rule
• 32

• WAN

• Internet connection Type
• PPPoE, PPTP, L2TP, Automatic IP, Static IP
• Dual WAN
• 3G / 4G LTE dongle
• Port forwarding
• Port triggering
• DMZ
• DDNS
• NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Passthrough, PPPoE relay
• Maximum Port Forwarding Rule
• 64
• Maximum Port Triggering Rule
• 32

• LAN

• DHCP Server
• IGMP Snooping
• IPTV
• LAN Link Aggregation
• Manually Assign IP Address
• Wake on LAN (WOL)
• Maximum Manually Assign IP Address Rule
• 64

• Wireless

• MU-MIMO
• UTF-8 SSID
• WiFi MAC Address Filter
• Wireless Scheduler
• Airtime Fairness
• RADIUS Client
• Universal Beamforming
• Explicit Beamforming
• Maximum MAC Filters
• 64

• USB application

• Safely Remove Disk
• AiCloud
• Download Master
• AiDisk
• Media Server
• Samba Server
• FTP Server
• Shared Folder Privileges
• File System
• HFS+, NTFS, vFAT, ext2, ext3, ext4

• Administration

• Configuration Backup and Restore
• Diagnosis tools
• Feedback System
• System Log
• New Device Connect Notification
• Login Captcha
• Connection Diagnosis
• Auto Firmware Update
