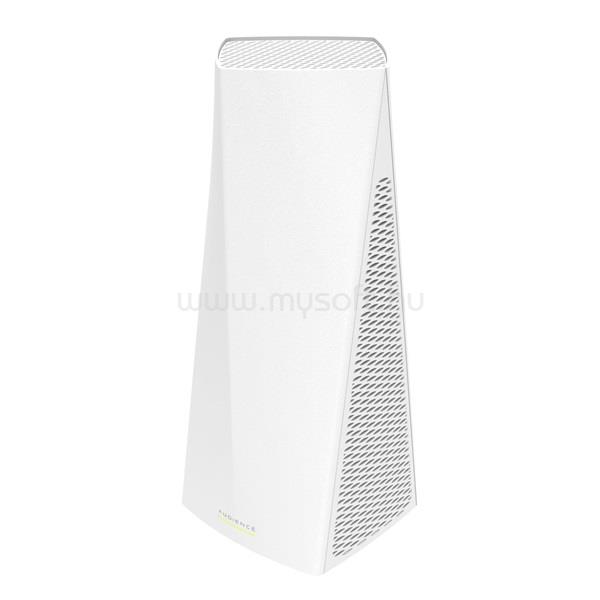

MIKROTIK RBD25GR-5HPACQD2HPND&R11E-LTE6 4G LTE ROUTER

• Specifications

• Architecture
• ARM 32bit
• CPU
• IPQ-4019
• CPU core count
• 4
• CPU nominal frequency
• 716 MHz
• Switch chip model
• IPQ-4019
• Dimensions
• 100 x 235 x 97 mm
• RouterOS license
• 4
• Operating System
• RouterOS
• Size of RAM
• 256 MB
• Storage size
• 128 MB
• Storage type
• NAND
• MTBF
• Approximately 200'000 hours at 25C
• Tested ambient temperature
• -30°C to 60°C
• IPsec hardware acceleration
• Yes

• Powering

• Number of DC inputs
• 2 (DC jack, PoE-IN)
• DC jack input Voltage
• 12-57 V
• Max power consumption
• 30 W
• Max power consumption without attachments
• 20 W
• Cooling type
• Passive
• PoE in
• Passive PoE
• PoE in input Voltage
• 24-57 V

• Mobile

• 2G Category
• Class12
• 2G bands
• 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
• 3G Category
• R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
• 3G bands
• 1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
• LTE Category
• 6 (300Mbit/s Downlink, 50Mbit/s Uplink)
• LTE FDD bands
• 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz)
• LTE TDD bands
• 38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz)
• TAC
• 35666210

• Wireless specifications

• Wireless 2.4 GHz Max data rate
• 300 Mbit/s
• Wireless 2.4 GHz number of chains
• 2
• Wireless 2.4 GHz standards
• 802.11b/g/n
• Antenna gain dBi for 2.4 GHz
• 3.5
• Wireless 2.4 GHz chip model
• IPQ-4019
• Wireless 2.4 GHz generation
• Wi-Fi 4
• Wireless 5 GHz Max data rate
• 867 Mbit/s
• Wireless 5 GHz number of chains
• 2
• Wireless 5 GHz standards
• 802.11a/n/ac
• Antenna gain dBi for 5 GHz
• 4.5
• Wireless 5 GHz chip model
• IPQ-4019
• Wireless 5 GHz generation
• Wi-Fi 5
• Wireless 5 GHz Max data rate
• 1733 Mbit/s
• Wireless 5 GHz number of chains
• 4
• Wireless 5 GHz standards
• 802.11a/n/ac
• Antenna gain dBi for 5 GHz
• 4.5
• Wireless 5 GHz chip model
• QCA9984
• Wireless 5 GHz generation
• Wi-Fi 5

• Ethernet

• 10/100/1000 Ethernet ports
• 2

• Peripherals

• Number of SIM slots
• 1 Modem (Micro SIM)
• MiniPCI-e slots
• 1
