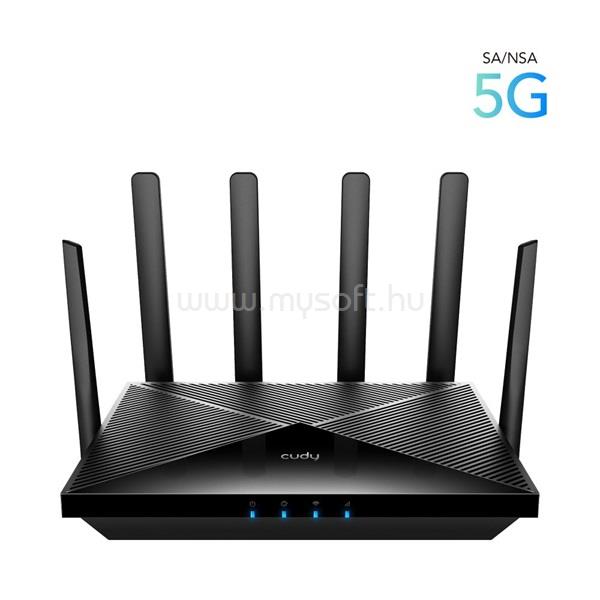

CUDY P5 AX3000 WIFI 6 5G CPE DUAL NANOSIM GIGABIT LAN MESH ROUTER (FEKETE)

• CPU

• Chipset
• IPQ5018
• CPU Details
• 1.0 GHz Dual-core, ARM Cortex-A53

• Memory/Storage

• Flash/ROM
• 128 MB (1 Gbit) NAND
• DDR/RAM
• 256 MB (2 Gbit) DDR3

• Cellular

• Cellular Standards
• 5G Rel. 16
• DL 4G Cat. 19 / UL 4G Cat. 18
• Cellular Antennas
• 4× Detachable
• Detachable Cellular Antennas Connector
• SMA Female
• SIM Options
• 2× Nano SIM Slots
• Available Versions
• EU, US

• EU Version Cellular

• Suitable Region
• Europe, Middle East, Africa, Asia-Pacific (Exc. JP, CN), Brazil
• Max DL Speed
• 3.4 Gbps (NSA), 2.4 Gbps (SA)
• Max UL Speed
• 550 Mbps (NSA), 900 Mbps (SA)
• Advanced
• DL/UL 4CA, DL 4×4, UL 2×2 MIMO
• Cellular Bands
• 5G Sub 6 GHz: n1/3/5/7/8/20/28/38/40/41/71/75/76/77/78
• LTE-FDD: B1/3/5/7/8/20/28/32/71
• LTE-TDD: B38/40/41/42/43
• WCDMA: B1/5/8

• Wireless

• 5 GHz Wi-Fi Speed
• 2402 Mbps
• 2.4 GHz Wi-Fi Speed
• 574 Mbps
• 5 GHz Wi-Fi Streams
• 2T2R (2×2 MIMO)
• 2.4 GHz Wi-Fi Streams
• 2T2R (2×2 MIMO)
• Wi-Fi Antennas
• 2× Fixed
• 5 GHz Antenna Gain Max
• 4.79 dBi
• 2.4 GHz Antenna Gain Max
• 3.59 dBi
• Beamforming
• True
• FEM or PA/LNA
• 5 GHz: 2× External
• 2.4 GHz: 2× External
• Range Performance
• Max: 170 m (558 ft)
• Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
• Wall Performance
• One wooden walls with thickness < 10 cm (4'')
• One concrete wall with thickness < 20 cm (7'')

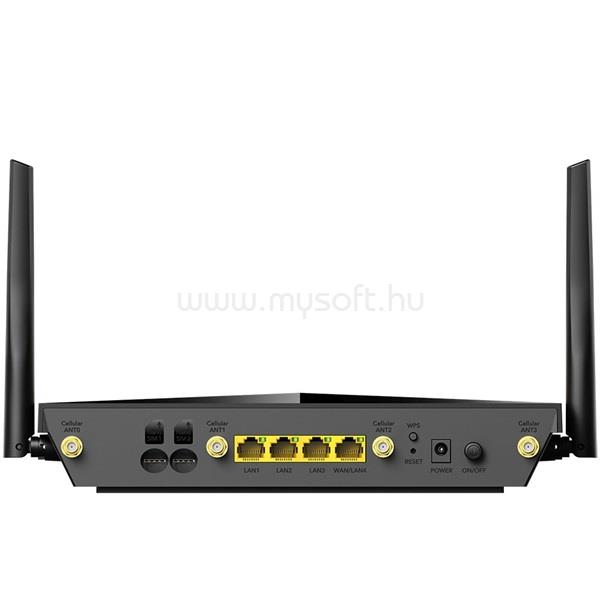

• Interfaces

• Physical Buttons
• WPS Button
• Reset Button
• Gigabit RJ45 Ports
• 4
• Ethernet Notes
• One port supports WAN/LAN configuration, and the rest are LAN ports
• LED
• Power
• Internet
• Wi-Fi
• Cellular
• Power Input
• DC Jack

• Power

• Power Methods
• DC
• DC
• 12V 2.5A
• Power Adapter
• Input: 100 ~ 240 V, 50/60 Hz AC
• Output: 12V 2.5A DC

• Reliability

• ESD Contact Protection
• 4kV
• ESD Air Protection
• 8kV
• Environment
• Operating Temperature: 0 ? ~ 40 ? (32 ? ~104 ?)
• Storage Temperature: -40 ? ~ 70 ? (-40 ? ~ 158 ?)
• Operating Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5% ~ 90% non-condensing

• Certifications

• FCC, CE

• Mechanical

• Dimension
• 253×152.5×48.2 mm
• 9.96×6×1.9 inches
• Product Weight
• 670 g (23.63 oz.)
• Installation
• Desktop
• Wall-mount

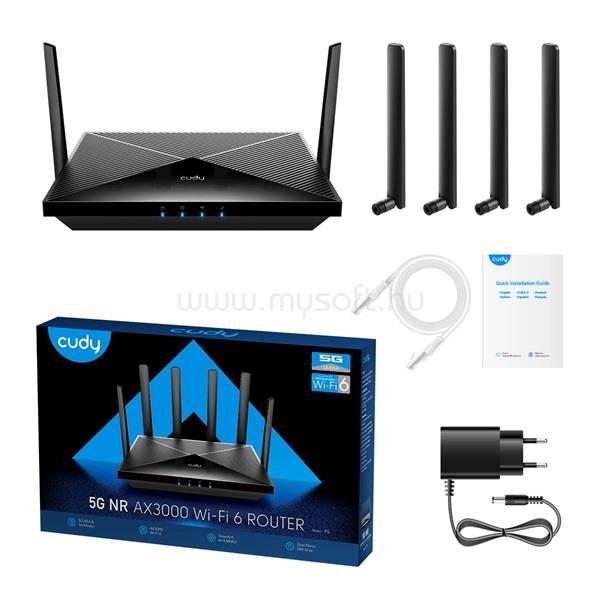

• Package Content

• P5
• Detachable Antennas
• Power Adapter
• Ethernet Cable
• Installation Guide

Garancia fogyasztók részére

• 2 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 2 év gyártó által biztosított szervizgarancia
