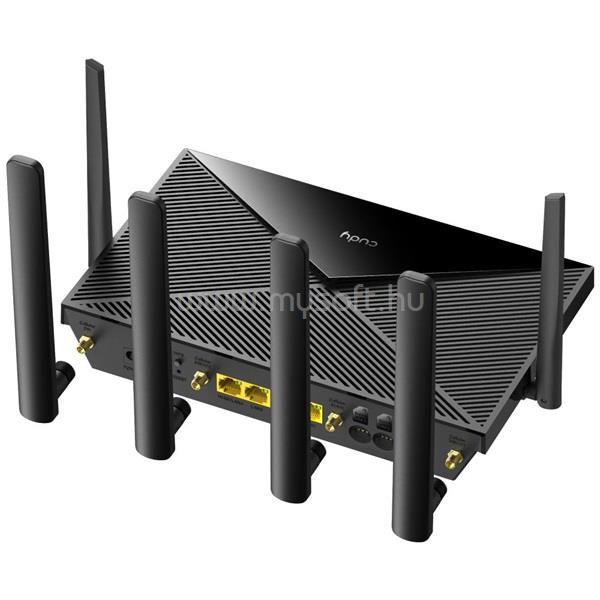

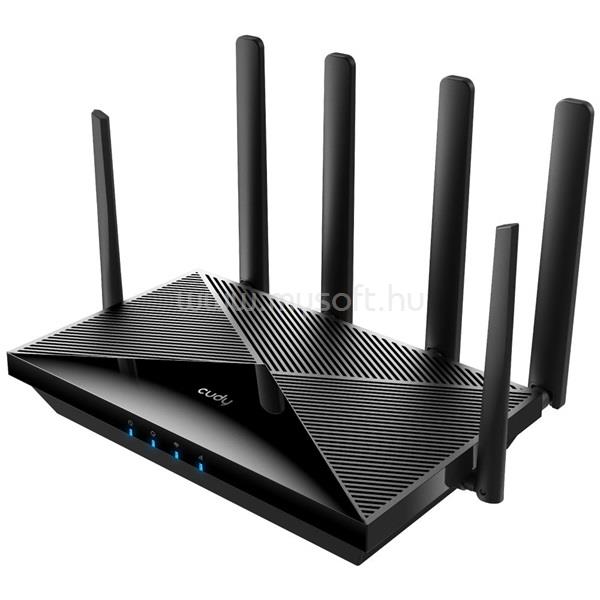

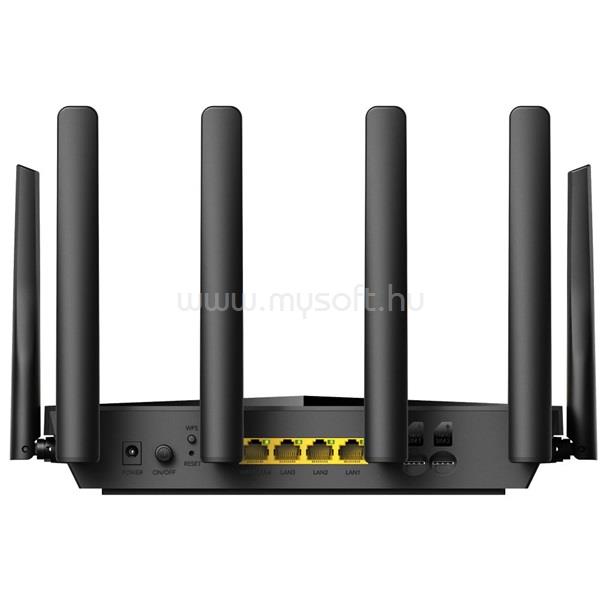

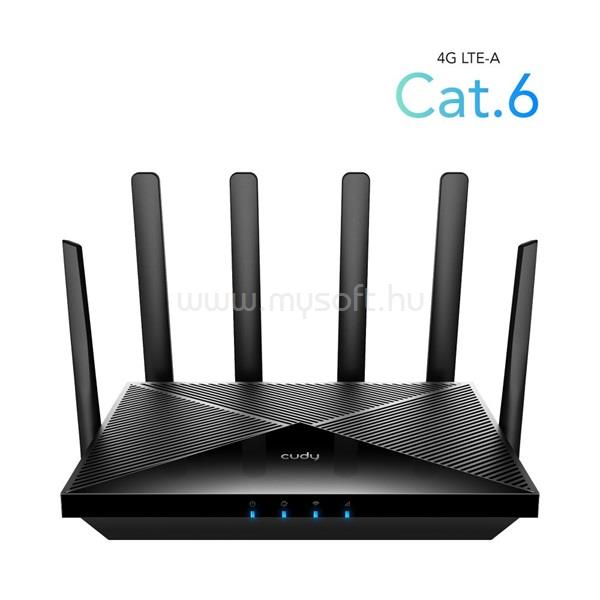

CUDY LT700 KÉTSÁVOS AC1200 WIFI DUAL NANOSIM 4G LTE CAT6 ROUTER (FEKETE)

• CPU

• Chipset
• MT7621
• CPU Details
• 880 MHz Dual-Core, MIPS1004Kc

• Memory/Storage

• Flash/ROM
• 16 MB (128 Mbit) NOR
• DDR/RAM
• 128 MB (1 Gbit) DDR3

• Cellular

• Cellular Standards
• 4G LTE Cat. 6
• Cellular Antennas
• 4× Detachable
• Detachable Cellular Antennas Connector
• SMA Female
• SIM Options
• 2× Nano SIM Slots
• Available Versions
• EU, US

• EU Version Cellular

• Suitable Region
• Europe, Middle East, Africa
• Max DL Speed
• 300 Mbps (LTE-FDD), 226 Mbps (LTE-TDD)
• Max UL Speed
• 50 Mbps (LTE-FDD), 28 Mbps (LTE-TDD)
• Advanced
• DL 2CA, DL 2×2 MIMO
• Cellular Bands
• LTE-FDD: B1/3/5/7/8/20/28/32
• LTE-TDD: B38/40/41
• WCDMA: B1/3/5/8

• US Version Cellular

• Suitable Region
• United States, Canada
• Max DL Speed
• 300 Mbps (LTE-FDD), 226 Mbps (LTE-TDD)
• Max UL Speed
• 50 Mbps (LTE-FDD), 28 Mbps (LTE-TDD)
• Advanced
• DL 2CA, DL 4×4 MIMO
• Cellular Bands
• LTE-FDD: B2/4/5/7/12/13/14/25/26/29/30/66/71
• LTE-TDD: B41/48

• Wireless

• 5 GHz Wi-Fi Speed
• 867 Mbps
• 2.4 GHz Wi-Fi Speed
• 300 Mbps
• 5 GHz Wi-Fi Streams
• 2T2R (2×2 MIMO)
• 2.4 GHz Wi-Fi Streams
• 2T2R (2×2 MIMO)
• Wi-Fi Antennas
• 2× Fixed
• 5 GHz Antenna Gain Max
• 5.18 dBi
• 2.4 GHz Antenna Gain Max
• 3.16 dBi
• Beamforming
• True
• FEM or PA/LNA
• 5 GHz: 2× Internal
• 2.4 GHz: 2× Internal
• Range Performance
• Max: 170 m (558 ft)
• Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
• Wall Performance
• One wooden walls with thickness < 10 cm (4'')
• One concrete wall with thickness < 20 cm (7'')

• Interfaces

• Physical Buttons
• WPS Button
• Reset Button
• Gigabit RJ45 Ports
• 4
• Ethernet Notes
• One port supports WAN/LAN configuration, and the rest are LAN ports
• LED
• Power
• Internet
• Wi-Fi
• Cellular
• Power Input
• DC Jack

• Power

• Power Methods
• DC
• DC
• 12V 1A
• Power Adapter
• Input: 100 ~ 240 V, 50/60 Hz AC
• Output: 12V 1A DC
• Max Power Consumption (W)
• 11.2W
• Idle Power Consumption (W)
• 3.6W

• Reliability

• ESD Contact Protection
• 4kV
• ESD Air Protection
• 8kV
• Environment
• Operating Temperature: 0 ? ~ 40 ? (32 ? ~104 ?)
• Storage Temperature: -40 ? ~ 70 ? (-40 ? ~ 158 ?)
• Operating Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5% ~ 90% non-condensing

• Mechanical

• Dimension
• 253×152.5×48.2 mm
• 9.96×6×1.9 inches
• Product Weight
• 536 g (18.91 oz.)
• Installation
• Desktop
• Wall-mount

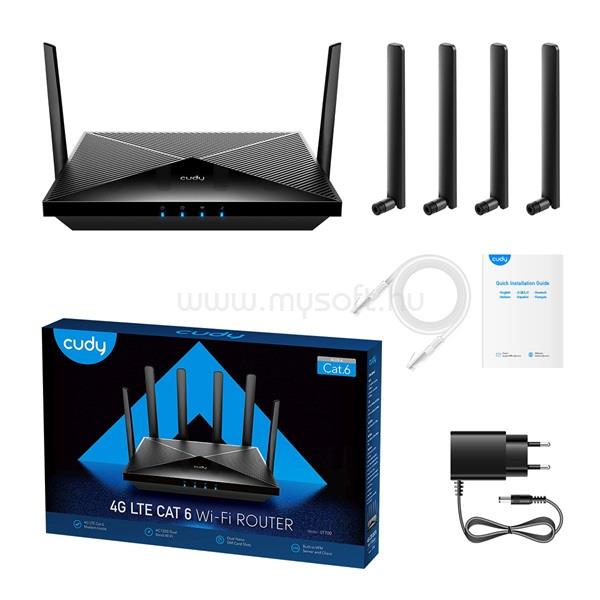

• Package Content

• LT700
• Detachable Antennas
• Power Adapter
• Ethernet Cable
• Installation Guide
