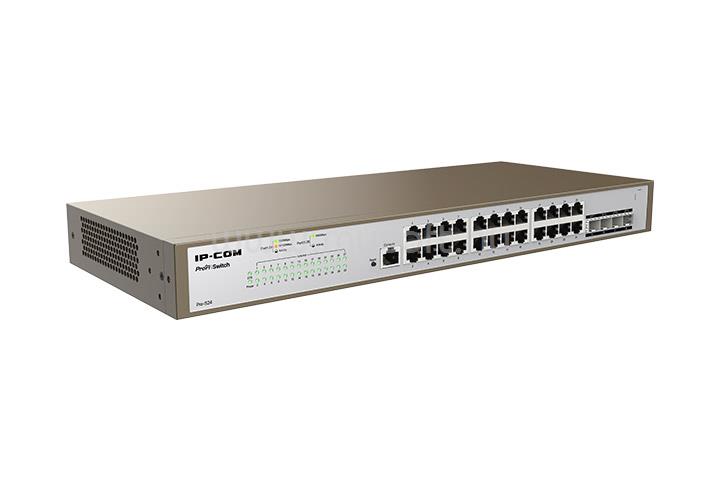

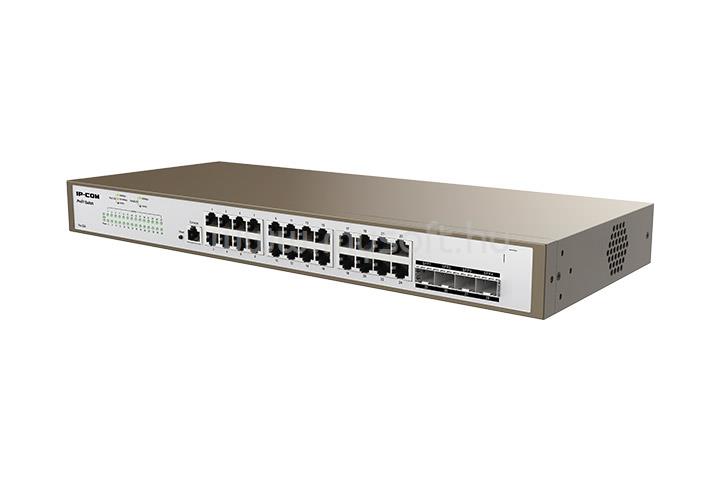

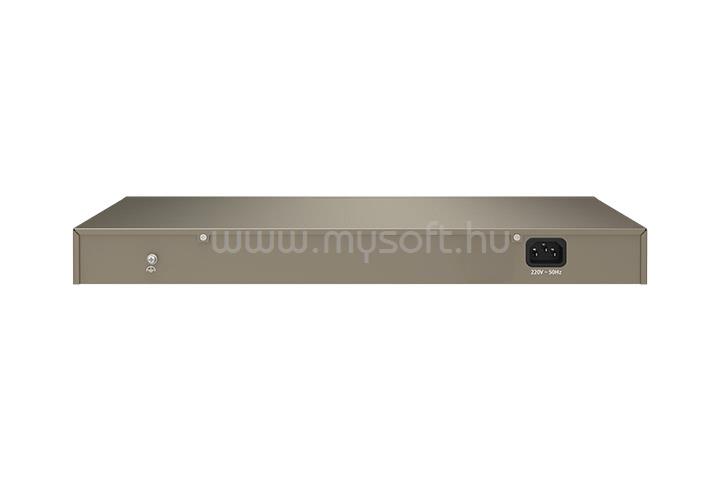

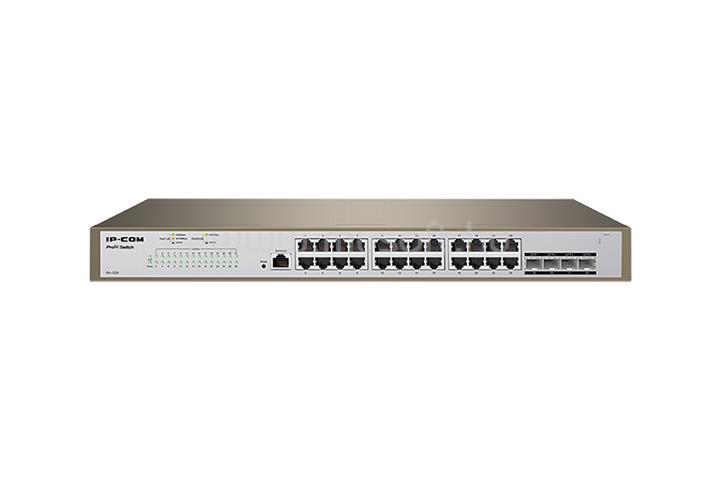

IP-COM PRO-S24 VEZÉRELHETŐ SWITCH (24X1GBPS + 4X1GBPS SFP + 1X1GBPS CONSOLE PORT)

• Hardware specifications

• Network standards
• IEEE802.3?IEEE802.3u?IEEE802.3ab?IEEE802.3z?IEEE802.3x?IEEE802.1p?IEEE802.1q?IEEE802.1w?IEEE802.1d?IEEE802.1s
• LED indicators
• One Link/Act LED indicator for each port
• One Power LED indicator for each device
• One SYS LED indicator for each device
• Fixed ports
• 24 x 10/100/1000 Base-T Ethernet ports
• 4 x 1000 Base-X SFP port
• 1 x RJ45 Console port
• Lightning protection
• Port: 6 kV (Common mode)
• Power supply: 6 kV (Common mode)
• Forwarding mode
• Store-and-forward
• Switching capacity
• 56 Gbps
• Packet forwarding rate
• 41.7 Mpps
• Switching buffer
• 12 Mbit
• MAC address table
• 16K
• Input voltage
• 100 - 240V AC 50/60Hz
• PoE power supply
• N/A
• Whole switch consumption
• Whole switch consumption: <24W
• Dimensions
• 440 mm * 179.6 mm * 44 mm(L x W x H)
• Environment
• Operating temperature: 0°C - 45°C
• Operating humidity: (10% - 90%)RH, non-condensing
• Storage temperature: -40°C - 70°C
• Storage humidity: (5% - 90%)RH, non-condensing

• Software features

• Security features
• Support ARP receiving limit
• Support unknown mac address discard
• Support DoS attack defense
• Support 802.1x security authentication
• Support RADIUS authentication
• VLAN
• IEEE 802.1Q VLAN
• VLAN Layer-3 interfaces
• Support three port modes: Access, Trunk and Hybrid
• DHCP
• Support DHCP server
• Support DHCP relay
• Support DHCP snooping
• Support Option 82 policy configuration
• Routing
• Support inter-VLAN routing
• Support IPv4 static routing
• Support dynamic ARP and static ARP
• Support ARP aging configuration
• Port aggregation
• Support static aggregation
• Support LACP dynamic aggregation
• Support a maximum of 32 aggregation groups and a maximum of 8 member ports in each group
• STP (Spanning Tree Protocol)
• Support IEEE 802.1d STP (Spanning Tree Protocol)
• Support IEEE 802.1w RSTP (Rapid Spanning Tree Protocol)
• Support IEEE 802.1s MSTP (Multiple Spanning Tree Protocol)
• Support edge ports
• Support BPDU statistics
• Support BPDU Guard, BPDU Filter,
• Support Root Guard, Loop Guard, and Loopback-detection
• Multicast
• IGMP Snooping V1/V2/V3
• Support port fast leave
• Port mirroring
• N: 1 port mirroring supported
• QoS
• Support SP (Strict Priority)
• Support SWRR (Simple Weighted Round Robin)
• Support WRR (Weighted Round Robin)
• Support 802.1p port trust mode
• Support DSCP port trust mode
• Support a maximum of 8-queue service quality mapping
• Support Tail Drop
• Support storm suppression
• Support port speed limit
• ACL
• Support MAC ACL
• Support IPv4 ACL
• Loading and upgrade
• Support FTP/TFTP/HTTP upgrade
• Support con guration import and export
• Management and maintenance
• Support centralized control and management by ProFi software controller
• Support CLI configuration
• Support Telnet remote configuration
• Support SNMP V1/V2/V3
• Support web management and maintenance
• Support system logs
• Support log classification
• Support NTP
• Support Ping & Tracert tests
• Support memory and CPU monitoring

Garancia fogyasztók részére

• 2 év kötelező jótállás + 1 év gyártó által biztosított szervizgarancia

Garancia nem fogyasztók részére

• 3 év gyártó által biztosított szervizgarancia
