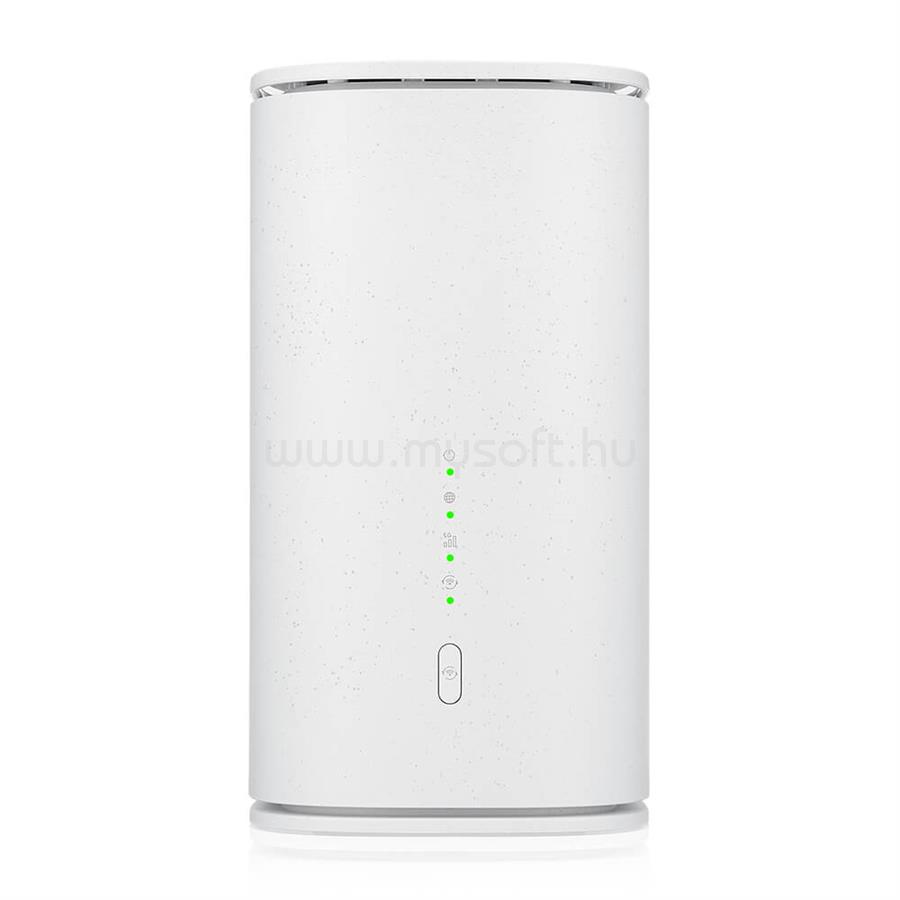

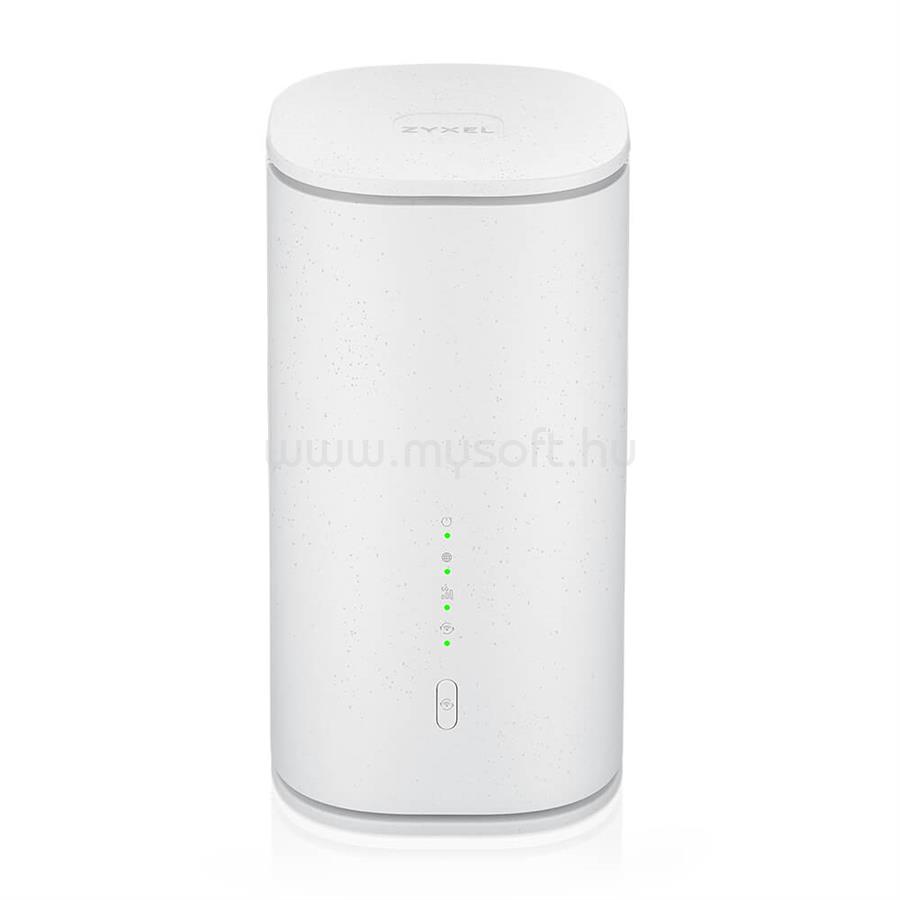

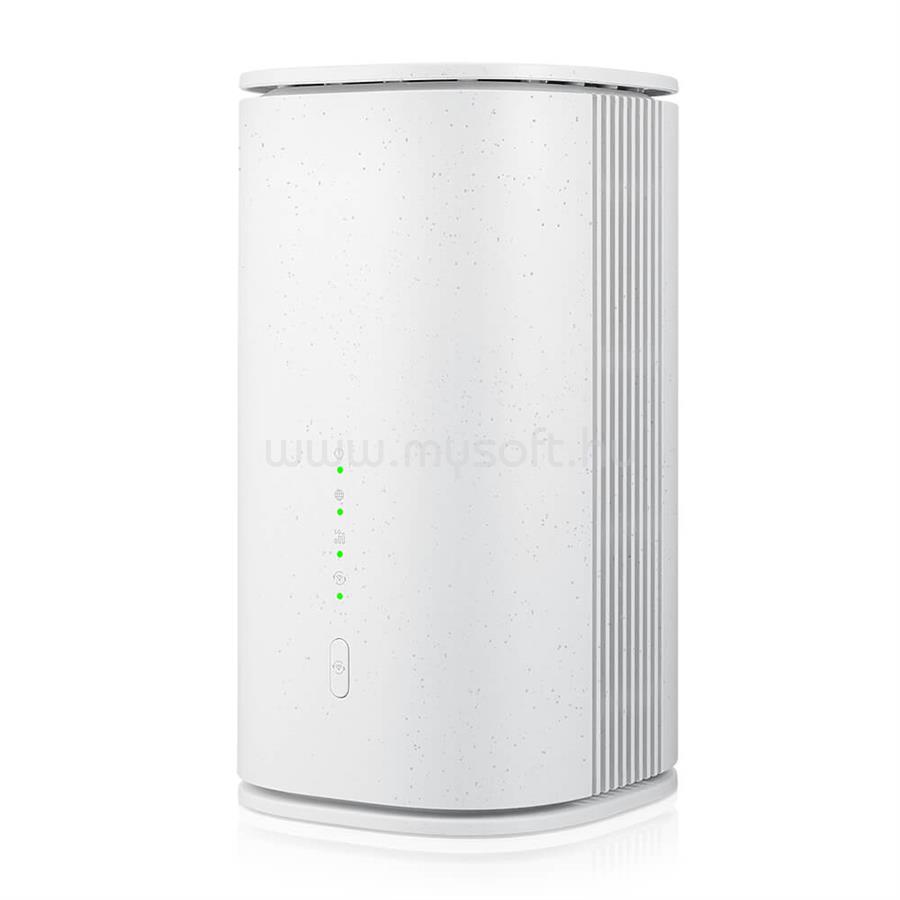

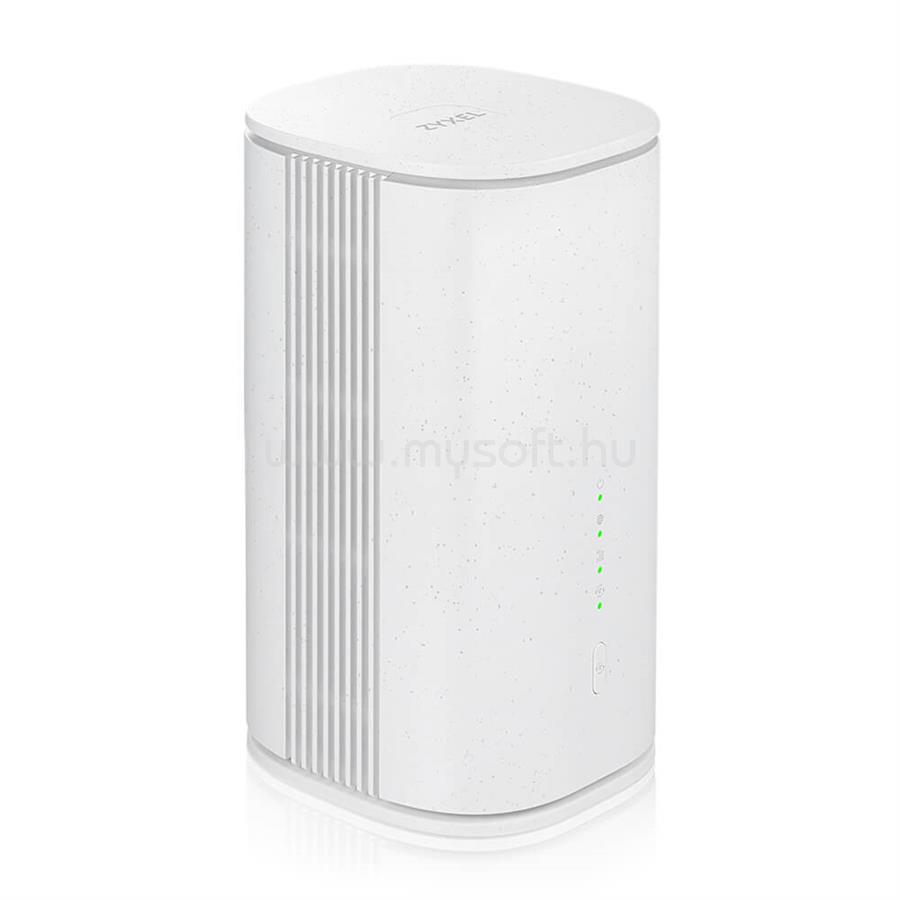

ZYXEL FWA515-EU0102F 4G/5G MODEM + WIRELESS ROUTER DUAL BAND BE7200 2X2.5G + 1 ÉV NEBULA PRO LICENSE, BELTÉRI

• System specifications

• IP networking
• Supports IPv4/IPv6 dual stack (NDP IPv6)
• DHCP Client/server
• Virtual Private Network (VPN) pass-through
• Supports NAT/NAPT
• Supports DMZ
• Multiple APNs
• Supports port forwarding
• Routing
• Supports IP passthrough and router modes
• Supports cloud management mode under IP passthrough mode
• Static/dynamic route setting
• IP firewall
• DoS attack detection
• Supports SPI
• Application-level firewall (LAN to WAN such as FTP, HTTP, Telnet, Ping)
• Filters LAN MAC address
• Filters LAN IP address
• Management
• Supports power monitoring & energy saving
• Supports local/remote device management and firmware upgrade via Nebula Cloud and web GUI
• PIN/PUK management
• APN management
• Operating frequency band selection CLI/SSH (local and remote SSH access)
• Supports UPnP IGD
• Supports web server API to support APPs
• Supports Zyxel One (iOS and Android) for easy installation and local management
• WLAN feature
• Auto channel selection
• WiFi Protected Setup (WPS)
• WiFi Multimedia (WMM)
• WiFi-enabled devices: up to 64
• Security: WPA2-PSK, WPA3-SAE, WPA2-PSK/WPA3-SAE
• MAC address filtering with 64 addresses supported
• Multiple SSIDs/hide SSIDs
• WLAN scheduling

• Hardware specifications

• 5G NR interface
• 3GPP Release 16 standard-compliant
• Supports both NSA and SA modes
• FDD: n1/n3/n7/n8/n20/n28
• TDD: n38/n40/n41/n75/n77/n78
• Supports DL 4×4 MIMO: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78
• Data rates:
• 5G SA:
• DL 7.01 Gbps; UL 2.5 Gbps*
• 5G NSA:
• DL 5.67 Gbps; UL 1.46 Gbps*
• Supports DL modulation QPSK, 16-QAM, 64-QAM, and 256-QAM
• Supports UL modulation QPSK, 16-QAM, 64-QAM, and 256-QAM
• Output power:
• Class 1.5: 29 dBm +2/-3 dBm for n41/n77/n78
• Class 2: 26 dBm +2/-3 dBm for n41/n77/n78
• Class 3: 23 dBm ?2 dBm all other 5G NR bands
• 4G LTE interface
• 3GPP Release 16 standard-compliant
• Supports frequencies:
• FDD: B1/B3/B5/B7/B8/B20/B28/B32
• TDD: B38/B40/B41/B42/B43
• Supports DL 4×4 MIMO: B1/B3/B5/B7/B8/B20/B28/B38/B40/B41/B42/B43
• Peak data rates:
• Max. DL 1.6 Gbps/UL 211 Mbps*
• Supports DL modulation QPSK, 16-QAM, 64-QAM, and 256-QAM
• Supports UL modulation QPSK, 16-QAM, 64-QAM, and 256-QAM
• Output power:
• Class 3: 23 dBm ?2 dBm all other LTE bands
• Class 2: 26 dBm +2/-3 dBm for B41
• WiFi air Interface
• Wireless standard: IEEE 802.11b/g/n/a/ac/ax/be
• Wireless speeds:
• Link rates up to 7,200 Mbps* for 802.11be DBDC
• Internal WiFi antenna:
• Dual-band & concurrent 4x4 + 4x4
• WiFi antenna gain:
• ? 3 dBi for 2.4 GHz
• ? 4 dBi for 5 GHz
• 5G/4G antennas
• Four embedded omni-directional antennas
• Antenna spec (Peak gain)
• 700 MHz ~ 960 MHz: ?3 dBi
• 1.4 GHz ~ 2.7 GHz: 6 dBi
• 3.3 GHz ~ 4.2 GHz: 7 dBi

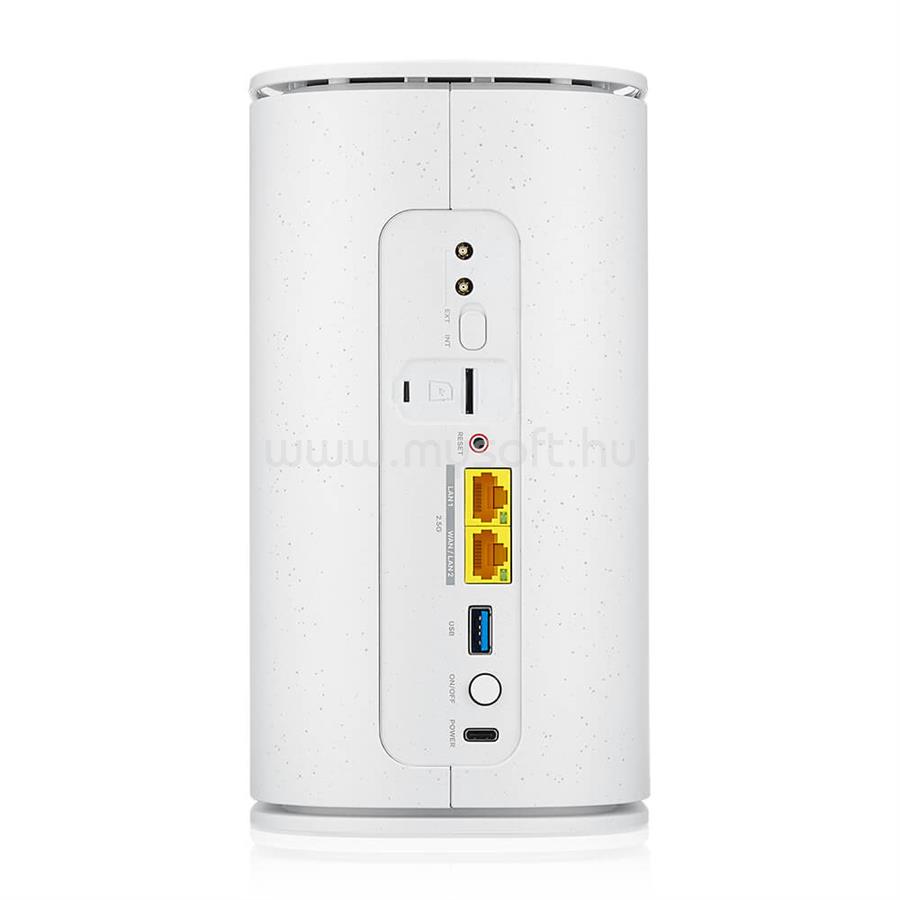

• Hardware interface
• Two 100/1000/2500 Mbps Ethernet RJ-45 LAN ports, LAN2 can be configured for Ethernet WAN port
• LED indicators:
• Power indication
• Signal strength
• Internet connection status
• WiFi/WPS status
• One 4FF Nano SIM card slot with push-push type SIM tray
• One power on/off button
• One WPS/WiFi on/off button
• One reset button
• Two external antenna connectors (TS9 type)
• One Int/Ext antenna switch
• One USB 2.0 Type-A host port for file sharing
• One Type-C PD port

• Power consumption

• 48 W (peak)

• Physical specifications

• Item
• Dimensions (WxDxH)
• 117 x 130 x 217 mm (4.60" x 5.12" x 8.54")
• Weight
• 1082 g (2.39 lb.)
• Packing
• Dimensions (WxDxH)
• 126 x 154 x 287 mm (4.96" x 6.06" x 11.30")
• Weight
• 1648 g (2.63 lb.)

• Environmental specifications

• Operating
• Temperature
• -10°C to 40°C (14°F to 104°F)
• Humidity
• 0% to 90% RH (non-condensing)
• Storage
• Temperature
• -30°C to 70°C (-22°F to 158°F)
• Humidity
• 0% to 95% (non-condensing)

• Package contents

• Type-C PD 45 W power adaptor
• Ethernet cable 1.5 m 8P8C
• Warranty card
