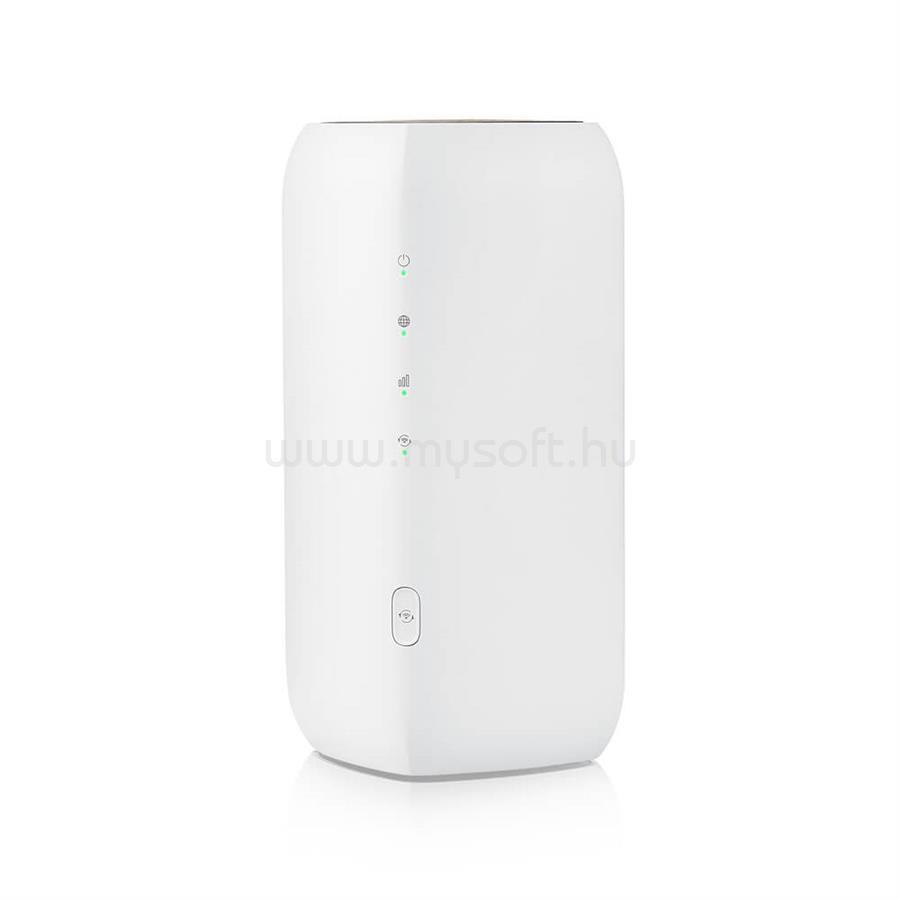

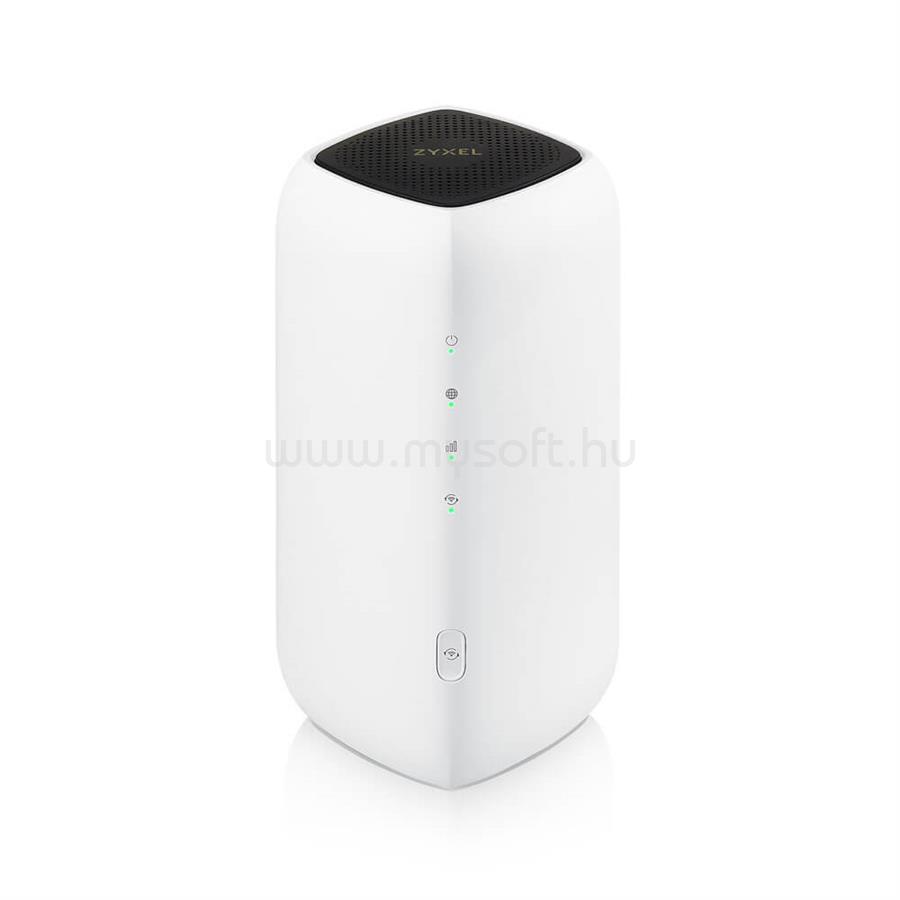

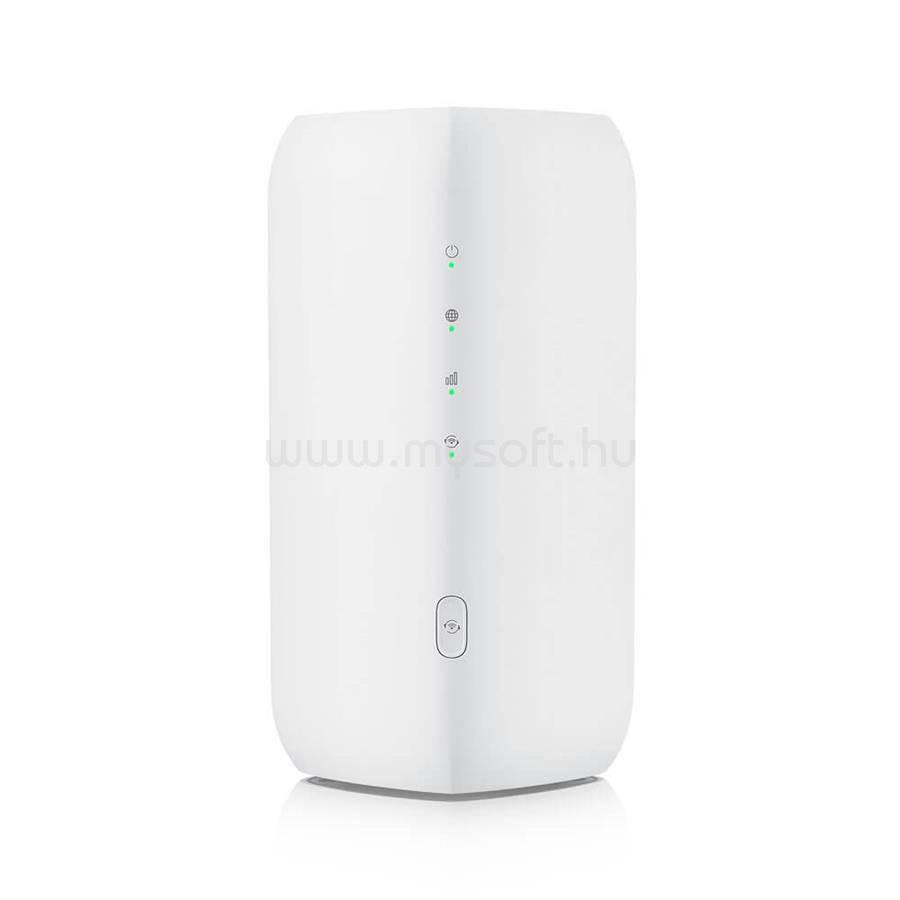

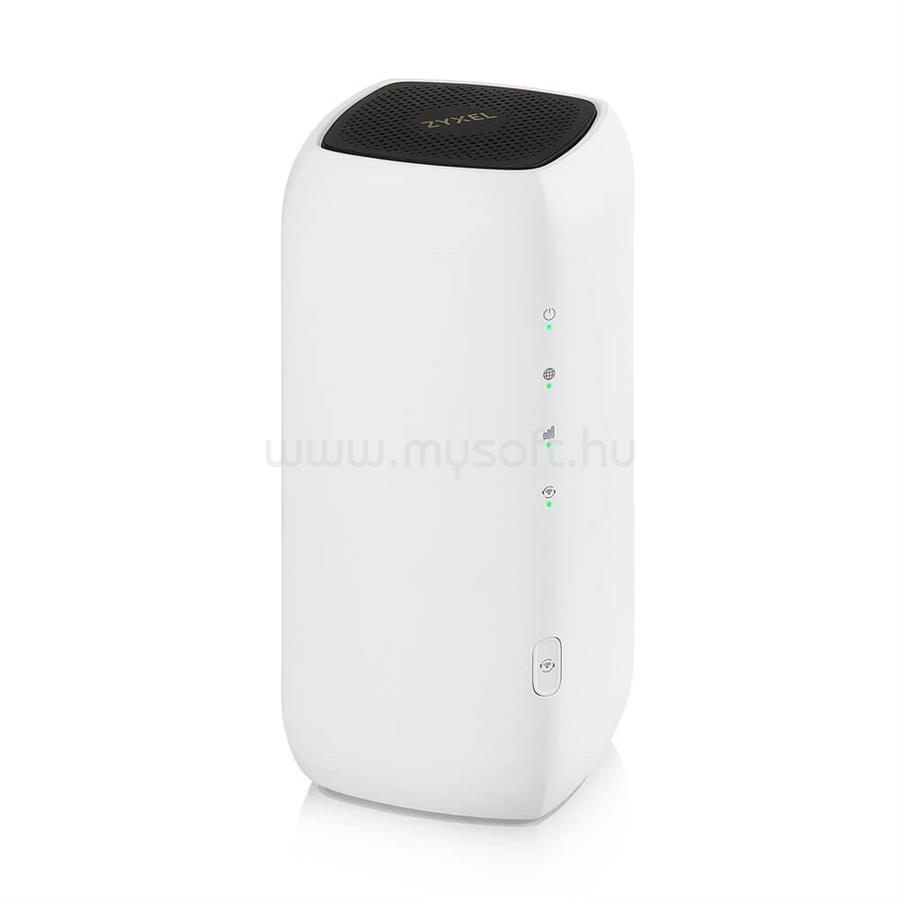

ZYXEL FWA505-EU0102F 4G/5G LTE MODEM + WIRELESS ROUTER DUAL BAND AX1800 2XLAN(1000MBPS) + 1XUSB + 1 ÉV NEBULA PRO LICENSE

• System specifications

• IP networking
• Supports IPv4/IPv6 dual stack (NDP IPv6)
• DHCP Client/server
• Virtual Private Network (VPN) pass-through
• Supports NAT/NAPT
• Supports DMZ
• Multiple APNs
• Supports port forwarding
• Routing
• Supports bridge and router modes
• Supports remote management under bridge mode
• Static/dynamic route setting
• IP firewall
• DoS attack detection
• Supports SPI
• Application-level firewall (LAN to WAN such as FTP, HTTP, Telnet, Ping)
• Filters LAN MAC address
• Filters LAN IP address
• Management
• Supports local/remote device management and firmware upgrade via TR-069 and web GUI
• PIN/PUK management
• APN management
• Operating frequency band selection
• CLI/SSH (local and remote SSH access)
• Supports UPnP IGD
• Supports web server API to support APPs
• Supports Zyxel Nebula app (iOS and Android) for easy installation and local management
• WLAN feature
• Auto channel selection
• WiFi Protected Setup (WPS)
• WiFi Multimedia (WMM)
• WiFi-enabled devices: up to 64
• Security: none, WPA2-Personal, WPA/WPA2, WPA3
• MAC address filtering with 64 address supported
• Multiple SSIDs/hide SSIDs
• WLAN scheduling

• Hardware specifications

• 5G NR interface
• 3GPP Release 15 standard-compliant
• Supports DL 4×4 MIMO: n1/n3/n7/n38/n40/n41/n77/n78
• Supports DL modulation QPSK, 16-QAM, 64-QAM, and 256-QAM
• Supports UL modulation QPSK, 16-QAM, 64-QAM, and 256-QAM
• Supports both NSA and SA modes
• FDD: n1/n3/n5/n7/n8/n20/n28/n77/n78
• TDD: n38/n40/n41
• Data rates:
• 5G SA: DL 4.7 Gbps; UL 2.5 Gbps*
• 5G NSA: DL 3.7 Gbps; UL 1.5 Gbps*
• Output power:
• Class 2 (26 dBm) for 5G NR n41/n77/n78
• Class 3 (23 dBm) for rest FDD/TDD NR bands
• 4G LTE interface
• 3GPP UE Category 19 standard-compliant
• Supports DL 4×4 MIMO: B1/B3/B7/B38/B40/B41/B42/B43
• Supports DL modulation QPSK, 16-QAM, 64-QAM, and 256-QAM
• Supports UL modulation QPSK, 16-QAM, 64-QAM, and 256-QAM
• Supports frequencies:
• LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32
• LTE-TDD: B38/B40/B41/B42/B43
• Peak data rates:
• Max. DL 1.6 Gbps/UL 211 Mbps*
• Output power:
• Class 3 (23 dBm ?2 dBm) for rest FDD/TDD LTE bands
• WiFi air Interface
• Wireless standard: IEEE 802.11b/g/n/a/ac/ax
• Wireless speeds:
• Link rates up to 1,774 Mbps* for 802.11ax DBDC
• Internal WiFi antenna:
• Dual-band & concurrent 2x2 + 2x2
• WiFi antenna gain:
• < 4 dBi for 2.4 GHz
• < 5 dBi for 5 GHz
• 5G/4G antennas
• Two TS9 connectors for external antennas**
• Four embedded omni-directional antennas
• Antenna Spec (Peak Gain)
• 700 MHz ~ 960 MHz: 2 dBi
• 1.4 GHz ~ 2.7 GHz: 5 dBi
• 3.3 GHz ~ 4.2 GHz: 5 dBi

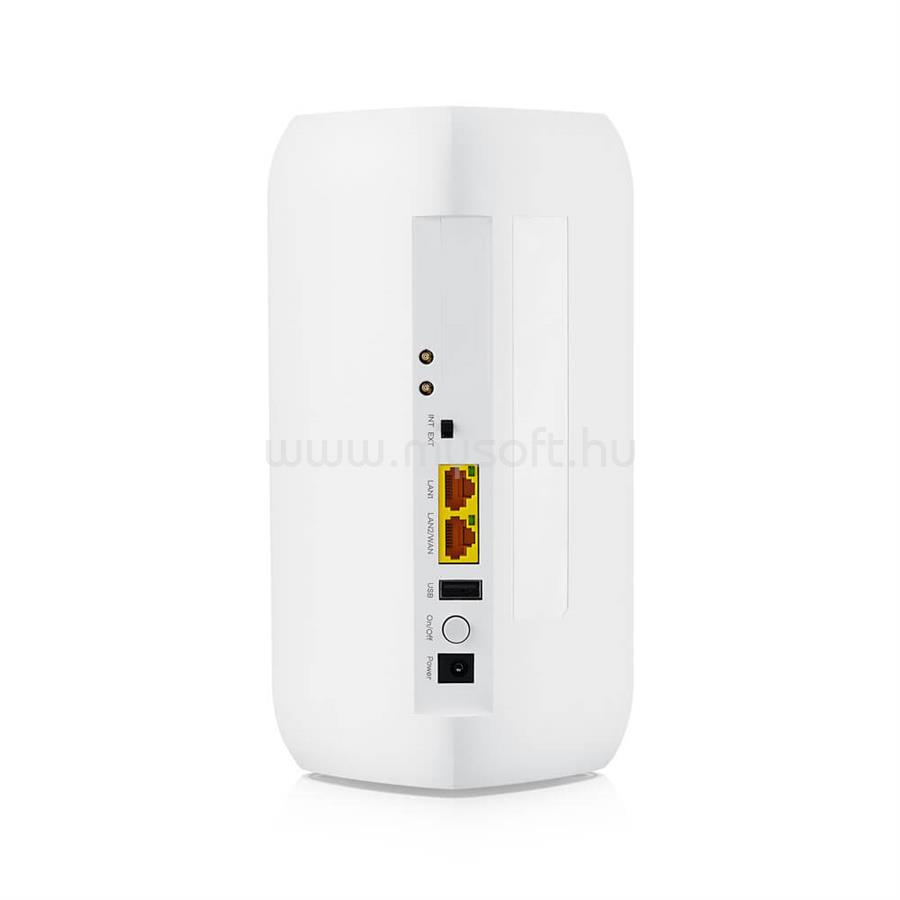

• Hardware interface
• Two 100/1000 Mbps Ethernet RJ-45 LAN ports, LAN2 can be configured for Ethernet WAN port
• Two external antenna connectors (TS9 type)
• One 3FF/Micro SIM card slot
• One power on/off button
• One WPS/WiFi on/off button
• One reset button
• One Int/Ext antenna switch
• One USB 2.0 host port for file sharing
• LED indicators:
• Power indication
• Signal strength
• Internet connection status
• WiFi AP status
• WPS status

• Power consumption

• 24 W (peak)

• Physical specifications

• Item
• Dimensions (WxDxH)
• 103 x 103 x 222 mm (4.06" x 4.06" x 8.74")
• Weight
• 1145 g (2.53 lb.)
• Packing
• Dimensions (WxDxH)
• 252 x 171 x 110 mm (9.92" x 6.73" x 4.33")
• Weight
• 2450 g (5.40 lb.)

• Environmental specifications

• Operating
• Temperature
• -10°C to 40°C (14°F to 104°F)
• Humidity
• 10% to 90% RH (non-condensing)
• Storage
• Temperature
• -30°C to 70°C (-22°F to 158°F)
• Humidity
• 0% to 95% (non-condensing)

• Certifications

• CE
• NCC
• BSMI
• NBTC Certification

• Package contents

• Power adapter
• Ethernet cable 1.8 m 8P8C
