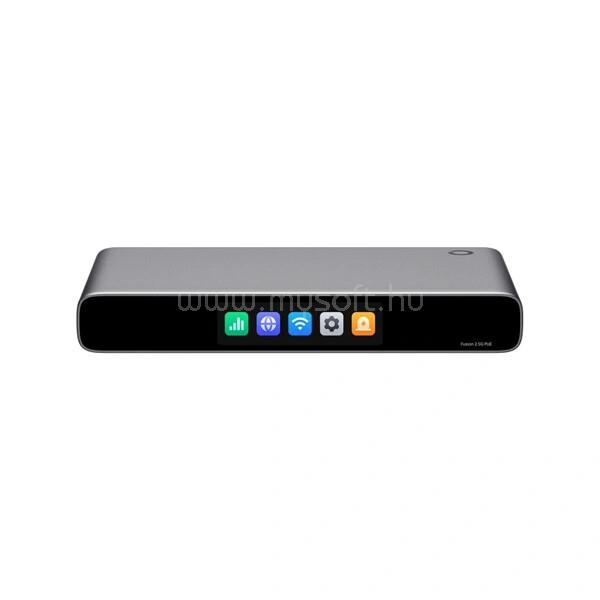

TP-LINK FUSION 2.5G POE GATEWAY & CONTROLLER 1XWAN(2.5GBPS) + 8XWAN/LAN POE+ (2.5GBPS)

• Overview

• Built-In Omada OS Applications
• Omada Network Application (Network Management)
• Managed Omada Devices
• 30 (Recommended)§
• Client Capacity
• 300 (Recommended)§

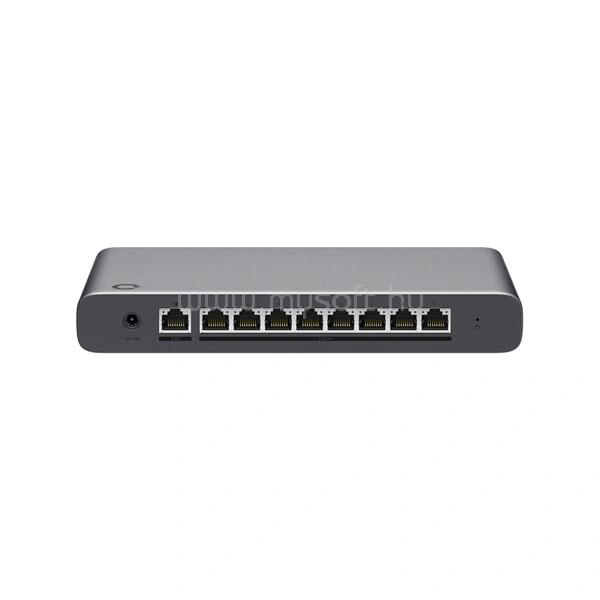

• Interface
• 1× 2.5G RJ45 WAN Port
• 8× 2.5G RJ45 LAN/WAN Ports
• 8× PoE+ Ports, 110W Total Budget
• Up to 8 Simultaneous WAN Ports
• IPS Throughput
• 2,183 Mbps
• Site-to-Site VPN Throughput
• 1,023 Mbps?
• Management
• Cloud Access
• On-Premises Management
• Omada App
• Mounting
• Desktop
• Wall-Mount (Magnetic-Mount Plate Sold Separately)
• Rack-Mount (Rackmount Kit Sold Separately)
• Dimensions
• 8.90 × 5.31 × 1.24 in (226 × 135 × 31.5 mm)

• SECURITY

• IDS/IPS
• Yes
• DPI
• Yes
• Application-Based ACL
• Yes
• Content Filtering
• Yes
• Ad Blocker
• Yes
• Safe Search
• Yes
• DNS Security
• Yes
• Firewall
• Yes
• Attack Defense
• Yes
• ARP Inspection
• Yes

• VPN & SD-WAN

• Omada LightLink VPN
• Yes
• Site-to-Site VPN
• WireGuard VPN / IPsec VPN
• VPN Server
• WireGuard VPN / OpenVPN / IPsec VPN / SSL VPN / L2TP VPN / PPTP VPN
• VPN Client
• WireGuard VPN / OpenVPN / L2TP VPN / PPTP VPN
• SD-WAN
• Full Mesh Mode
• VPN Throughput
• Omada LightLink VPN: 527 Mbps
• IPsec VPN: 1,023 Mbps
• WireGuard VPN: 605 Mbps
• OpenVPN: 223 Mbps
• L2TP VPN: 892 Mbps
• PPTP VPN: 193 Mbps
• SSL VPN: 250 Mbps

• Networking

• WAN Connection
• Static IP / Dynamic IP / PPPoE / PPTP / L2TP / MAP-E / DS-Lite
• Multi-WAN Failover & Load Balancing
• Yes
• DHCP Server
• Yes
• VLAN Segmentation
• Yes
• Bandwidth Control
• Yes
• QoS
• Yes
• Static Routing
• Yes
• Policy Routing
• Yes
• NAT
• Port Forwarding / Virtual Server / DMZ / ALG / UPnP / One-to-One NAT / Disable NAT
• Dynamic DNS
• TP-Link DDNS, 3rd-Party DDNS, Custom DDNS
• IPv6
• Static IP / SLAAC / DHCPv6 / PPPoE / 6to4 Tunnel / Pass-Through / Non-Address Mode
• Bonjour / mDNS
• Yes
• IGMP v2/v3 Proxy
• Yes

• Network Management

• Dashboard-Overview/Wi-Fi/Clients/Traffic
• Yes
• Dashboard-Network Topology
• Yes
• Health Monitoring
• Yes
• Device Management
• Automatic Device Discovery
• Switch Ports
• Yes
• Client Management
• Yes
• Reports
• Yes
• Logs
• Alerts / Events / Audit Logs
• Maintenance Tools
• Ping Test, Packet Capture, Terminal, Cable Test, Interference Detection, Remote Access, IntelliRecover, Port Mirroring
• IntelliRecover
• Yes
• SNMP
• v1/v2c/v3
• SSID
• Yes
• PPSK
• Yes
• WLAN Optimization
• Yes
• Portal
• Yes
• Bluetooth
• Yes

• HARDWARE

• Touchscreen
• 3.69-inch Bolor LCM Touchscreen
• Button
• Reset Button
• Memory
• 2 GB DDR4
• Power Supply
• 54V DC / 2.43A Adapter
• PoE Budget
• 110W***
• Max Power Consumption
• 131 W, with Power Adapter
• Enclosure
• Polycarbonate
• LED
• Ethernet
• Fan
• Yes
• Net Weight
• 1.60 lb (728 g)
• Surge Protection
• 4 kV Surge Protection
• ESD Protection
• ?8 kV (Air), ?4 kV (Contact)
• Onboarding
• Bluetooth or Ethernet
• Certifications
• CE, FCC, RoHS
• Environment
• Operating Temperature: 14 °F to 104 °F (-10 °C to 40 °C)
• Storage Temperature: -22 °F to 158 °F (-30 °C to 70 °C)
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Storage Humidity: 5% to 90% RH, Non-Condensing
