TP-LINK FUSION 2.5G GATEWAY & CONTROLLER 1XWAN(2.5GBPS) + 4XWAN/LAN(2.5GBPS)

• Overview

• Built-In Omada Applications
• Network Application
• Built-In Omada OS Applications
• Network Application
• Managed Omada Devices
• Recommended for up to 30 devices
• Client Capacity
• Recommended for up to 300 connected clients
• Interface
• . 1× 2.5G RJ45 WAN port
  . 4× 2.5G RJ45 LAN/WAN ports
  . Up to 4 simultaneous WAN ports
• IPS Throughput
• 2,183 Mbps
• Site-to-Site VPN Throughput
• 1,023 Mbps?
• Management
• Cloud, local, and Omada App management
• Mounting
• . Desktop
  . Wall-mount (magnetic-mount plate sold separately)
  . Rack-mount (rackmount kit sold separately)
• Dimensions
• 6.3 × 5.12 × 1.24 in (160 × 130 × 31.5 mm)

• Built-in Omada Controller

• Cloud Access
• Yes
• Local Management
• Yes
• Omada App
• Yes
• Multi-Site Management
• Via the Omada Cloud Management Platform
• Restore & Backup
• Yes
• Automatic Device Discovery
• Yes
• Network Topology
• Yes
• Dashboard
• Yes
• Device List / Client List
• Yes
• Logs / Alerts / Events
• Yes
• Batch Firmware Upgrade
• Yes
• Health Monitoring
• Yes
• Internet Activity
• Yes
• Captive Portal
• Yes
• RADIUS / LDAP Authentication
• Yes
• 802.1X Authentication
• Yes
• OUI-Based VLAN
• Yes
• Diagnostics Tools
• Ping Test, Packet Capture, Terminal, Cable Test, Interference Detection, Remote Access, IntelliRecover, Port Mirroring
• SNMP
• v1/v2c/v3

• Biztonság

• IDS/IPS
• Yes
• DPI
• Yes
• Application-Based ACL
• Yes
• Content Filtering
• Yes
• Ad Blocker
• Yes
• Safe Search
• Yes
• DNS Security
• Yes
• Firewall
• Yes
• Hálózati támadások elleni védelem
• Yes
• ARP-s támadás elleni védelem
• Yes

• VPN & SD-WAN

• Omada LightLink VPN
• Yes
• Site-to-Site VPN
• WireGuard VPN / IPsec VPN
• VPN Server
• WireGuard VPN / OpenVPN / IPsec VPN / SSL VPN / L2TP VPN / PPTP VPN
• VPN Client
• WireGuard VPN / OpenVPN / L2TP VPN / PPTP VPN
• SD-WAN
• Full Mesh Mode
• VPN Throughput
• . Omada LightLink VPN: 527 Mbps
  . IPsec VPN: 1,023 Mbps
  . WireGuard VPN: 605 Mbps
  . OpenVPN: 223 Mbps
  . L2TP VPN: 892 Mbps
  . PPTP VPN: 193 Mbps
  . SSL VPN: 250 Mbps

• Networking

• WAN Connection
• Static IP / Dynamic IP / PPPoE / PPTP / L2TP / MAP-E / DS-Lite
• Multi-WAN Failover & Load Balancing
• Yes
• DHCP Server
• Yes
• VLAN Segmentation
• Yes
• Bandwidth Control
• Yes
• QoS
• Yes
• Static Routing
• Yes
• Policy Routing
• Yes
• NAT
• Port Forwarding / Virtual Server / DMZ / ALG / UPnP / One-to-One NAT / Disable NAT
• Dynamic DNS
• TP-Link DDNS, 3rd-party DDNS, custom DDNS
• IPv6
• Static IP / SLAAC / DHCPv6 / PPPoE / 6to4 Tunnel / Pass-Through / Non-Address Mode
• Bonjour / mDNS
• Yes
• IGMP v2/v3 Proxy
• Yes

• HARDWARE

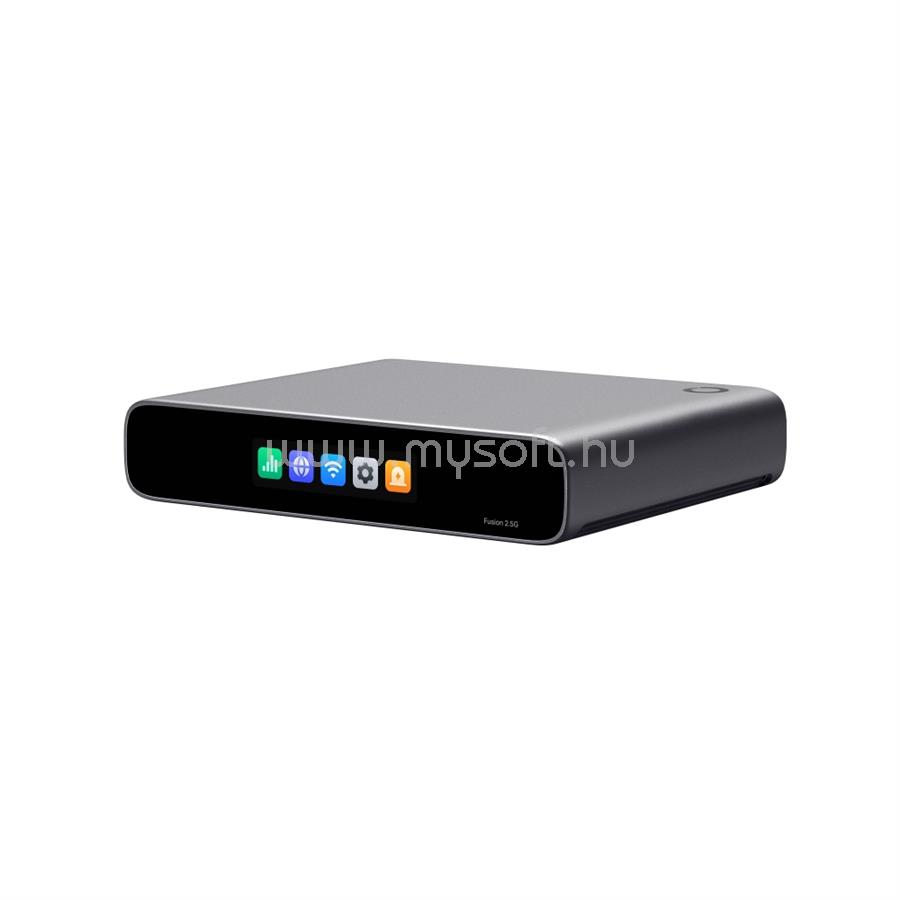

• Touchscreen
• 2.51-inch color LCM touchscreen
• Button
• Reset button
• Memory
• 2 GB DDR4
• Power Supply
• USB-C power adapter, 100-240 V AC, 50/60 Hz input, 5 V DC / 3 A output
• Max Power Consumption
• 8.18 W, with power adapter
• Enclosure
• Polycarbonate
• LED
• Ethernet
• Fan
• Fanless
• Net Weight
• 1.12 lb (510 g)
• Surge Protection
• 4 kV surge protection
• ESD Protection
• ?8 kV (Air), ?4 kV (Contact)
• Onboarding
• Bluetooth or Ethernet
• Certifications
• CE, FCC, RoHS
• Environment
• . Operating Temperature: 14 °F to 104 °F (-10 °C to 40 °C)
  . Storage Temperature: -22 °F to 158 °F (-30 °C to 70 °C)
  . Operating Humidity: 10% to 90% RH, non-condensing
  . Storage Humidity: 5% to 90% RH, non-condensing

Garancia fogyasztók részére

• 2 év kötelező jótállás + 3 év gyártó által biztosított szervizgarancia

Garancia nem fogyasztók részére

• 5 év gyártó által biztosított szervizgarancia
