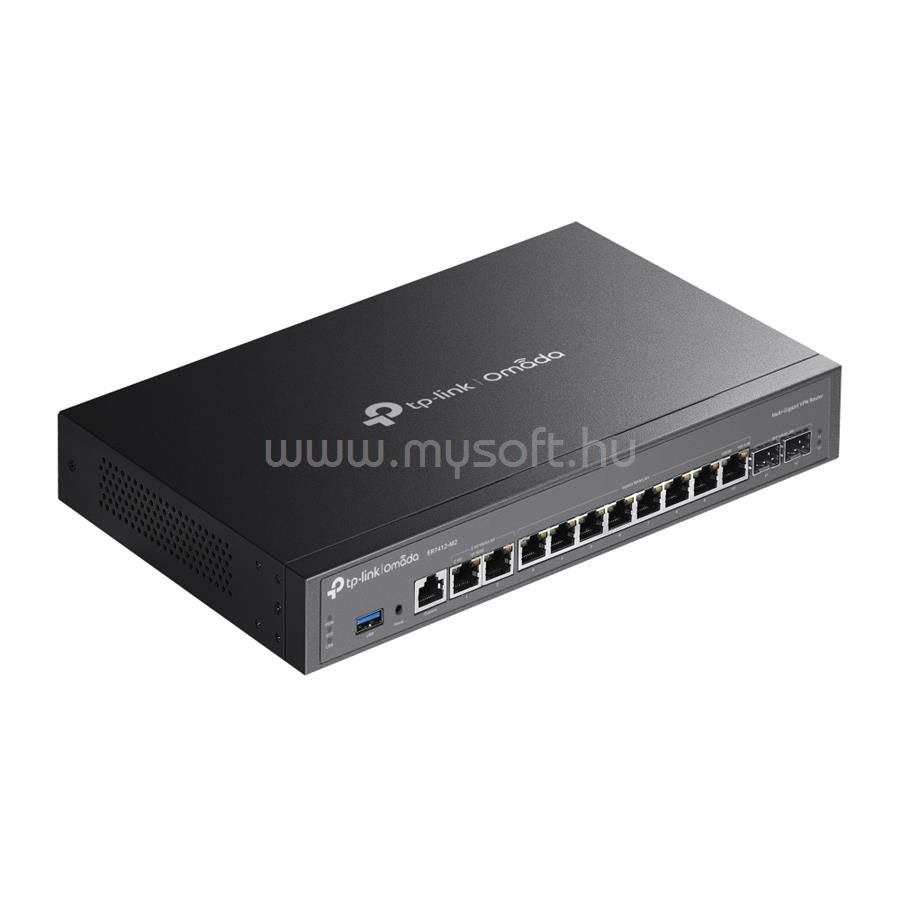

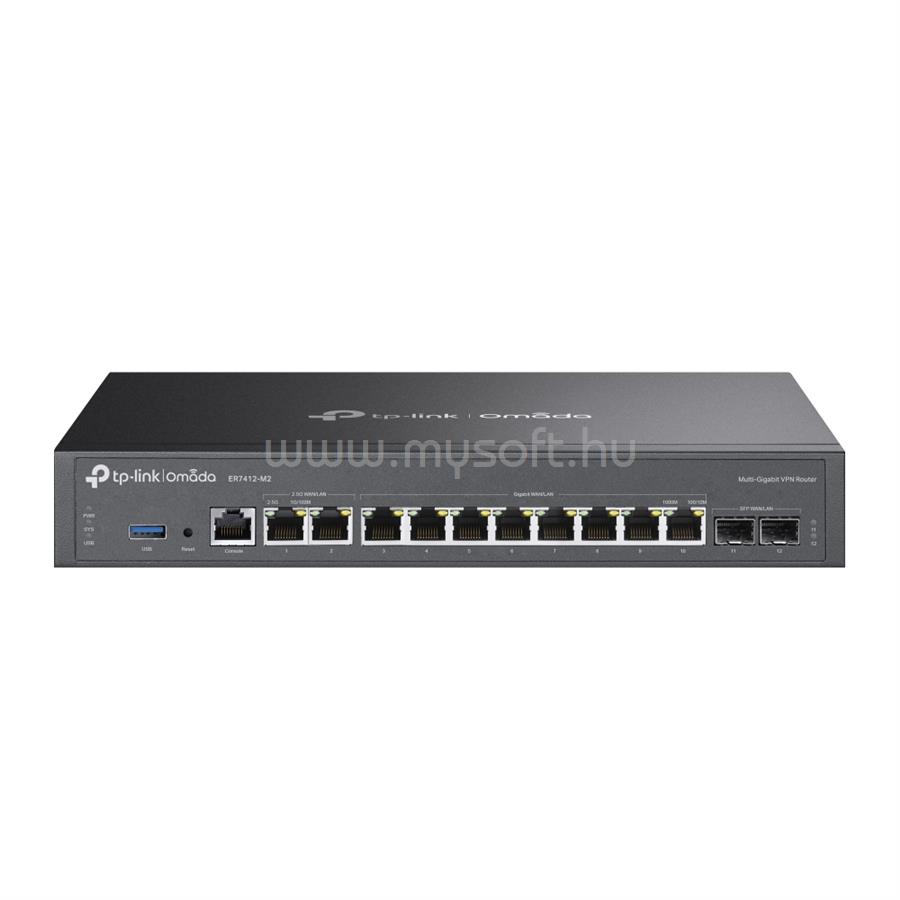

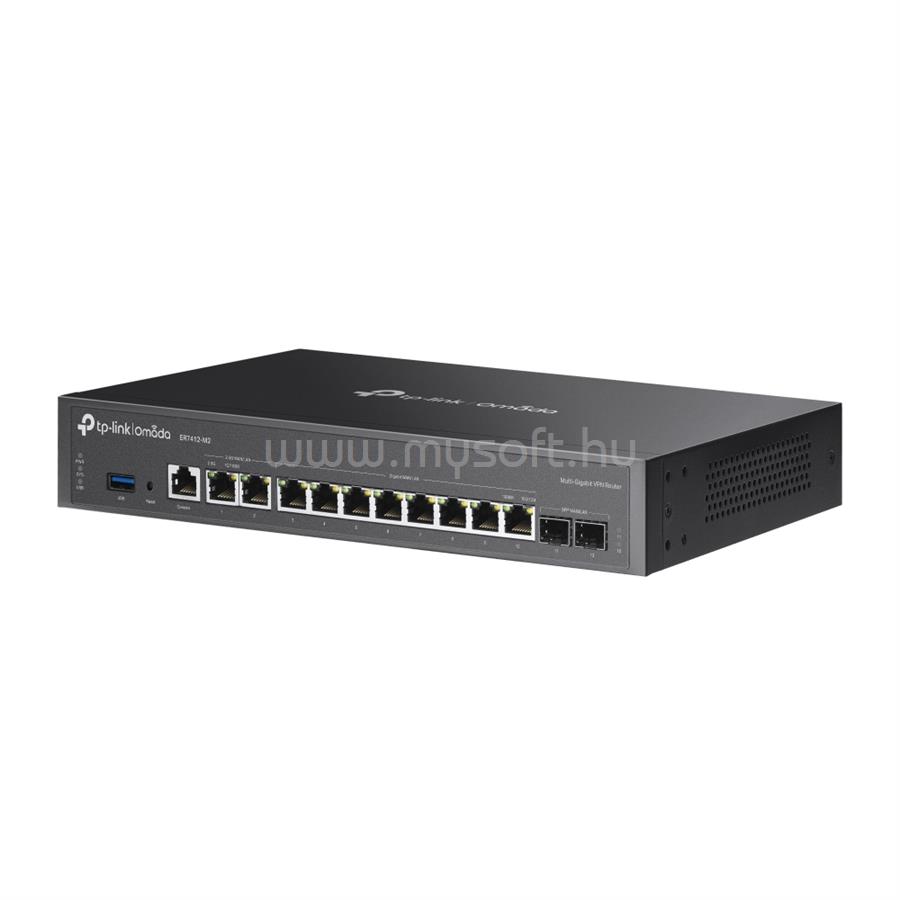

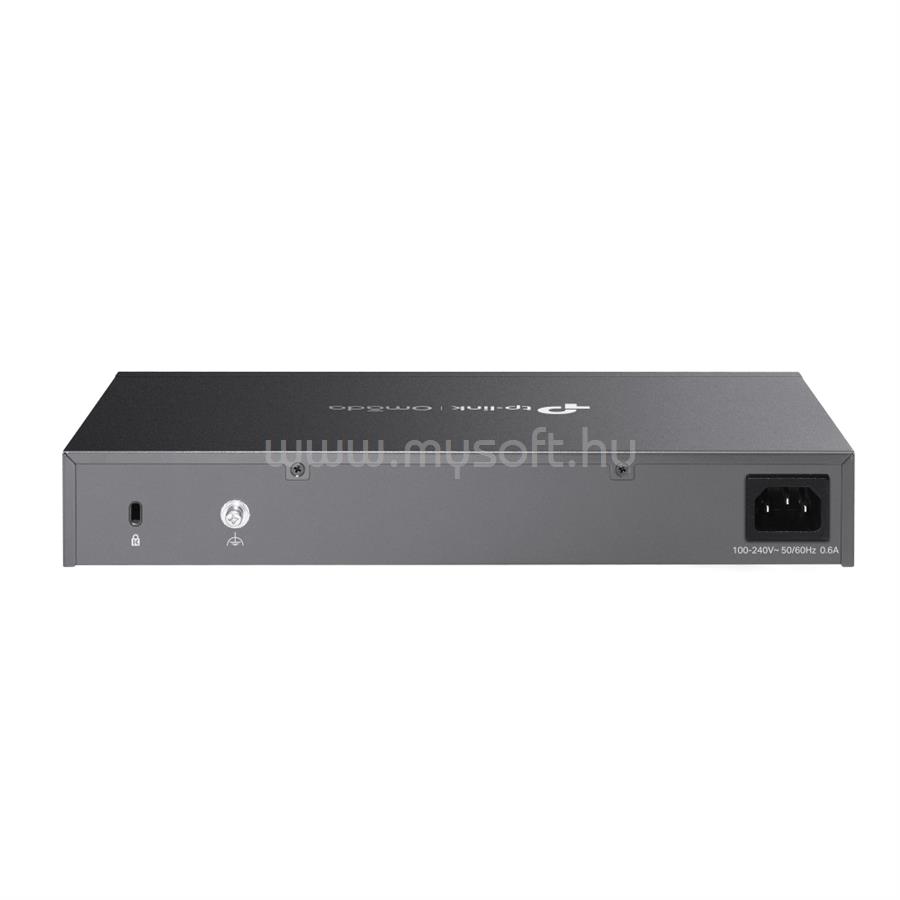

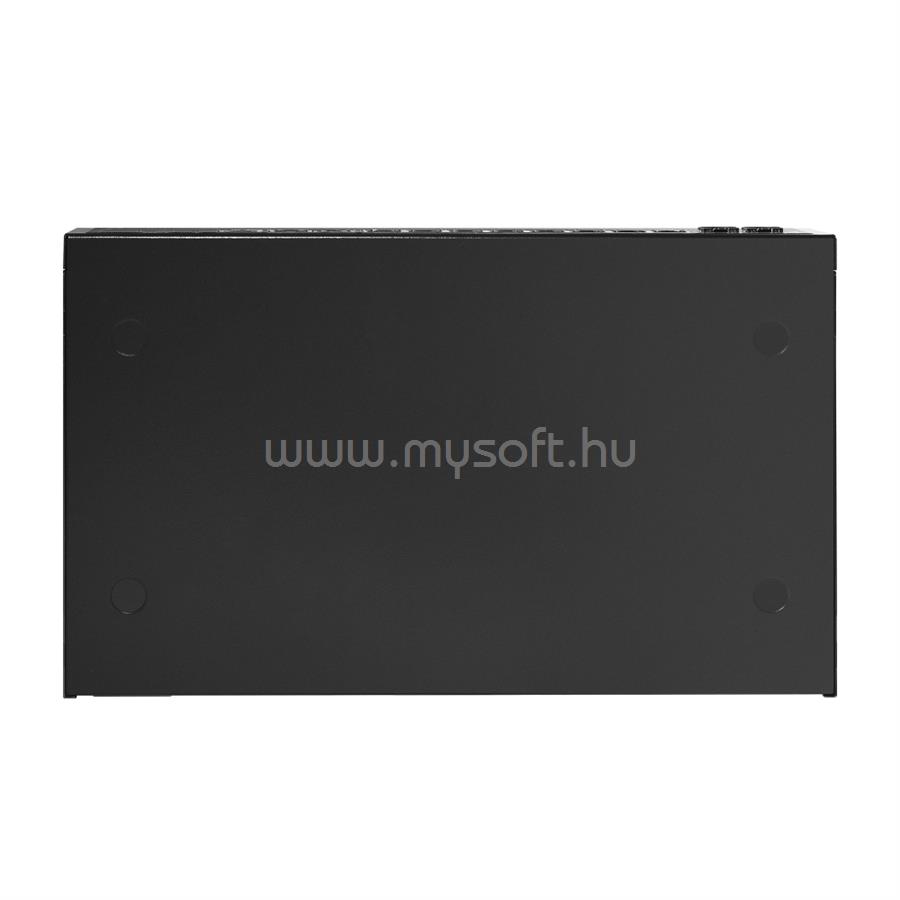

TP-LINK ER7412-M2 VEZETÉKES VPN ROUTER 2XWAN/LAN(2500MBPS)+ 8XWAN/LAN(1000MBPS) + 2XSFP + 1XUSB + 1XKONZOL PORT

• SECURITY

• Access Control
• Source/Destination IP-Based ACL
• Stateful ACL
• IPv4/IPv6 ACL
• Location Based ACL
• Filtering
• WEB Group Filtering§
• URL Filtering
• Web Security§
• ARP Inspection
• Sending GARP Packets§
• ARP Scanning§
• IP-MAC Binding§
• Attack Defense
• TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN

• HARDWARE FEATURES

• Standards and Protocols
• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP
• Interface
• 1× 2.5G RJ45 WAN/LAN Port
• 1× 2.5G RJ45 WAN/LAN Port
• 2× Gigabit SFP WAN/LAN Ports
• 8× Gigabit RJ45 WAN/LAN Ports
• 1× RJ45 Console Port
• 1× USB 3.0 Port (Supports USB storage, and LTE backup with LTE dongle)
• Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
• 2500BASE-T: UTP category 5e, 6 cable (Max 100 m)
• Button
• Reset Button
• Power Supply
• 100-240 VAC, 50/60 Hz
• Flash
• 128MB NAND
• DRAM
• 1 GB DDR4
• Dimensions ( W x D x H )
• 11.6×7.1×1.7 in (294×180×44 mm)
• Protection
• 4 kV surge protection
• Enclosure
• Steel
• Mounting
• Desktop
• Rackmountable
• Max. Power Consumption
• 18.5W (With USB 3.0 connected)

• PERFORMANCE

• Concurrent Session
• 1,000,000
• New Sessions /Second
• 7,000
• NAT (Static IP)
• 2345.71 Mbps / 2351.22 Mbps
• NAT(DHCP)
• 2353.41 Mbps / 2353.40 Mbps
• NAT(PPPoE)
• 2336.52 Mbps / 2336.08 Mbps
• NAT (L2TP)
• 1937.53 Mbps / 1761.82 Mbps
• NAT (PPTP)
• 1757.54 Mbps / 2011.33 Mbps
• 66 Byte Packet Forwarding Rate
• 1833 Mbps / 1835 Mbps
• 1,518 Byte Packet forwarding rate
• 2461 Mbps / 2461 Mbps
• IPsec VPN Throughput
• ESP-SHA1-AES256: 1125.60 Mbps
• ESP-SHA256-AES256: 1133.1 Mbps
• ESP-SHA384-AES256: 1126.6 Mbps
• ESP-SHA512-AES256: 1132.8 Mbps
• GRE
• Unencrypted: 1153.0 Mbps
• Encrypted: 559.2 Mbps
• WireGuard VPN
• 771.6 Mbps
• OpenVPN
• UDP: 266.2 Mbps
• L2TP VPN Throughput
• Unencrypted: 2724.5 Mbps
• Encrypted: 1018.4Mbps
• PPTP VPN Throughput
• Unencrypted: 3035 Mbps
• Encrypted: 534.6 Mbps
• DPI Throughput
• 2.2Gbps
• SSL VPN Throughput
• 263.1 Mbps
• IPS Throughput
• 523Mbps

• BASIC FUNCTIONS

• WAN Connection Type
• Static IP/Dynamic IP
• PPPoE (supports MRU Configuration)
• PPTP
• L2TP
• Mobile Broadband: 4G/3G modem for backup via USB port
• MAC Clone
• Modify WAN/LAN MAC Address?
• DHCP
• DHCP Server
• DHCPv6 PD Server (only in Standalone Mode)
• DHCP Options Customization
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP
• Stateful ACL
• Yes
• Quality of Service
• Yes
• Bridge VLAN
• Yes
• mDNS Repeater
• Yes
• IPv6
• StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
• VLAN
• 802.1Q VLAN
• IPTV
• IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

• Advanced Features

• Advanced Routing
• Static Routing
• Policy Routing
• RIP (available in Standalone Mode)
• OSPF (available in Standalone Mode)
• Bandwidth Control
• IP/Port-based Bandwidth Control
• Load Balance
• Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing§, Failover)
• Online Detection
• NAT
• One-to-One NAT§
• Multi-Net NAT
• Virtual Server
• Port Triggering§
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP
• Session Limit
• IP-based Session Limit

• VPN

• GRE
• Only in Standalone Mode
• SSL VPN
• 80 Tunnels
• IPsec VPN
• 150 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IPsec Failover
• IKE v1/v2
• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)
• PPTP VPN
• PPTP VPN Server
• PPTP VPN Client (15)**
• 150 Tunnels
• PPTP with MPPE Encryption
• L2TP VPN
• L2TP VPN Server
• L2TP VPN Client (15)**
• 150 Tunnels
• L2TP over IPSec
• OpenVPN
• OpenVPN Server
• OpenVPN Client (11)**
• 121 OpenVPN Tunnels
• "Certificate + Account" Mode
• Full Mode
• WireGuard VPN
• 20 Tunnels

• AUTHENTICATION

• Web Authentication
• No Authentication
• Simple Password
• Hotspot (Local User/Voucher*/SMS*/Radius*)
• External Radius Server
• External Portal Server*
• LDAP

• Management Features

• Omada App
• Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Centralized Management
• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
• Cloud Access
• Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Service
• Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
• Maintenance
• Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3*
• Diagnostics (Ping & Traceroute)§
• NTP Synchronize§
• Port Mirroring
• CLI (only in Standalone Mode)
• Syslog Support
• Zero-Touch Provisioning
• Yes. Requiring the use of Omada Cloud-Based Controller.
• Management Features
• Automatic Device Discovery*
• Batch Configuration*
• Batch Firmware Upgrading*
• Intelligent Network Monitoring*
• Abnormal Event Warnings*
• Unified Configuration*
• Reboot Schedule*

• OTHERS

• Certification
• CE, FCC
• Package Content
• ER7412-M2
• Power Cord
• Quick Installation Guide
• Rackmount Kit
• RJ45 Console Cord
• System Requirements
• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11
• MAC OS, NetWare, UNIX or Linux
• Environment
• Operating Temperature: 0-45 ? (32-113 ?);
• Storage Temperature: -40-70 ? (-40-158 ?)
• Operating Humidity: 10-90% RH non-condensing
• Storage Humidity: 5-90% non-condensing
