TP-LINK ER703WP-4G-OUTDOOR 3G/4G+ OMADA AX3000 VPN ROUTER 3XWAN/LAN(1000MBPS) KÜLTÉRI/BELTÉRI

• 4G

• Network Type
• LTE Band of EU:
• 4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/9
• 00/800/700/1450 MHz)
• 4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz)
• 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8
• (2100/1800/850/900 MHz)
• Carrier Aggregation:
• B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41
• B3+B3/B5/B7/B8/B20/B28/B38/B40/B41
• B5+B5/B7/B38/B40/B41
• B7+B7/B8/B20/B28/B32
• B8+B32/B38/B40/B41
• B20+B32/B38/B40
• B28+B32/B38/B40/B41
• B38+B38
• B40+B40
• B41+B41
• SIM Type
• 1× Nano SIM Card
• Frequency
• Downlink: 300 Mbps;
• Uplink: 50 Mbps

• SECURITY

• DPI
• Application control via DPI / Updated app library
• Access Control
• Source/Destination IP Based Access Control
• Filtering
• Web Group Filtering
• URL Filtering
• Web Security
• ARP Inspection
• Sending GARP Packets
• ARP Scanning
• IP-MAC Binding
• Attack Defense
• TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN

• HARDWARE FEATURES

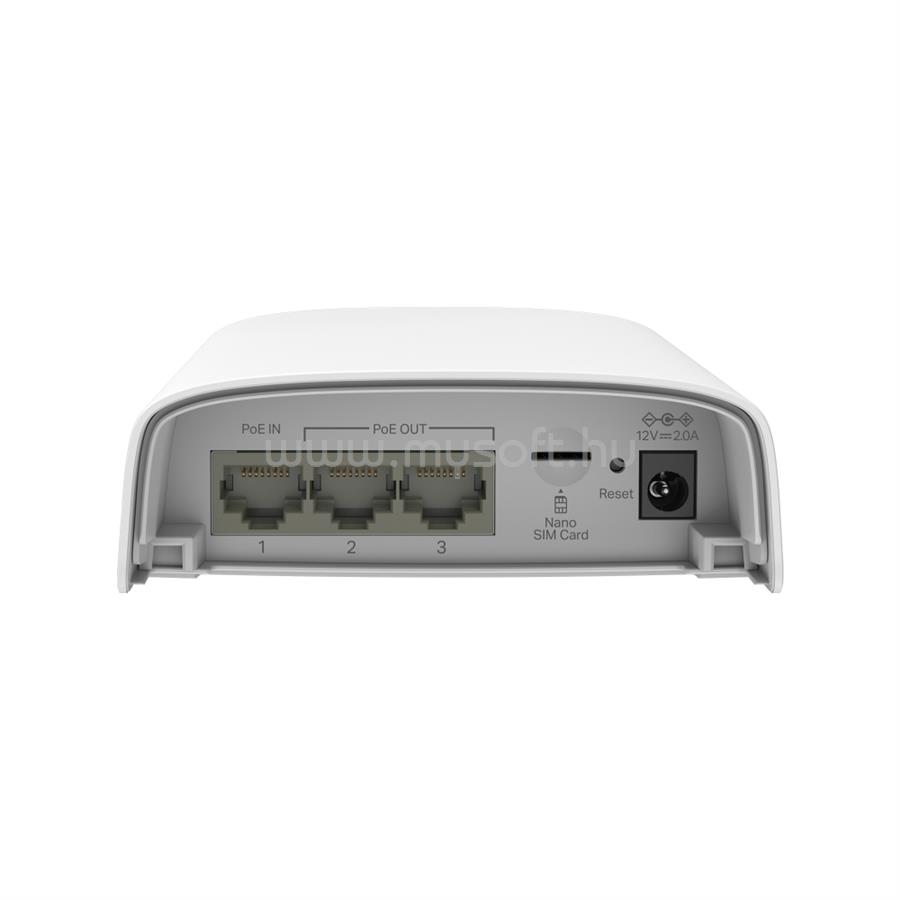

• Interface
• 3 Gigabit WAN/LAN Ports
• Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
• Button
• Reset Button
• Power Supply
• 802.3at/bt PoE; 12VDC / 2A Power Adapter
• Wi-Fi Frequency & Signal Rate
• 2.4 GHz: 574 Mbps
• 5 GHz: 2402 Mbps (HE160)
• Flash
• 256 MB NAND
• DRAM
• 512 MB DDR4
• LED
• 4G Signal, WLAN, WAN/LAN, SYS
• Dimensions ( W x D x H )
• 4.0 × 1.5 i×6.9 in (100.4 × 38.7 × 174.8 mm) (Antenna dimensions are not included)
• Antenna
• Wi-Fi: Two 5GHz 4.0dBi & 2.4GHz 2.3 dBi dual-band build-in antennas
• LTE: Two 4.0dBi omnidirectional detachable antennas

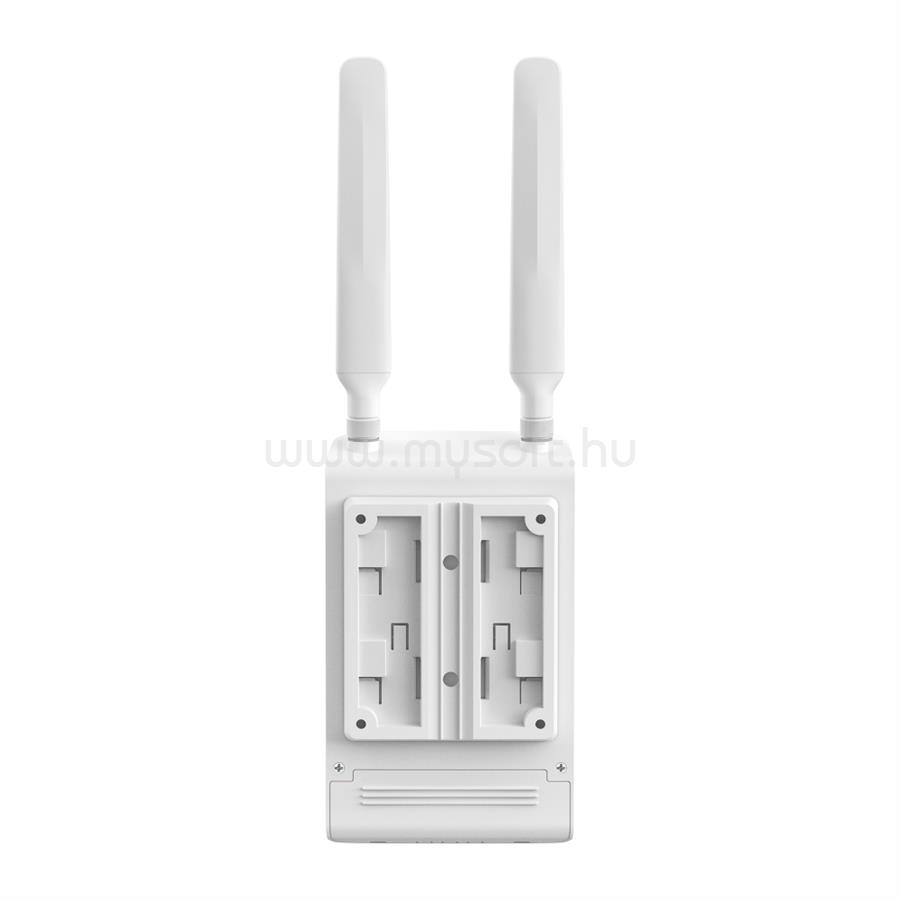

• Mounting
• Pole/Wall-Mounting
• Max. Power Consumption
• 14.5W without PoE
• 63W with PoE

• PERFORMANCE

• DPI Throughput
• TCP: 1131 Mbps
• UDP: 974 Mbps
• GRE
• Unencrypted: 450.3Mbps
• Encrypted: 277.6Mbps
• WireGuard VPN
• 462.8Mbps
• Concurrent Session
• 120,000
• New Sessions /Second
• 3,800
• NAT (Static IP)
• 945.9Mbps / 950.2Mbps
• NAT(DHCP)
• 947.3Mbps / 949.4Mbps
• NAT(PPPoE)
• 916.9Mbps / 946.3Mbps
• NAT (L2TP)
• 878.9Mbps / 778.9Mbps
• NAT (PPTP)
• 852.2Mbps / 775.9Mbps
• IPsec VPN Throughput
• ESP-SHA1-AES256: 568.3Mbps
• ESP-SHA256-AES256: 559.8Mbps
• ESP-SHA384-AES256: 565.6Mbps
• ESP-SHA512-AES256: 550.0 Mbps
• OpenVPN
• 85.1Mbps
• L2TP VPN Throughput
• Unencrypted: 858.7Mbps
• Encrypted: 467.0Mbps
• PPTP VPN Throughput
• Unencrypted: 876.2Mbps
• Encrypted: 182.6Mbps
• SSL VPN Throughput
• 86.6Mbps
• 66 Byte Packet Forwarding Rate
• 1,453,489 pps / 1,453,489 pps
• 1,518 Byte Packet forwarding rate
• 81275 pps / 81275 pps

• WIRELESS FEATURES

• Advanced Features
• Seamless Roaming
• Mesh (with EAP that supports Mesh)
• OFDMA
• Beamforming
• MU-MIMO
• Rate Limit: Based on SSID/Client
• Airtime Fairness
• Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
• Multiple SSIDs: 16 in total (8 per radio)
• Guest Network
• Support

• BASIC FUNCTIONS

• WAN Connection Type
• Static IP
• Dynamic IP
• PPPoE (supports MRU Configuration)
• PPTP
• L2TP
• MAC Clone
• Modify WAN Address
• DHCP
• DHCP Server
• DHCPv6 PD Server (only in Standalone Mode)
• DHCP Options Customization
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP
• SMS
• Receive / Send SMS
• IPv6
• StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
• VLAN
• 802.1Q VLAN
• IPTV
• IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

• Advanced Features

• Access Control
• IP/Port/Protocol/Domain Name Filtering
• Advanced Routing
• Static Routing
• Policy Routing
• RIP
• OSPF
• Bandwidth Control
• IP-Based Bandwidth Control
• Load Balance
• Intelligent Load Balance
• Application Optimized Routing
• Link Backup(Timing, Failover)
• Online Detection
• NAT
• One-to-One NAT
• Multi-Net NAT
• Virtual Server
• Port Triggering
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP
• Session Limit
• IP-Based Session Limit

• VPN

• GRE
• Only in Standalone Mode
• SSL VPN
• 50 Tunnels
• IPsec VPN
• 100 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IPsec Failover
• IKE v1/v2
• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)
• PPTP VPN
• PPTP VPN Server
• PPTP VPN Client (10)
• 50 Tunnels
• PPTP with MPPE Encryption
• L2TP VPN
• L2TP VPN Server
• L2TP VPN Client (10)
• 50 Tunnels
• L2TP over IPSec
• OpenVPN
• OpenVPN Server
• OpenVPN Client (5)
• 55 OpenVPN Tunnels
• "Certificate + Account" Mode
• Full Mode
• WireGuard VPN
• 20 Tunnels

• AUTHENTICATION

• Web Authentication
• No Authentication
• Simple Password
• Hotspot (Local User / Voucher / SMS / Radius)
• External Radius Sever
• External Portal Sever
• LDAP

• Management Features

• Omada App
• Yes.
• Centralized Management
• Omada Cloud Essentials
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Cloud Access
• Yes.
• Service
• Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
• Maintenance
• Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Diagnostics (Ping & Traceroute)
• NTP Synchronize
• Port Mirroring
• CLI (only in Standalone Mode)
• Syslog Support
• Management Features
• Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration

• OTHERS

• Certification
• CE, FCC, RoHS
• Package Content
• ER703WP-4G-Outdoor
• Mounting Kits
• Quick Installation Guide
• System Requirements
• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11
• MAC OS, NetWare, UNIX or Linux
• Environment
• Operating Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating Humidity: 5% to 95% non-condensing
• Storage Humidity: 5% to 90% non-condensing
