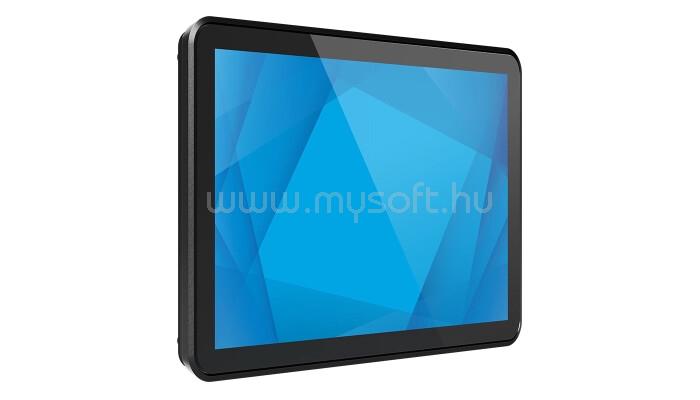

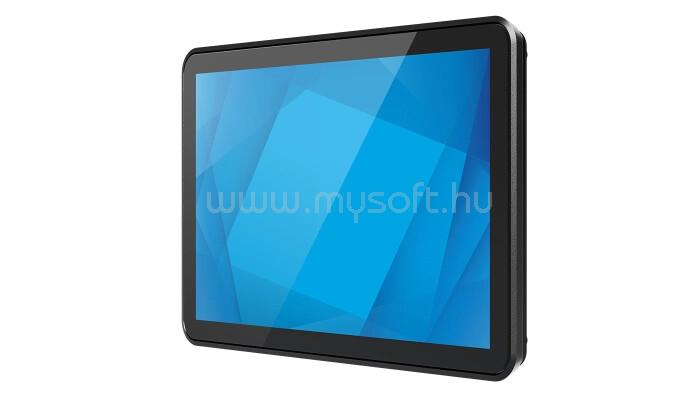

ELO TOUCH 1064L ÉRINTŐKÉPERNYŐS MONITOR

Kijelző

• Képátló: 10.1"
  Felbontás: 1280x800
  Panel: TFT-LCD
  Képarány: 1280x800

Csatlakozók

• • 0x VGA
  • 0x DVI
  • 1x DisplayPort
  • 1x HDMI
  • TV-tuner

• Specification

• Touch Technology & Capacity
• PCAP (TouchPro Projected Capacitive) - 10 Touch
• Touch Thru
• TouchPro PCAP supports up to an additional 6mm glass/3mm plastic with up to 2 touches.
• Touch Interface
• USB 2.0
• Diagonal Size
• 10.1'' diagonal, Active matrix TFT LCD (LED)
• On Screen Display
• On screen OSD with menu and power buttons on the back of the unit.
• Supported Touch gestures include:
• 1. Call out the OSD menu.
• 2. lock/unlock the OSD button function.
• 3. lock/unlock the power button function.
• Settings: Auto Scan, Video Priority, Brightness, Contrast, Aspect Ratio, Sharpness, Color Temperature, Color Enhance, Low Blue Light, OSD Timeout, OSD Language, Recall Defaults, Information, Touch On Sleep Mode, Touch Through
• Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
• Lockouts: OSD, Power
• Aspect Ratio
• 16:10
• Active Area
• 8.54" x 5.34" / 216.96 mm x 135.60 mm
• Resolution
• 1280 x 800
• Other Supported Resolutions
• 640x480 60Hz
• 720x400 70Hz
• 800x500 60Hz
• 800x600 60Hz
• 1024x768 60Hz
• 1280x800 60Hz, 60Hz RB
• 1366x768 60Hz, 60Hz RB
• 1920x1080 60Hz
• 1920x1200 60Hz
• Viewing Angle
• Horizontal: +/-89° or 178° total / Vertical: +/-89° or 178° total
• Number of Colors
• 16.7 million
• Brightness (typical)
• LCD panel: 500 nits
• TouchPro PCAP: 450 nits
• Response Time-total (typical)
• 29 msec
• Contrast Ratio
• 800:1

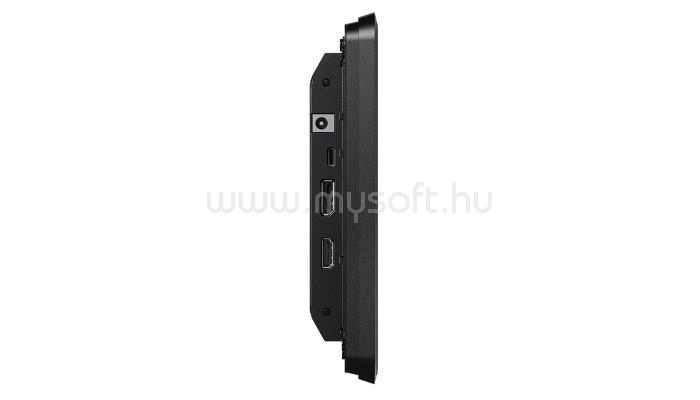

• Video
• HDMI V1.4 Type A receptacle for HDMI input
• DisplayPort V1.2 - Supports later versions of Display Port video input
• USB Type-C
• *Suggest using Elo USB Type-C to Type-C (Elo P/N: E129019) cable to prevent any compatibility issues
• Input Video Horizontal Sync frequency range: 30 - 80K KHz
• Input Video Vertical Sync (frame rate) frequency range: 50-75Hz
• Power
• Option1:
• External DC - Optional power brick (sold separately)
• Monitor input power connector: Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) Barrel depth)
• Monitor input power signal specifications: 12V - 24V DC +/- 5%
• Adapter output power connector: DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) Barrel length)
• Option 2:
• USB Type-C Input range:
• 5V?5%@3A / 9V?5%@3A / 15V?5% @1.8A / 20V?5%@1.35A
• Maximum Operating Time
• 24/7
• Power Consumption (Typical)
• ON (Default - 80% Brightness): 6.52W
• ON (Typical - 100% Brightness): 7.42W
• SLEEP (monitor + adapter): 0.45W
• OFF (monitor + adapter): 0.25W
• Dimensions
• 9.46" x 6.26" x 1.26" / 240.4 mm x 159.0 mm x 32.0 mm
• Shipping Box Dimensions
• 12.40" x 9.57" x 5.67" / 315 mm x 243 mm x 144 mm
• Weight (Unpackaged)
• 2.75 lbs / 1.25 kg
• Weight (Packaged)
• 5.35 lbs / 2.43 kg
• Operating Temperature
• 0°C to 40°C / 32°F to 104°F
• Storage Temperature
• -20°C to 60°C / -4°F to 140°F
• Humidity
• Operating: 20% to 80%
• Storage: 10% to 95%
• Sealability
• IPX1 for front side
• MTBF
• 50,000 hours demonstrated
• Energy Star
• Energy Star 7.0

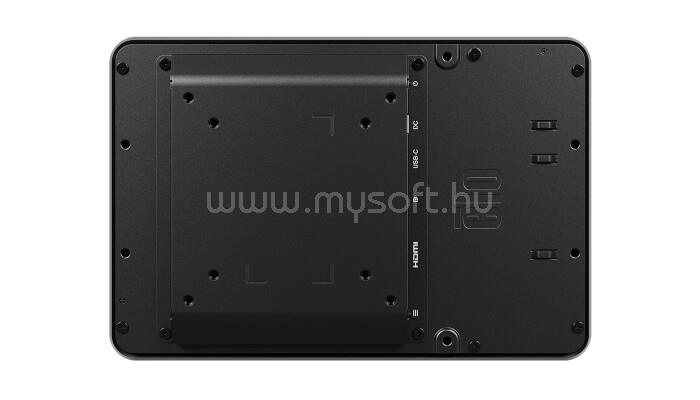

• Mounting Options
• 75 mm and 100mm VESA mount
• Mounting interface on all 4 sides
• Flush mount with included brackets
• See dimensional drawings for details

• What's in the Box

• 1064L
• HDMI cable
• Touch USB Cable (USB-A to USB-C)
• Flush Mount Brackets w/Screws
• Quick Install Guide
• EEI Label

Garancia fogyasztók részére

• 2 év kötelező jótállás + 1 év gyártó által biztosított szervizgarancia

Garancia nem fogyasztók részére

• 3 év gyártó által biztosított szervizgarancia
