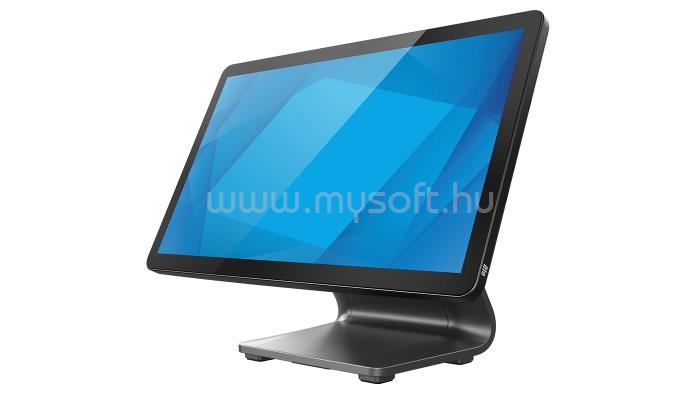

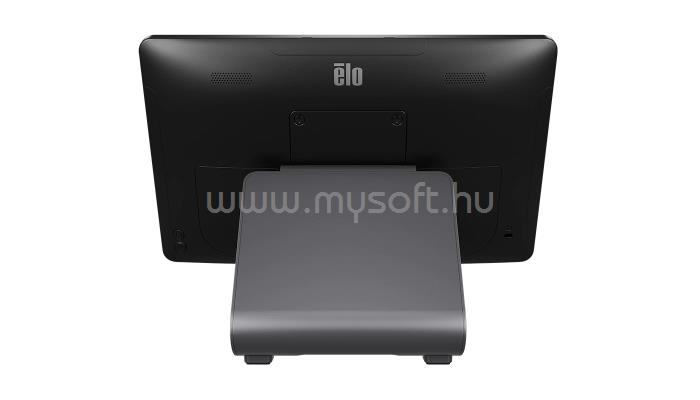

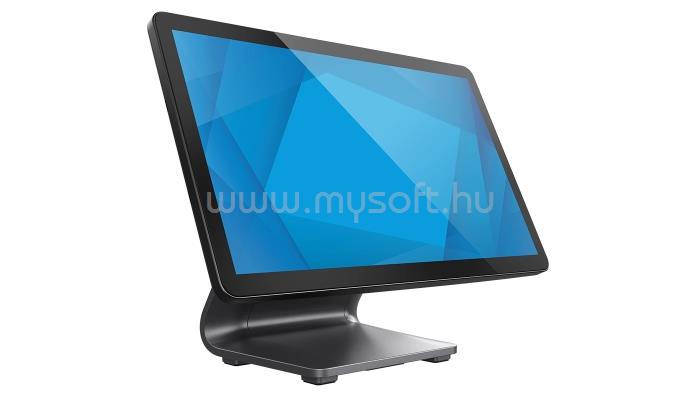

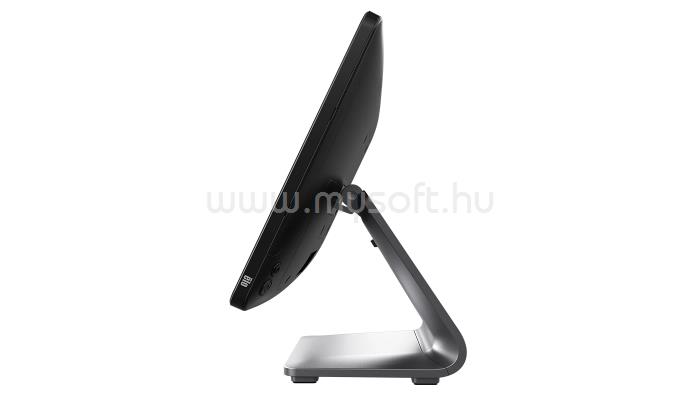

ELO TOUCH 1304L ÉRINTŐKÉPERNYŐS MONITOR ÁLLVÁNNYAL

Kijelző

• Képátló: 13.3"
  Felbontás: 1920x1080
  Panel: TFT-LCD
  Képarány: 16:9

Csatlakozók

• • 0x VGA
  • 0x DVI
  • 1x DisplayPort
  • 1x HDMI
  • TV-tuner

• Specification

• Touch Technology & Capacity
• PCAP (Projected Capacitive) - 10 Touch
• Diagonal Size
• 13.3'' diagonal, Active matrix TFT LCD
• Aspect Ratio
• 16:9
• Active Area
• 11.57" x 6.51" / 293.76 mm x 165.24 mm
• Resolution
• 1920 x 1080
• Other Supported Resolutions
• 640x480 60Hz
• 800x600 60Hz
• 1024x768 60Hz
• 1280x800 60Hz
• 1280x720 60Hz
• 1280x1024 60Hz
• 1366x768 60Hz, 60Hz RB
• 1440x900 60Hz, 60Hz RB
• 1680x1050 60Hz, 60Hz RB
• 1920x1080 60Hz
• Viewing Angle
• Horizontal: +/-85° or 170° total / Vertical: +/-85° or 170° total
• Number of Colors
• 16.2 million
• Brightness (typical)
• LCD panel: 300 nits
• PCAP: 270 nits
• Response Time-total (typical)
• 27 msec
• Contrast Ratio
• 600:1
• Touch Interface
• USB
• Surface Treatment
• Anti-glare
• On Screen Display
• Accessible through touch OSD, and press Menu button to pop up touch OSD diagram.
• Controls: Menu, Power
• Settings: Brightness, Contrast, Aspect Ratio, Auto Scan, Sharpness, Color Temperature, Low Blue Light, Volume, Mute, OSD Timeout, OSD Language, Touch on Sleep mode ON/OFF, Power LED ON/OFF, Recall Defaults, Peripheral Port
• Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
• Lockouts: OSD, Power
• I/O Ports
• 1x USB Type-C
• 1x USB Type-A
• 1x Displayport
• 1x HDMI
• 1x DC jack
• 4x Micro-USB Elo Edge Connect ports
• Speakers
• 2 x 2W (+/-10%) internal speakers
• Video_1
• USB Type-C
• Displayport
• HDMI
• Input Video Horizontal Sync frequency range: 30 - 80KHz
• Input Video Vertical Sync (frame rate) frequency range: 60Hz
• Power
• Power Delivery compatible via USB Type-C connector or DC Jack (2.0mm pin outer diameter, 6.4mm barrel inner diameter)
• Power Consumption (Typical)
• ON (Default Brightness): 6.5W
• SLEEP: 1.0 W
• OFF: 0.25 W
• Monitor Dimensions (without Stand)
• 12.56" x 7.67" x 1.02" / 318.9 mm x 194.9 mm x 25.8 mm
• Shipping Box Dimensions
• Without Stand: 15.67" x 6.34" x 10.94" / 398 mm x 161 mm x 278 mm
• With Stand: 16.06" x 12.72" x 8.39" / 408 mm x 323 mm x 213 mm
• Weight (Unpackaged)
• Without Stand: 2.64 lbs / 1.2 kg
• With Stand: 5.28 lbs / 2.4 kg
• Weight (Packaged)
• Without Stand: 6.82 lbs / 3.1 kg
• With Stand: 10.78 lbs / 4.9 kg
• Operating Temperature
• 0°C to 40°C / 32°F to 104°F
• Storage Temperature
• -20°C to 60°C / -4°F to 140°F
• Humidity
• Operating: 20% to 80%; Storage: 10% to 95% (38.7? max wet bulb temperature)
• MTBF
• 50,000 hours demonstrated
• Mounting Options
• 75mm X 75mm rear-mount mounting interface
• See dimensional drawings for details.
• Other Features
• Energy Star 8.0
• TUV Rhineland (Low Blue Light)
• Power collection function via DDCCI
• PD (power delivery) out via USB-C (18W Max) for Elo Pay 7"
• Ingress Protection
• IP54
• Impact Protection
• IK08

• What's in the Box

• Touchmonitor
• Quick Install Guide
• EU EEI Label
• 2x UK EEI Label
• 1.8m HDMI cable
• 1.8 m USB cable (USB Type-A to Type-C)
• Power brick
• 1.8m NA Power cable
• 1.8m EU Power cable

Garancia fogyasztók részére

• 2 év kötelező jótállás + 1 év gyártó által biztosított szervizgarancia

Garancia nem fogyasztók részére

• 3 év gyártó által biztosított szervizgarancia
