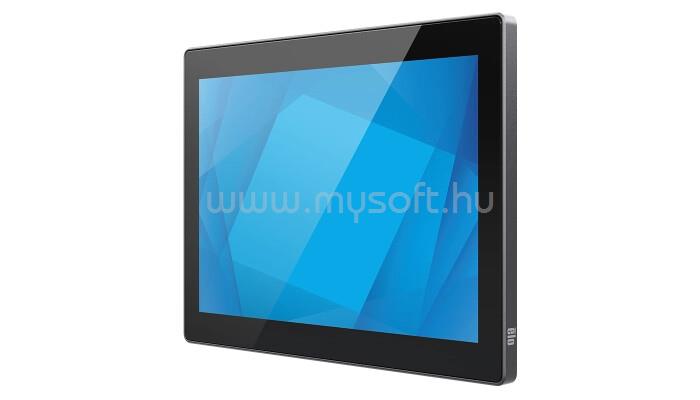

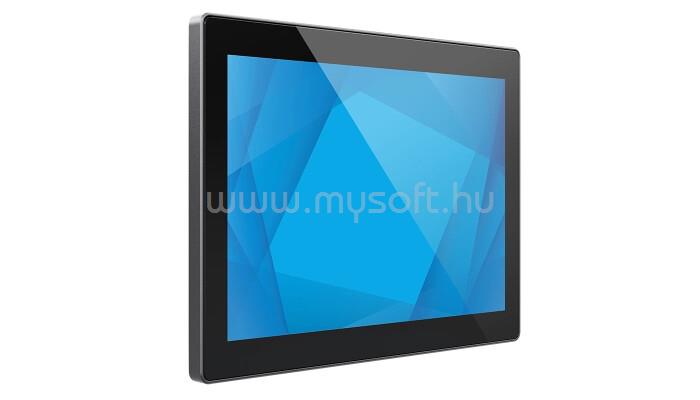

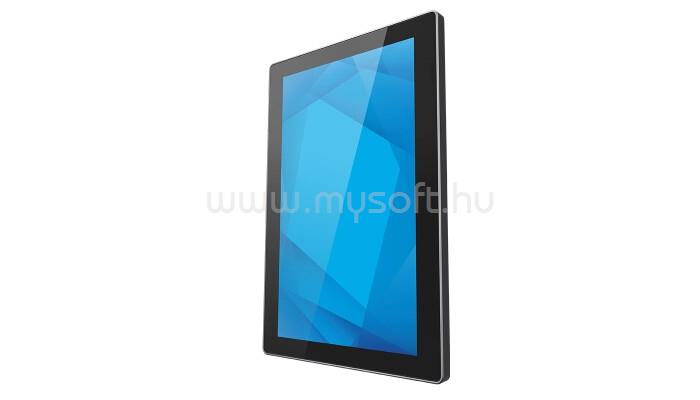

ELO TOUCH 0704LS ÉRINTŐKÉPERNYŐS MONITOR (USB-C)

Kijelző

• Képátló: 7"
  Felbontás: 1280x800
  Panel: TFT-LCD
  Képarány: 1280x800

Csatlakozók

• • 0x VGA
  • 0x DVI
  • 0x DisplayPort
  • 0x HDMI
  • TV-tuner

• Specification

• Touch Technology & Capacity
• PCAP (Projected Capacitive) - 10 Touch
• Diagonal Size
• 7'' diagonal, Active matrix TFT LCD (LED)
• Aspect Ratio
• 16:10
• Active Area
• 5.90" x 3.69" / 149.76 mm x 93.60 mm
• Resolution
• 1280 x 800
• Other Supported Resolutions
• 1280 x 800 60Hz
• 1280 x 800 60Hz RB
• 1280 x 720 60hz
• 1024 x 768 60Hz
• 800 x 600 60Hz
• 800 x 500 60Hz
• 640 x 480 60Hz
• Viewing Angle
• Horizontal: +/-88° or 176° total / Vertical: +/-88° or 176° total
• Number of Colors
• 16.7 million
• Brightness (typical)
• Panel: 400 nits; TouchPro PCAP: 360 nits
• Response Time-total (typical)
• 35 msec
• Contrast Ratio
• 800:1
• Touch Interfaces
• USB
• Surface Treatment
• Anti-glare
• On Screen Display
• Accessible through touch OSD, and press Menu button to pop up touch OSD diagram.
• Controls: Menu, Power
• Settings: Brightness, Contrast, Aspect Ratio, Sharpness, Color Temperature, Low Blue Light, OSD Timeout, OSD Language, Touch on Sleep mode, Power LED, Touch Through, Recall Defaults
• Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese,
• Lockouts: OSD, Power
• I/O Ports
• USB Type-C connector
• Video
• USB Type-C connector
• Input Video Horizontal Sync frequency range: 30 - 60KHz
• Input Video Vertical Sync (frame rate) frequency range: 60Hz
• Power
• Power Delivery compatible via USB Type-C connector
• Input range: (5V?5% 3A/9V?5% 3A/15V?5% 1.8A/20V?5% 1.35A)
• Power Consumption (Typical)
• ON (Default - 100% Brightness): 4.8W
• SLEEP: 0.8 W
• OFF: 0.15 W
• Monitor Dimensions (without Stand)
• 6.81" x 4.78" x 0.57" / 173.06 mm x 121.56 mm x 14.6 mm
• Shipping Box Dimensions
• 9.13" x 6.61" x 2.80" / 232 mm x 168 mm x 71mm
• Weight (Unpackaged)
• 0.71 lbs / 0.32 kg
• Weight (Packaged)
• 1.48 lbs / 0.67 kg
• Operating Temperature
• 0°C to 40°C / 32°F to 104°F
• Storage Temperature
• -20°C to 60°C / -4°F to 140°F
• Humidity
• Operating: 20% to 80%; Storage: 10% to 95% (38.7 ? max wet bulb temperature)
• MTBF
• 50,000 hours demonstrated
• Mounting Options

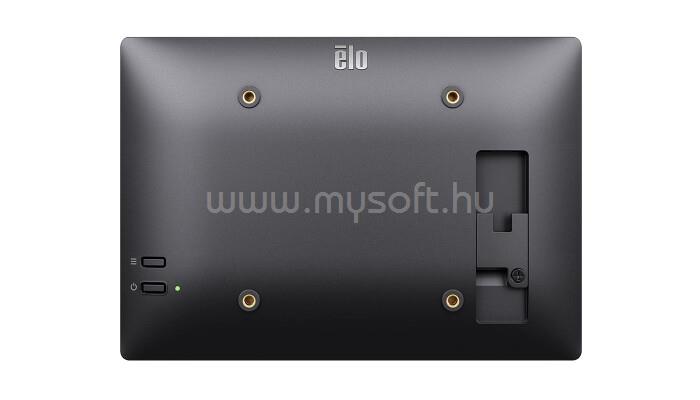

• VESA via 4-hole 75mm mounting adapter on rear of unit.
• Other Features
• TUV Rhineland (Low Blue Light)
• TUV Rhineland (Flicker Free)
• Power collection function via DDCCI
• Impact Protection
• IK07

• What's in the Box

• Touchmonitor
• Quick Install Guide
• USB Type-C cable

Garancia fogyasztók részére

• 2 év kötelező jótállás + 1 év gyártó által biztosított szervizgarancia

Garancia nem fogyasztók részére

• 3 év gyártó által biztosított szervizgarancia
