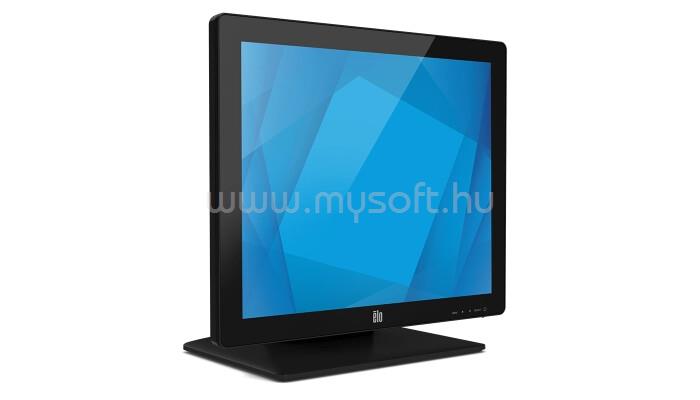

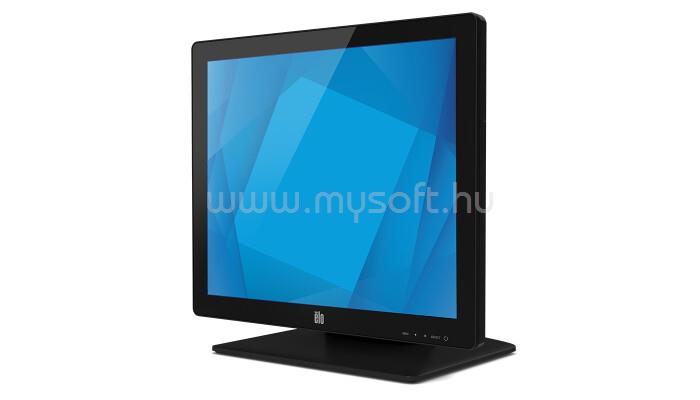

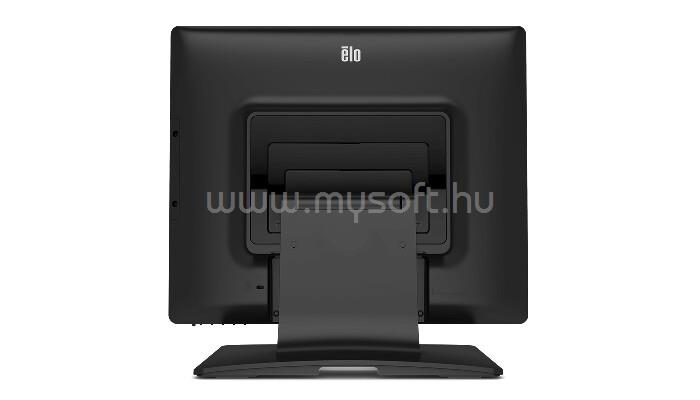

ELO TOUCH ET1717L ACCUTOUCH ÉRINTŐKÉPERNYŐS MONITOR

Kijelző

• Képátló: 17"
  Felbontás: 1280x1024
  Panel: TFT-LCD
  Képarány: 5:4

Csatlakozók

• • 1x VGA
  • 0x DVI
  • 0x DisplayPort
  • 1x HDMI
  • TV-tuner

• Specification

• Touch Technology & Capacity
• 5-Wire Resistive (AccuTouch©) - Single-Touch
• Diagonal Size
• 17'' diagonal, Active matrix TFT LCD (LED)
• Aspect Ratio
• 5:4
• Active Area
• 13.3" x 10.64" / 337.92 mm x 270.34 mm
• Resolution
• 1280 x 1024
• Other Supported Resolutions
• 640 x 480 60Hz, 75Hz
• 720 x 400 70Hz
• 800 x 600 56Hz, 60Hz, 75Hz
• 1024 x 768 60Hz, 75Hz
• 1280 x 1024 60Hz, 75Hz
• Viewing Angle
• Horizontal: +/-85° or 170° total / Vertical: +/-80° or 160° total
• Number of Colors
• 16.7 million
• Brightness (typical)
• LCD panel: 250 nits
• TouchPro PCAP: 225 nits
• AccuTouch: 200 nits
• Response Time-total (typical)
• 20 msec
• Contrast Ratio
• 1000:1
• Touch Interface
• Serial (RS232) and USB
• On Screen Display
• Accessible through switches along the bottom.
• Controls: Menu, Up, Down, Select, Power
• Settings: Auto Adjust, Brightness, Contrast, H-position, V-position, Clock, Phase, Color Temperature, OSD Timeout, OSD Language, Sharpness, Recall Defaults, Information
• Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
• Lockouts: OSD, Power
• I/O Ports
• VGA
• HDMI
• DC jack
• AC jack
• USB Type B
• RS-232 (DB-9)
• Video
• Analog VGA on Female DB-15 connector
• Digital HDMI on Type A receptacle
• Input Video Horizontal Sync frequency range: 31.5 - 80KHz
• Input Video Vertical Sync (frame rate) frequency range: 56-75Hz
• Power
• Monitor AC input power connector: IEC 60320 C6
• Monitor AC input voltage specifications: 100-240VAC, 50/60Hz
• Monitor DC input power connector: Coaxial power jack (2.0mm pin outer diameter, 6.4mm barrel inner diameter)
• Monitor DC input voltage specifications: 12VDC +/- 5%
• Power Consumption (Typical)
• Monitor Only
• ON: 11.5W (100% brightness)
• ON: 10W (default 80% brightness)
• SLEEP: 1.40W
• OFF: 0.3W
• Monitor Dimensions (without Stand)
• Bezel: 15.4" x 2.15" x 12.9" / 392.0 mm x 54.5 mm x 327.7 mm
• Monitor Dimensions (with Stand)
• 15.43" x 8.48" x 14.24" / 391.9 mm x 215.4 mm x 361.6 mm
• Shipping Box Dimensions
• 19.05" x 9.92" x 19.69" / 484 mm x 252 mm x 500 mm
• Weight (Unpackaged)
• 11.9 lbs / 5.4 kg
• Weight (Packaged)
• 18.3 lbs / 8.3 kg
• Operating Temperature
• 0°C to 40°C / 32°F to 104°F
• Storage Temperature
• 20°C to 60°C / -4°F to 140°F
• Humidity
• Operating: 20% to 80%; Storage: 10% to 95%
• MTBF
• 50,000 hours demonstrated

• What's in the Box

• Touch monitor
• Quick Install Guide
• VGA Cable (DB-15 male to DB-15 male)
• Touch USB Cable (USB Type A plug to USB Type B plug)
• Power cable, IEC 60320-C5 to NA/EU plug
• Stand Base assembly
• Filler Plate
• HDMI cable

Garancia fogyasztók részére

• 2 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 1 év gyártó által biztosított szervizgarancia
