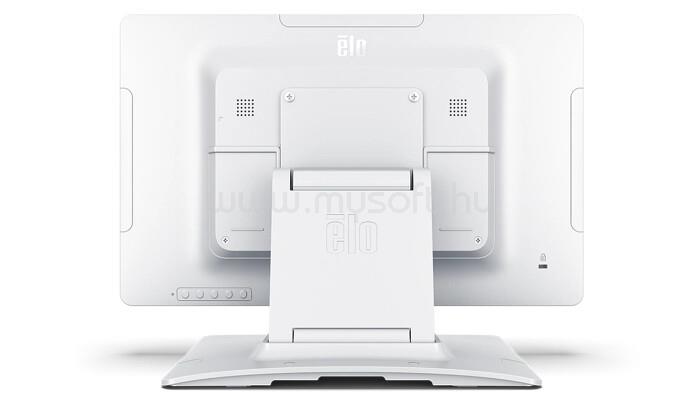

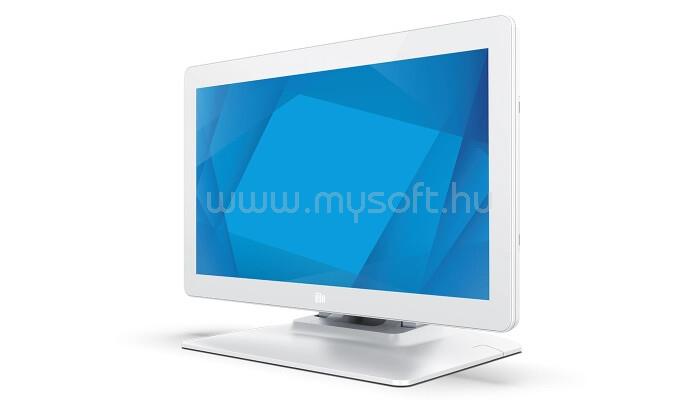

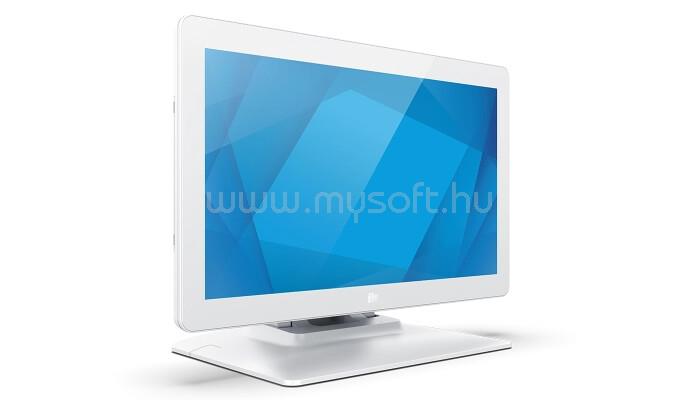

ELO TOUCH 1502LM ÉRINTŐKÉPERNYŐS MONITOR ÁLLVÁNNYAL (FEHÉR)

Kijelző

• Képátló: 15.6"
  Felbontás: 1920x1080
  Panel: TFT-LCD
  Képarány: 16:9

Csatlakozók

• • 1x VGA
  • 0x DVI
  • 0x DisplayPort
  • 1x HDMI
  • TV-tuner

• Specification

• Touch Technology & Capacity
• PCAP (TouchPro Projected Capacitive) - 10 Touch
• Diagonal Size
• 15.6'' diagonal, Active matrix TFT LCD (LED)
• Aspect Ratio
• 16:9
• Active Area
• 13.55" x 7.62" / 344.16 mm x 193.5 mm
• Resolution
• 1920 x 1080
• Other Supported Resolutions
• 640 x 480 @ 60Hz
• 640 x 400 @ 70Hz
• 720 x 400 @ 70Hz
• 800 x 600 @ 56, 60Hz
• 1024 x 768 @ 60Hz
• 1280 x 720 @ 50, 60Hz
• 1280 x 800 @ 60Hz, 60HzRB
• 1280 x 960 @ 60Hz
• 1280 x 1024 @ 60Hz
• 1360 x 768 @ 60Hz
• 1366 x 768 @ 60Hz, 60Hz RB
• 1440 x 900 @ 60Hz, 60Hz RB
• 1680 x 1050 @ 60Hz, 60Hz RB
• 1920 x 1080 @ 50, 60Hz
• Viewing Angle
• Horizontal: +/-80° or 160° total / Vertical: +/-80° or 160° total
• Number of Colors
• 16.7 million
• Brightness (typical)
• LCD Panel: 250 nits
• With PCAP: 225 nits
• Response Time-total (typical)
• 30 msec
• Contrast Ratio
• 700:1
• Touch Interface
• USB
• Surface Treatment
• Anti-glare
• On Screen Display
• Accessible through switches along the bottom:
• Controls: Menu, Up, Down, Select
• Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Video Priority, Information, Touch on Sleep Mode, Peripheral Port
• Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
• Lockouts: OSD, Power
• I/O Ports
• USB Type-C
• Audio jack (Line-in)
• VGA (Micro-HDMI female connecter)
• HDMI
• 12V D/C input
• 3 x Micro-USB ports (Top, Left, Right)
• Speakers
• 2 x 2W internal speakers
• Video
• Analog VGA
• HDMI
• USB Type-C (support DP Alt mode)
• (Suggest using Elo USB Type-C to Type-C (Elo P/N: E710364) cable to prevent any compatibility issues)
• Input Video Horizontal Sync frequency range: 31.5 - 82KHz
• Input Video Vertical Sync (frame rate) frequency range: 50 - 75Hz
• Power
• Monitor input power connector: Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) Barrel depth)
• Monitor input voltage range: 12VDC +/- 5%
• Adapter output power connector: DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) Barrel length)
• Adapter input voltage range: 100-240 VAC
• Input frequency: 50-60 Hz
• Power Consumption (Typical)
• Monitor + adapter
• ON: 9.5 W
• SLEEP: 1.27 W
• OFF: 0.2 W
• Monitor Dimensions (without Stand)
• 9.62'' x 15.23'' x 1.28'' / 244.39 mm x 386.96 mm x 32.4 mm
• Monitor Dimensions (with Stand)
• 11.21'' x 15.23'' x 7.84'' / 284.65 mm x 386.96 mm x 199.12 mm
• Shipping Box Dimensions
• With Stand: 8.03'' x 17.76'' x 13.54''/ 204 mm x 451 mm x 344 mm
• Without Stand: 6.89" x 17.76" x 12.60" / 175 mm x 451 mm x 320 mm
• Weight (Unpackaged)
• With Stand: 6.79 lbs / 3.08 kg
• Without Stand: 3.62 lbs / 1.64 kg
• Weight (Packaged)
• With Stand: 11.24 lbs / 5.1 kg
• Without Stand: 7.47 lbs / 3.39 kg
• Operating Temperature
• 0°C to 40°C / 32°F to 104°F
• Storage Temperature
• -20°C to 60°C / -4°F to 140°F
• Humidity
• Operating: 20% to 80%; Storage: 10% to 95% (38.7? max wet bulb temperature)
• MTBF
• 50,000 hours demonstrated
• Mounting Options
• VESA 4-hole 75mm and 100mm mounting interface on rear of unit
• Ingress Protection
• IP22 entire enclosure
• Impact Protection
• IK07

• What's in the Box

• Touchmonitor
• Quick Install Guide
• HDMI cable
• 2x cable clamps
• 2x Tie wraps
• EEI Label
• USB Cable (USB Type-A to Type-C)
• NA Power cable
• EU Power cable
• 3x screws (M3x8mm) for cable clamps
• 2x screws (M3x10mm) for cable doors

Garancia fogyasztók részére

• 3 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 3 év gyártó által biztosított szervizgarancia
