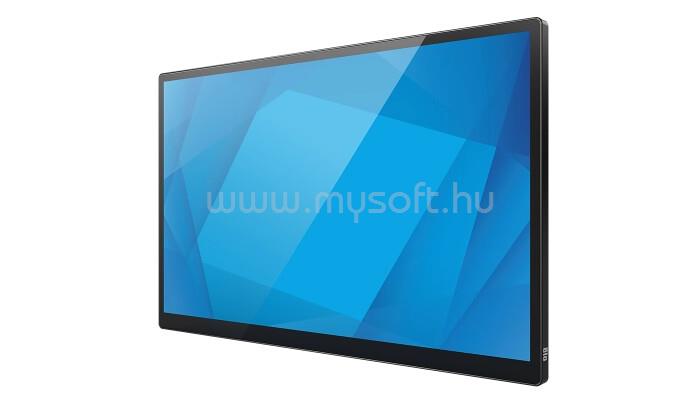

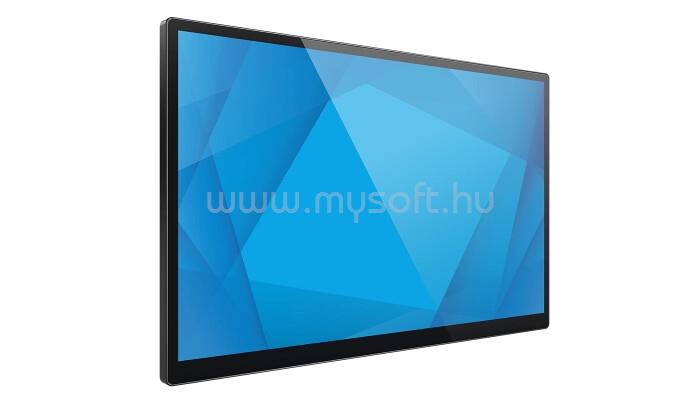

ELO TOUCH 1510L EMEA ÉRINTŐKÉPERNYŐS MONITOR

Kijelző

• Képátló: 15.6"
  Felbontás: 1920x1080
  Panel: TFT-LCD
  Képarány: 16:9

Csatlakozók

• • 0x VGA
  • 0x DVI
  • 1x DisplayPort
  • 1x HDMI
  • TV-tuner

• Specification

• Touch Technology & Capacity
• Non-Touch
• Diagonal Size
• 15.6'' diagonal, Active matrix TFT LCD (LED)
• Aspect Ratio
• 16:9
• Active Area
• 13.55" x 7.62" / 344.16 mm x 193.59 mm
• Resolution
• 1920 x 1080
• Other Supported Resolutions
• 640x480 60Hz
• 800x600 60Hz
• 1024x768 60Hz
• 1280x800 60Hz, 60Hz RB
• 1366x768 60Hz, 60Hz RB
• 1920x1080 60Hz
• Viewing Angle
• Horizontal: +/-85° or 170° total / Vertical: +/-85° or 170° total
• Number of Colors
• 16.2 million
• Brightness (typical)
• LCD panel: 250 nits With AG screen: 220 nits
• Response Time-total (typical)
• 25 msec
• Contrast Ratio
• 700:1
• Surface Treatment
• Anti-glare
• On Screen Display
• The unit has on-screen display (OSD) buttons on the back
• Controls: Menu (Select), Down (Minus), Up (Plus), Source (Exit), Power
• Settings: Brightness, Contrast, Eco Mode, Image Ratio, Color Temperature, OSD H. Position, OSD V. Position, OSD Timeout, OSD Language, Input Select, Reset, Information, Auto adjust, Volume, Video Source (triggered by the hotkeys)
• Languages: English, French, Spanish, Simplified Chinese, Traditional Chinese, Korean, Russian, Portuguese. Japanese
• Lockouts: OSD, Power
• Speakers
• Two x 2W internal speakers
• Video
• HDMI V1.4 Type A receptacle for HDMI input
• DisplayPort V1.2 - Supports later versions of Display Port video input
• USB Type-C (Suggest using Elo USB Type-C to Type-C (Elo P/N: E129019) cable to prevent any compatibility issues)
• Input Video Horizontal Sync frequency range: 30 - 82KHz
• Input Video Vertical Sync (frame rate) frequency range: 60Hz
• Power
• Option 1:
• External DC - External DC Adapter 12V/36W included in the box
• Monitor input power connector: Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) Barrel depth)
• Monitor input power signal specifications: 12V DC +/- 5%
• Adapter output power connector: DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) Barrel length)
• Option 2:
• USB Type-C Input range: 5V?5%@3A / 9V?5%@3A / 15V?5% @1.8A / 20V?5%@1.35A
• Power Consumption (Typical)
• ON (Default - 90% Brightness): 7W
• ON (Typical - 100% Brightness): 8.5W
• SLEEP (monitor + adapter): 0.5W
• OFF (monitor + adapter): 0.3W
• Monitor Dimensions (without Stand)
• 14.2" x 8.54" x 1.04" / 360.69 mm x 216.83 mm x 26.3 mm
• Shipping Box Dimensions
• 18.5" x 13.03" x 6.89" / 470 mm x 331 mm x 175 mm
• Weight (Unpackaged)
• 2.93 lbs / 1.33 kg
• Weight (Packaged)
• 5.67 lbs / 2.57 kg
• Operating Temperature
• 0°C to 40°C / 32°F to 104°F
• Storage Temperature
• -20°C to 60°C / -4°F to 140°F
• Humidity
• Operating: 20% to 80%; Storage: 10% to 95%
• MTBF
• 50,000 hours demonstrated
• Mounting Options

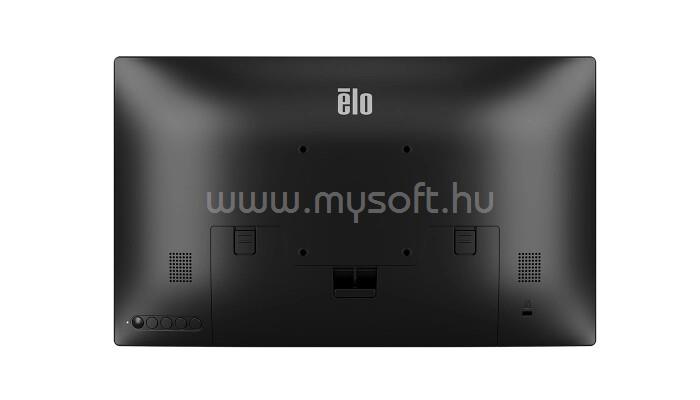

• VESA 4-hole 75mm mounting interface on rear of unit
• Compliance
• Energy Star 8.0
• GLI 10 kV air / 8 kV contact ESD compliant
• UL62368 ball-drop compliant
• IK06 impact compliant

• What's in the Box

• Touchmonitor
• HDMI cable
• Power Brick
• Quick Install Guide
• EEI Label
• 4 x VESA screws
• EMEA Power Cord

Garancia fogyasztók részére

• 2 év kötelező jótállás + 1 év gyártó által biztosított szervizgarancia

Garancia nem fogyasztók részére

• 3 év gyártó által biztosított szervizgarancia
