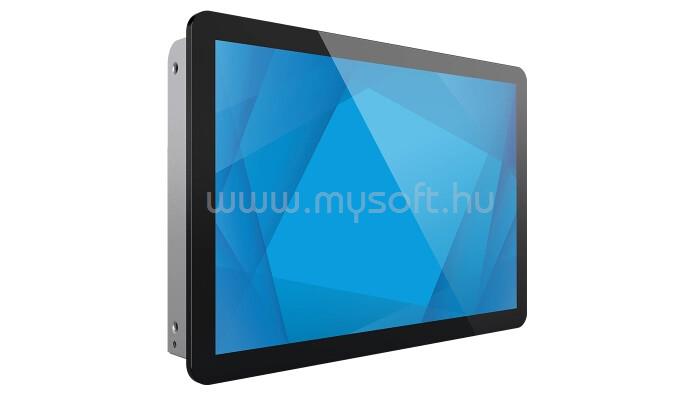

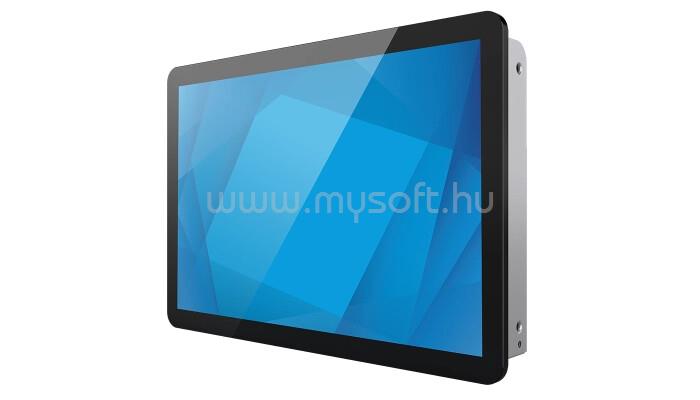

ELO TOUCH ELO 1099L TOUCHPRO PCAP ÉRINTŐKÉPERNYŐS MONITOR

Kijelző

• Képátló: 10"
  Felbontás: 1280x800
  Panel: TFT-LCD
  Képarány: 1280x800

Csatlakozók

• • 1x VGA
  • 0x DVI
  • 1x DisplayPort
  • 1x HDMI
  • TV-tuner

• Specifications

• Touch Technology & Capacity
• PCAP (TouchPro© Projected Capacitive) - up to 5 touches
• Touch Thru
• Supports up to 6mm / 0.24" glass or 3mm / 0.12" plastic with up to 2 touches
• Touch Interface
• USB 2.0
• Diagonal Size
• 10.1'' diagonal, Active matrix TFT LCD (LED)
• On Screen Display
• Accessible through switches on the unit's tethered OSD Control box.
• Controls: Menu, Up, Down, Select, Power
• Settings: Brightness, Contrast, Light sensor, Clock, Phase, H-Position, V-Position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Rotation, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch on Sleep Mode, Touch Through, Touch Interface, GPIO Control, Time Setting, On/Off Schedule, Daylight Saving Time
• Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese,
• Lockouts: OSD, Power
• Aspect Ratio
• 16:10
• Active Area
• 8.54" x 5.33" / 216.96 mm x 135.60 mm
• Resolution
• 1280 x 800
• Other Supported Resolutions
• 640 x 480 60Hz
• 720 x 400 70Hz
• 800 x 600 60Hz
• 1024 x 768 60Hz
• 1280 x 800 60Hz
• Viewing Angle
• Horizontal: ?85° or 170° total / Vertical: ?85° or 170° total
• Number of Colors
• 16.7 million
• Brightness (typical)
• TouchPro PCAP: 1000 nits
• Response Time-total (typical)
• 25 msec
• Contrast Ratio
• 800:1
• I/O Ports
• Locking for all ports, including USB TypeB, RJ45 for OSD remote key, VGA, HDMI, DisplayPort
• Video
• HDMI V1.3 Type A receptacle for HDMI input
• Analog VGA on Female DE-15 (DB-15) connector
• DisplayPort V1.1a - Supports later versions of DisplayPort video input
• Input Video Horizontal Sync frequency range: 31.5 - 80K KHz
• Input Video Vertical Sync (frame rate) frequency range: 60-75Hz
• Power
• External DC - Optional power brick (sold separately)
• Monitor input power connector: Coaxial power jack (2.5mm (+0.0 -0.1mm) pin outer diameter, 5.7mm (+/- 0.1mm) barrel inner diameter, 7.8mm (+/- 0.2mm) Barrel depth)
• Monitor input voltage range: 12VDC +/- 5%
• Adapter output power connector: DC barrel plug (2.5mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 7.5mm (+/- 0.5mm) Barrel length)
• Adapter input voltage range: 100-240 VAC
• Input frequency: 50-60 Hz
• Power Consumption (Typical)
• Monitor + adapter
• ON: 23W
• SLEEP from PC: 1.5W
• OFF: 1.5W
• Dimensions
• 10.08" x 6.93" x 1.61" / 256 mm x 176 mm x 41 mm
• Shipping Box Dimensions
• 13.58" x 10.94" x 6.89" / 345 mm x 278 mm x 175 mm
• Weight (Unpackaged)
• 4.85 lbs / 2.2 kg
• Weight (Packaged)
• 7.28 lbs / 3.3 kg
• Operating Temperature
• -20°C to 60°C / -4°F to 140°F
• Storage Temperature
• -30°C to 80°C / -22°F to 176°F
• Humidity
• Operating: 10% to 90%
• Storage: 10% to 95% (38.7° maximum wet bulb temperature)
• Sealability
• Sealable to IP66 / NEMA 4x
• MTBF
• 50,000 hours demonstrated
• Compliance
• GLI 27 kV air / 8 kV contact ESD compliance
• UL ball-drop compliance
• IK09 impact compliance
• Other Features
• Viewable with polarized sunglasses in portrait and landscape orientations.
• Ambient light sensor
• Thermal sensor

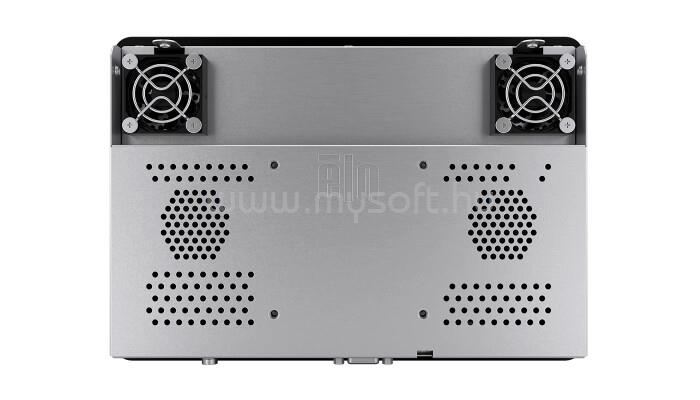

• External fans (Automatically controlled)

• What's in the Box

• 1099L
• HDMI cable with screw-locked type
• VGA Cable
• Remote OSD
• Touch USB Cable with screw-locked type
• Quick Install Guide
• Flush Mount Brackets w/Screws
• EEI Label

Garancia fogyasztók részére

• 3 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 1 év gyártó által biztosított szervizgarancia
