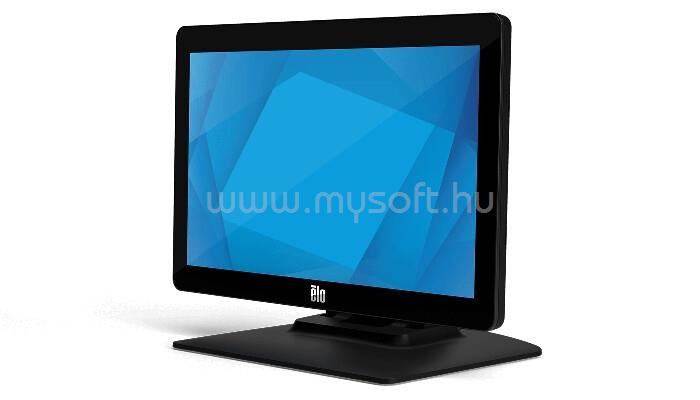

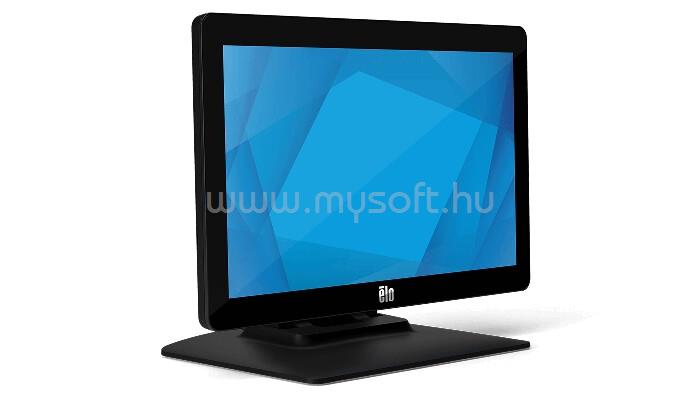

ELO TOUCH 1502L PCAP HD ÉRINTŐKÉPERNYŐS MONITOR ÁLLVÁNNYAL

Kijelző

• Képátló: 15.6"
  Felbontás: 1366x768
  Panel: TFT-LCD
  Képarány: 16:9

Csatlakozók

• • 1x VGA
  • 0x DVI
  • 0x DisplayPort
  • 1x HDMI
  • TV-tuner

• Specification

• Touch Technology & Capacity
• PCAP (Projected Capacitive) - 10 Touch
• Diagonal Size
• 15.6'' diagonal, Active matrix TFT LCD (LED)
• Monitor Thickness
• 1.28" / 32.4 mm panel depth
• Aspect Ratio
• 16:9
• Active Area
• 13.55" x 7.62" / 344.16 mm x 193.5 mm
• Resolution
• HD model: 1366 x 768
• Other Supported Resolutions
• HD model:
• 640 x 480 60Hz
• 640 x 400 70Hz
• 720 x 400 70Hz
• 800 x 600 56, 60Hz
• 1024 x 768 60Hz
• 1280 x 720 50, 60Hz
• 1360 x 768 60Hz
• Viewing Angle
• HD Model:
• Horizontal: ?45° / 90° total; Vertical: -35°/ +15° / 50° total
• Number of Colors
• 16.7 million
• Brightness (typical)
• HD model
• LCD Panel: 220 nits
• PCAP + DC power: 198 nits
• Response Time-total (typical)
• HD model: 10 ms
• Contrast Ratio
• HD Model: 400:1
• Touch Interface
• USB
• Surface Treatment
• Anti-glare
• On Screen Display
• Accessible through switches along the bottom:
• Controls: Menu, Up, Down, Select
• Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Video Priority, Information, Touch on Sleep Mode, Peripheral Port (FHD Model only)
• Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
• Lockouts: OSD, Power
• I/O Ports
• HD Model:
• 1 x USB Type-B
• 1 x Audio jack (Line-in)
• 1 x VGA (Mini-VGA female connecter)
• 1 x HDMI
• 1 x 12V D/C input
• 3 x Micro-USB ports (Top, Left, Right) to support Elo Edge Connect peripherals
• Speakers
• 2 x 2W internal speakers
• Video
• HD Model:
• Analog VGA
• HDMI
• Input Video Format
• Horizontal: 31.5 - 82 KHz
• Vertical: 50 - 75 Hz
• Power
• HD Model:
• External DC Adapter 12V/40W in box
• Monitor input power connector: Coaxial power jack (2.5mm pin outer diameter, 6.4mm barrel inner diameter)
• Monitor input voltage range: 12VDC +/- 5%
• Adapter output power connector: DC barrel plug (2.5mm (+0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) Barrel length)
• Adapter input voltage range: 100-240 VAC
• Input frequency: 50-60 Hz
• Power Consumption (Typical)
• HD Model (monitor + adapter):
• ON: 10.2 W
• SLEEP: 0.4 W
• OFF: 0.2 W
• Monitor Dimensions (without Stand)
• 9.62" x 15.23" x 1.28" / 244.39 mm x 386.96 mm x 32.4 mm
• Monitor Dimensions (with Stand)
• 11.21" x 15.23" x 7.84" / 284.65 mm x 386.96 mm x 199.12 mm
• Shipping Box Dimensions
• With Stand: 8.03" x 17.76" x 13.54" / 204 mm x 451 mm x 344 mm
• Weight (Unpackaged)
• With Stand: 6.72 lbs / 3.05 kg
• Weight (Packaged)
• With Stand: 11.05 lbs / 5.01 kg
• Operating Temperature
• 0°C to 40°C / 32°F to 104°F
• Storage Temperature
• -20°C to 60°C / -4°F to 140°F
• Humidity
• Operating: 20% to 80%; Storage: 10% to 95% (38.7? max wet bulb temperature)
• MTBF
• 50,000 hours demonstrated
• Mounting Options
• VESA 4-hole 75mm and 100mm mounting interface on rear of unit
• Ingress Protection
• IPX1 for front side
• Impact Protection
• FHD Model: IK07

• What's in the Box

• HD Model:
• Touchmonitor
• Quick Install Guide
• HDMI cable
• Power brick
• 2x cable clamps
• 2x tie wraps
• Mini-VGA to VGA cable (mini-VGA to DE-15 (DB-15) male)
• USB cable (USB Type A plug to USB Type B plug)
• Audio cable
• EEI Label

Garancia fogyasztók részére

• 2 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 1 év gyártó által biztosított szervizgarancia
