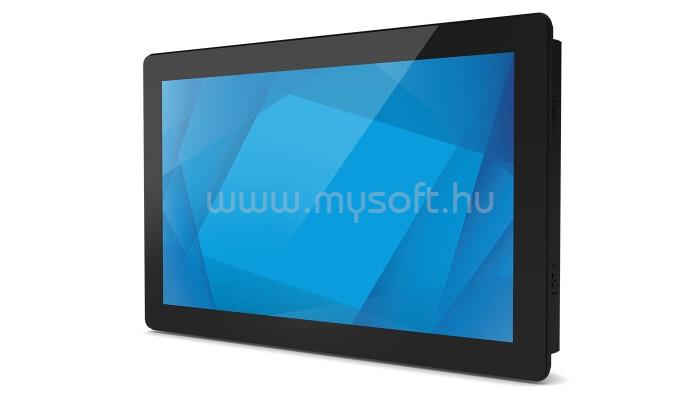

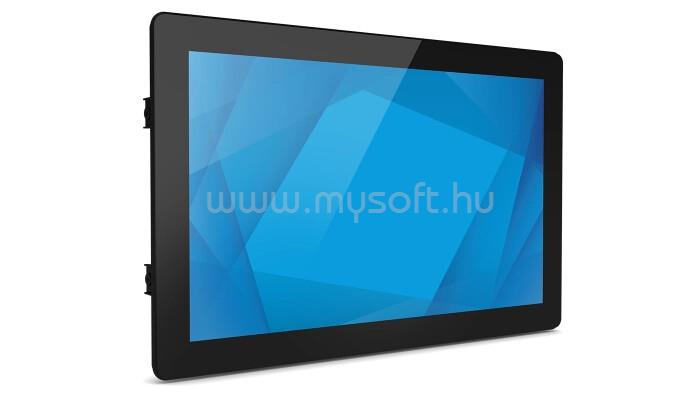

ELO TOUCH 1594L TOUCHPRO PCAP ÉRINTŐKÉPERNYŐS MONITOR

Kijelző

• Képátló: 15.6"
  Felbontás: 1920x1080
  Panel: TFT-LCD
  Képarány: 16:9

Csatlakozók

• • 1x VGA
  • 0x DVI
  • 1x DisplayPort
  • 1x HDMI
  • TV-tuner

• Specification

• Touch Technology & Capacity
• PCAP (TouchPro© Projected Capacitive) - 10 Touch
• Touch Interface
• USB 2.0
• Diagonal Size
• 15.6'' diagonal, Active matrix TFT LCD (LED)
• On Screen Display
• Accessible through switches on the unit's tethered OSD Control box.
• Controls: Menu, Up, Down, Select, Power
• Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Thru
• Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
• Lockouts: OSD, Power
• Aspect Ratio
• 16:9
• Active Area
• 13.55" x 7.62" / 344.16 mm x 193.59 mm
• Resolution
• 1920 x 1080
• Other Supported Resolutions
• 640 x 480 60Hz
• 720 x 400 70Hz
• 800 x 500, 60Hz
• 800 x 600 56, 60Hz
• 1024 x 768 60, 75Hz
• 1280 x 800 60Hz
• 1280 x 1024 60Hz
• 1366 x 768 60Hz, 60Hz RB
• 1440 x 900 60Hz, 60Hz RB
• 1680 x 1050 60Hz, 60Hz RB
• 1920 x 1080 50 60Hz
• Viewing Angle
• Horizontal: +/-89° or 178° total / Vertical: +/-89° or 178° total
• Number of Colors
• 16.7 million
• Brightness (typical)
• LCD panel: 350 nits
• TouchPro PCAP: 315 nits
• Response Time-total (typical)
• 25 msec
• Contrast Ratio
• 800:1
• Input Video Format
• HDMI V1.3 Type A receptacle for HDMI input
• Analog VGA on Female DB-15 connector
• DisplayPort V1.1a - Supports later versions of Display Port video input
• Input Video Frequency
• Horizontal: 30 - 82 KHz
• Vertical: 50 - 75 Hz
• Video Interface
• HDMI, VGA & Display Port
• Power Supply
• External DC - Optional power brick (sold separately)
• Input power connector (Monitor)
• Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) barrel depth)
• Input Voltage
• 12VDC +/- 5%
• Adapter Output Power Connector
• DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) barrel length)
• Power Consumption (Typical)
• Monitor + Adapter
• ON: 13.23 W
• SLEEP: 0.48 W
• OFF: 0.22W
• Dimensions
• 15.5" x 9.52" x 1.71" / 394.7 mm x 242.0 mm x 43.4 mm
• Shipping Box Dimensions
• 18.5" x 13.03" x 6.89" / 470 mm x 331 mm x 175 mm
• Weight (Unpackaged)
• 6.7lbs / 3.02 Kg
• Weight (Packaged)
• 10.2lbs / 4.62 Kg
• Operating Temperature
• 0°C to 40°C / 32°F to 104°F
• Storage Temperature
• -20°C to 60°C / -4°F to 140°F
• Humidity
• Operating: 20% to 80%
• Storage: 10% to 95%
• MTBF
• 50,000 hours demonstrated

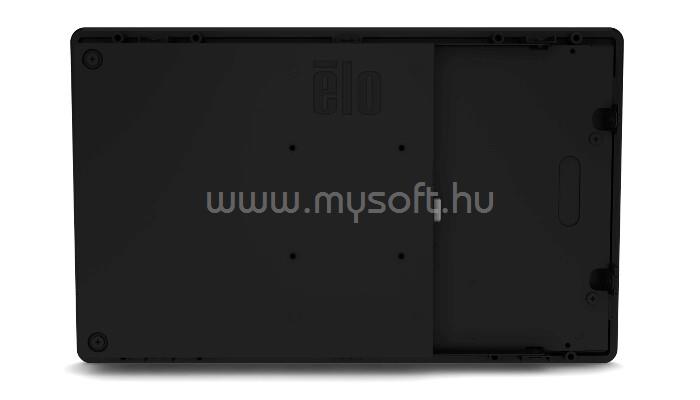

• Mounting Options
• 75 mm VESA mount
• 2-hole mounting interface on all 4 sides
• Rear mount
• Flush mount with included brackets

• What's in the Box

• HDMI cable
• VGA Cable
• RJ45 OSD Remote
• Touch USB Cable
• Quick Install Guide
• Flush Mount Brackets w/Screws
• EEI Label
• Japan Class-B TM info sheet

Garancia fogyasztók részére

• 2 év kötelező jótállás + 1 év gyártó által biztosított szervizgarancia

Garancia nem fogyasztók részére

• 3 év gyártó által biztosított szervizgarancia
