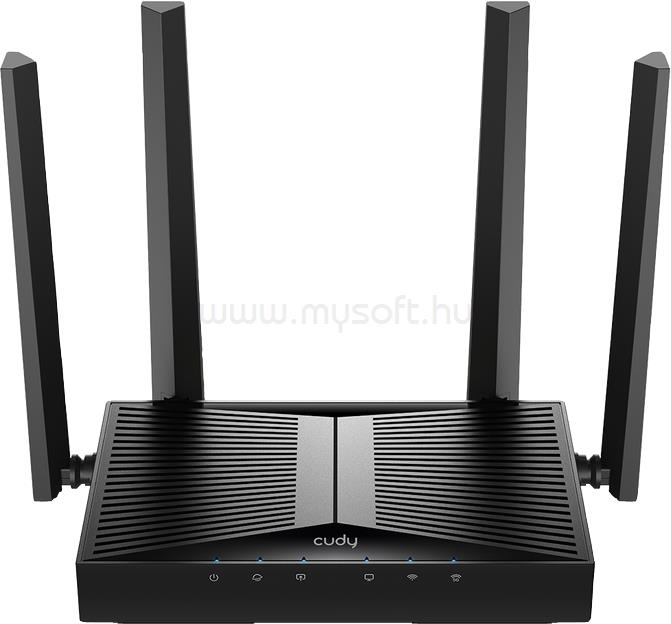

CUDY BE3600 WR3600 GIGABIT WIFI7 ROUTER

• CPU

• CPU Details
• 2.0 GHz Quad-Core, ARM Cortex-A7

• Memory/Storage

• Flash/ROM
• 128 MB (1 Gbit) NAND
• DDR/RAM
• 512 MB (4 Gbit) DDR3L

• Wireless

• 5 GHz Wi-Fi Speed
• 2882 Mbps
• 2.4 GHz Wi-Fi Speed
• 688 Mbps
• 5 GHz Wi-Fi Streams
• 2 Spatial Streams
• 2.4 GHz Wi-Fi Streams
• 2 Spatial Streams
• Wi-Fi Antennas
• 4× Fixed
• FEM or PA/LNA
• 5 GHz: 2× External
• 2.4 GHz: 2× Internal
• Beamforming
• True
• Range Performance
• Max: 220 m (722 ft)
• Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
• Wall Performance
• Two wooden walls with thickness < 10 cm (4'')
• One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')

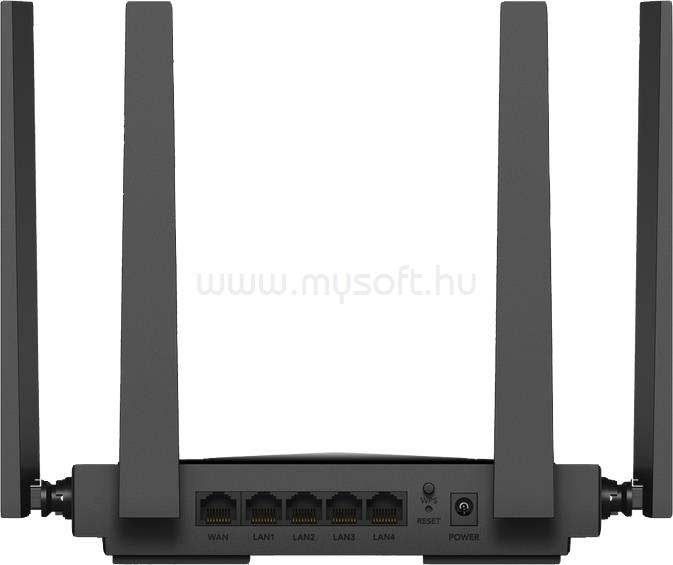

• Interfaces

• Gigabit RJ45 Ports
• 5
• Ethernet Notes
• 1× WAN port, the rest are LAN ports
• LED
• Power
• Internet
• WAN
• LAN
• 2.4 GHz Wi-Fi
• 5 GHz Wi-Fi
• Physical Buttons
• WPS Button
• Reset Button
• Power Interfaces
• DC Jack

• Power

• Power Methods
• DC
• Power Input
• 12V=1A
• Power Adapter Note
• Input: 100-240V~, 50/60Hz
• Output: 12V?1A
• Max Power Consumption (W)
• 9W

• Reliability

• Environment
• Operating Temperature: 0 ? ~ 40 ? (32 ? ~104 ?)
• Storage Temperature: -40 ? ~ 70 ? (-40 ? ~ 158 ?)
• Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5% ~ 95% non-condensing

• Mechanical

• Installation
• Desktop
• Wall-mount
• Dimension
• Device:
• 183.3×109×38 mm
• 7.22×4.29×1.5 inches
• Each Antenna:
• 175 mm
• 6.89 inches
• Product Weight
• 333.5 g (11.76 oz.)

• Package Content

• WR3600
• Power Adapter
• Ethernet Cable
• Installation Guide
