CUDY P2 KÉTSÁVOS AX3000 WIFI 6 5G/4G/LTE, NANOSIM+ESIM, 2XGIGABIT LAN, TORONY MESH ROUTER

• CPU

• CPU Details
• 1.3 GHz Dual-Core, ARM Cortex-A53

• Memory/Storage

• Flash/ROM
• 128 MB (1 Gbit) NAND
• DDR/RAM
• 256 MB (2 Gbit) DDR3

• Cellular

• Cellular Standards
• 5G Rel. 15
• DL 4G Cat. 12/ UL 4G Cat. 13
• Cellular Antennas
• 4× Internal, 2× SMA Connectors for Customized Antennas
• Detachable Cellular Antennas Connector
• SMA Female
• SIM Options
• 1× Nano SIM Slot
• eSIM (Optional for ISP Orders)

• EU Version Cellular

• Suitable Region
• Europe, Middle East, Africa, Asia-Pacific, Latin America
• Max DL Speed
• 2.6 Gbps (NSA), 2 Gbps (SA)
• Max UL Speed
• 650 Mbps (NSA), 1 Gbps (SA)
• Advanced
• 5G+4G Dual Connectivity, DL 4×4, UL 2×2 MIMO
• Cellular Bands
• 5G Sub 6 GHz: n1/3/5/7/8/20/28/38/40/41/66/77/78
• LTE-FDD: B1/2/3/4/5/7/8/20/28/38/40/41/66
• WCDMA: B1/2/5/8

• Wireless

• 5 GHz Wi-Fi Speed
• 2402 Mbps
• 2.4 GHz Wi-Fi Speed
• 574 Mbps
• 5 GHz Wi-Fi Streams
• 2T2R (2×2 MIMO)
• 2.4 GHz Wi-Fi Streams
• 2T2R (2×2 MIMO)
• Wi-Fi Antennas
• Internal
• Beamforming
• True
• FEM or PA/LNA
• 5 GHz: 3× Internal
• 2.4 GHz: 2× Internal
• Range Performance
• Max: 170 m (558 ft)
• Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
• Wall Performance
• Two wooden walls with thickness < 10 cm (4'')
• One concrete wall with thickness < 20 cm (7'')

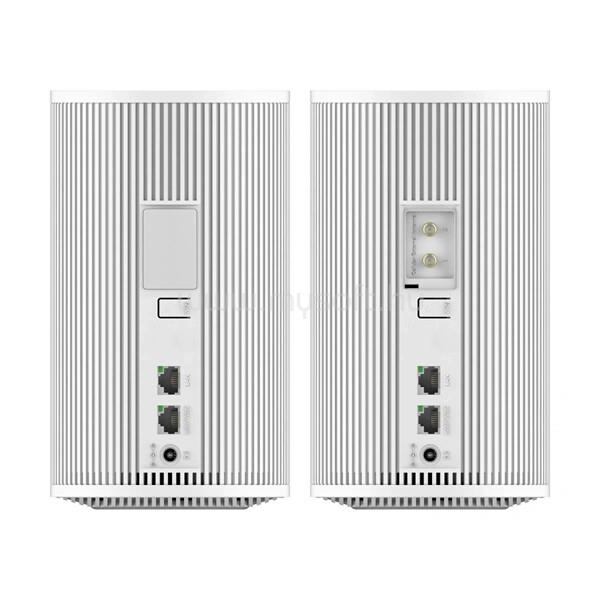

• Interfaces

• Physical Buttons
• WPS Button
• Reset Button
• Gigabit RJ45 Ports
• 2
• Ethernet Notes
• 1× RJ45 port is WAN/LAN configurable, and the rest are LAN ports
• FXS Ports
• 1× RJ11 (VoNR/VoLTE) (Optional)
• LED
• Power
• Internet
• Wi-Fi
• Cellular
• Power Input
• DC Jack

• Power

• Power Methods
• DC
• DC Input
• 12V 1.5A
• Power Adapter
• Input: 100 ~ 240 V, 50/60 Hz AC
• Output: 12V 1.5A DC
• Max Power Consumption (W)
• 13.2W
• Idle Power Consumption (W)
• TBD

• Reliability

• EMC
• ESD: Contact: 4kV; Air: 8kV
• Environment
• Operating Temperature: 0 ? ~ 40 ? (32 ? ~104 ?)
• Storage Temperature: -40 ? ~ 70 ? (-40 ? ~ 158 ?)
• Operating Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5% ~ 90% non-condensing

• Mechanical

• Dimension
• 116×202 mm
• 4.57×7.95 inches
• Product Weight
• 650.8 g (22.96 oz.)
• Installation
• Desktop

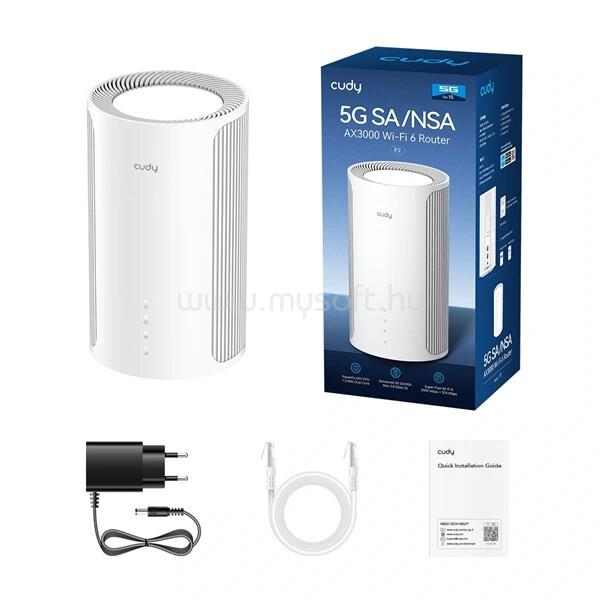

• Package Content

• P2
• Power Adapter
• Ethernet Cable
• Installation Guide

Garancia fogyasztók részére

• 2 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 2 év gyártó által biztosított szervizgarancia
