CUDY AP1300 OUTDOOR KÉTSÁVOS AC1200 WIFI, GIGABIT LAN, POE, FEHÉR KÜLTÉRI ACCESS POINT

• Model Version

• AP1300 Outdoor 1.0

• CPU

• CPU Details
• 880 MHz Dual-Core CPU

• Memory/Storage

• Flash/ROM
• 16 MB (128 Mbit) NOR
• DDR/RAM
• 128 MB (1 Gbit) DDR3

• Wireless

• 5 GHz Wi-Fi Speed
• 867 Mbps
• 2.4 GHz Wi-Fi Speed
• 300 Mbps
• 5 GHz Wi-Fi Streams
• 2T2R (2×2 MIMO)
• 2.4 GHz Wi-Fi Streams
• 2T2R (2×2 MIMO)
• Wi-Fi Antennas
• 2× Detachable
• 5 GHz Antenna Gain Max
• 4.37 dBi
• 2.4 GHz Antenna Gain Max
• 4.46 dBi
• FEM or PA/LNA
• 5 GHz: 2× Internal
• 2.4 GHz: 2× Internal
• Detachable Wi-Fi Antennas Connector
• RP-SMA Female
• Beamforming
• True
• Range Performance
• Max: 170 m (558 ft)
• Park: 150 m (492 ft)
• Street: 50 m (164 ft)
• Woods: 30 m (98 ft)
• Wall Performance
• NA

• Interfaces

• Gigabit RJ45 Ports
• 1
• Ethernet Notes
• Accepts PoE powering
• LED
• 5 GHz Wi-Fi
• 2.4 GHz Wi-Fi
• LAN
• Internet
• System
• Physical Buttons
• Reset Button
• Power Input
• PoE via Ethernet Port

• Power

• Power Methods
• 802.3at/af PoE
• Passive PoE
• Passive PoE
• 24 ~ 57V
• Power Adapter
• Input: 100 ~ 240 V, 50/60 Hz AC
• Output: 48V Passive PoE
• Max Power Consumption (W)
• 11 W
• Idle Power Consumption (W)
• 7.5 W

• Reliability

• Advanced
• Hardware Watchdog
• EMS
• ESD: Contact: 4kV; Air: 8kV
• IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV
• Environment
• Operating Temperature: -20 ? ~ 60 ? (-4 ? ~140 ?)
• Extend Operating Temperature with Industrial Grade SIM Card: -40 ? ~ 65 ? (-40 ? ~ 149 ?)
• Storage Temperature: -40 ? ~ 70 ? (-40 ? ~ 158 ?)
• Operating Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5% ~ 90% non-condensing
• Ingress Protection Rating
• IP65 When devices is installed vertically

• Certifications

• FCC, CE

• Mechanical

• Installation
• Wall-mount
• Pole-mount
• Dimension
• Device Body:
• 240×100×53.7 mm
• 9.45×3.94×2.11 inches
• Each Antenna:
• 197.5×21.6×15.5 mm
• 7.78×0.85×0.61 inches

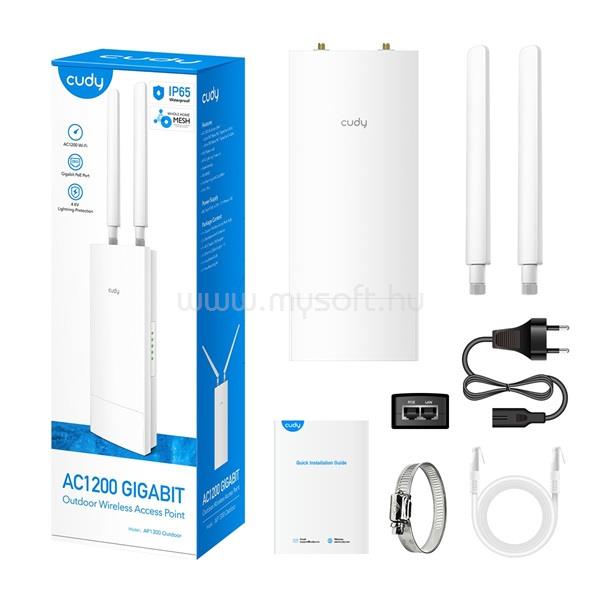

• Package Content

• AP1300 Outdoor
• Detachable Antennas
• PoE Adapter
• Power Cord
• Mounting Kit
• Ethernet Cable
• Installation Guide

Garancia fogyasztók részére

• 2 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 2 év gyártó által biztosított szervizgarancia
