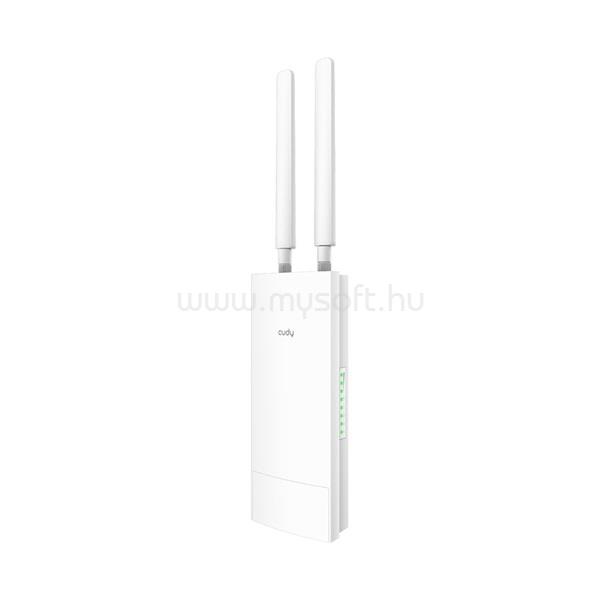

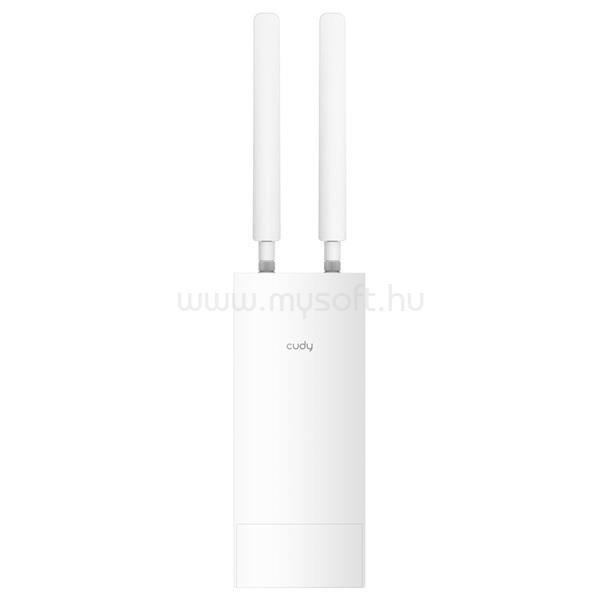

CUDY LT500 OUTDOOR_EU KÉTSÁVOS AC1200 4G LTE CAT4, 10/100 LAN, POE, FEHÉR KÜLTÉRI ROUTER

• CPU

• Chipset
• MT7628
• CPU Details
• 580 MHZ Single-Core, MIPS24KEC

• Memory/Storage

• Flash/ROM
• 16 MB (128 Mbit) NOR
• DDR/RAM
• 128 MB (1 Gbit) DDR2

• Cellular

• Cellular Standards
• 4G Cat. 4
• Cellular Antennas
• 2× Detachable
• Detachable Cellular Antennas Connector
• SMA Female
• SIM Options
• 1× Nano SIM Slot
• Available Versions
• EU, US, LA

• EU Version Cellular

• Suitable Region
• Europe, Middle East, Africa
• Max DL Speed
• 150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD)
• Max UL Speed
• 50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD)
• Advanced
• DL 2×2 MIMO
• Cellular Bands
• LTE-FDD: B1/3/5/7/8/20/28
• LTE-TDD: B38/40/41
• WCDMA: B1/5/8

• Wireless

• 5 GHz Wi-Fi Speed
• 867 Mbps
• 2.4 GHz Wi-Fi Speed
• 300 Mbps
• 5 GHz Wi-Fi Streams
• 2T2R (2×2 MIMO)
• 2.4 GHz Wi-Fi Streams
• 2T2R (2×2 MIMO)
• Wi-Fi Antennas
• 2× Internal
• Beamforming
• True
• FEM or PA/LNA
• 5 GHz: 2× Internal
• 2.4 GHz: 2× Internal
• Range Performance
• Max: 170 m (558 ft)
• Park: 150 m (492 ft)
• Street: 50 m (164 ft)
• Woods: 30 m (98 ft)
• Wall Performance
• NA

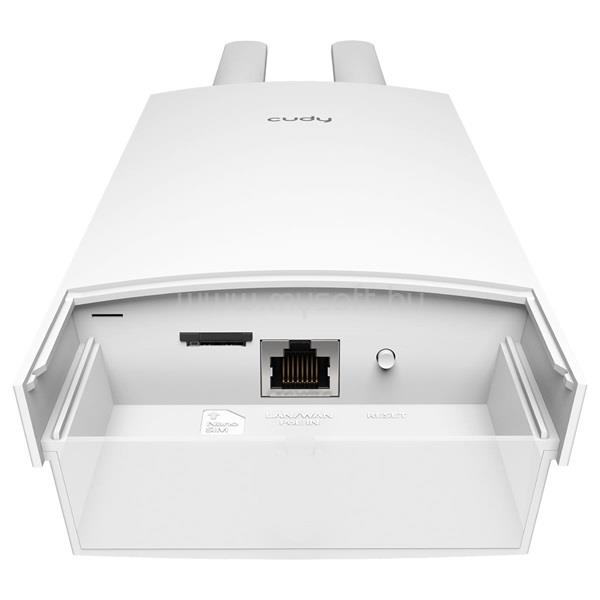

• Interfaces

• Physical Buttons
• Reset Button
• 10/100 Mbps RJ45 Ports
• 1
• Ethernet Notes
• Accepts PoE powering
• LED
• System
• Internet
• LAN
• Wi-Fi
• Cellular Signal Strength
• Power Input
• PoE via Ethernet Port

• Power

• Power Methods
• Passive PoE
• Passive PoE
• 24V
• Power Adapter
• Input: 100 ~ 240 V, 50/60 Hz AC
• Output: 24V 0.5A DC
• Max Power Consumption (W)
• 10W
• Idle Power Consumption (W)
• 5 W

• Reliability

• EMS
• ESD: Contact: 4kV; Air: 8kV
• IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV
• Environment
• Operating Temperature: -20 ? ~ 60 ? (-4 ? ~140 ?)
• Extend Operating Temperature with Industrial Grade SIM Card: -40 ? ~ 65 ? (-40 ? ~ 149 ?)
• Storage Temperature: -40 ? ~ 70 ? (-40 ? ~ 158 ?)
• Operating Humidity: 0% ~ 100% non-condensing
• Storage Humidity: 5% ~ 90% non-condensing

• Mechanical

• Dimension
• Device Body
• 240×100×53.7 mm
• 9.45×3.94×2.11 inches
• Each Antenna
• 197.5×21.6×15.5 mm
• 7.78×0.85×0.61 inches
• Product Weight
• 420 g (14.82 oz.)

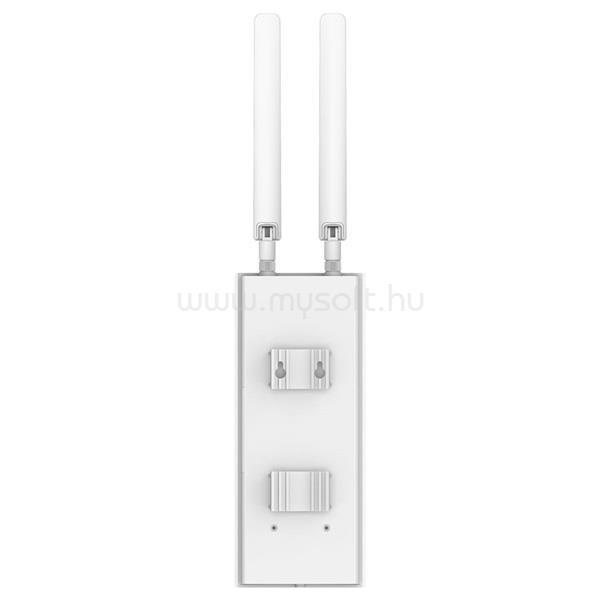

• Installation
• Wall-mount
• Pole-mount

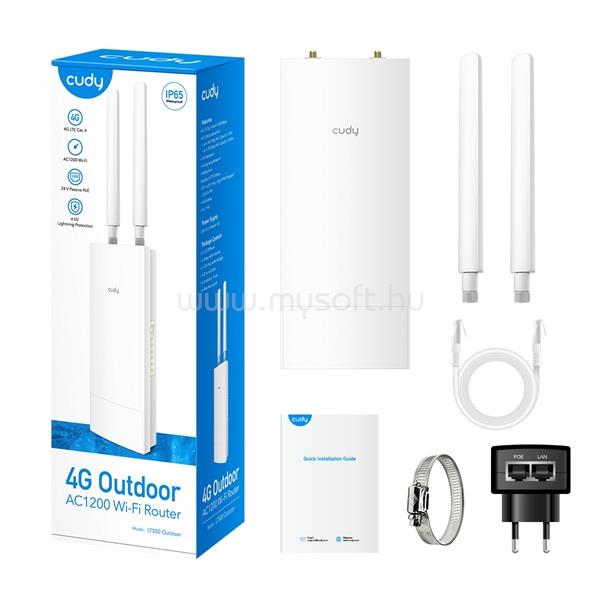

• Package Content

• LT500 Outdoor
• Detachable Antennas
• PoE Adapter
• Power Cord
• Mounting Kit
• Ethernet Cable
• Installation Guide
