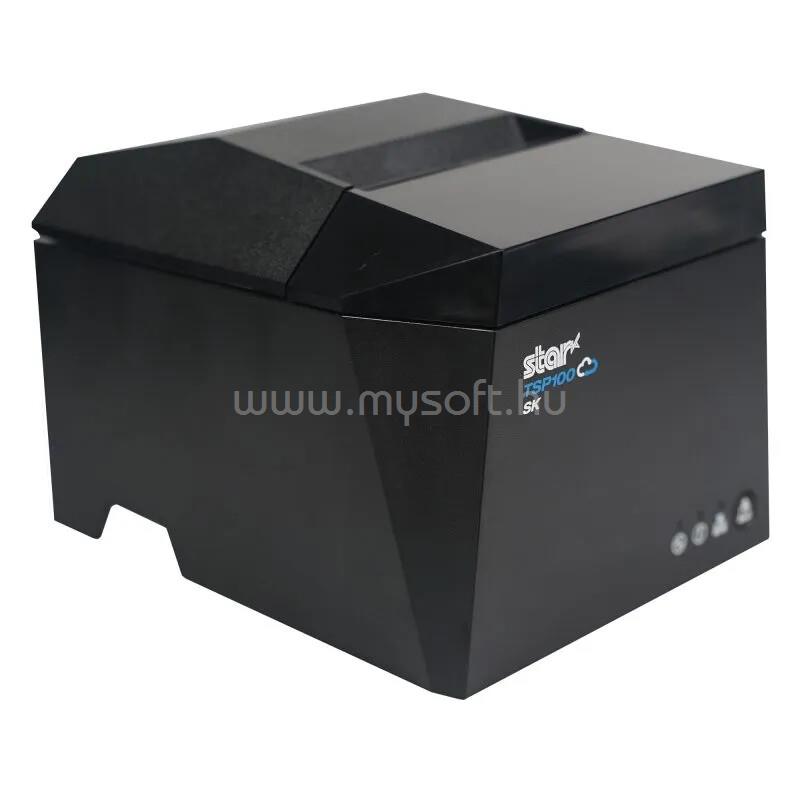

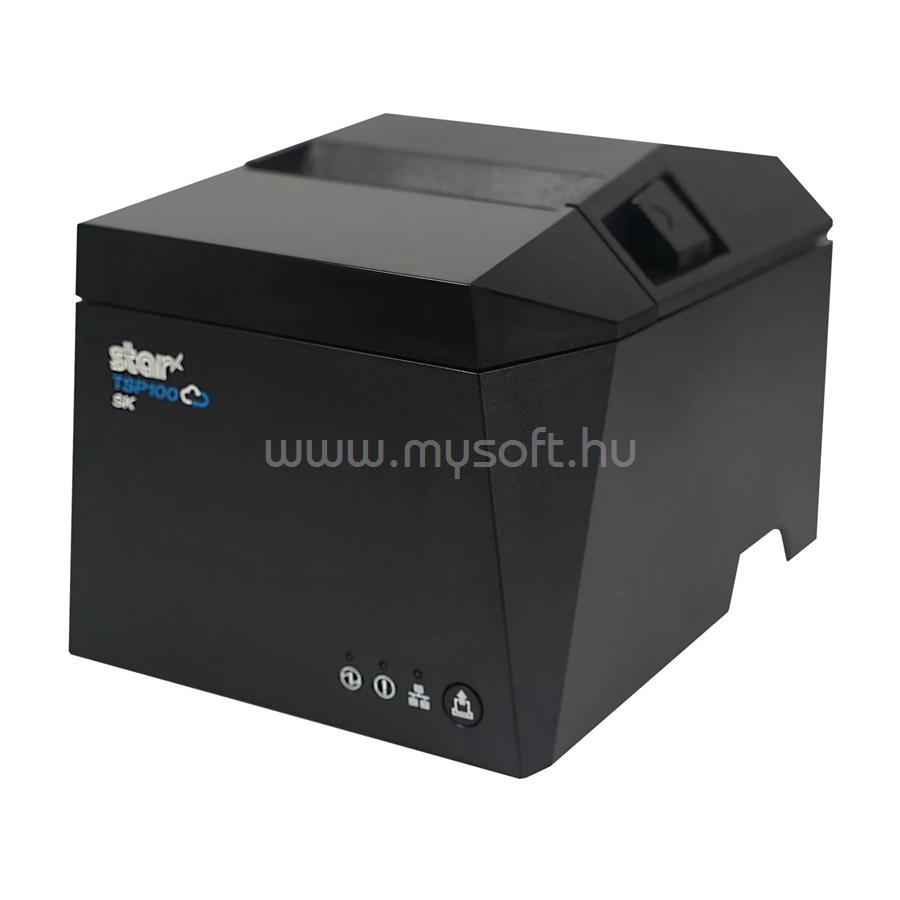

STAR TSP143IV SK X4 USB-C BLUETOOTH CÍMKEKNYOMTATÓ (FEKETE)

Funkciók

• • Másolás
  • Szkennelés
  • FAX
  • Duplex nyomtatás

Csatlakozók

• • USB
  • LAN
  • Wi-Fi
  • Párhuzamos port

Nyomtatási méret

Tálcák

• 1. tálca:
  2. tálca:

• Specification

• Printer Method
• Direct Line Thermal
• Print Speed
• Up to 180 mm/sec
• Printer Case Color
• Black (Gray)
• Connectivity
• TSP143IV SK X4 Models: USB-C, Ethernet (LAN), WLAN, Bluetooth, CloudPRNT Next, AOA (Android Open Accessory support)
• Print Resolution
• 203 dpi (8 dots per mm)
• No. of Columns
• Star Mode = 48
• Font Size
• 12 x 24
• Character Set
• ANK 95, 32 Int 128 Graphic plus Chinese, Japanese, Korean, Taiwanese
• International Code Pages
• Star Mode=48
• Bar Codes
• Extended barcode functionality - 9 versions / PDF 417, Maxicode Option
• Line Spacing
• 3 mm or 4 mm or programmable
• Paper Width
• 80 mm standard, 58 mm, and 40 mm with paper guides
• Paper Thickness
• 65 - 98 um
• Paper Roll Diameter
• Up to 83 mm
• Paper Loading
• "Drop-In & Print"
• Paper-Out Sensor
• Yes
• Maximum Print Width
• 80 mm paper = 72 mm, 58 mm paper = 50.8 mm, 40 mm paper = 34.5 mm
• Top Margin
• 5 mm default, changeable to 11 mm
• Auto-Cutter
• Guillotine (Partial Cut Only)
• Sensors
• Taken
• Paper End
• Cover Open
• Logo Store Capacity
• 512 KB Internal Printer Memory
• Journal Capability
• Available through Starmicronicscloud.com
• Drivers Available
• Windows 10, Windows 8.1, Windows© XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, POSReady2009, OPOS™, JavaPOS™ (Windows/Mac/Linux), USB Vendor Clss, CUPS Driver (Mac/Linux), Mac, Mac OS X, Linux™, StarPRNT SDK (iOS/Android/Windows Desktop/UWP), StarXpand SDK (React Native), Star WebPRNT Brower (Android), Star PassPRNT (iOS/Android/UWP)
• Digitally Signed (WHQL)
• Yes
• Emulation Modes
• Star Graphics Mode/StarPRNT
• Peripheral Drive Circuit
• 2 circuits, (24V max. 1A), 1 compulsion input
• Power Consumption
• Average 1.6 Amp. Printing, 0.1 Amp. Standby [Approx. 43W while printing; up to 53 W with a 1.5 A device connected. Approx 3.5 W in Standby;up to 13 W with a 1.5A device connected]
• Operating Temperature
• 5oC to 45oC
• Operating Humidity
• 10% - 90% RH (without condensation)
• Storage Temperature
• Temperature: -20oC to 60oC
• Storage Humidity
• 10% - 90% RH
• Dimensions
• 140 X 123 X 169 (w x h x d) mm
• Weight
• 1.3 kg
• Safety and Regulatory Standards
• UL, C-UL, TuV, FCC, VCCI, EN55022 {This is one part of FCC testing probably do not need to list it}, CE
• Reliability MCBF
• 23.5 Million Lines
• Print Head
• 75 km
• Auto-Cutter Reliability
• 800,000 cuts

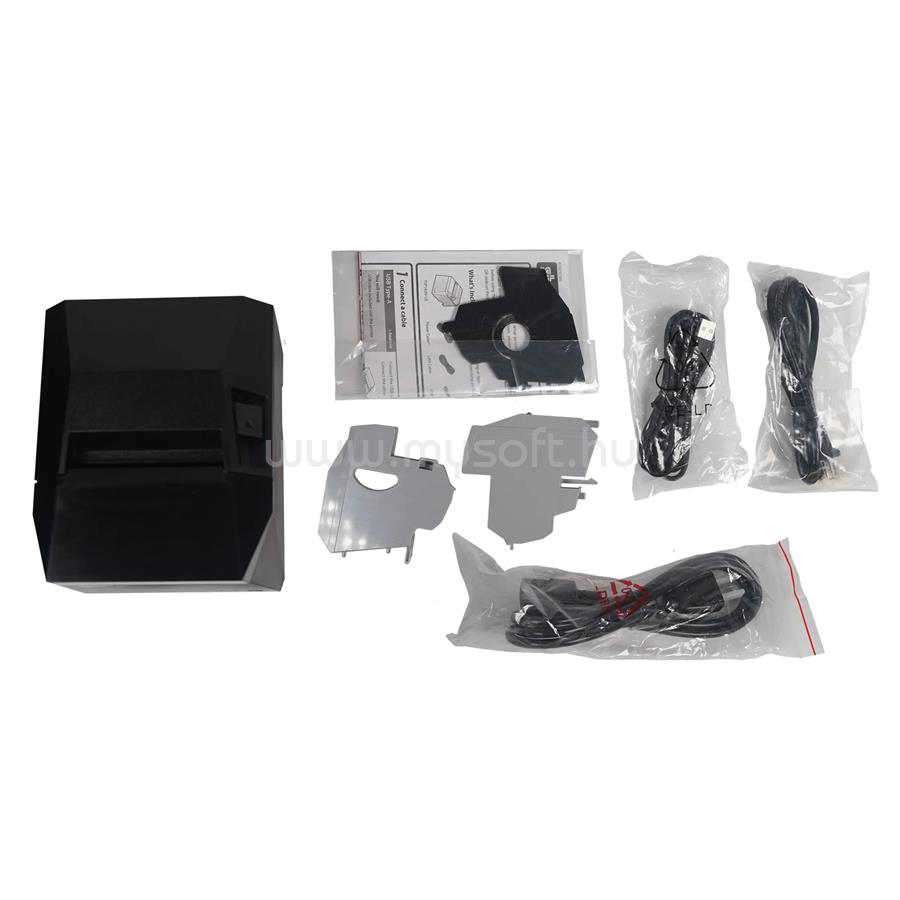

• What's in the Box

• Power Cable
• USB Cable (C to A)
• Paper Roll Guide (58 mm)
• Paper Roll Guide A/B (39 mm)
• Rubber Feet x 2
• Safety Instructions
• Easy Setup Guide

Garancia fogyasztók részére

• 2 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 1 év gyártó által biztosított szervizgarancia
