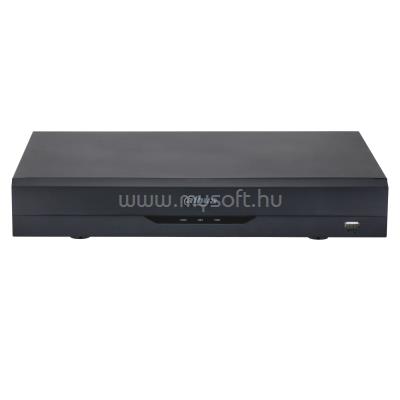

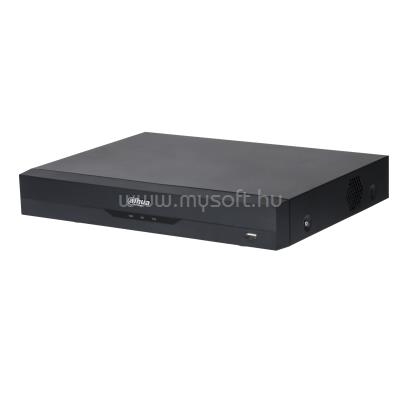

DAHUA XVR5104HS-4KL-I3 XVR RÖGZÍTŐ (4 PORT, 8MP/7FPS, 6MP/10FPS, 4MP/15FPS, 2MP/30FPS, H265+, 1X SATA, HDMI, USB, AI)

• System

• Main Processor
• Industrial-grade processor
• Operating System
• Embedded Linux
• Operating Interface
• Web; Local GUI

• Quick Pick

• QuickPick 2.0 AI by Recorder (Number of Channels)
• 2 channels

• Perimeter Protection

• Perimeter Performance AI by Recorder (Number of Channels)
• Advanced Mode: 2 channels, 10 IVS rules for each channel
• General Mode: 4 channels, 10 IVS rules for each channel

• Face Detection

• Face Attributes
• 6 attributes
• Face Detection Performance of AI by Recorder (Number of Channels)
• 2 channels(up to 8 face images/s each channel)

• Privacy Protection

• Privacy Protection Performance of AI by Recorder (Number of Channels)
• 1 channel

• Face Recognition

• Face Database Capacity
• Up to 10 face databases with 20,000 images.
• Face Recognition Performance of AI by Recorder (Number of Channels)
• 2 channels

• SMD Plus

• SMD Plus by Recorder
• 4 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
• SMD Plus by Camera
• 8 channels

• AI Video Quality Analytics

• AI Video Quality Analytics by Recorder
• 4 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white

• Scene Changing

• Scene Changing by Recorder
• 1 channel

• Irregular Black Block Masking

• Irregular Black Block Masking by Recorder
• 1 channel

• Audio and Video

• Analog Camera Input
• 4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
• Camera Input
• 1. CVI: 4K@25/30 fps; 4K@12.5/15 fps; 6 MP@20 fps; 5 MP@25 fps; 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps; 720p@50/60 fps.
• 2. TVI: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.
• 3. AHD: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.
• IP Camera Input
• Up to 8 channels of IPC access
• 4 IP channels by default + 4 channels (analog channels are converted to IP channels)
• Incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps
• *After IP extension is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, SMD, Perimeter Protection, QuickPick 2.0 and Privacy Protection cannot be used.
• Encoding Capacity
• Encode Enhancement disabled:
• Main stream:
• 4K@(1 fps-7 fps); 6 MP@(1 fps-10 fps); 5 MP@(1 fps-12 fps); 4K-N/4 MP/3 MP@(1 fps-15 fps); 4M-N/1080p/720p/960H/D1/CIF@(1 fps-25/30 fps)
• Sub stream:
• 960H@(1 fps-15 fps); D1/CIF@(1 fps-25/30 fps)
• Encode Enhancement enabled:
• Main stream:
• the 1st channel 4K@(1 fps-15 fps), others 4K@(1 fps-7 fps);
• the 1st channel 6 MP@(1 fps-20 fps), others 6 MP@(1 fps-10 fps);
• the 1st channel 5 MP@(1 fps-25 fps), others 5 MP@(1 fps-12 fps);
• the 1st channel 4K-N/4 MP/3 MP@(1 fps-25/30 fps), others 4K-N/4 MP/3 MP@(1 fps-15 fps);
• 4K/6 MP@(1 fps-10 fps);5 MP@(1 fps-12 fps); 4K-N/4 MP/3 MP@(1 fps-15 fps); 4M-N/1080p/720p/960H/D1/CIF@(1 fps-25/30 fps)
• Sub stream:
• 960H@(1 fps-15 fps); D1/CIF@(1 fps-25/30 fps)
• *When Encode Enhancement is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection, QuickPick 2.0 and Privacy Protection cannot be used.
• Dual-stream
• Yes
• Video Bit Rate
• 32 kbps-6144 kbps
• Audio Sampling
• 8 kHz, 16 bit
• Audio Bit Rate
• 64 kbps
• Video Output
• 1 HDMI, 1 VGA
• HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
• VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
• *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable.
• Multi-screen Display
• When IP extension mode not enabled: 1/4
• When IP extension mode enabled: 1/4/8/9
• Third-party Camera Access
• Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF

• Compression Standard

• Video Compression
• AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
• Audio Compression
• G.711a; G.711u; PCM

• Network

• Network Protocol
• HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
• Mobile Phone Access
• iOS; Android
• Interoperability
• ONVIF 23.12 (Profile T; Profile S; Profile G); CGI; SDK
• Browser
• Chrome; IE; Safari; Edge; Firefox

• Recording Playback

• Record Mode
• General; alarm; motion detection; intelligent; POS
• Recording Playback
• 1/4
• Backup Method
• USB device and network
• Playback Mode
• Instant playback; general playback; event playback; tag playback; smart playback

• Alarm

• General Alarm
• Motion detection; alarm box; HDCVI alarm; camera external alarm; network alarm; PIR alarm
• Anomaly Alarm
• Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline
• Intelligent Alarm
• Face detection; face recognition; perimeter protection; SMD Plus
• Alarm Linkage
• Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email

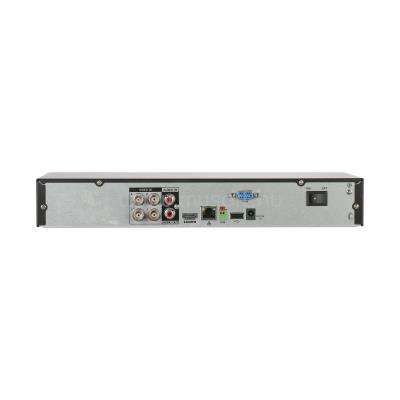

• Ports

• Audio Input
• 1-channel RCA
• 4-channel BNC (Coaxial Audio)
• Audio Output
• 1-channel RCA
• Two-way Talk
• Yes (share the same audio input with the first channel)
• Disk Interface
• 1 SATA port. up to 16 TB. This limit varies depending on the environment temperature.
• RS-485
• 1
• USB
• 2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
• HDMI
• 1
• VGA
• 1
• Network Port
• 1 (10/100 Mbps Ethernet port, RJ-45)

• General

• Power Supply
• 12 VDC, 2 A
• Power Consumption
• <7 W (without HDD)
• Net Weight
• 0.96 kg (2.12 lb)
• Gross Weight
• 1.37 kg (3.03 lb)
• Product Dimensions
• 260.0 mm × 237.8 mm × 47.6 mm (10.24" × 9.37" × 1.87") (W × D × H)
• Packaging Dimensions
• 333.0 mm × 89.0 mm × 315.0 mm (13.12" × 3.51" × 12.41") (W × D × H)
• Operating Temperature
• -10 °C to +55 °C (+14 °F to +131 °F)
• Storage Temperature
• -20 °C to +60 °C (-4 °F to +140 °F)
• Operating Humidity
• 10%-90% (RH), non-condensing
• Installation
• Desktop
