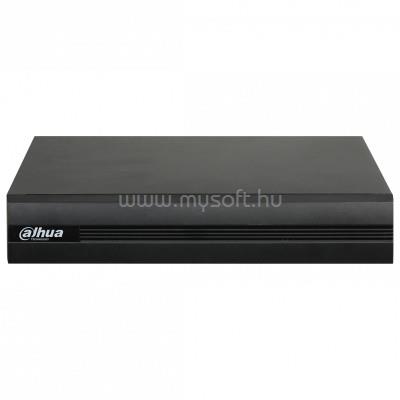

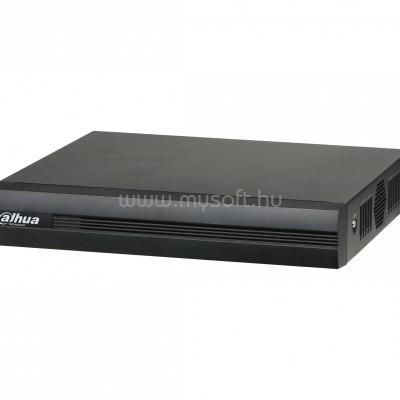

DAHUA XVR1B16-I XVR RÖGZÍTŐ (16 PORT; 2MP/30FPS; H265+, 1X SATA, HDMI)

• System

• Main Processor
• Industrial-grade processor
• Operating System
• Embedded Linux
• Operating Interface
• Web; Local GUI

• SMD Plus

• SMD Plus by Recorder
• 8 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change

• Audio and Video

• Analog Camera Input
• 16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
• Camera Input
• 1. CVI: 1080p@25/30 fps; 720p@25/30 fps.
• 2. TVI: 1080p@25/30 fps; 720p@25/30 fps.
• 3. AHD: 1080p@25/30 fps; 720p@25/30 fps.
• IP Camera Input
• Up to 18 channels of IPC access
• 2 IP channels by default + 16 channels (analog channels are converted to IP channels)
• Incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps
• *After IP extension is enabled, the AI Function (SMD) will be disabled.
• Encoding Capacity
• Main stream: the 1st channel 1080N/720p@(1 fps-25/30 fps), others 1080N/720p@(1 fps-15 fps); 960H/D1/CIF@(1 fps-25/30 fps)
• Sub stream: CIF@(1 fps-7 fps)
• Dual-stream
• Yes
• Video Bit Rate
• 32 kbps-4096 kbps
• Audio Sampling
• 8 kHz, 16 bit
• Audio Bit Rate
• 64 kbps
• Video Output
• 1 HDMI, 1 VGA
• HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720
• VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
• Multi-screen Display
• When IP extension mode not enabled: 1/4/8/9/16
• When IP extension mode enabled: 1/4/8/9/16/25
• Third-party Camera Access
• Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF

• Compression Standard

• Video Compression
• AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
• Audio Compression
• G.711a; G.711u; PCM

• Network

• Network Protocol
• HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
• Mobile Phone Access
• iOS; Android
• Interoperability
• ONVIF 22.12 (Profile T; Profile S; Profile G); CGI; SDK
• Browser
• Chrome; IE; Safari; Edge; Firefox

• Recording Playback

• Record Mode
• General; alarm; motion detection
• Recording Playback
• 1/4/9/16
• Backup Method
• USB device and network
• Playback Mode
• Instant playback; general playback; event playback; tag playback; smart playback

• Alarm

• General Alarm
• Motion detection; HDCVI alarm; camera external alarm; network alarm; PIR alarm
• Anomaly Alarm
• Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline
• Intelligent Alarm
• SMD Plus
• Alarm Linkage
• Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email

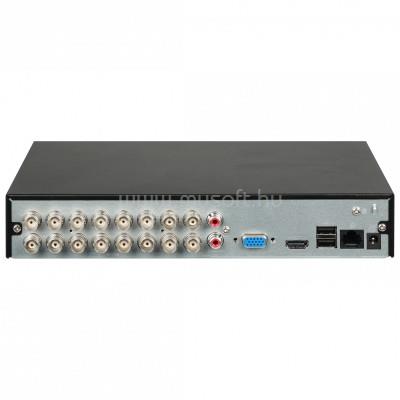

• Ports

• Audio Input
• 1-channel RCA
• 16-channel BNC (Coaxial Audio)
• Audio Output
• 1-channel RCA
• Two-way Talk
• Yes (share the same audio input with the first channel)
• Disk Interface
• 1 SATA port, up to 16 TB. This limit varies depending on the environment temperature.
• USB
• 2 (2 rear USB 2.0 ports)
• HDMI
• 1
• VGA
• 1
• Network Port
• 1 (10/100 Mbps Ethernet port, RJ-45)

• General

• Power Supply
• 12 VDC, 2 A
• Power Consumption
• <10 W (without HDD)
• Net Weight
• 0.89 kg (1.96 lb)
• Gross Weight
• 1.42 kg (3.13 lb)
• Product Dimensions
• 260.0 mm × 229.6 mm × 47.6 mm (10.24" × 9.04" × 1.87") (W × D × H)
• Packaging Dimensions
• 333.0 mm × 89.0 mm × 315.0 mm (13.11" × 3.50" × 12.40") (W × D × H)
• Operating Temperature
• -10 °C to +45 °C (+14 °F to +113 °F)
• Storage Temperature
• -20 °C to +60 °C (-4 °F to +140 °F)
• Operating Humidity
• 10%-90% (RH), non-condensing
• Installation
• Desktop
