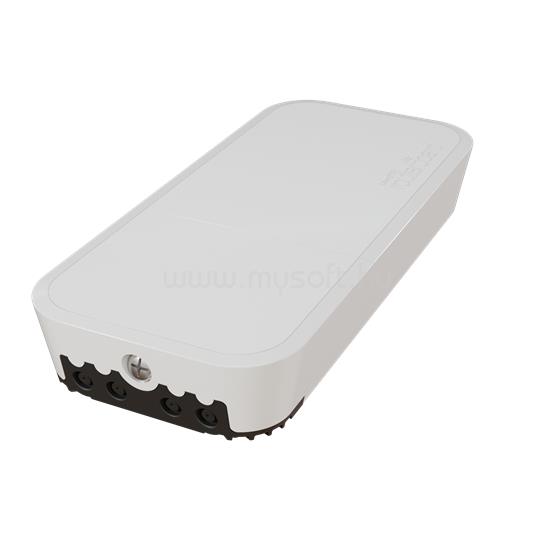

MIKROTIK WAP AC LTE KIT 2024 ACCESS POINT, 802.11AC WIFI, 1X SIM, 2X GIGABITES RJ45 PORT

• Specifications

• Architecture
• ARM 32bit
• CPU
• IPQ-4018
• CPU core count
• 4
• CPU nominal frequency
• 488-896 (auto) MHz
• CPU Threads count
• 4
• Switch chip model
• IPQ-4018
• RouterOS license
• 4
• Operating System
• RouterOS v7
• Size of RAM
• 128 MB
• Storage size
• 16 MB
• Storage type
• FLASH
• MTBF
• Approximately 200'000 hours at 25C
• Tested ambient temperature
• -30°C to 60°C

• Powering

• Number of DC inputs
• 2 (DC jack, PoE-IN)
• DC jack input Voltage
• 10-57 V
• Max power consumption
• 12 W
• PoE in
• 802.3af/at
• Cooling type
• Passive
• PoE in input Voltage
• 18-57 V

• Mobile

• 2G Category
• Class12
• 2G bands
• 8 (900MHz)
• 3 (1800MHz)
• 3G Category
• R7 (21Mbps Downlinks, 5.76Mbps Uplink)
• 3G bands
• 5 (850MHz)
• 8 (900MHz)
• 1 (2100MHz)
• LTE Category
• 4 (150Mbps Downlink, 50Mbps Uplink)
• LTE FDD bands
• 20 (800MHz)
• 3 (1800MHz)
• 1 (2100MHz)
• 7 (2600MHz)
• 8 (900 MHz)
• 5 (850MHz)
• 28 (700MHz)
• LTE TDD bands
• 40 (2300MHz)
• 38 (2600MHz)
• 41n (2500MHz)
• TAC
• 86314105

• Wireless specifications

• Wireless 2.4 GHz Max data rate
• 300 Mbit/s
• Wireless 2.4 GHz Number of chains
• 2
• Wireless 2.4 GHz standards
• 802.11b/g/n
• Antenna gain dBi for 2.4 GHz
• 2.5
• Wireless 2.4 GHz chip model
• IPQ-4018
• Wireless 2.4 GHz generation
• Wi-Fi 4
• Wireless 5 GHz Max data rate
• 867 Mbit/s
• Wireless 5 GHz Number of chains
• 2
• Wireless 5 GHz standards
• 802.11a/n/ac
• Antenna gain dBi for 5 GHz
• 2.5
• Wireless 5 GHz chip model
• IPQ-4018
• Wireless 5 GHz generation
• Wi-Fi 5

• Ethernet

• 10/100/1000 Ethernet ports
• 2

• Peripherals

• Number of SIM slots
• 1 Modem (Micro SIM)
• MiniPCI-e slots
• 1

• Other

• PCB temperature monitor
• Yes
• Voltage Monitor
• Yes

• Included parts

• 24V 0.8A power adapter
• K-52 fastening set
• Gigabit PoE injector
• K-50 locking set
• wAP desktop stand
• wAP ceiling mount bracket
• wAP mount
• Hose clamp 1
• Plastic zip tie
