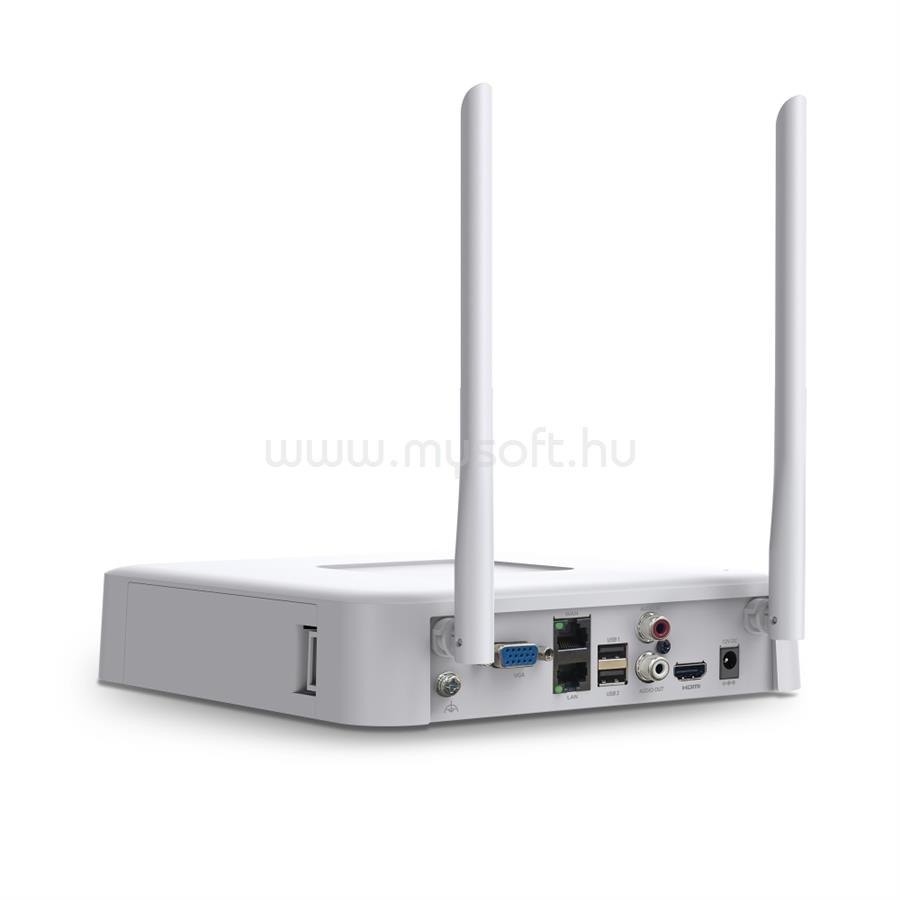

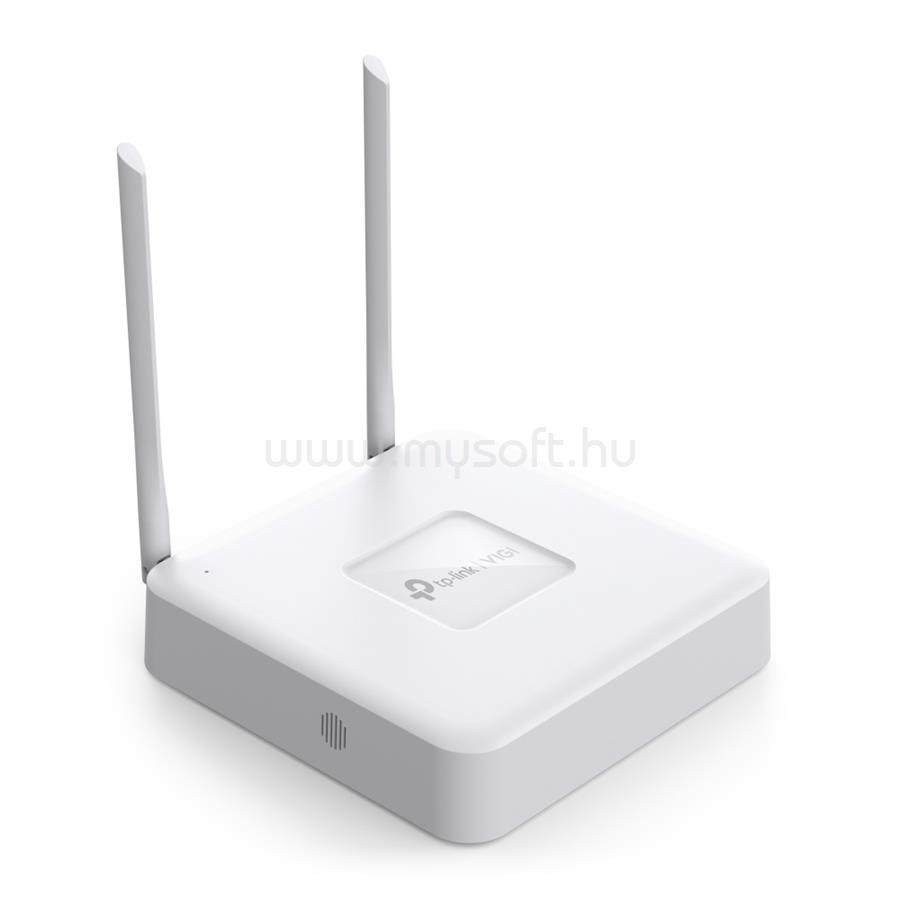

TP-LINK NVR1108H-W NVR RÖGZÍTŐ (2,4GHZ WIFI, 300MBPS; 8 CSATORNA; H265+, 8MP, HDMI+VGA, 2XUSB, 1XSATA(MAX10TB), AUDIO)

• Video and Audio

• IP Video Input
• 8-Channel
• Incoming Bandwidth
• 80 Mbps
• Outgoing Bandwidth
• 60 Mbps
• HDMI Output Resolution
• 1 Channel, Resolution: 3840 ×2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA Output Resolution
• 1 Channel, Resolution: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Video Output Mode
• HDMI/VGA Simultaneous Output
• Multi-View Display
• 1/4/6/8

• DECODING

• Audio Compression
• G.711A/G.711U/G.726
• Video Compression
• H.265+/H.265/ H.264+/H.264
• Record Resolution
• 8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
• Synchronous Playback
• 8-Channel
• Capability
• 25fps: 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP
• 30fps: 4-ch @ 3MP, 2-ch @ 5MP

• Record Management

• Record Mode
• Manual Recording . Scheduling Recording . Motion Detection Recording
• Playback Mode
• Instant Playback . Regular Playback . Tag Playback . Event Playback
• Backup Mode
• Regular Backup . Video Clip Backup
• Playback Function
• Play
• Pause
• Stop
• Fast Forward
• Fast Backward
• Play By Frame
• Video Clip
• Export Clip
• Lock Recording
• Audio On/Off

• NETWORK

• Protocol
• UPnP (Plug and Play), NTP (Network Timing), SMTP, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP
• Mobile Phone Access
• Android, iOS
• Web Browser
• Chrome (57+), Firefox (52+), Edge (91+)
• Interoperability
• ONVIF Profile S/T/G, CGI

• WIRELESS

• Standards and Protocols
• IEEE 802.11b/g/n
• WiFi Channels
• UN: 1-13 . US: 1-11
• Wireless Name
• SSID Configuration . Radio
• Network Switch
• Yes
• Frequency
• 2.4 GHz
• Auto Wireless Channel
• N/A
• Wireless Statistics
• N/A
• Throughput Monitoring
• N/A
• Radio Bandwidth
• Auto: Yes
• 20M: Yes
• 40M: Yes
• Wireless Rate
• 300Mbps(802.11n), 2 × 2 MIMO
• Wireless Security
• WPA-PSK/WPA2-PSK

• External Interface

• Network Interface
• 1× RJ-45 10/100 Mbps Self-Adaptive WAN/LAN Ethernet Interface
• 1× RJ-45 10/100 Mbps Self-Adaptive LAN Ethernet Interface
• USB Interface
• 2× USB 2.0
• Audio Interface
• 1-ch RCA Input; 1-ch RCA Output
• Alarm In/Out
• N/A
• Serial Interface
• N/A
• Power
• 1× DC Jack
• Reset Button
• 1
• Speaker
• 1; Real-time Audio Output without Needing Peripherals.
• eSATA
• N/A
• HDMI
• 1
• VGA
• 1

• HARD DISK

• SATA
• 1 SATA Interface
• Capacity
• Up to 10 TB Capacity for Each HDD**

• Alarm

• General Alarm
• Motion Detection
• Video Tampering
• Scene Change Detection
• Line-Crossing Detection Intrusion Detection
• Region Entering Detection
• Region Exiting Detection
• Loitering Detection
• Object Abandoned/Removal Detection
• Vehicle Detection
• Human Detection Abnormal Sound Detection
• Smart Frame (Note: The alarm function requires the use of a camera.)
• Anomaly Alarm
• Video Loss
• Offline and IP Conflict
• Disk Exception
• Login Exception (Note: The alarm function requires the use of a camera.)
• Alarm Linkage
• Recording
• White Light Alarm
• Log
• Audible Alarm (Note: The alarm function requires the use of a camera.)

• GENERAL

• Storage Temperature
• -40-70 °C
• Storage Humidity
• 10%~90% RH Non-Condensing

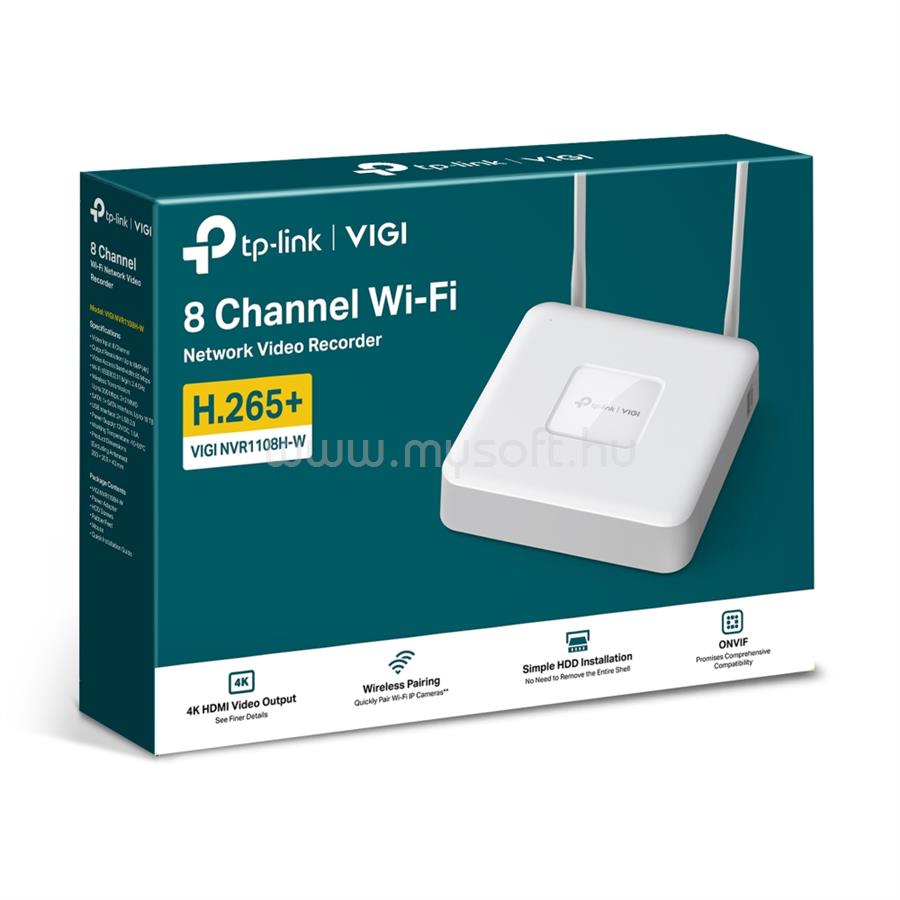

• Package Content
• VIGI Network Video Recorder
• Power Adapter
• HDD Screws
• Mouse . Quick Installation Guide
• Working Temperature
• NVR: -10-55 °C
• Power Adapter: 0-40 °C
• Working Humidity
• 10%~90% RH Non-Condensing
• Dimensions( W X D X H )
• Excluding Antennas: 7.9 × 7.9 × 1.7 in (200.3 × 200.3 × 43 mm)
• External Power Supply
• DC 12V/2A
• Net Weight
• 0.5 kg
• Gross Weight
• 1.0 kg
• Max. Power Consumption
• 5.7 W (Without Disk)
• 16.3 W (Without Disk)
• Antenna
• Quantity: 2
• Type: 2.4GHz Welded Non-detachable Antenna
• Gain: 5.3dBi
• Radio Frequency Transmit Power: 16dBm
• Length: 198.8 mm for Long Side and 189 mm for Short Side
• Certifications
• BSMI, CE, HDMI, JRF, KC, NCC, NTRA, VCCI
