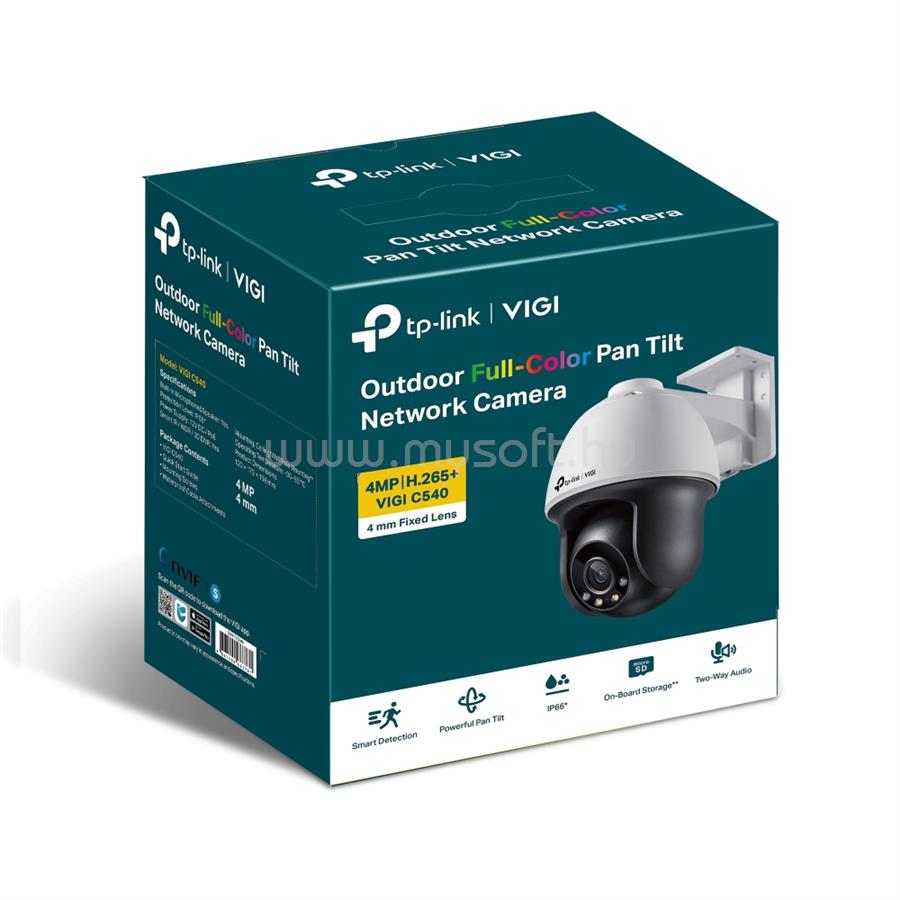

TP-LINK VIGI C540V (4MM) IP KAMERA KÜLTÉRI ÉJJELLÁTÓ 4 MEGAPIXEL, 4MM OBJEKTÍV

• KAMERA

• Képérzékelő
• 1/3" Progressive Scan CMOS
• Shutter Speed
• 1/3 to 1/10000 s
• Slow Shutter
• Yes
• Min. szükséges megvilágítás
• 0 lux with IR/white Light
• Day/Night Mechanism
• IR Cut Filter
• Day/Night Switch
• Unified/ Scheduled/ Auto
• Optika
• Fixed focal lens (2.8 mm / 4 mm / 6 mm)
• Aperture
• 4 mm: F1.6
• Lens Mount
• M12
• Látószög
• (4mm) Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°
• Digitális nagyítás
• Yes
• IR Working Distance
• 30m
• Illumination Distance
• 30 m
• Forgatási/döntési szög
• Pan: 0° to 350°, Tilt: 0° to 120°
• Digital Noise Reduction
• 3D DNR
• WDR
• DWDR
• Weatherproof Rating
• IP66

• LENS

• Type
• Fixed Focal Lens
• Focal Length
• 4 mm
• Aperture
• F1.6
• FOV
• 4mm:
• Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°
• Lens Mount
• M12
• DORI Distance
• 4 mm:
• Detect: 80 m (262 ft)
• Observe: 33 m (109 ft)
• Recognize: 16 m (52 ft)
• Identify: 8 m (26 ft)

• PTZ

• Pan/tilt Range
• Pan: 0° to 350°, Tilt: 0° to 120°
• Pan/tilt Speed
• Pan Speed:
• Configurable from 1° to 55°/s; Preset Speed: 55°/s
• Tilt Speed:
• Configurable from 1° to 40°/s, Preset Speed 40°/s
• Presets
• 300
• Patrol Scan
• 8 patrols, up to 8 presets for each patrol
• Power-off Memory
• Yes;
• Auto restore to previous PTZ and lens status after power failure
• Park Action
• Yes;
• Preset; Patrol Scan
• 3D Positioning
• Yes

• VIDEO

• Max. Resolution
• 2560 X 1440
• Main Stream
• Frame Rate:
• 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
• 2560x1440, 2304x1296, 2048x1280, 1920x1080
• Sub-Stream
• Frame Rate:
• 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
• 640x480, 352x288, 320x240
• Bit Rate Control
• CBR, VBR
• Video Compression
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
• H.264 Type
• Main Profile/High Profile
• H.264+
• Main Stream Supported
• H.265 Type
• Main Profile
• H.265+
• Main Stream Supported
• Video Bit Rate
• Main Stream: 256 Kbps to 4 Mbps
• Sub-Stream: 64 Kbps to 512 Kbps

• ILLUMINATOR

• IR LED
• Quantity: 2
• Range: 30m
• Wavelength: 850nm
• White LED
• Quantity: 2
• Range: 30m
• Illuminator On/Off Control
• Auto/Scheduled/Always on/Always off

• ANGLE ADJUSTMENT (MANUAL)

• Range
• Pan: 0° to 348°
• Tilt: 0° to 120°

• IMAGE

• Image Settings
• Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
• Image Enhancement
• BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range
• DWDR
• SNR
• > 52 dB
• Image Parameters Switch
• Yes
• Privacy Mask
• Up to 4 Masks
• ROI
• 1 Region
• OSD Setting
• Yes

• HANG

• Hangkommunikáció
• Two-Way Audio
• Hangbemenet
• Yes
• Hangkimenet
• Yes
• Hangtömörítés
• Yes
• Audio Sampling Rate
• 8KHz
• Environment Noise Filtering
• Yes
• Audio Bit Rate
• 64 Kbps(G.711 alaw)

• HÁLÓZAT

• Biztonság
• Password Protect
• ion, HTTPS Encryption, IP Address Filter, Digest Authentication
• Szabvány
• TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
• API
• ONVIF
• Simultaneous Live View
• 3 Main Streams & 3 Sub-Streams
• Web Browser
• Google Chrome© 57 and above
• Firefox© 52 and above
• Safari© 11 and above
• Microsoft© Edge 91 and above
• Cloud
• Yes
• ONVIF
• Yes

• FIZIKAI KEZELŐFELÜLET

• Hálózati csatlakozás
• 1 RJ45 10/100M Self-Adaptive Ethernet Port
• Audio Input
• Built-in Microphone
• Audio Output
• Built-in Speaker
• Alarm
• N/A
• Reset Button
• Yes
• Power
• DC Power Port
• Gomb
• Reset Button
• Slot
• Micro SD card
• On-board Storage
• Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB
• Built-in Microphone
• Yes; Records Anything Going on within a 15-ft Radius of the Camera
• Built-in Speaker
• Yes
• Audio
• N/A

• FIGYELMEZTETÉSI ÉS ESEMÉNYKEZELÉSI VEZÉRLÉS

• Smart Event
• Area Intrusion Detection, Line-Crossing Detection, People Detection
• Basic Event
• Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
• Alarm Linkage
• Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
• Linkage Method
• N/A
• Output Notification
• Message Push

• ÁLTALÁNOS

• Csomagolás tartalma
• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories (Screws, Drywall Anchors, Hex Key)
• Operating Temperature
• -30-60 °C
• Storage Temperature
• -40-60 °C
• Storage Humidity
• 95% or Less (Non-Condensing)
• Operating Humidity
• 95% or Less (Non-Condensing)
• Méret (Ma x Sz x Mé)
• 120 × 172 × 198 mm
• Material
• Plastic
• General Features
• Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
• Net Weight
• 0.62 Kg
• Gross Weight
• 0.98 Kg
• Power Consumption
• 12V DC: Max 14W
• PoE: Class 4
• Power Supply
• 12V DC +/- 5%, 5.5mm Coaxial Power Plug
• PoE (802.3af/at, class 4)
• Protection
• IP66
• Product Dimensions (L x W x H)
• 120 × 172 × 198 mm
• Certifications
• CE, RCM, BSMI, VCCI, RoHS, NTRA, KC

• VIDEÓ/KÉP

• Videó tömörítés
• Main stream: H.265+/H.265/H.264+//H.264
• Sub-Stream: H.265/H.264
• Kép frissítés (frame) és felbontás
• Main Stream
• Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080
• Sub-Stream
• Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution: 640x480, 352x288, 320x240
• Videótovábbítás
• Main Stream
• Sub-Stream
• Képbeállítás
• Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software
• Image Enhancement
• BLC/3D DNR/Prevent Overexposure to Infrared Light
• Video Bit Rate
• Main Stream: 256 Kbps to 4 Mbps
• Sub-Stream: 64 Kbps to 512 Kbps

• SMART FEATURE-SET

• Smart Event
• Area Intrusion Detection, Line-Crossing Detection, Human Detection
• Basic Event
• Motion Detection, Camera Tampering Detection, Exception ( illegal login)
• Linkage Method
• Trigger Notification: ONVIF, HTTPS
• Region of Interest
• 1 Region
