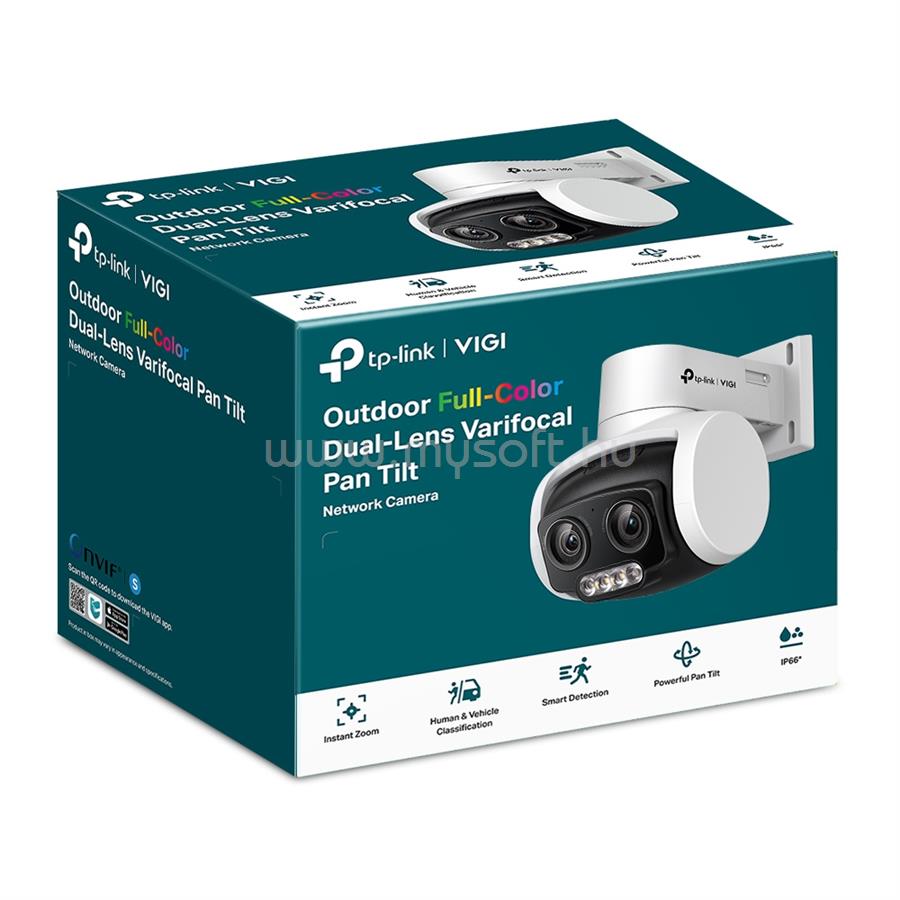

TP-LINK C540V /KÜLTÉRI/2X4MP/4-12MM MIXEDZOOM/IR/LED30M/FULLCOLOR/SMART/INSTANT ZOOM/ DUÁL-LENCSÉS IP PT KAMERA

• Kamera

• Képérzékelő
• 1/3" Progressive Scan CMOS
• Shutter Speed
• 1/3 to 1/10000 s
• Slow Shutter
• Yes
• Min. szükséges megvilágítás
• 0.005 Lux; 0 Lux with IR/white light
• Day/Night Mechanism
• IR Cut Filter
• Day/Night Switch
• Day/Night/Auto/Schedule-Switch
• Zoom
• 3x Mixed Zoom

• LENS

• Focal Length
• 4-12 mm (Mixed Zoom)
• Aperture
• F1.6
• FOV
• Diagonal FOV: 100°, Horizontal FOV: 84°, Vertical FOV: 46°
• Lens Mount
• M12*P 0.5
• DORI Distance
• 4 mm
• Detect: 80 m (262 ft)
• Observe: 33 m (109 ft)
• Recognize: 16 m (52 ft)
• Identify: 8 m (26 ft)
• . 8 mm
• Detect: 150 m (493 ft)
• Observe: 63 m (205 ft)
• Recognize: 30 m (98 ft)
• Identify: 15 m (49 ft)

• PTZ

• Pan/tilt Range
• Pan: 0° to 332°, Tilt: 0° to 120°
• Pan/tilt Speed
• Pan Speed:
• Configurable from 1° to 55°/s; Preset Speed: 55°/s
• Tilt Speed:
• Configurable from 1° to 40°/s, Preset Speed 40°/s
• Manual Control Speed
• Configurable from 8° to 35°/s
• Presets
• 300
• Patrol Scan
• 8 patrols, up to 8 presets for each patrol
• Power-off Memory
• Yes;
• Auto restore to previous PTZ and lens status after power failure
• Park Action
• Yes;
• Preset; Patrol Scan
• 3D Positioning
• Yes

• Angle Adjustment (Manual)

• Range
• Pan: 0° to 332°, Tilt: 0° to 120°

• ILLUMINATOR

• IR LED
• Quantity: 1
• Range: 30m
• Wavelength: 850nm
• White LED
• Quantity: 3
• Range: 30m
• Illuminator On/Off Control
• Auto/Scheduled/Always on/Always off

• VIDEO

• Max. Resolution
• 2560 X 1440
• Main Stream
• Frame Rate:
• 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
• 2560x1440, 2304x1296, 2048x1280, 1920x1080,1280x720
• Sub-Stream
• Frame Rate:
• 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
• 640x480, 352x288, 320x240
• Bit Rate Control
• CBR, VBR
• Video Compression
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
• H.264 Type
• Main Profile/High Profile
• H.264+
• Main Stream Supported
• H.265 Type
• Main Profile
• H.265+
• Main Stream Supported
• Video Bit Rate
• Main Stream: 256 Kbps to 4 Mbps
• Sub-Stream: 64 Kbps to 512 Kbps

• Image

• Image Settings
• Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
• Image Enhancement
• BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range
• DWDR
• SNR
• > 52 dB
• Image Parameters Switch
• Yes
• Privacy Mask
• Up to 4 Masks
• ROI
• 1 Region
• OSD Setting
• Yes

• Hang

• Hangkommunikáció
• Two-Way Audio
• Hangbemenet
• Yes
• Hangkimenet
• Yes
• Hangtömörítés
• Yes
• Audio Sampling Rate
• 8KHz
• Environment Noise Filtering
• Yes
• Audio Bit Rate
• 64 Kbps(G.711 alaw)

• Hálózat

• Szabvány
• TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
• ONVIF
• Yes
• API
• Open Network Video Interface (Profile S)
• Simultaneous Live View
• 3 Main Streams & 3 Sub-Streams
• Client
• VIGI App, VIGI Security Manager, Web UI
• Web Browser
• Google Chrome© 57 and above
• Firefox© 52 and above
• Safari© 11 and above
• Microsoft© Edge 91 and above
• Cloud
• Yes
• Biztonság
• Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

• Figyelmeztetési és eseménykezelési vezérlés

• Smart Event
• Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
• Basic Event
• Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
• Alarm Linkage
• Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
• Linkage Method
• N/A
• Output Notification
• Message Push

• Fizikai kezelőfelület

• Hálózati csatlakozás
• 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
• Alarm
• N/A
• Reset Button
• Yes
• Power
• DC Power Port
• On-board Storage
• Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB
• Built-in Microphone
• Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
• Built-in Speaker
• Yes
• Audio
• N/A

• Általános

• Operating Temperature
• -30-60 °C
• Storage Temperature
• -40-60 °C
• Operating Humidity
• 95% or Less (Non-Condensing)
• Storage Humidity
• 95% or Less (Non-Condensing)
• Csomagolás tartalma
• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
• Material
• Plastic
• Net Weight
• 0.43 Kg
• Gross Weight
• 0.66 Kg
• Power Supply
• 12V DC +/- 5%, Max. 14 W, 5.5mm Coaxial Power Plug
• PoE: 802.3at, class 4, Max. 16 W
• Protection
• IP66
• Product Dimensions (L x W x H)
• 107*136*139 mm
• Certifications
• CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC
